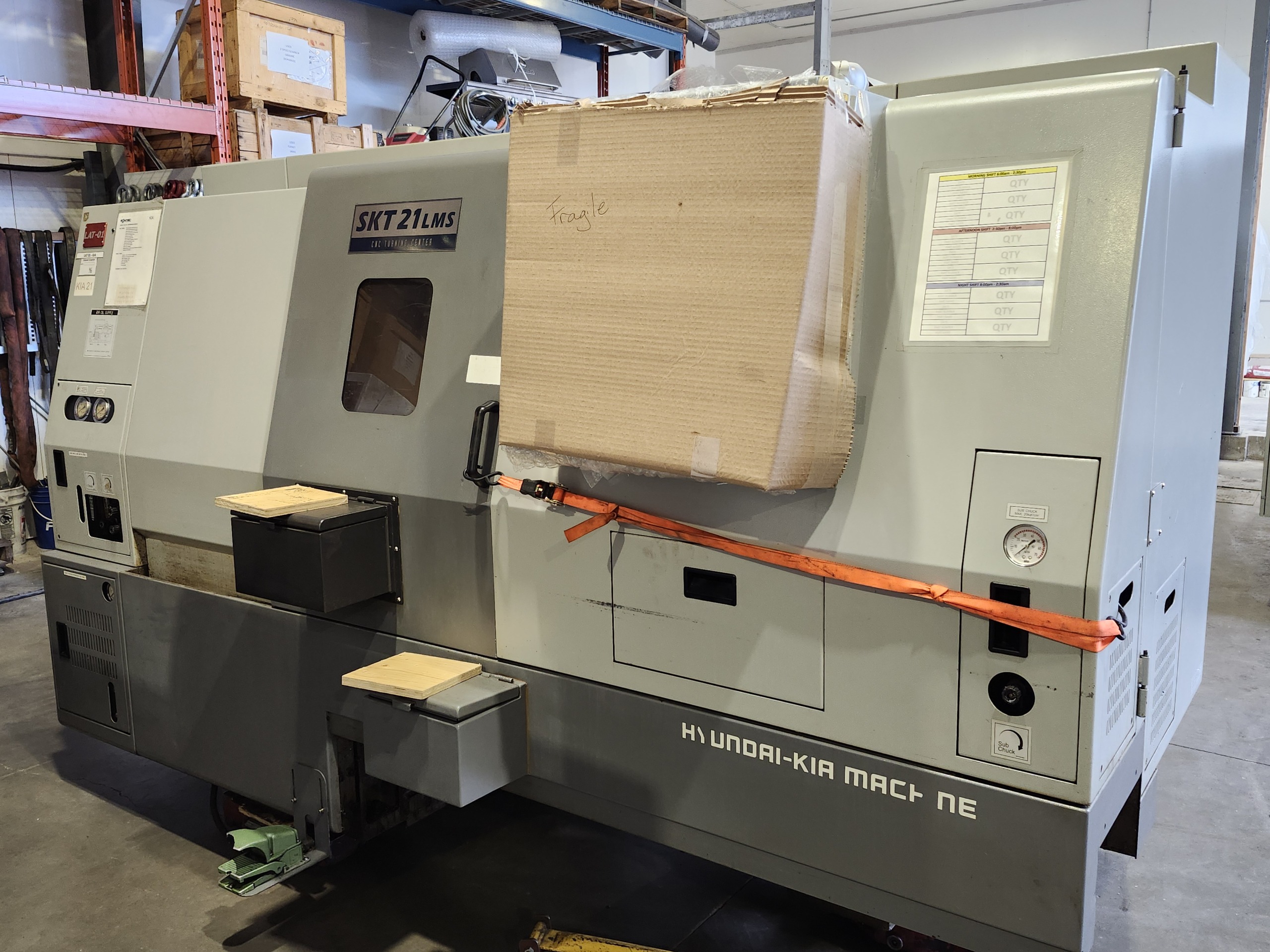

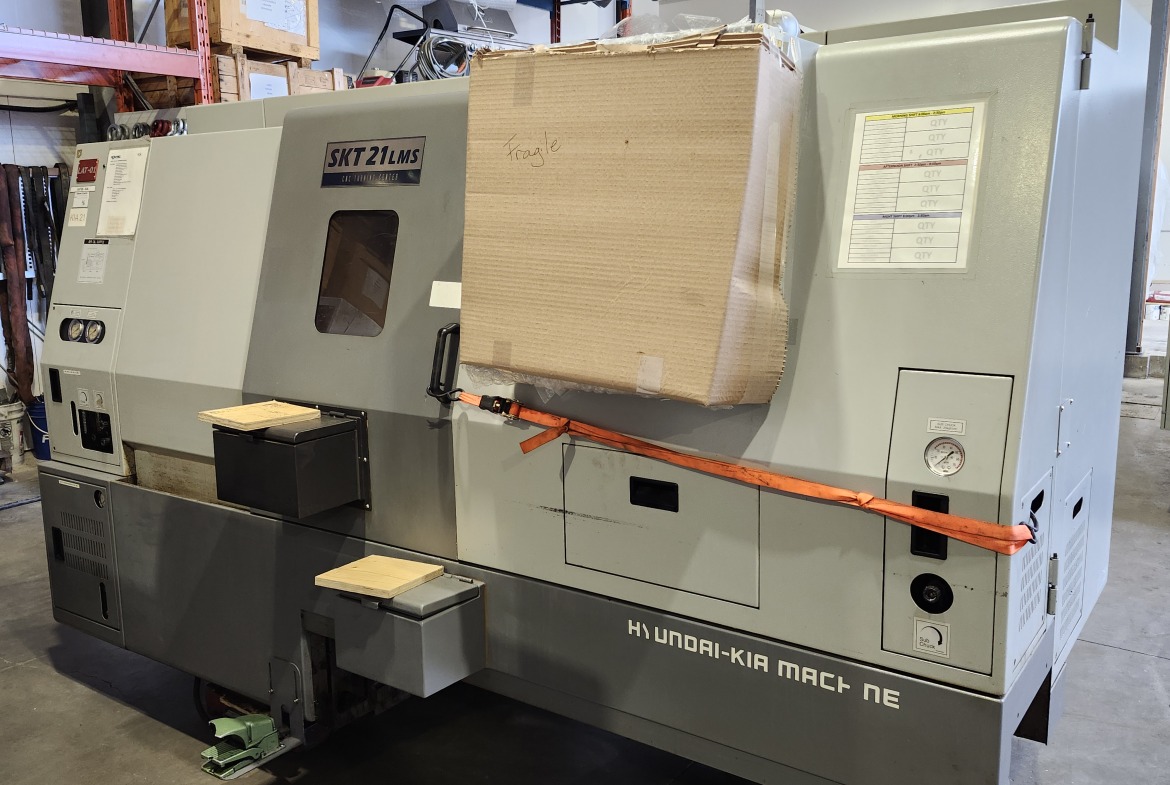

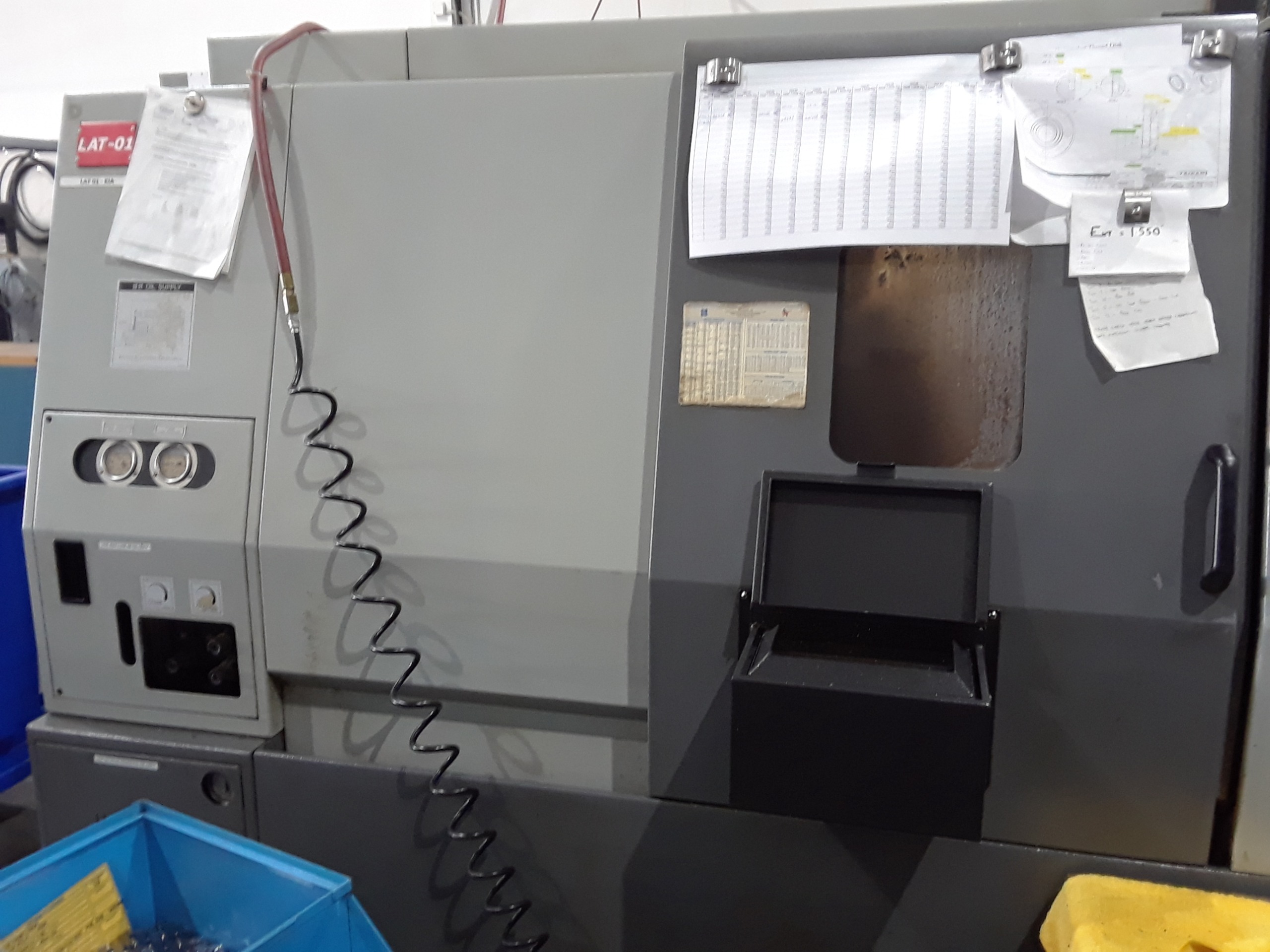

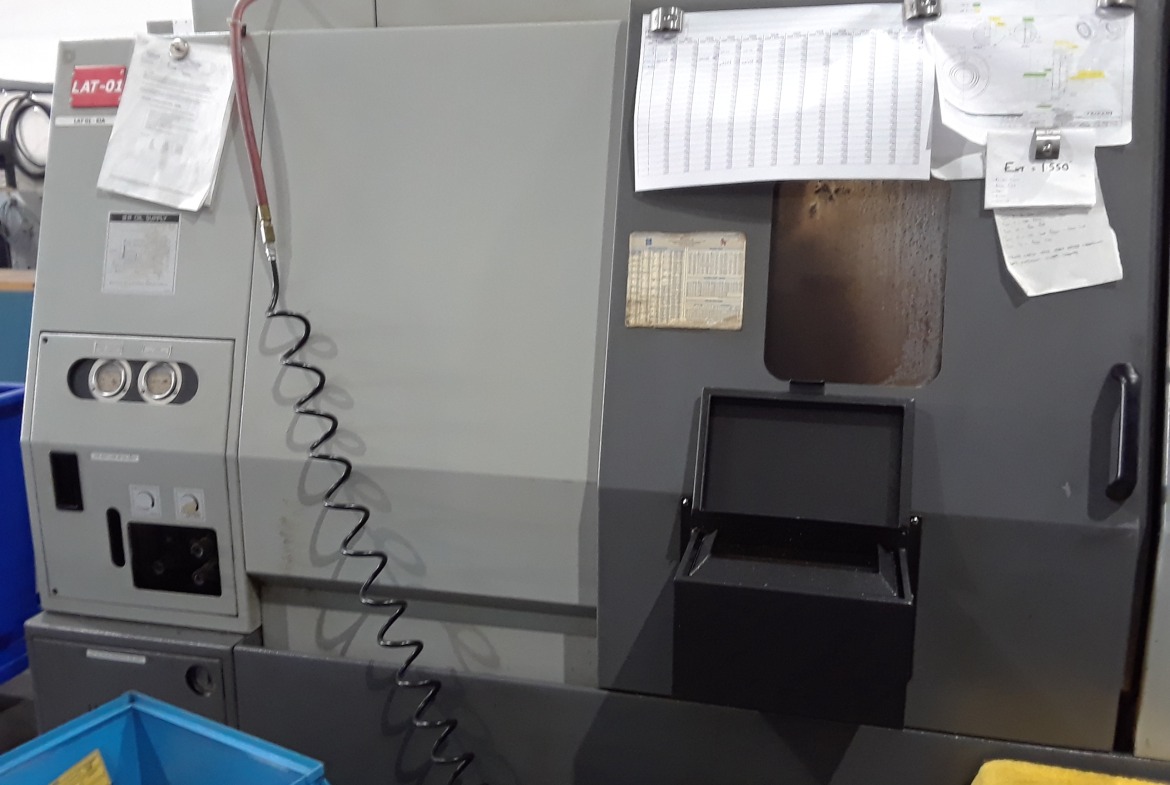

2005 Hyundai SKT 21LMS Multi-Task Turning Center
Lamarche Machinery Inc 8821 60 Ave NW, Edmonton, AB T6E 6L9đ 284
Address
Open on Google Maps- Address Lamarche Machinery Inc 8821 60 Ave NW, Edmonton, AB T6E 6L9
- City Edmonton
- State/county AB Canada
- Country Canada
Details
Updated on July 23, 2025 at 8:46 pm- Listing ID: SKT210
Description

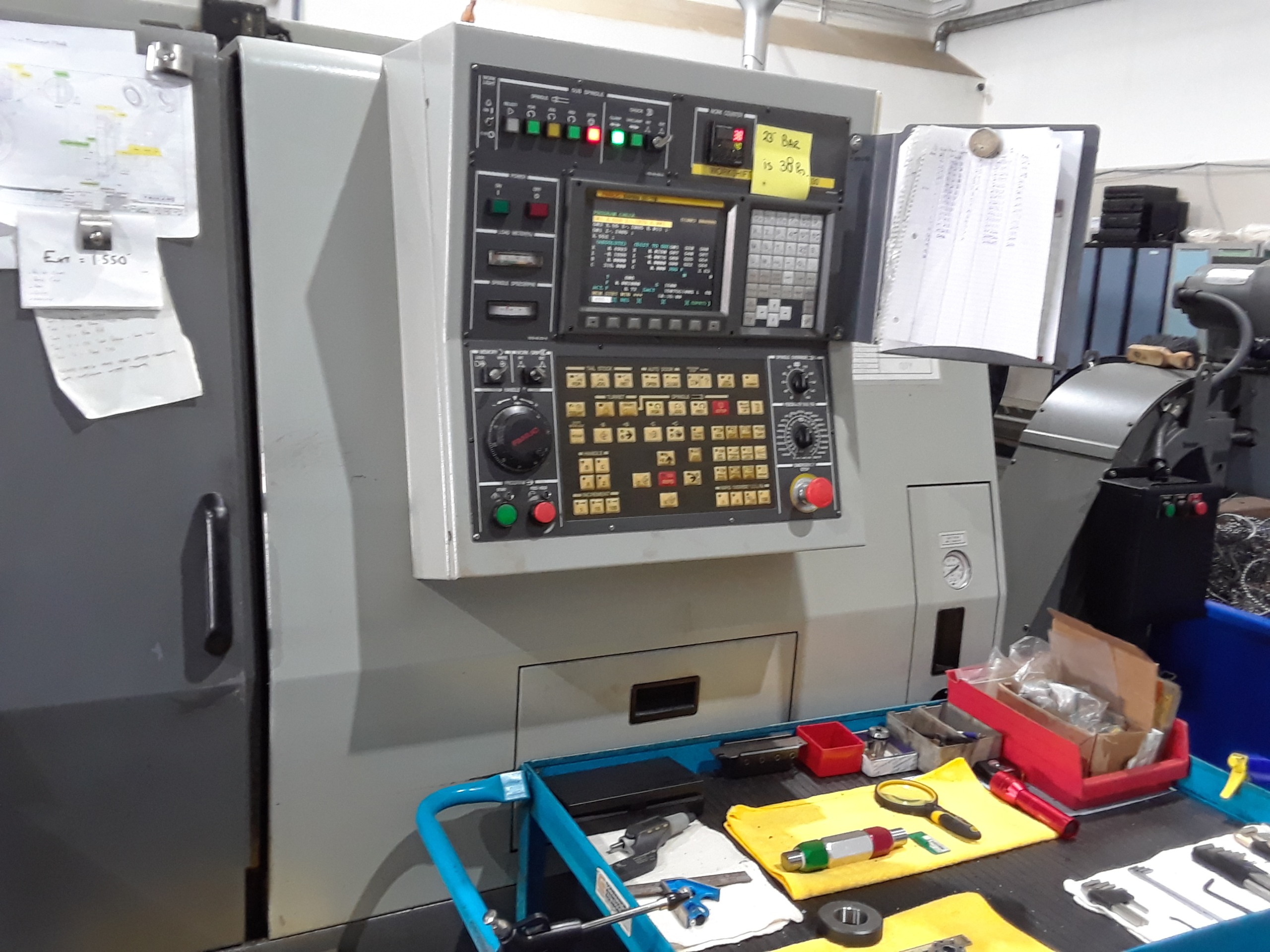

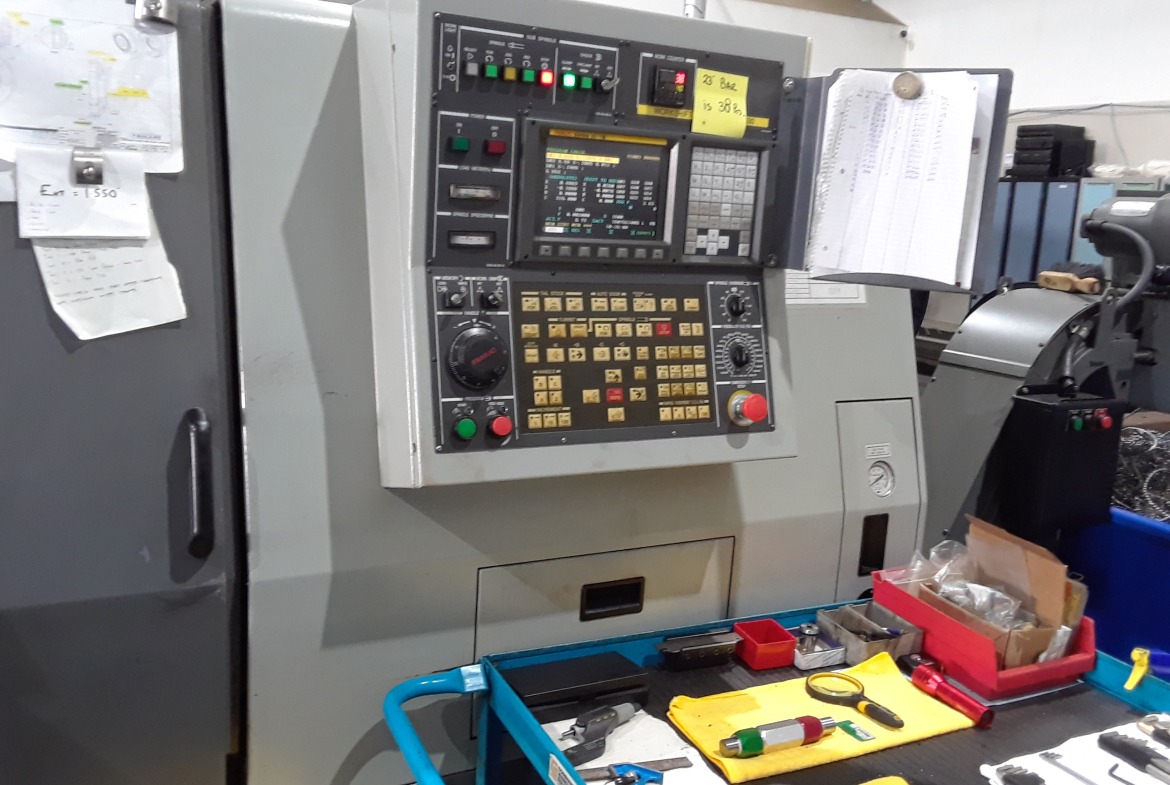

| CNC controller | Fanuc |
| Swing | 21.7″ |
| Maximum cutting diameter | 13.8″ |
| Maximum workpiece length | 20.9″ |
| Travel X axis | 8.7″ |
| Travel Z axis | 21.7″ |
| Ways | Schneeberger Roller Guide |
| Spindle | A2 6 |

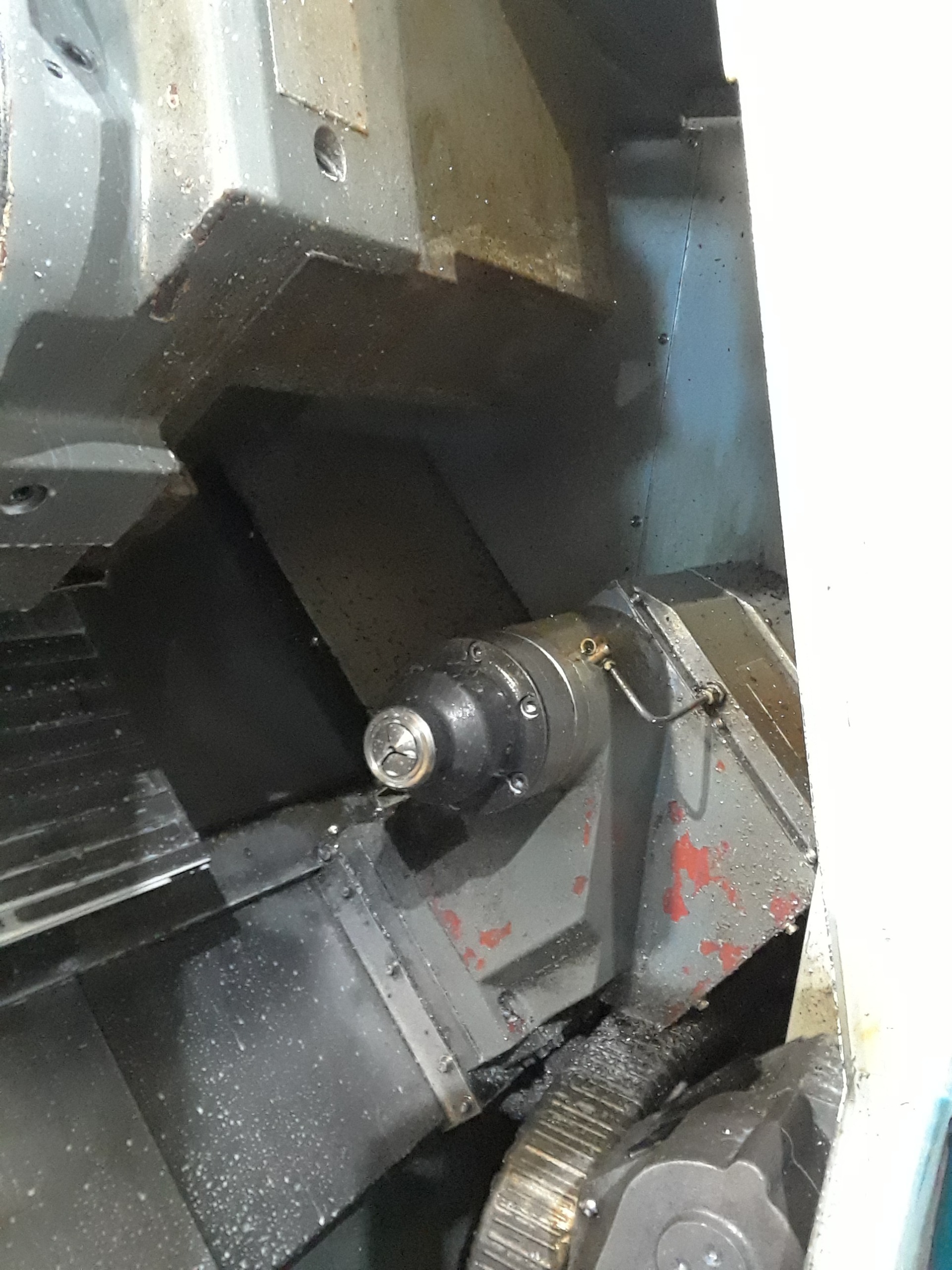

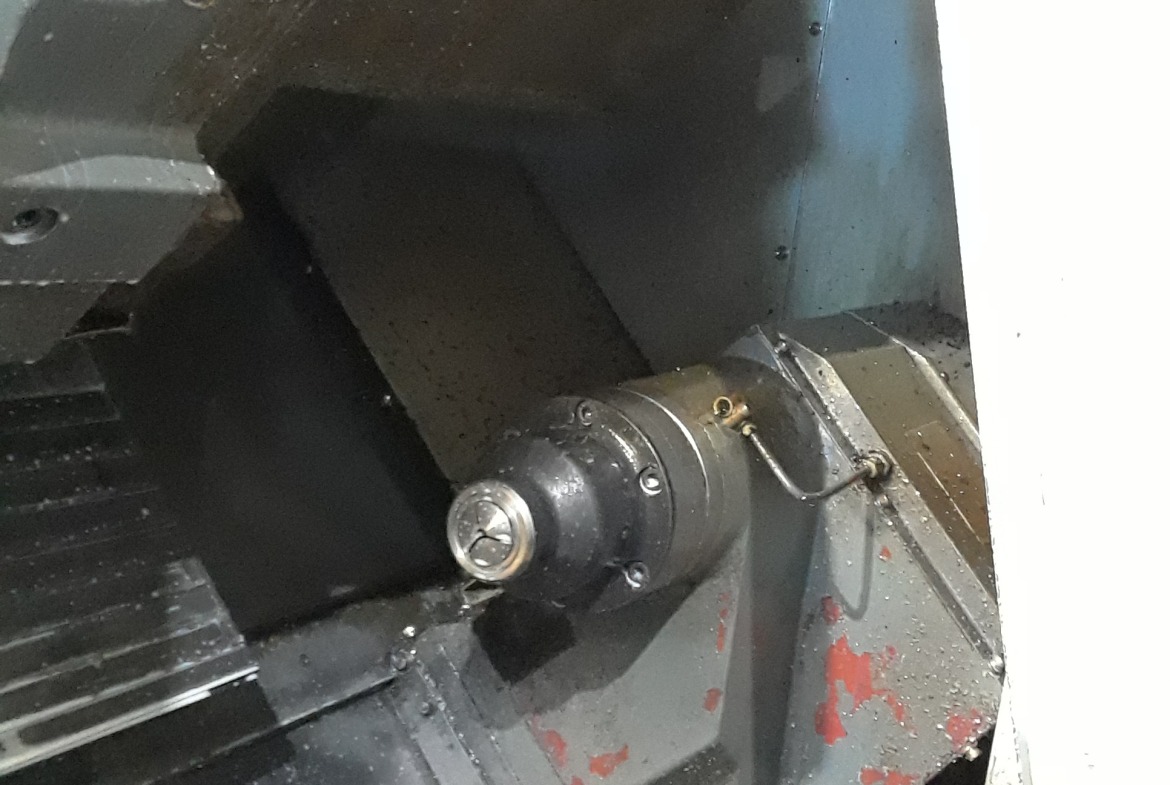

| Second | Flat Nose |
| Max bar work diameter Left (spindle Length 46.36″) | 2.56″ |
| Max bar work diameter right | 1.375″ |
| Max RPM L / R | 4000 L / 6000 R |
| C Axis Left spindle | C Axis |
| C Axis Right spindle | 5 Degree Indexing |
| Rapid traverse X axis | 1417 ipm |
| Rapid traverse Z axis | 1417 ipm |

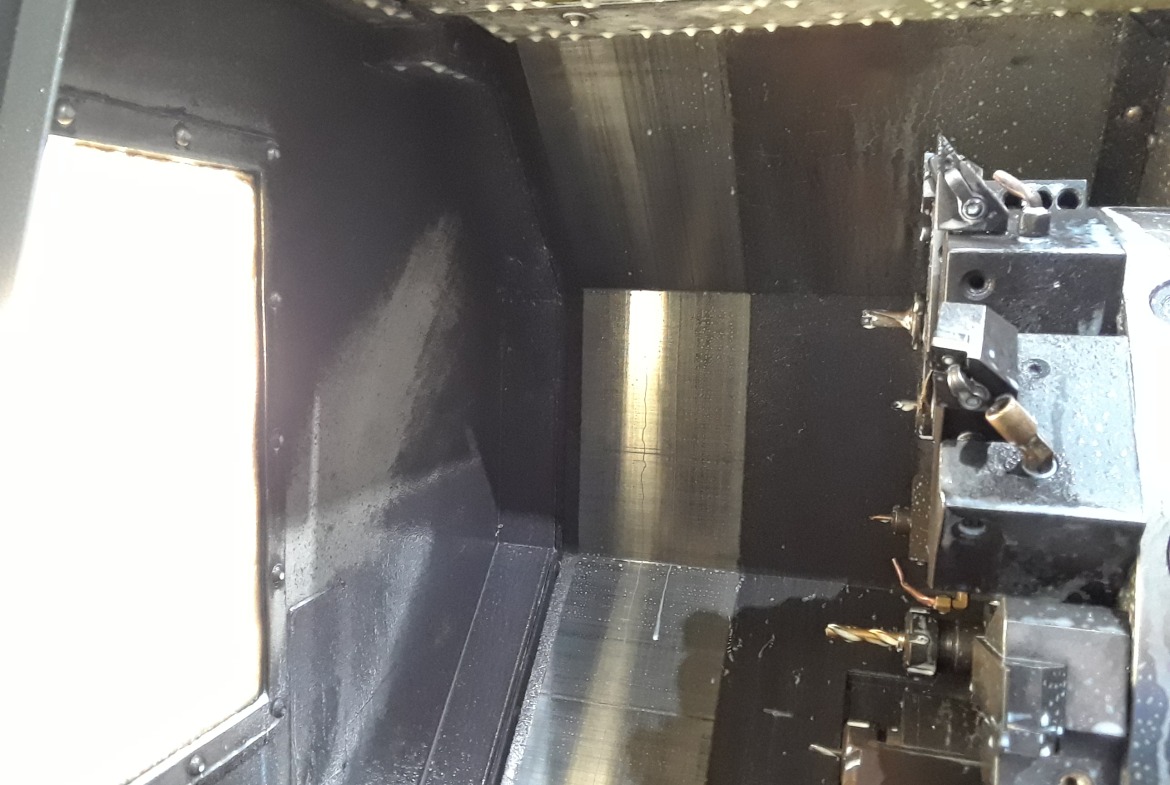

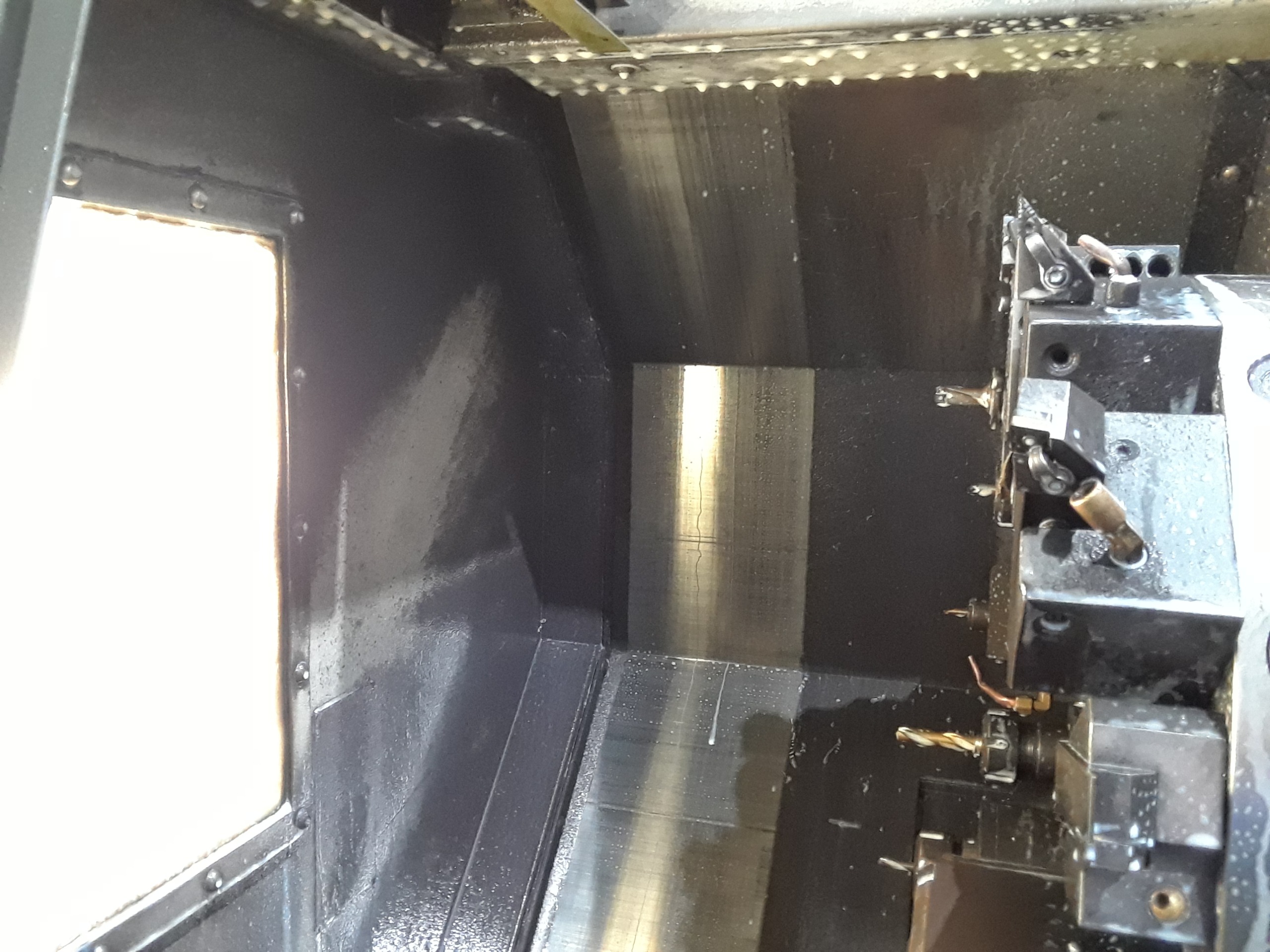

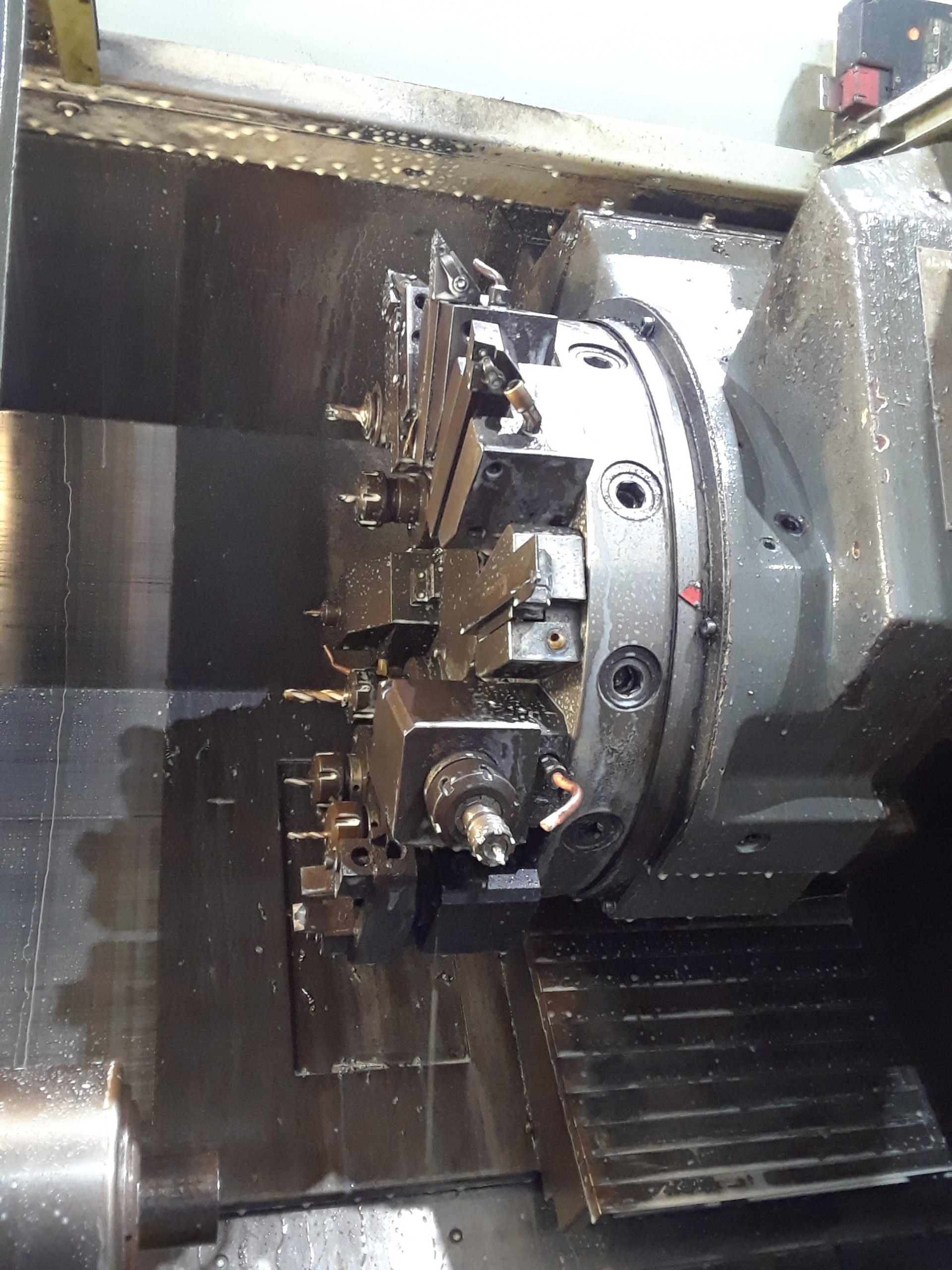

| Turret | 12 Tools |
| Tool size (Square Shank) | 1″ sq |
| Tool size (Round shank) | 1.5″ |
| Index time(1 station/1 full rev) | .28 sec/ |

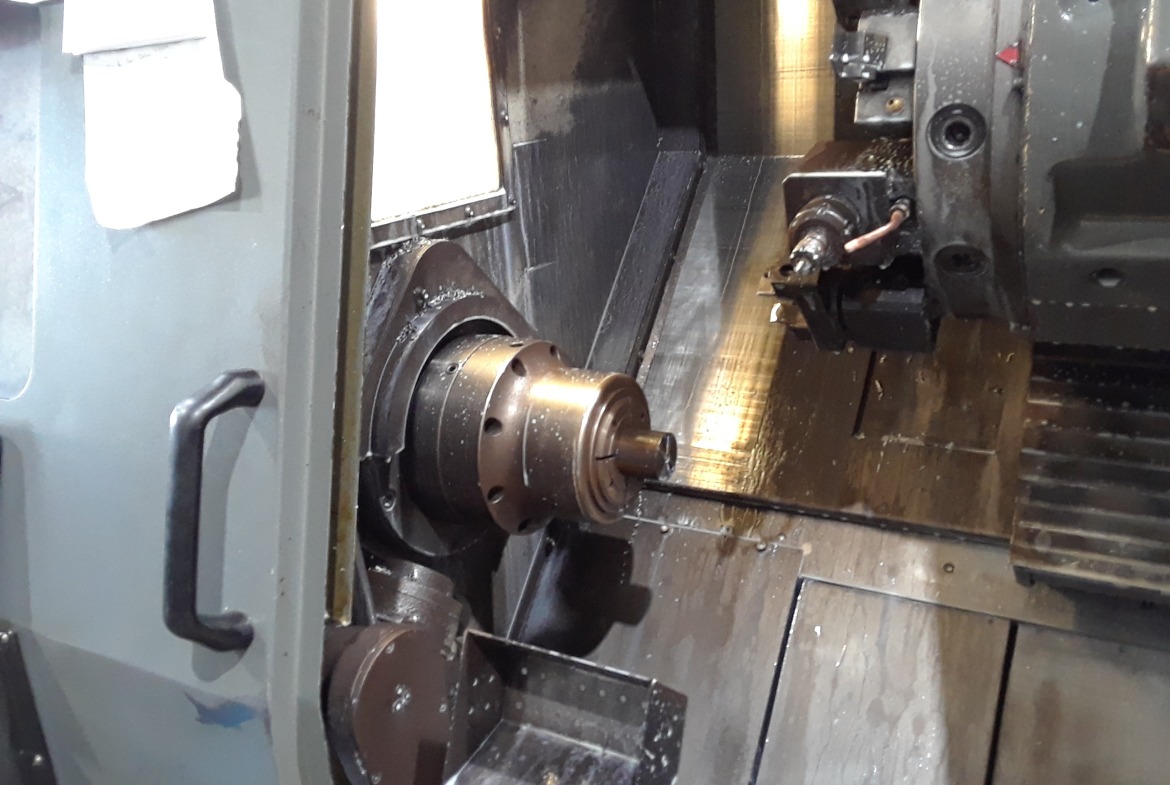

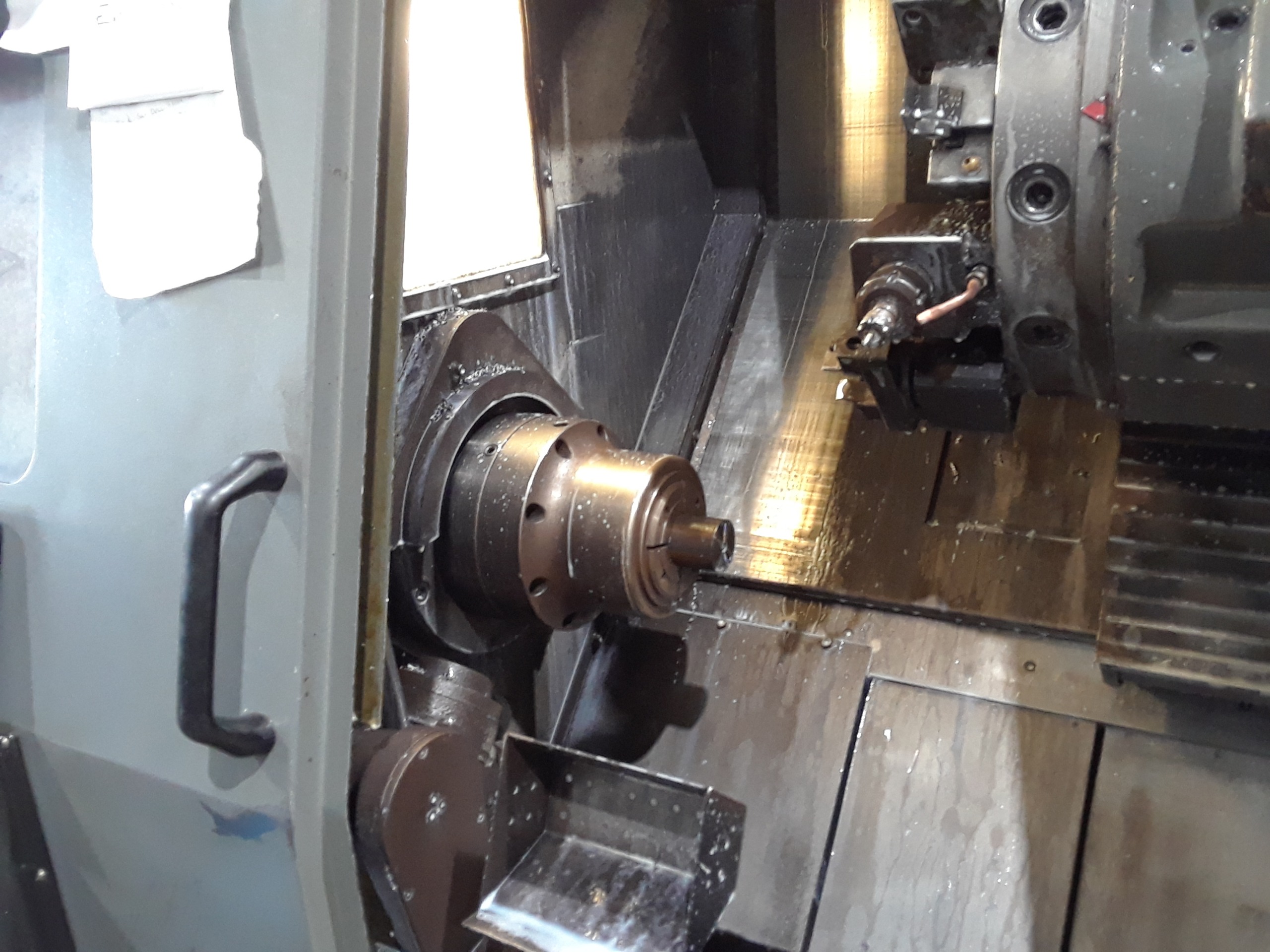

| Chuck ( Samwoo Kitagawa ) | 8″Main 5.3″ Second |
| Horsepower | 20 HP |
| Torque | 211.3 ft-lbs. (L) 17.4 ft-lbs. (R) |
| Work light | Yes |
| Weight | 9,480 lbs. |
| Coolant system | Yes |
| Automatic Tool Setter | Yes |
| Standard tooling package | Yes |
| Parts Catcher | Yes |
| VDI O.D. Holder-Front | 2 |
| VDI Face Holder | 1 |
| VDI Double OD Holder | 1 |
| VDI Double OD / IDÂ Holder | 1 |
| VDI Double IDÂ Holder | 2 |
| VDIÂ IDÂ Holder | 1 |
| VDI Live Tool Holder ( Axial ) | 2 |
| VDI Live Tool Holder ( Radial ) | 2 |
| Air Blow | Yes |

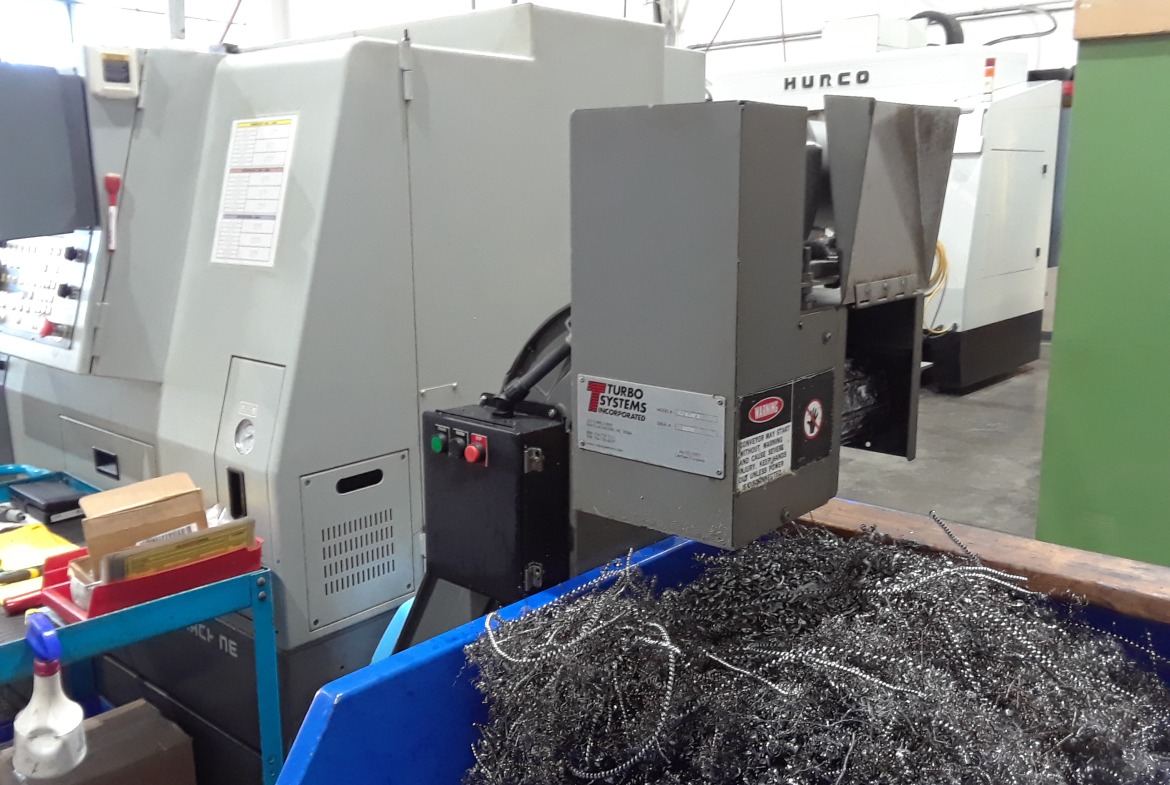

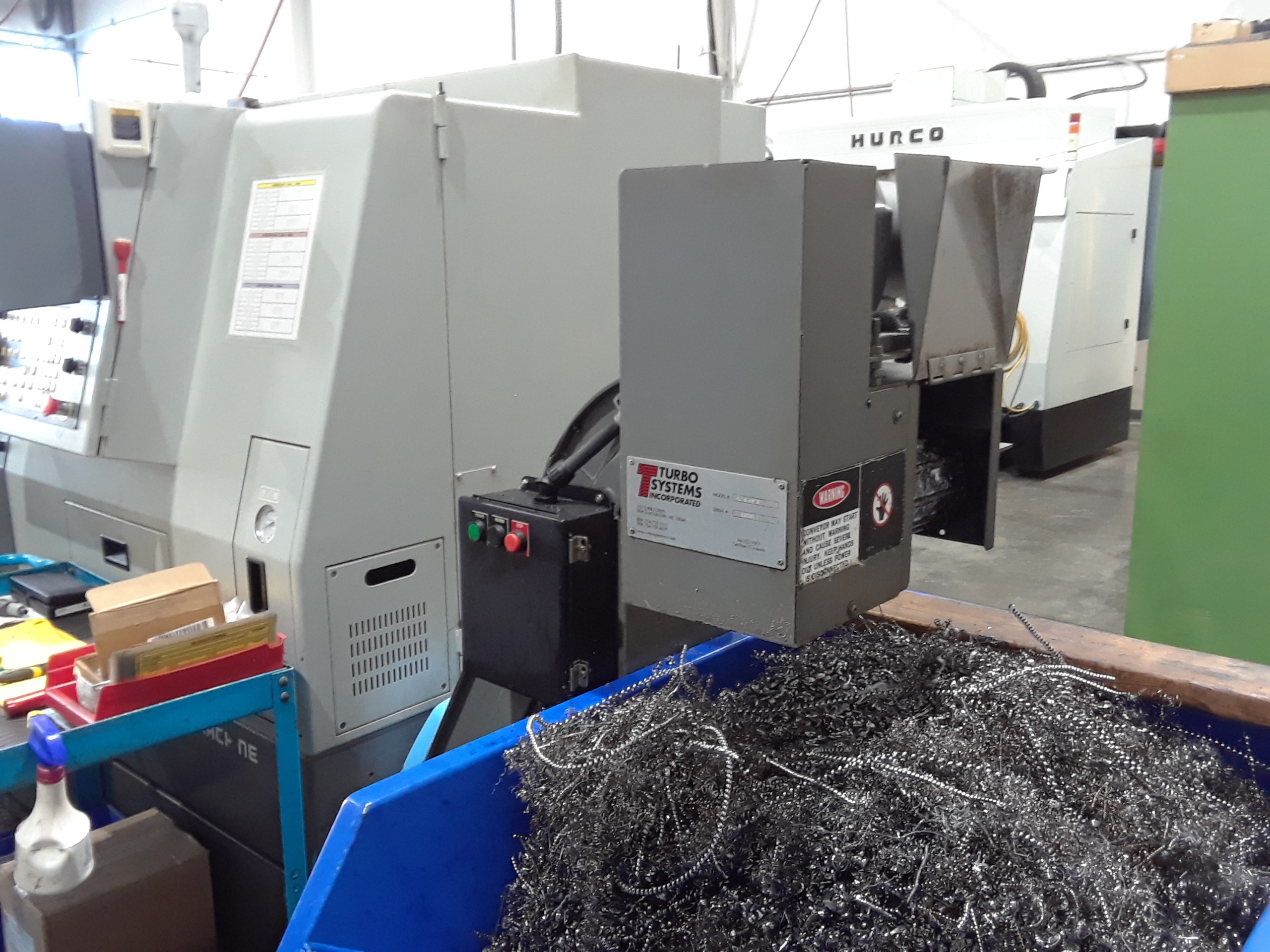

| Chip Conveyor |
