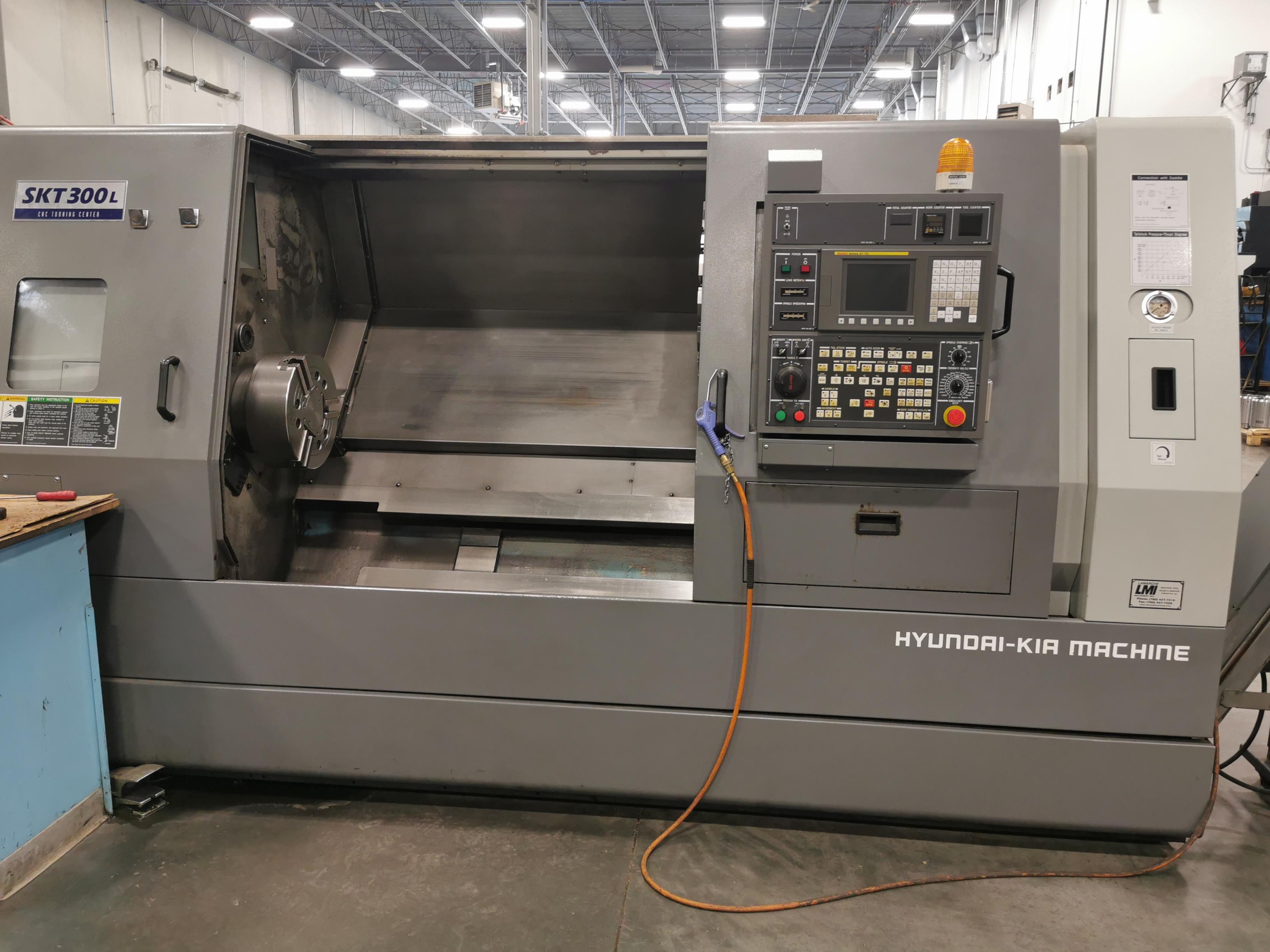

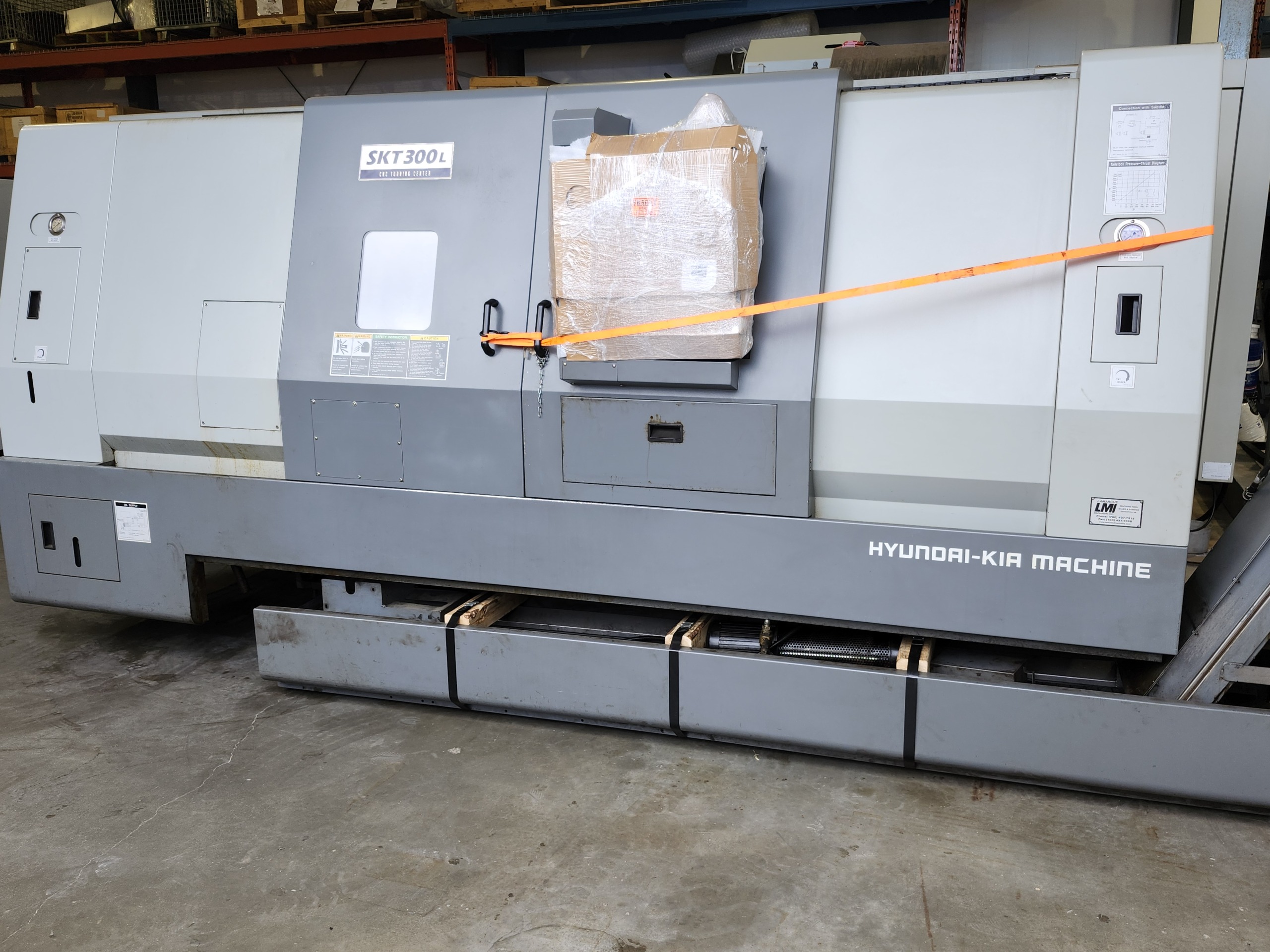

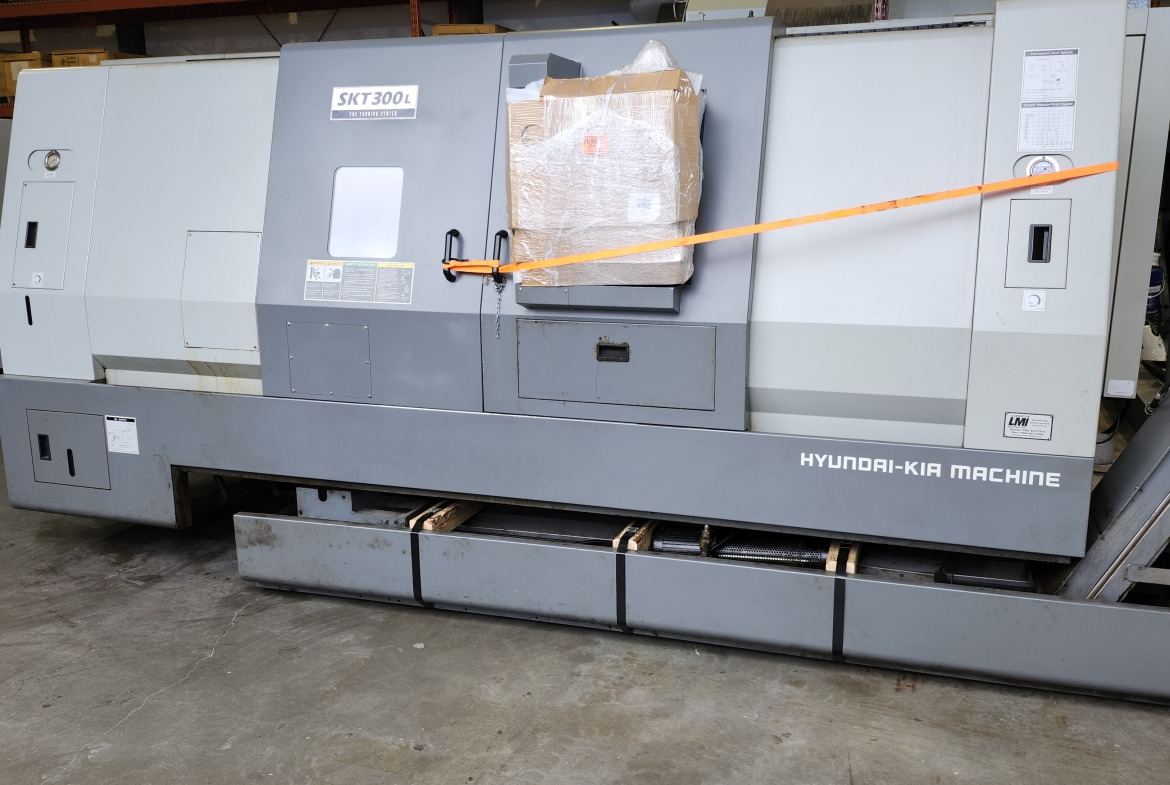

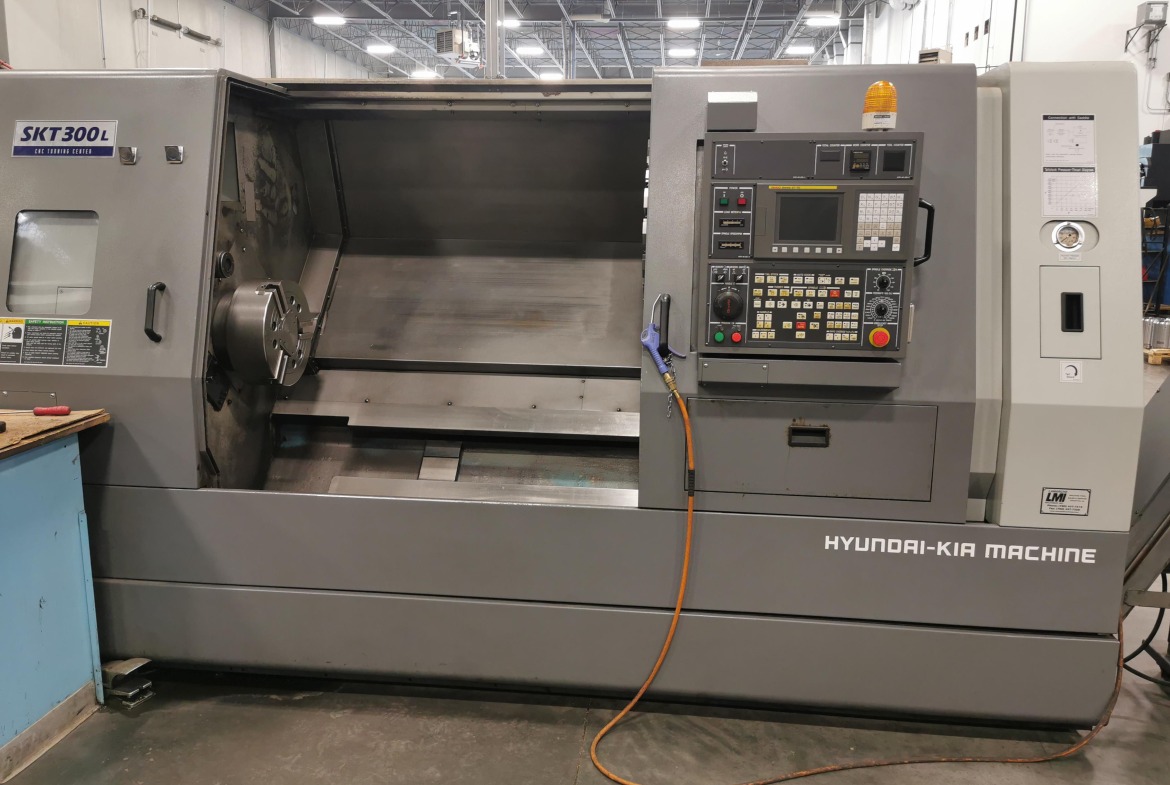

2009 Hyundai Kia SKT 300L
8821-60 ave👁 423
Address
Open on Google Maps- Address 8821-60 ave
- City Edmonton
- State/county AB Canada
- Country Canada
Details
Updated on May 16, 2025 at 5:42 pm- Listing ID: SKT300L
- Year Built: 2009
Description
| CNC controller | Fanuc 0iT |
| Swing | 29.5″ |
| Maximum cutting diameter | 22″ |
| Maximum workpiece length | 49.3″ |
| Travel X axis | 14.” |
| Travel Z axis | 52.5″ |
| ways | Boxed |
| Spindle | A2 8 |
| Max bar work diameter | 3.54″ |
| Spindle Bore | 4.02″ |
| Max RPM | 3600 |
| Rapid traverse X axis | 787 ipm |
| Rapid traverse Z axis | 945 ipm |

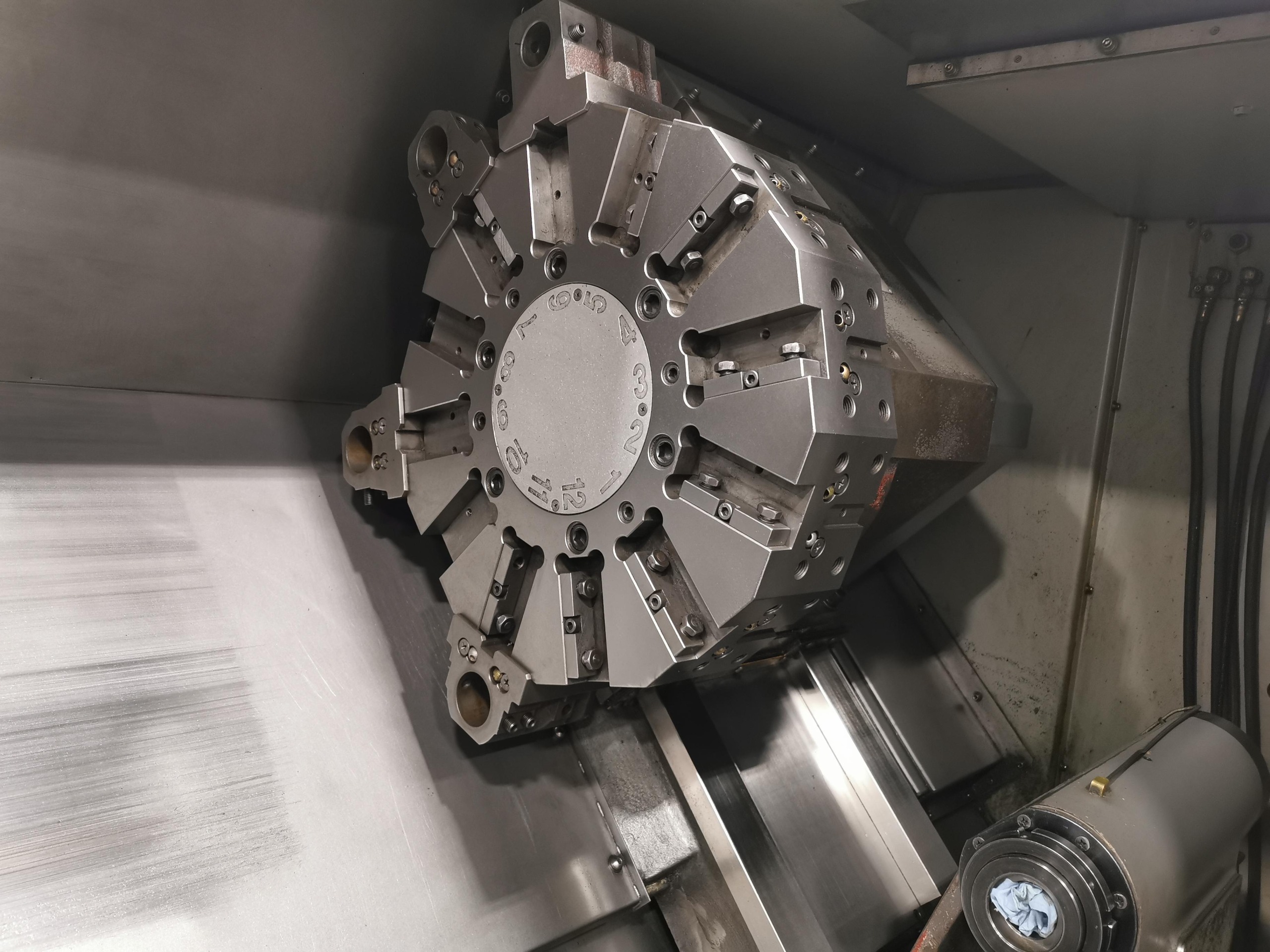

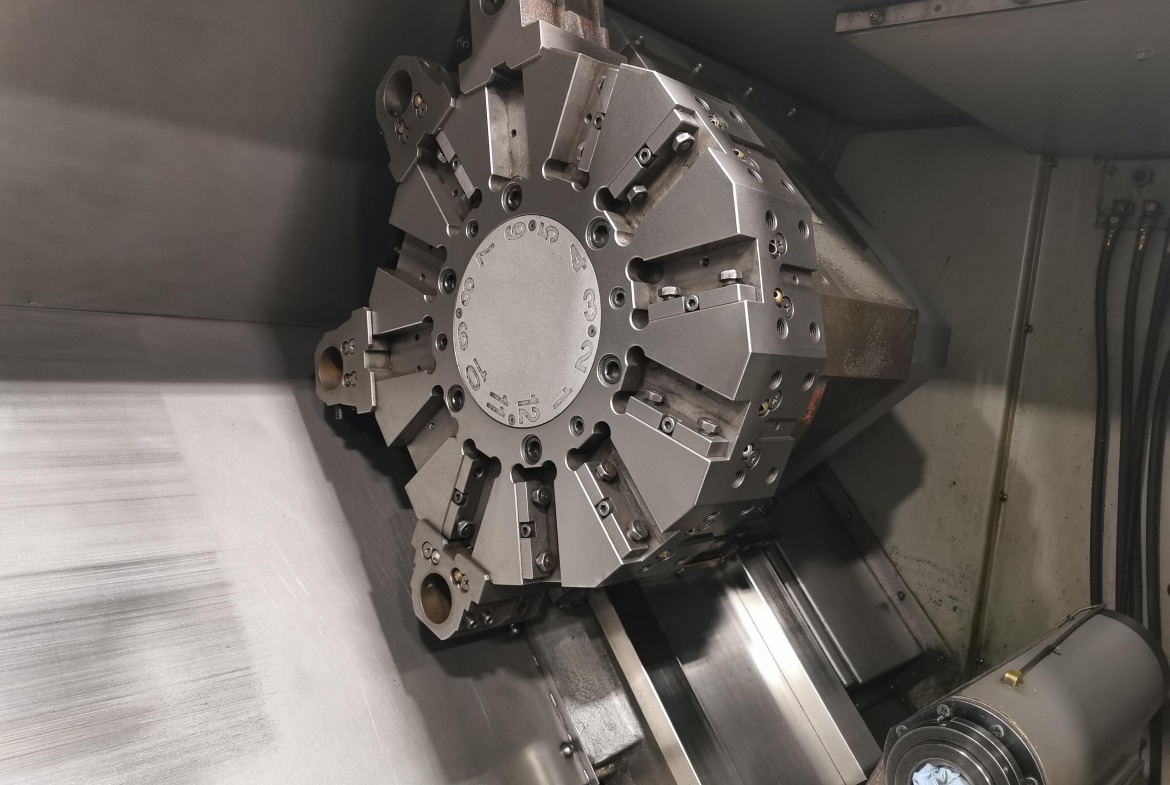

| Turret | 12 Tools |
| Tool size (Square Shank) | 1″ sq |
| Tool size (Round shank) | 2″ |
| Index time(1 station) | .3 sec |

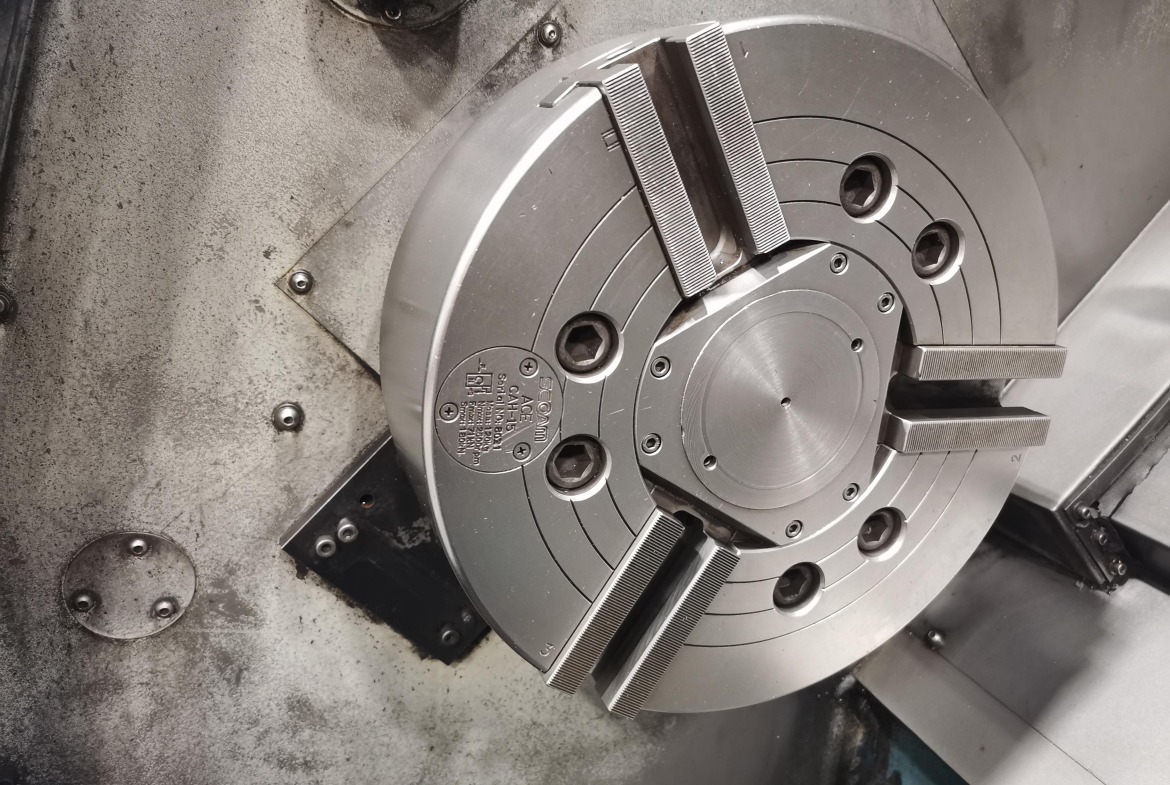

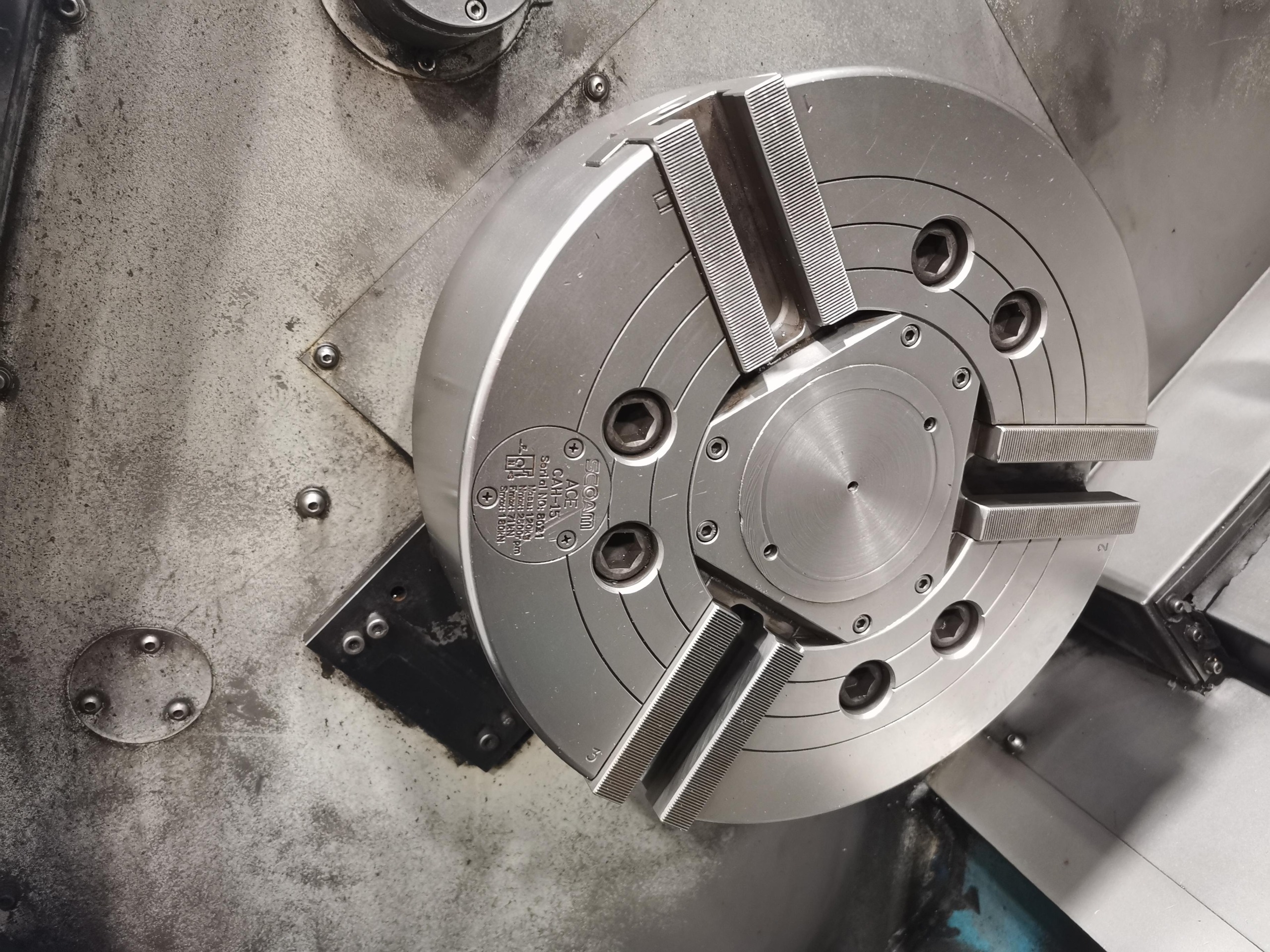

| Chuck | 12″ |
| Horsepower | 35 HP |
| Geared Head | 2 Gear ranges |
| Torque | 810 ft-lbs |
| Work light | Yes |
| Weight | 14,787 lbs |
| Bed | 45 deg |
| Coolant system | 63 psi |
| Autmatic Tool Setter | Yes |
| Tailstock quill diameter | 3.9″ |
| Tailstock quill travel (programmable) | 5.1″ |
| Tailstock body ( programmable position with Turret ) | |
| Tailstock quill internal taper | MT #5 |
| Chip conveyor( side discharge) |
