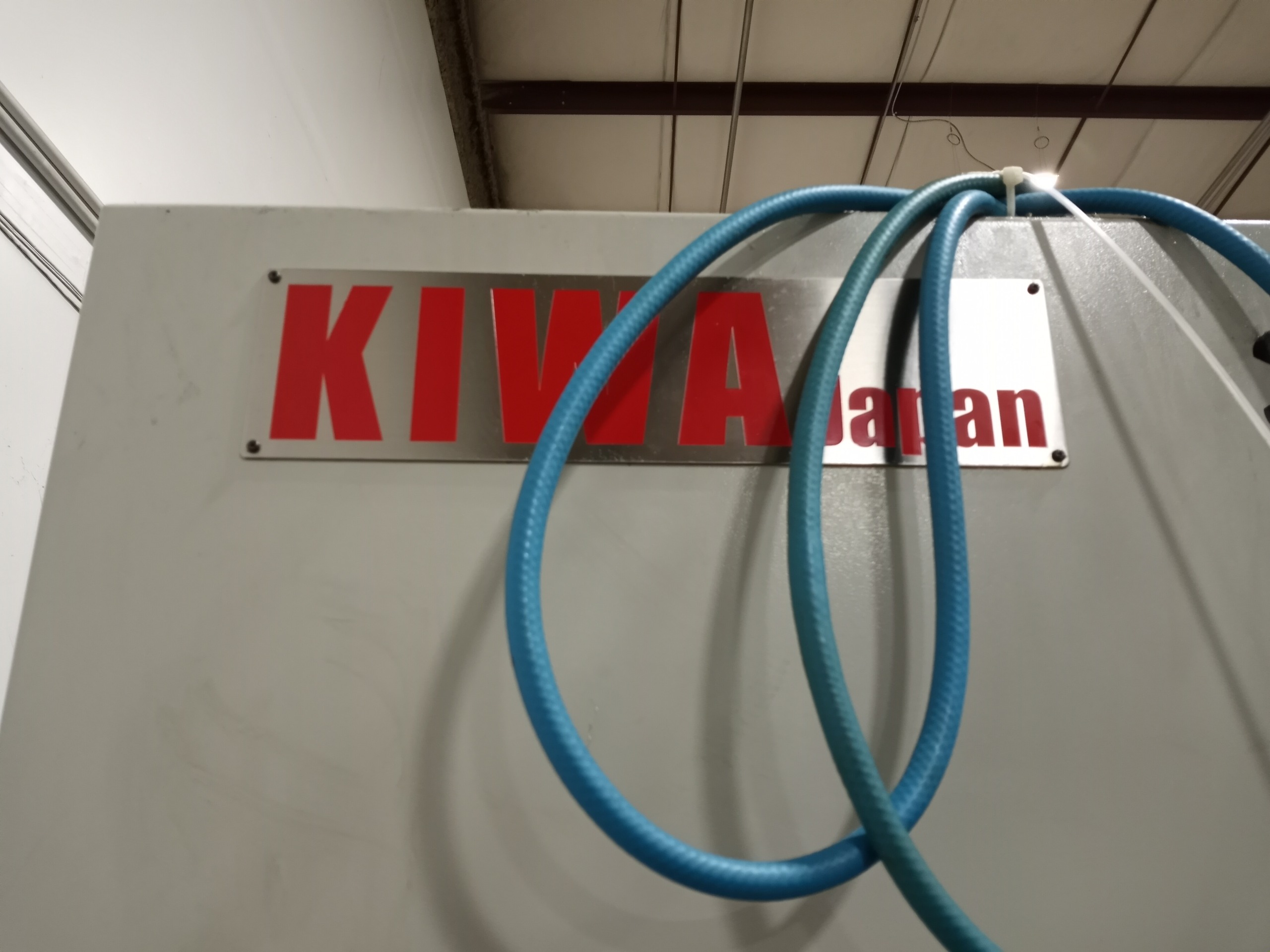

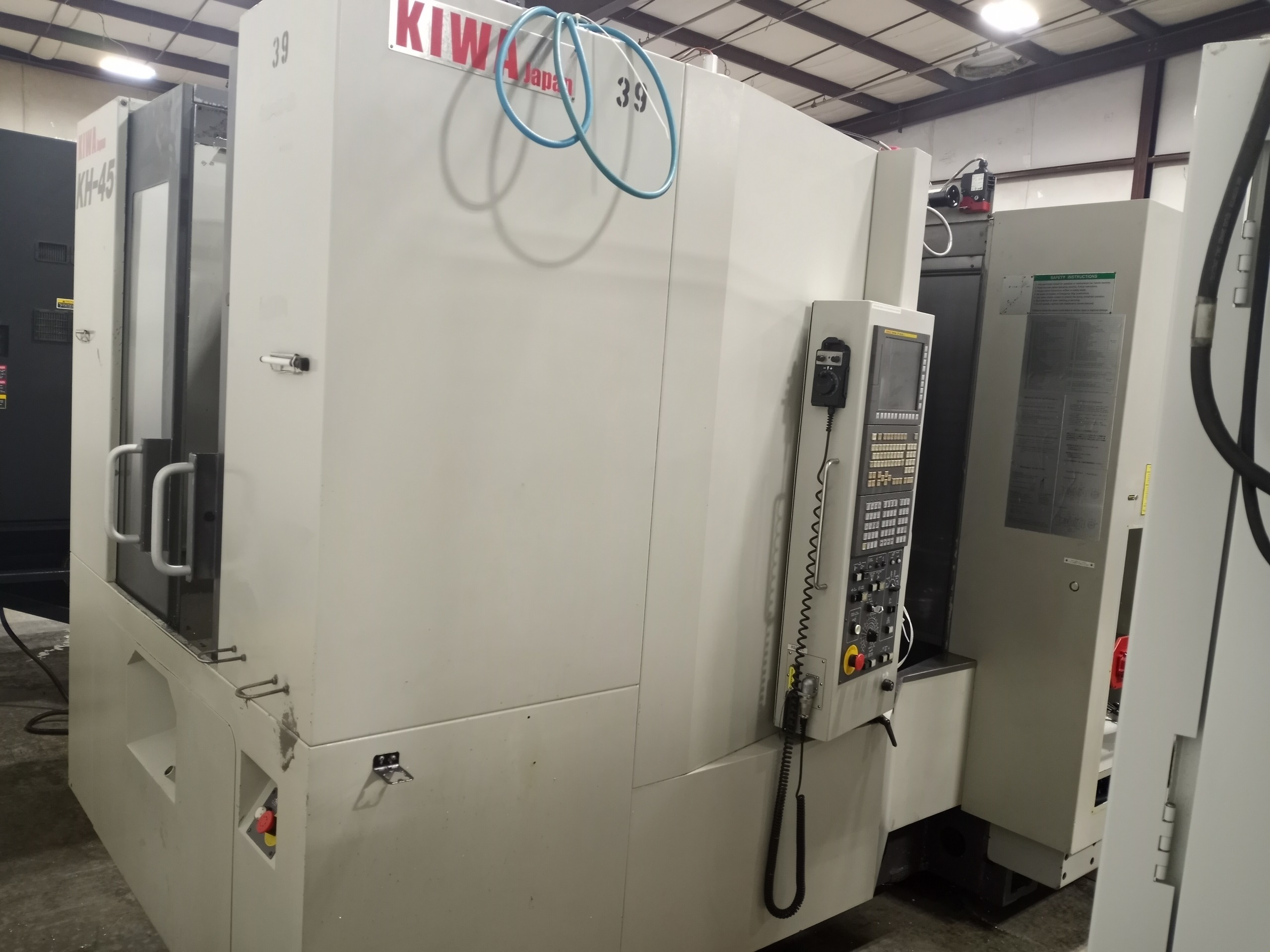

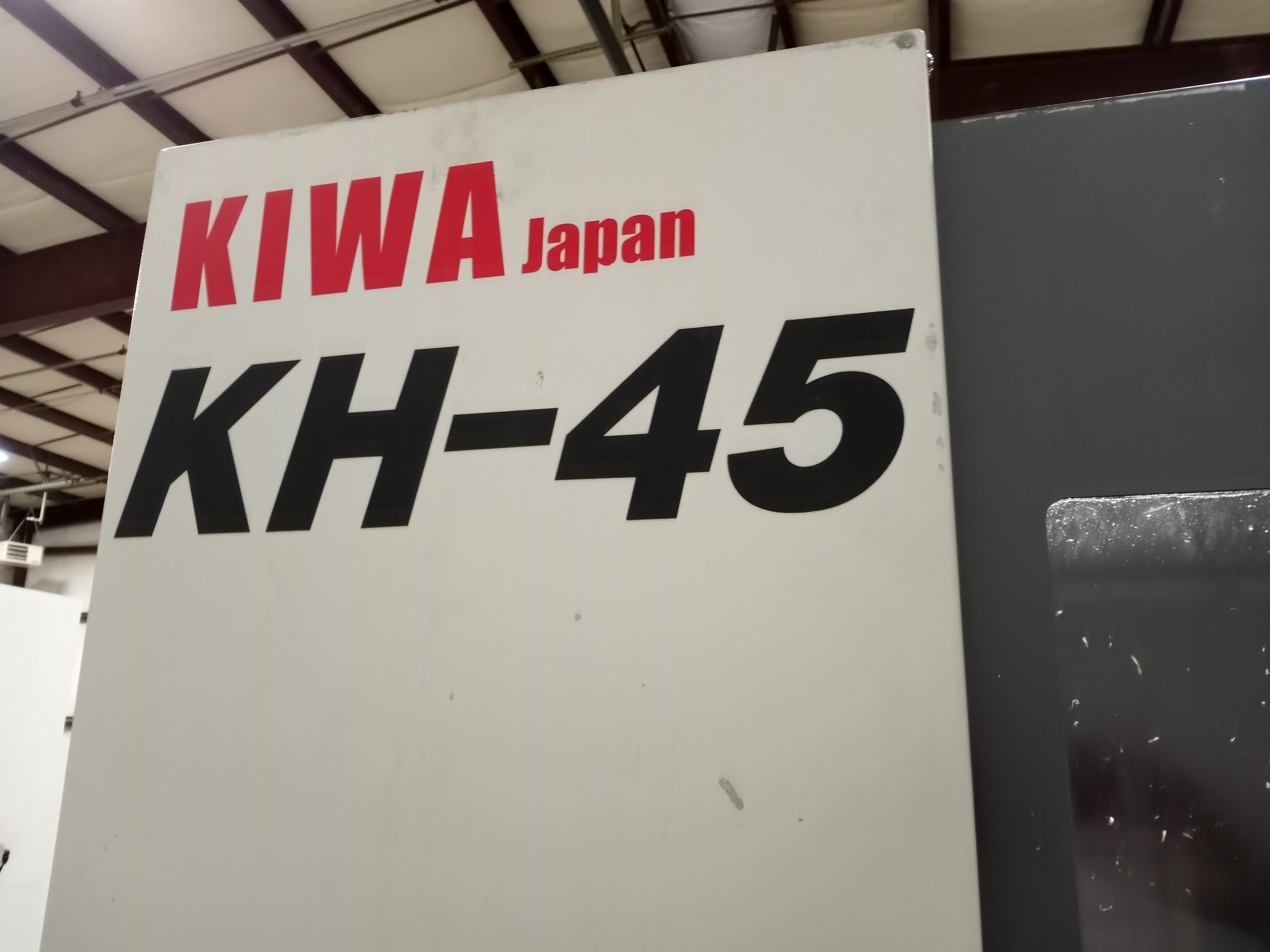

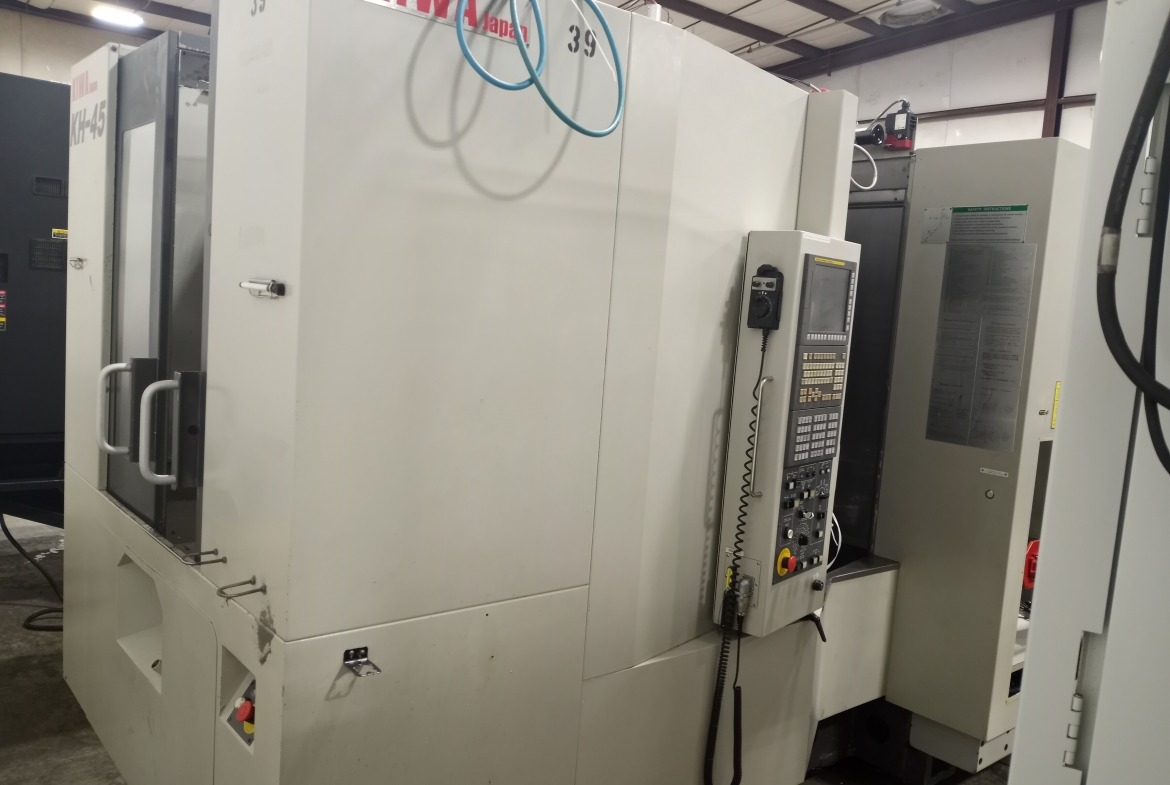

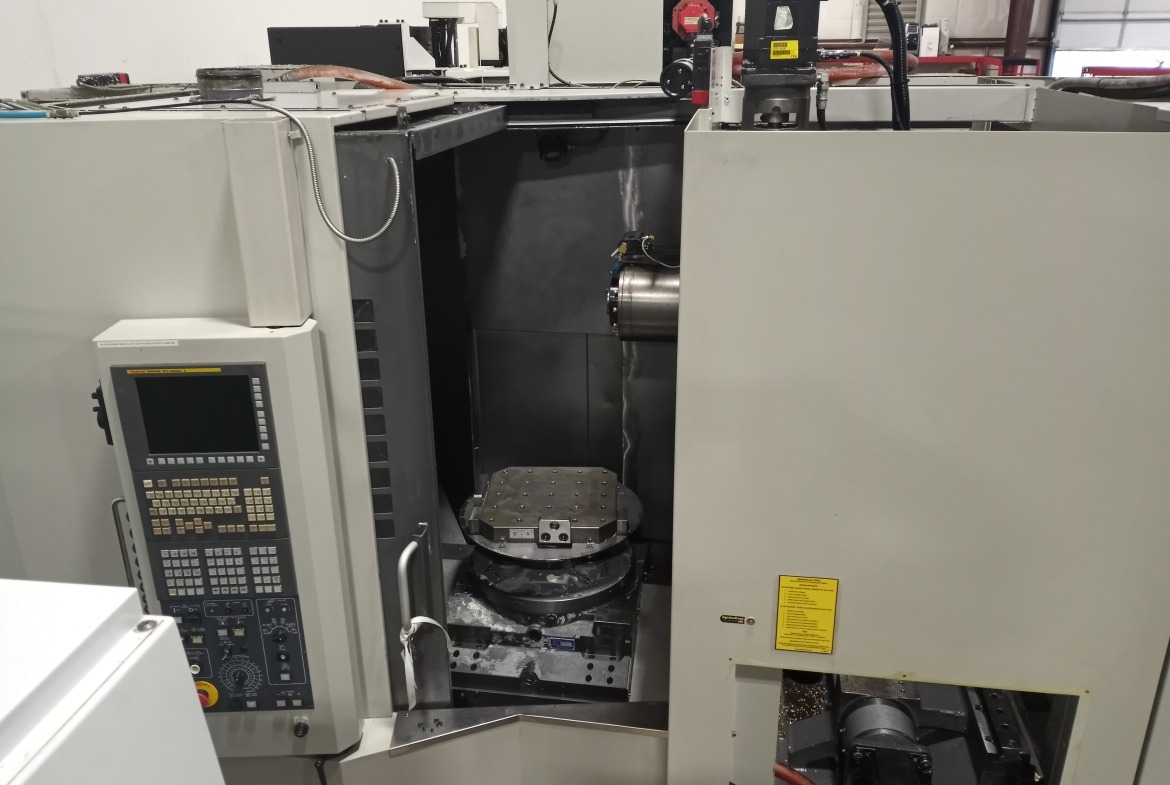

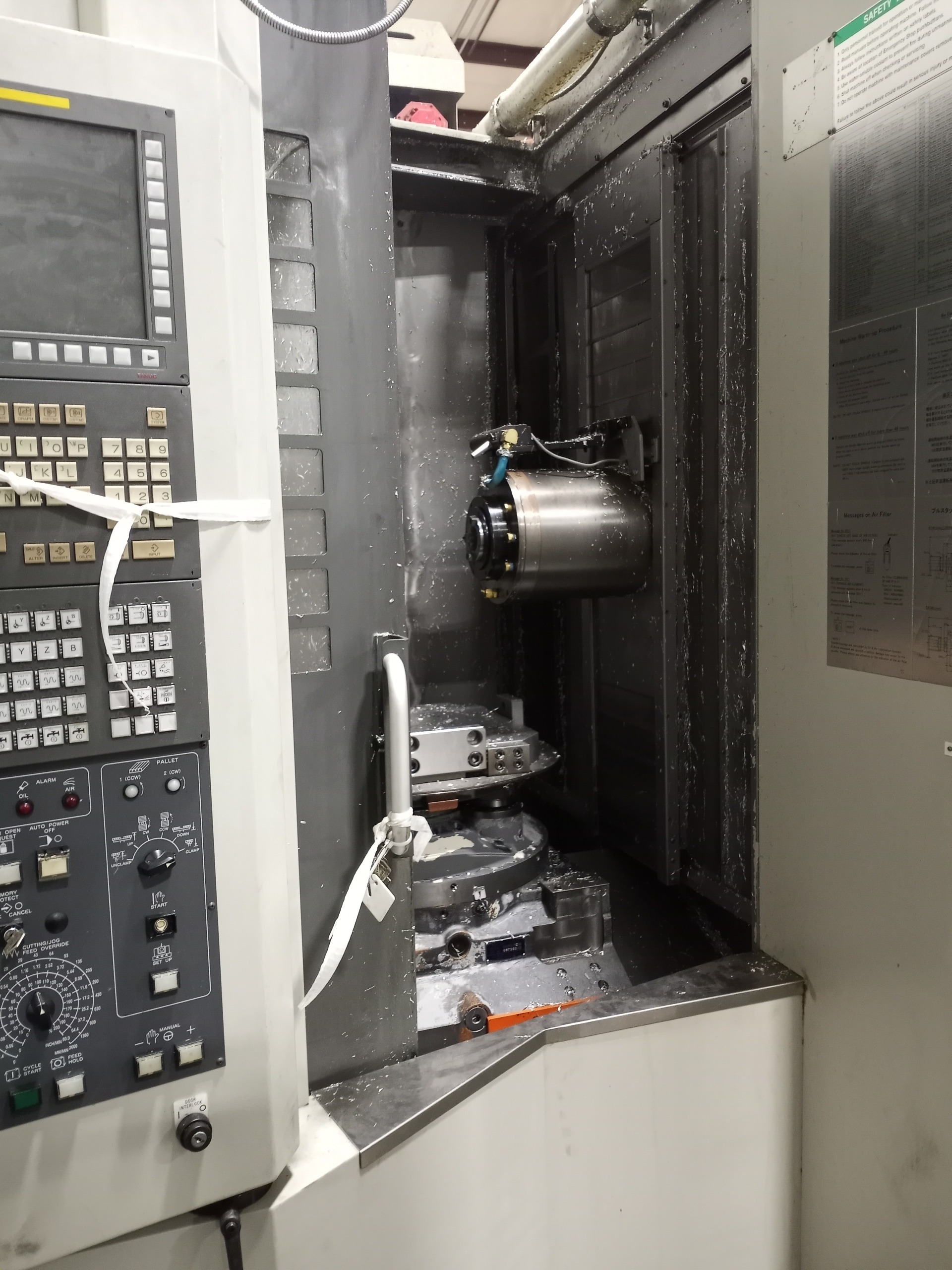

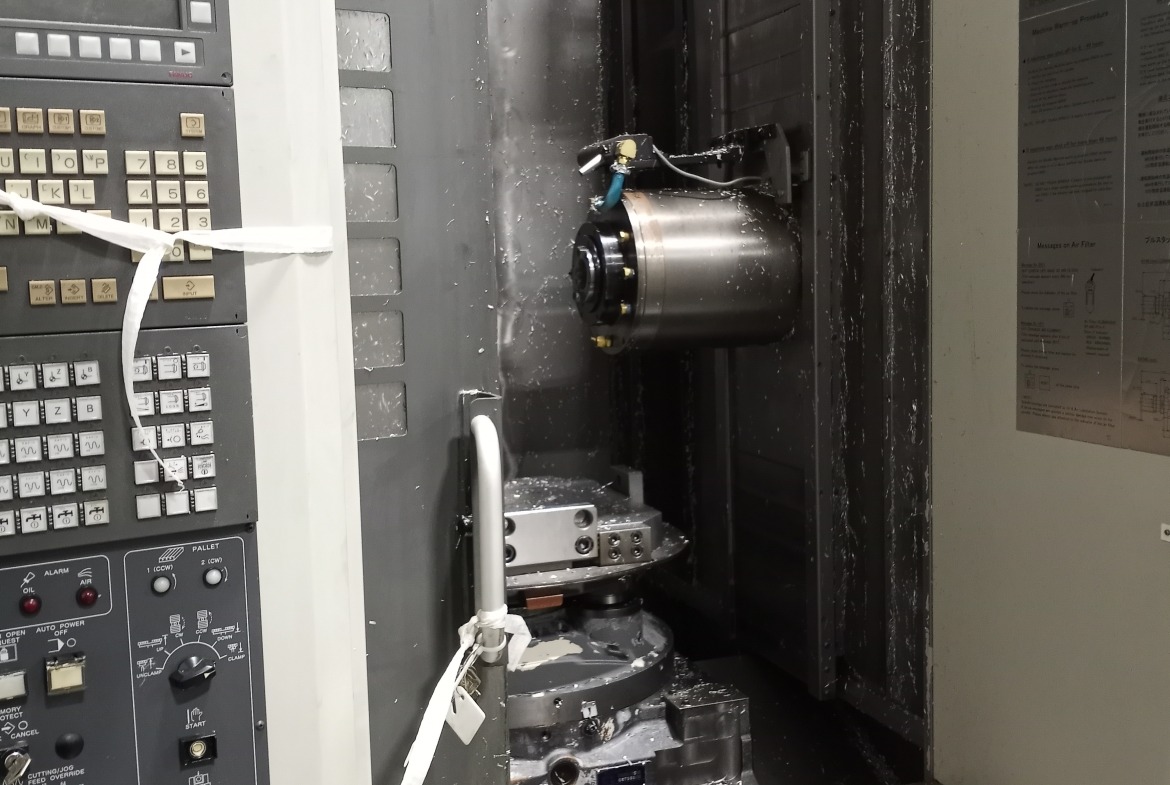

2008 KIWA KH45 Horizontal Machining Center
Lamarche Machinery Inc 8821 60 Ave NW, Edmonton, AB T6E 6L9👁 274
Address
Open on Google Maps- Address Lamarche Machinery Inc 8821 60 Ave NW, Edmonton, AB T6E 6L9
- City Edmonton
- State/county AB Canada
- Country Canada
Details
Updated on July 23, 2025 at 8:54 pm- Listing ID: Kiwa
Description

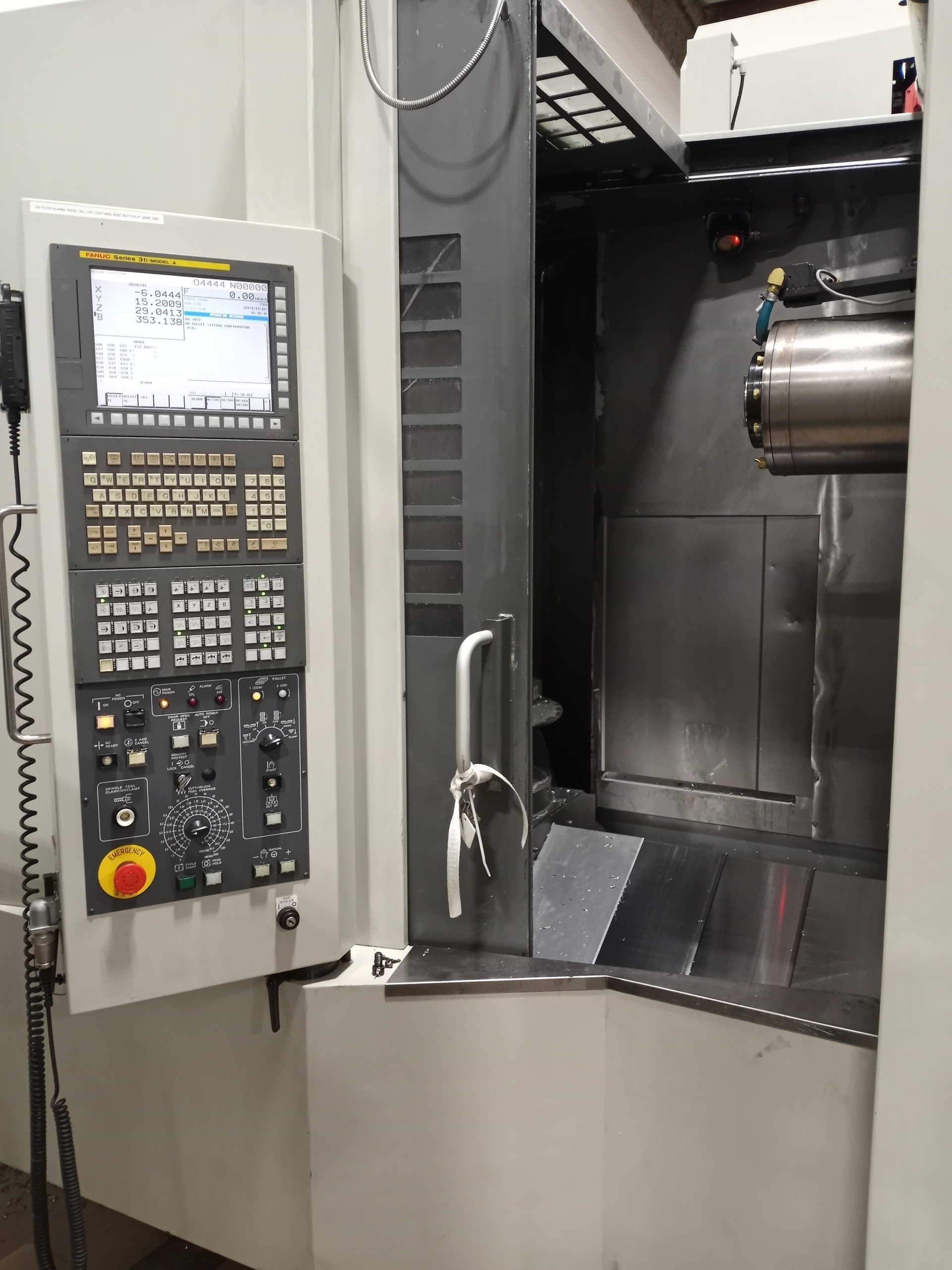

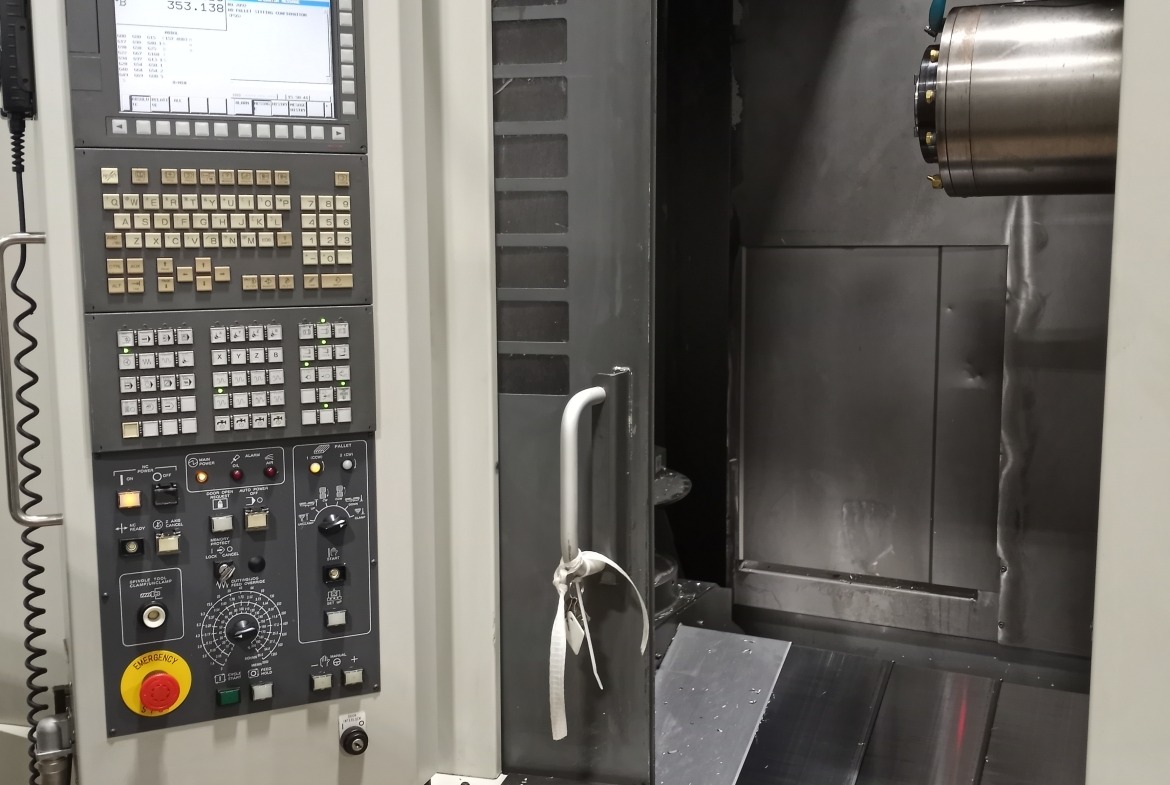

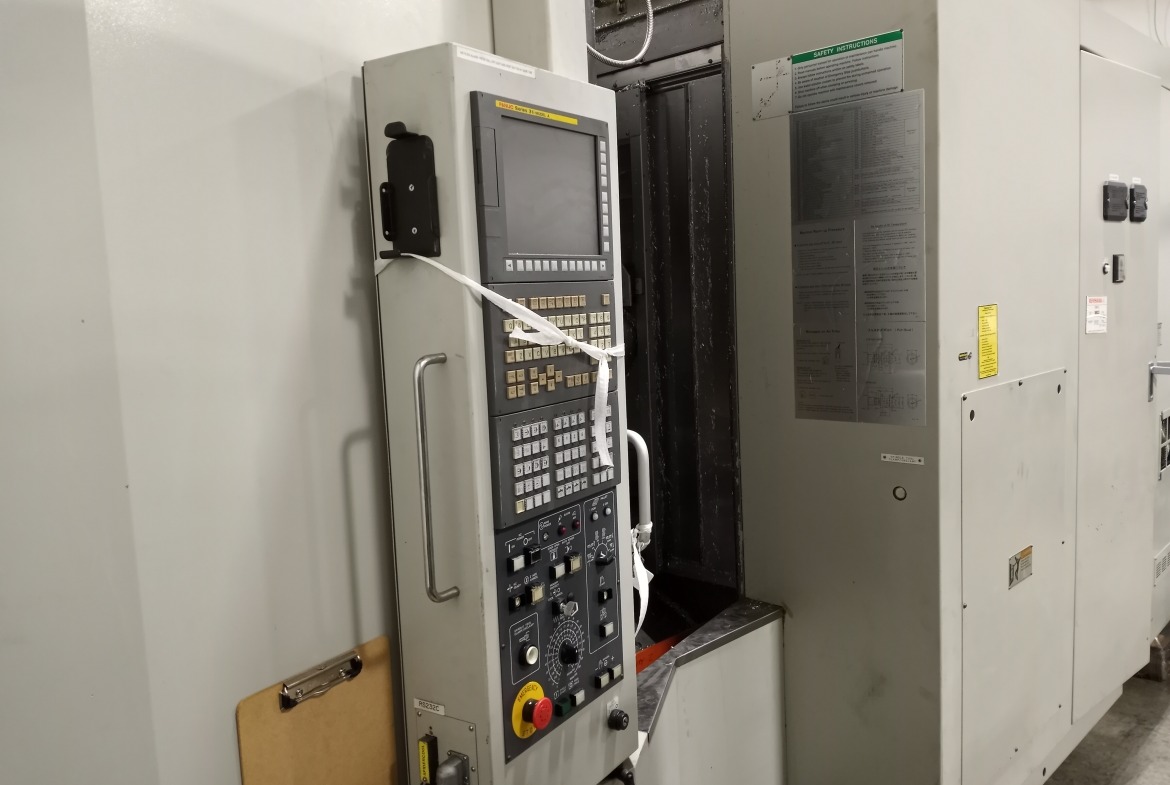

| CONTROLLER | Fanuc 31i-MA | |
| Table Size L x W (in.) | 15.750 x 15.750 | |
| Max. Workpiece Weight (lbs | 1,100 lbs | |
| Pallet Changer No. of Pallet | 2 | |

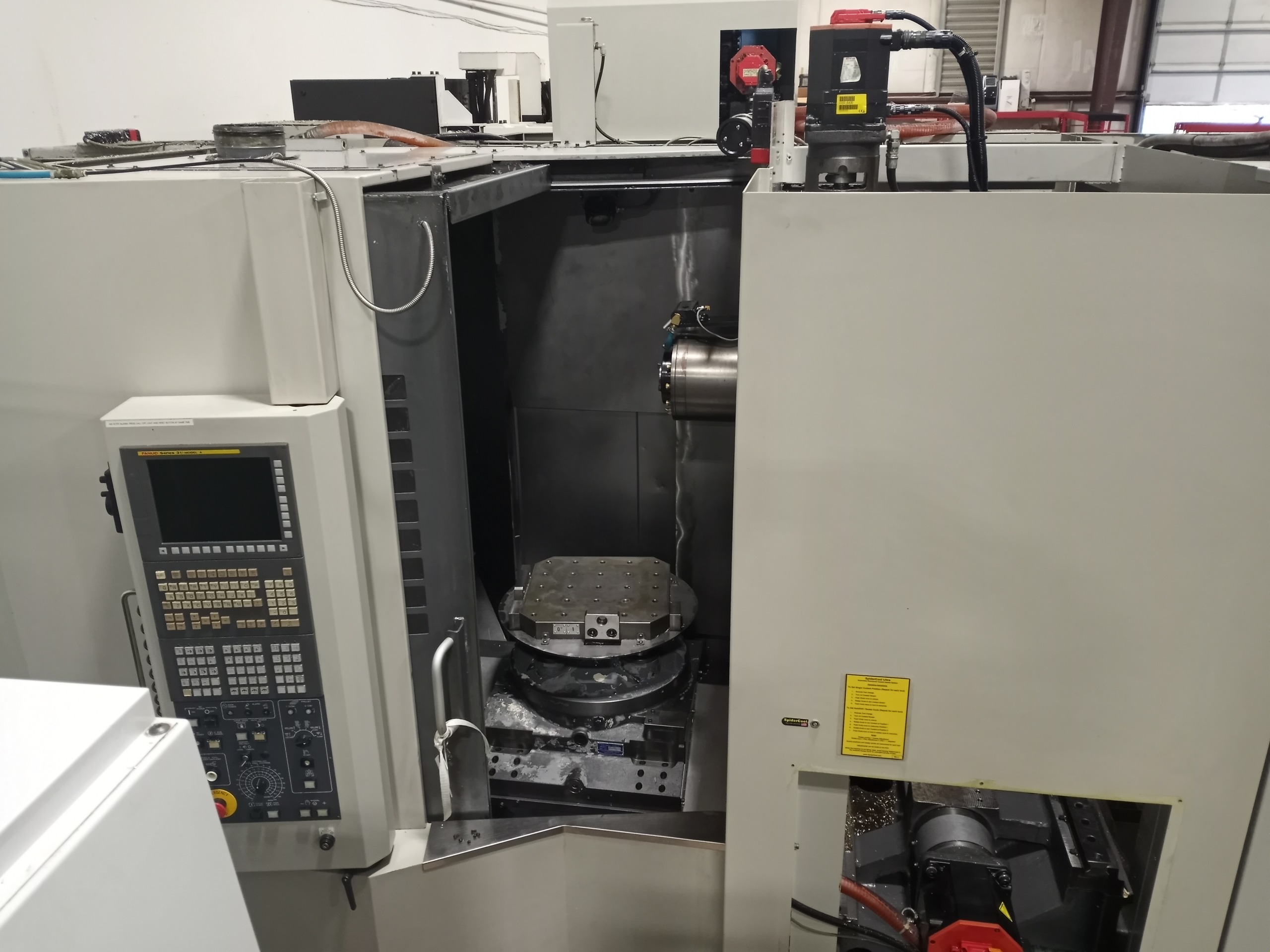

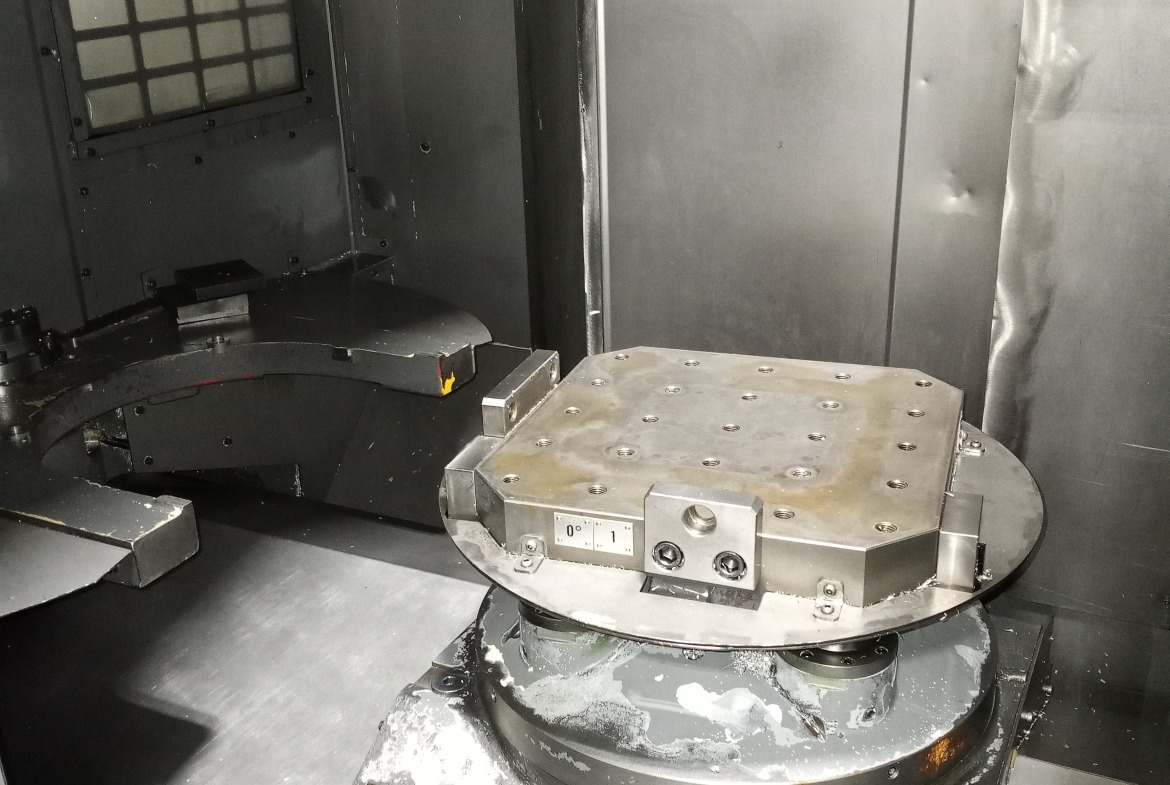

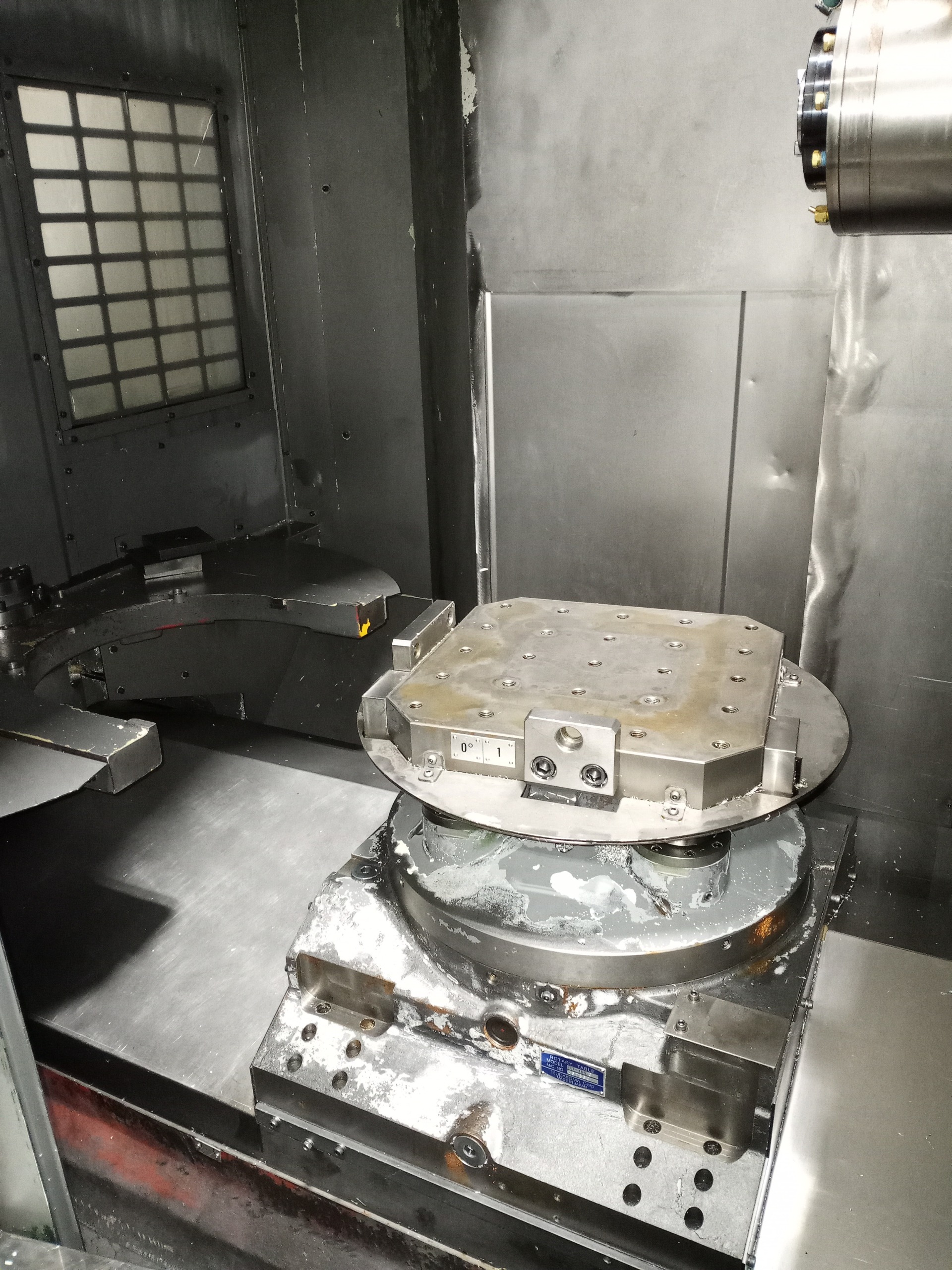

| Rotary Table | Full 4th | |
| Num. Main Spindles | 1 | |
| Taper | Cat 40 | |
| Spindle Speed | 12,000 Rpm | |
| Horse Power (30 min rating | 30hp | |
| # Speed Ranges | 1 | |
| Type | Fixed | |
| Primary Tool Carrier(s) | ATC 60 TOOLS | |
| Tool Change Time C-to-C | 0.90 sec tool-to-tool | |
| Max. Tool Length | 15.700″ | |
| Max. Tool Diameter | 2.800″ (with empty adacent pockets | |
| 2.800″ (with empty adacent pockets | 17.60 LBS | |
| Number of Axes | 4 / U Axis: None | |
| X1 Std. 25.200 | 1,181 ipm/2,362 ipm | |
| Y1 Std. 24.000″ | 1,181 ipm/2,362 ipm | |
| Z1 Std. 26.800″ | 1,181 ipm/2,362 ipm | |
| B1 Std. 360,000 deg | 33 rpm 33 rpm | |
| Machine Dimensions (L x W x H | 95″ x 179″ x 109 | |
| Machine Weight | 20,240 LBS | |
| Spindle Nose To Table Edge | 30.7 | |
| Spindle To Table Center | 3.9 | |
| EQUIPPED WITH: | ||
| CHIP CONVEYOR | ||
