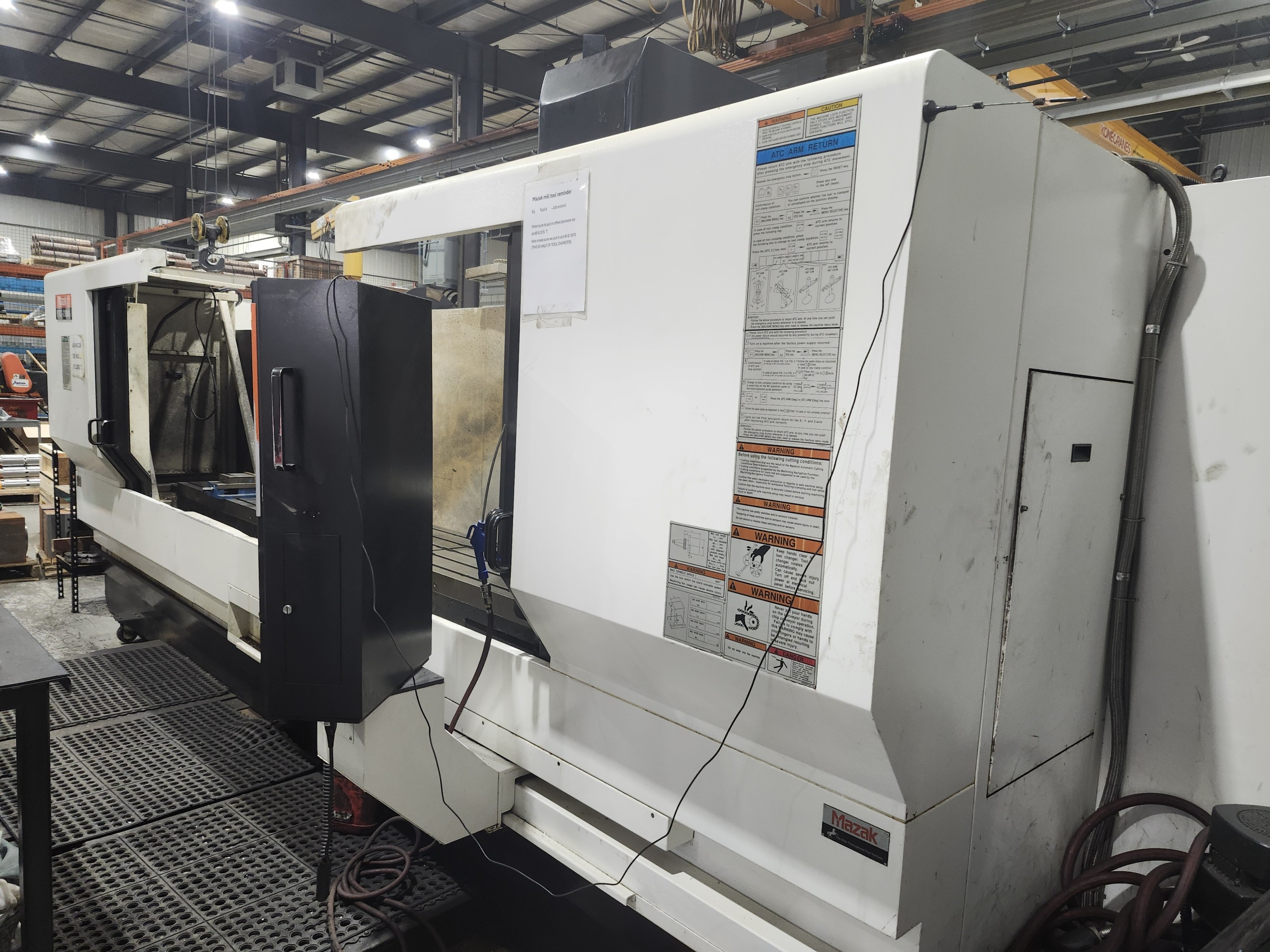

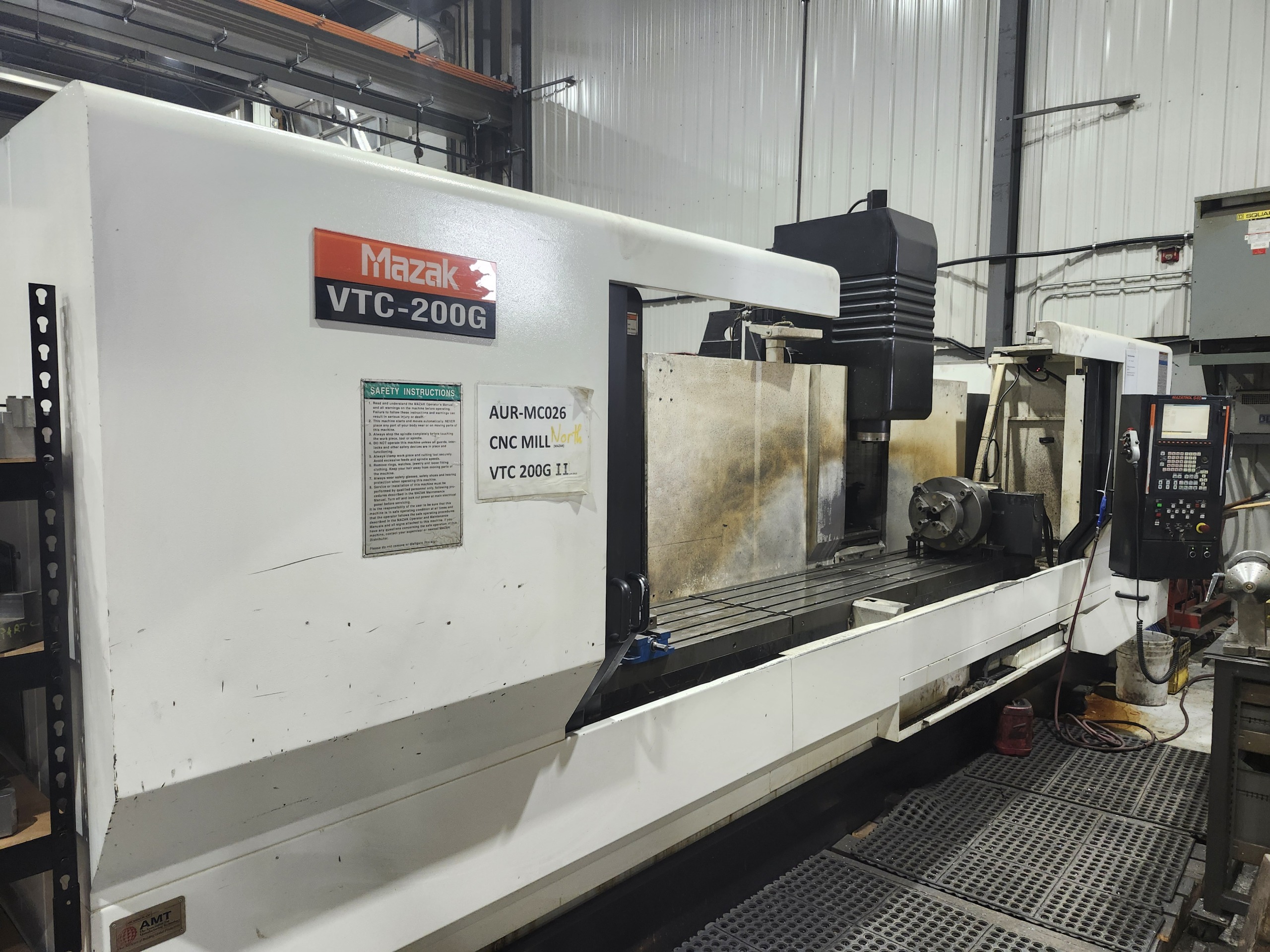

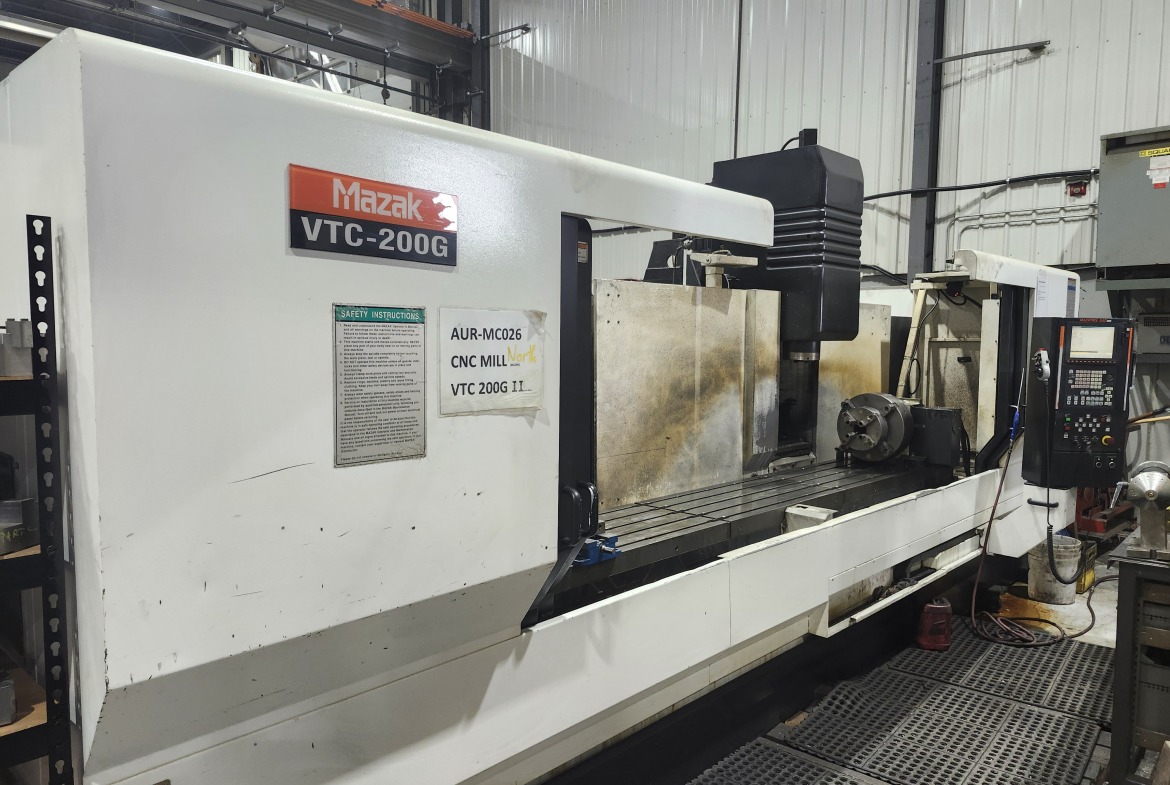

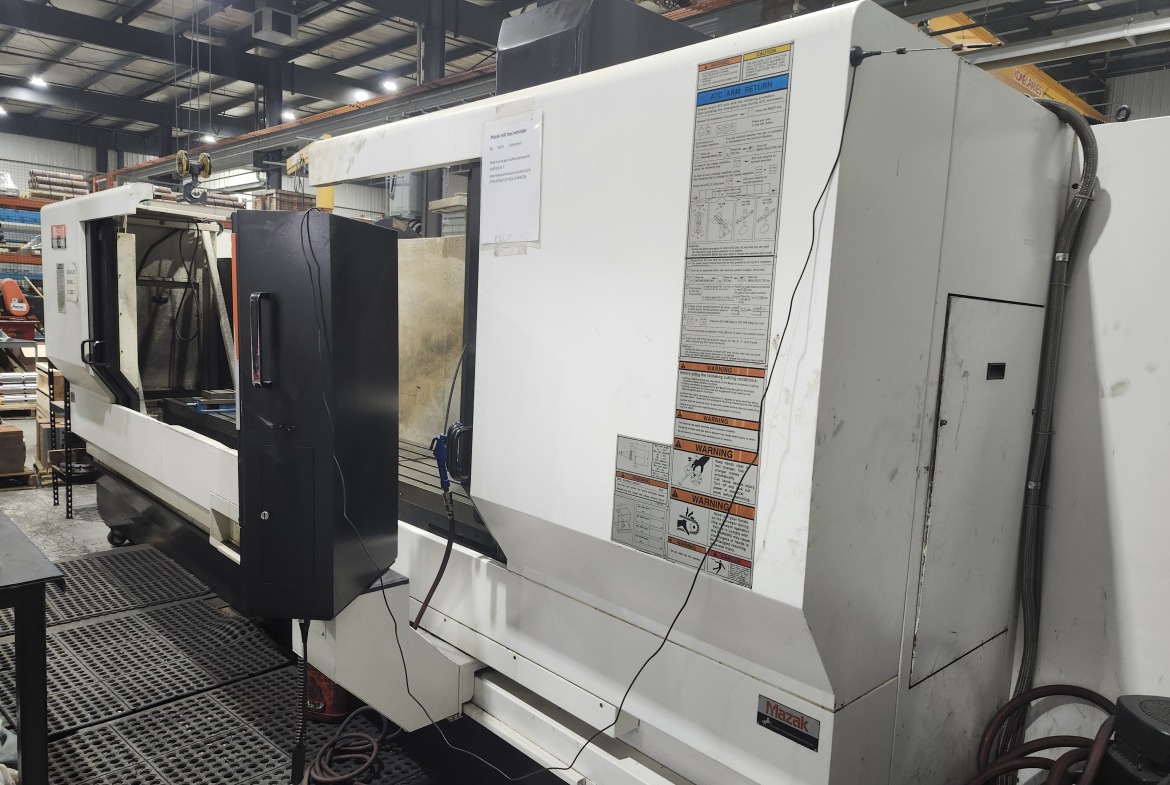

Machine type: Traveling-column vertical machining center (fixed table)

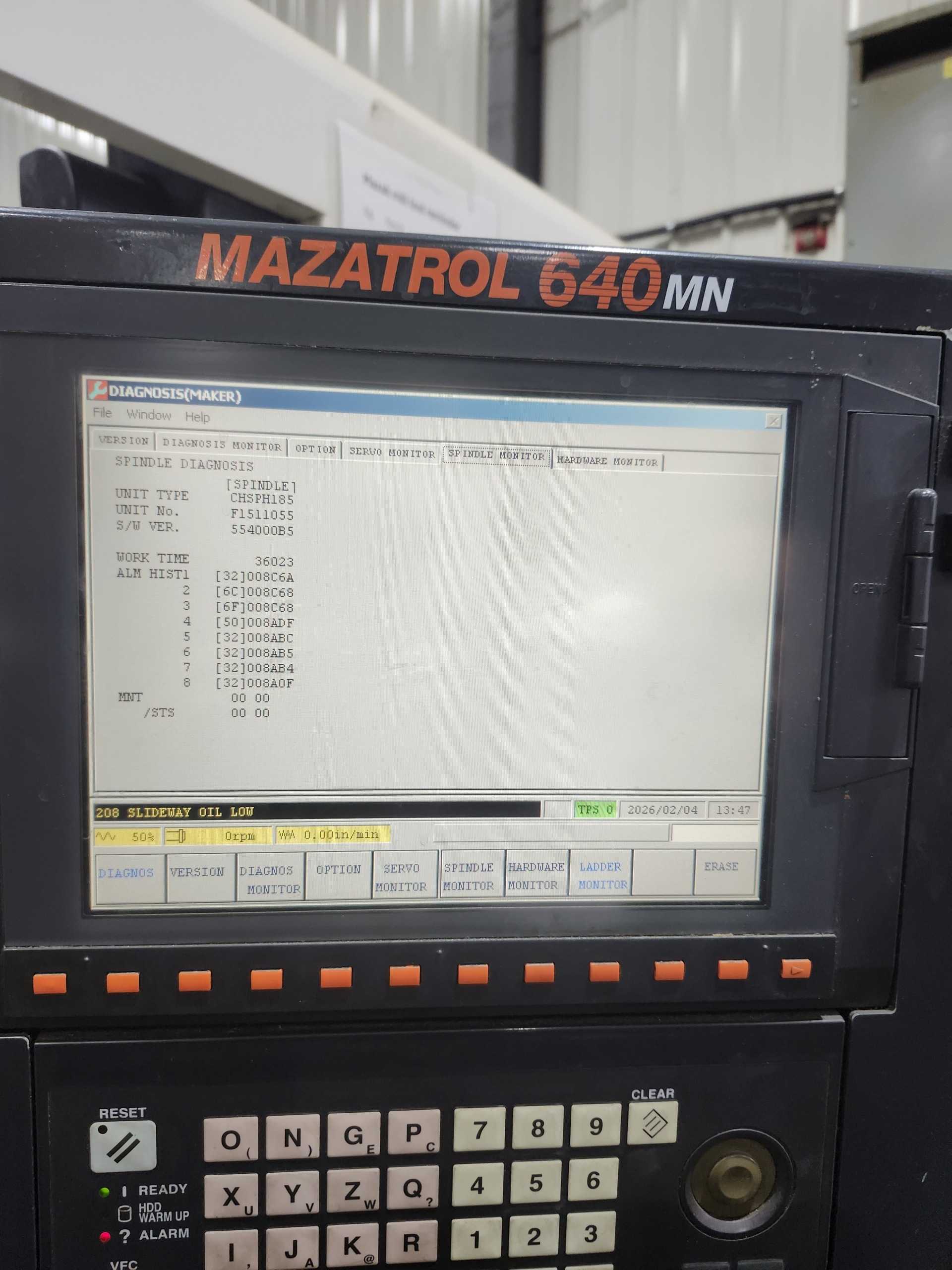

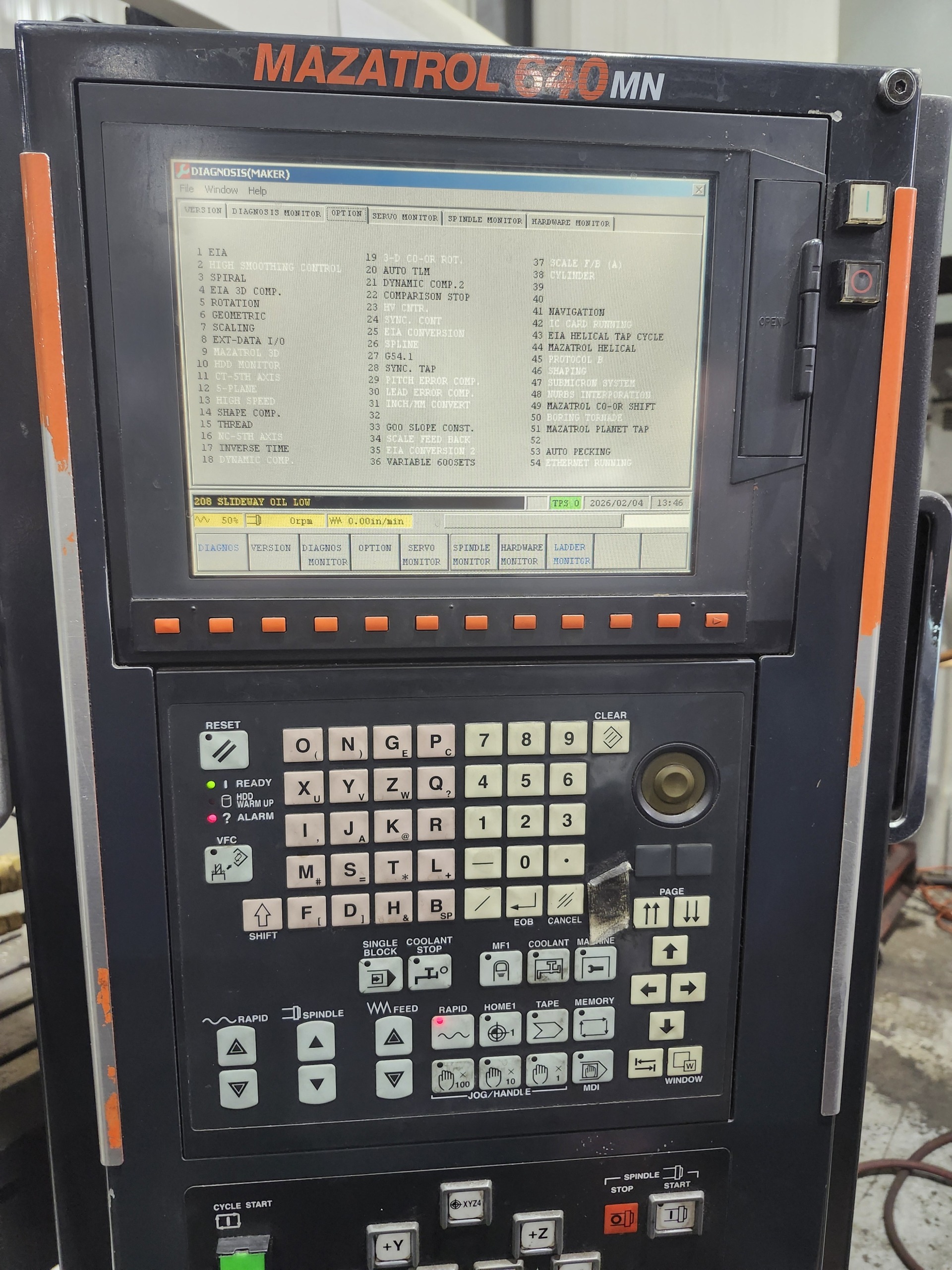

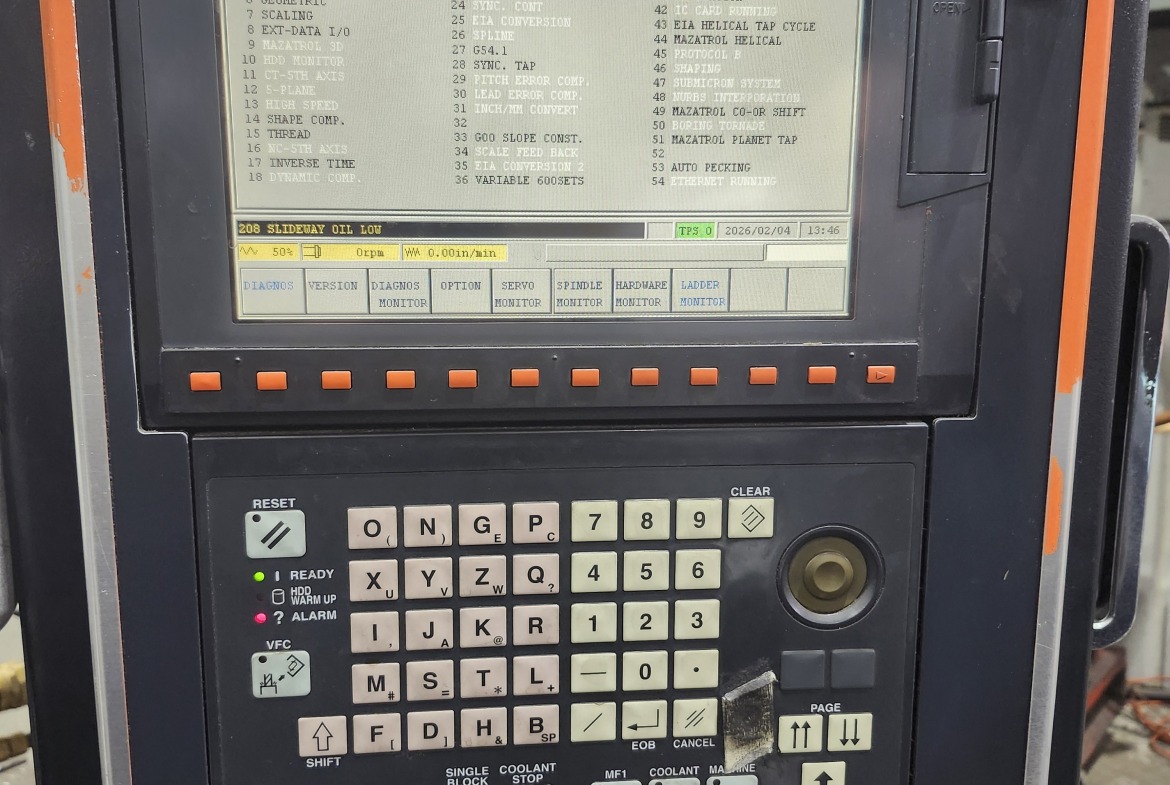

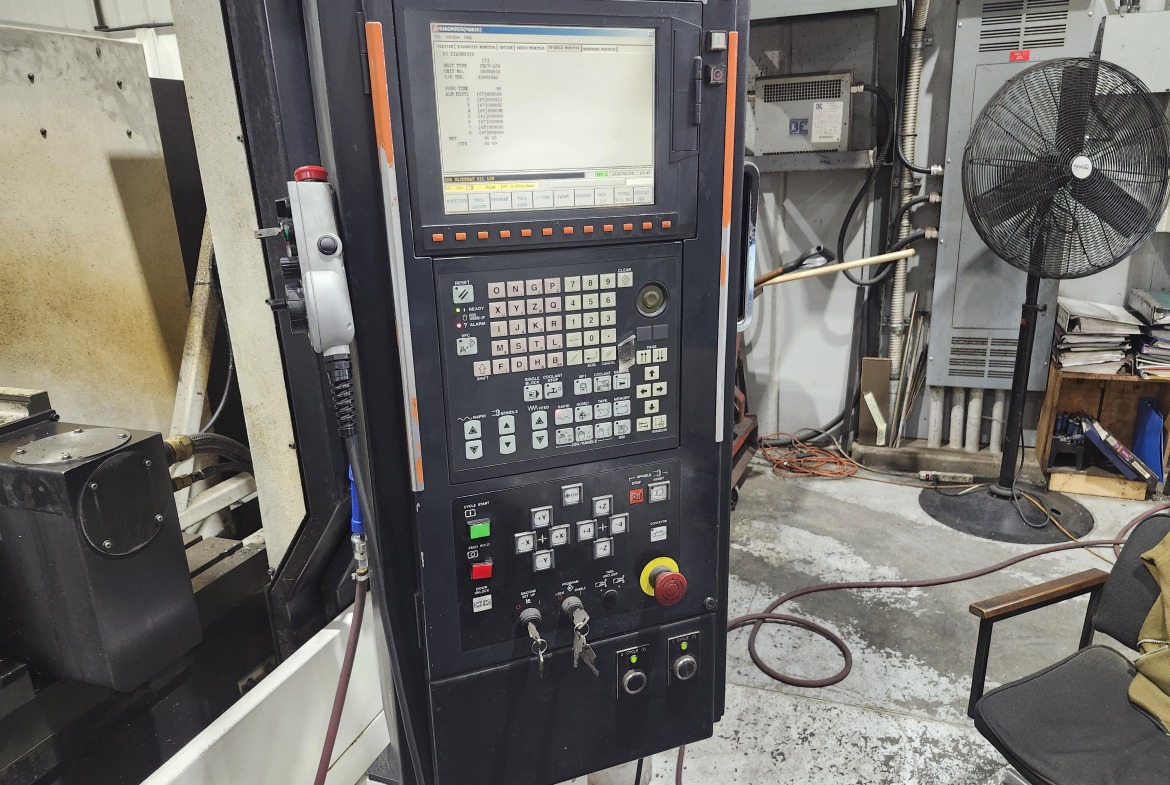

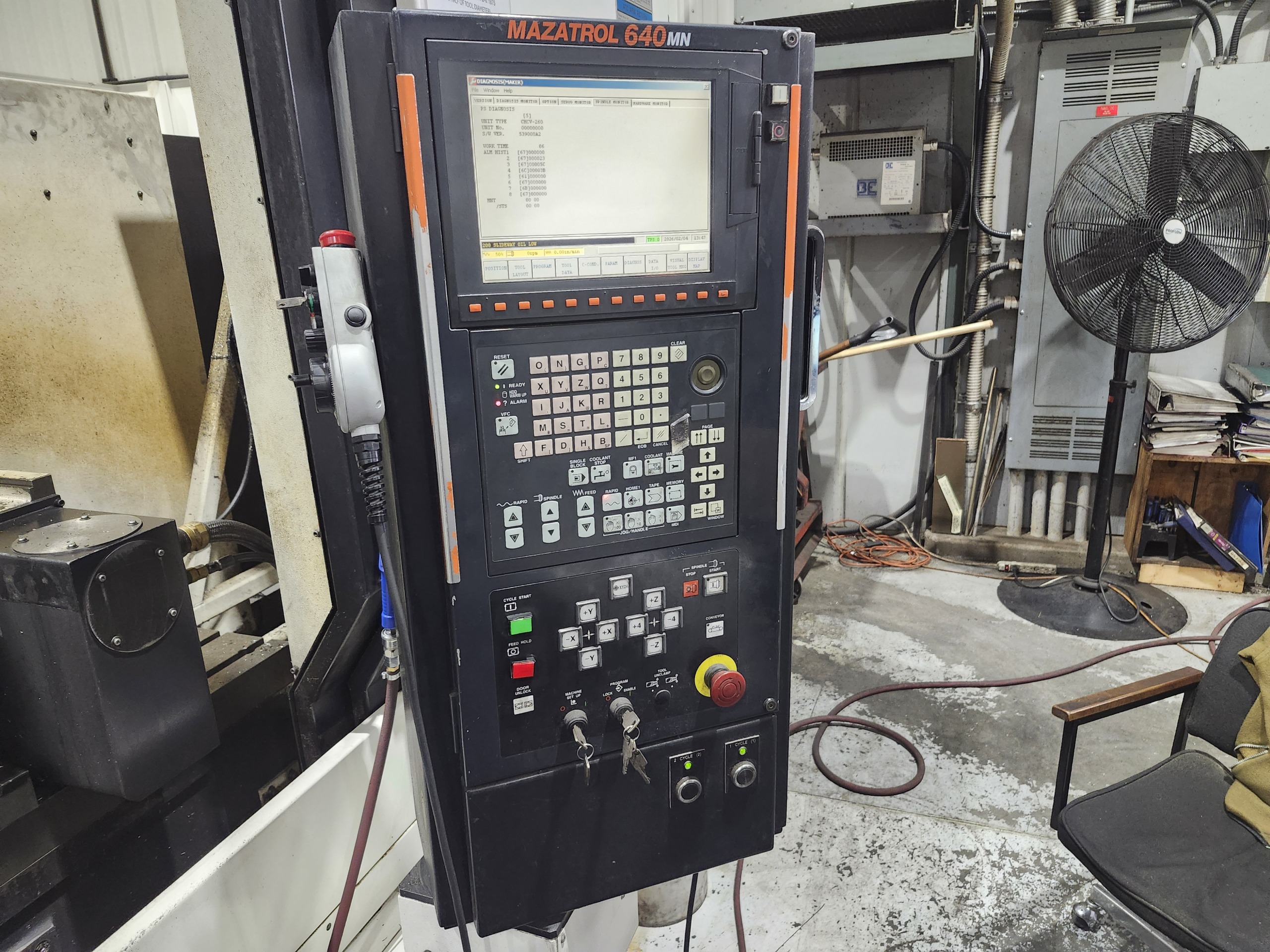

Control : Mazatrol Fusion

Travel & Work Envelope

• X-axis travel: ~144″ (~3,650 mm)

• Y-axis travel: ~20″ (~508 mm)

• Z-axis travel: ~20″ (~508 mm)

• Table size: ~154″ × 20″ (~3,920 × 508 mm)

• Max workpiece load on table: often ~4,600 lbs / ~2,090 kgSpindle taper: CAT-40 (ISO 40)

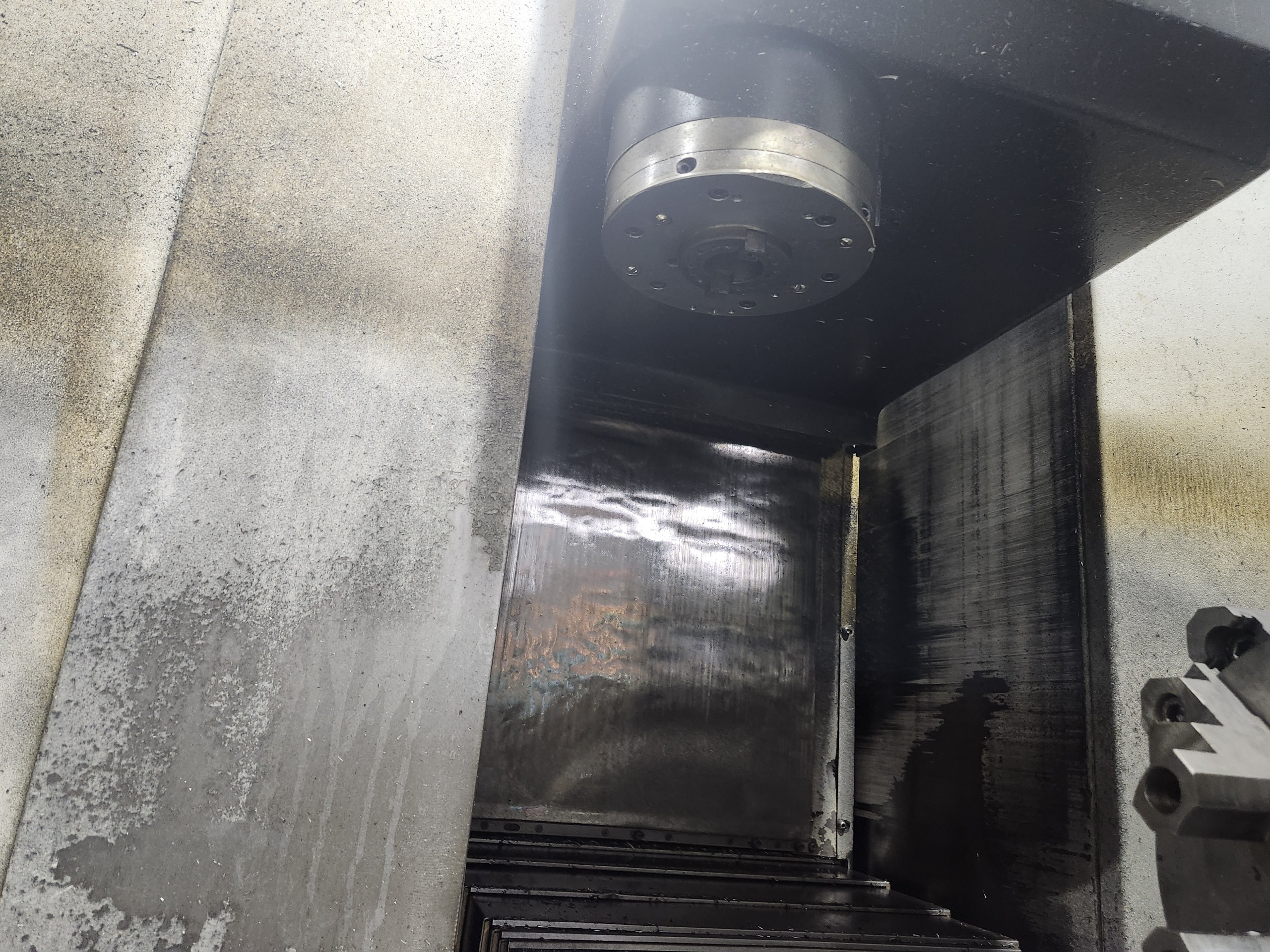

• Max speed: ~10,000 rpm (standard) — some units may have 12,000 rpm options in later variants
• Spindle motor: ~20 hp (~15 kW) with high torque (~70 ft-lbs / ~95 Nm)
• Thru-spindle coolant:
• Tooling & Magazine
• Tool magazine capacity: 24 tools standard
• Performance & Feed
• Rapid traverse: X/Y/Z typically ~1181 IPM (30 m/min) in Y and Z and ~630 IPM in X
• Axes: 3-axis standard (X/Y/Z)
• Traveling column: Spindle and column move; table fixed — allows very long X travel with stable workpiece support
• Machine weight: Varies by configuration, but often ~25,000-30,000 lbs

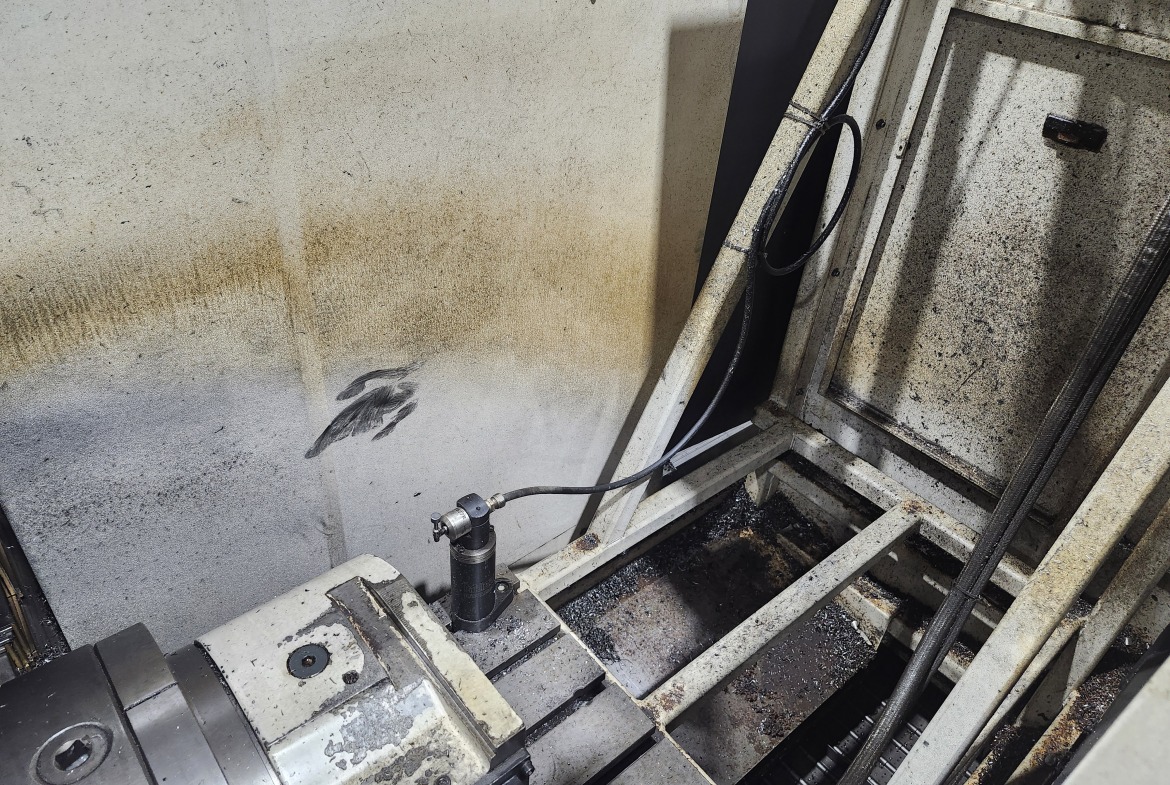

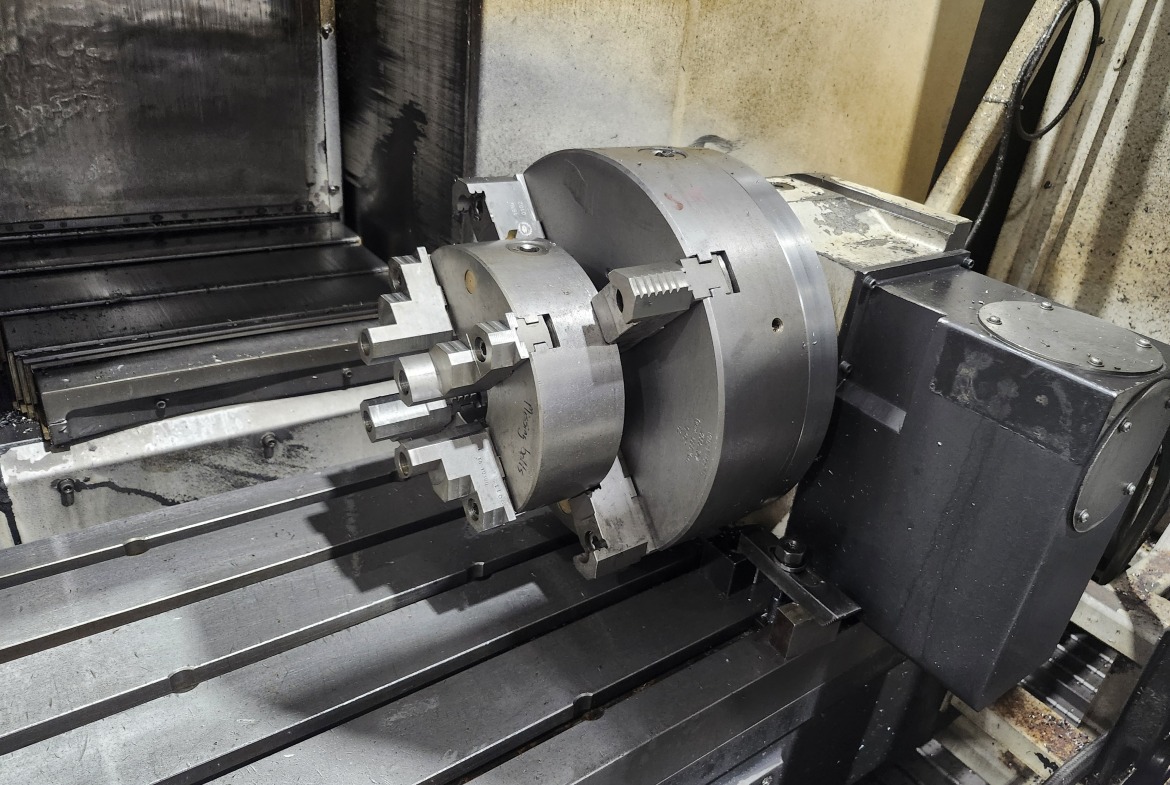

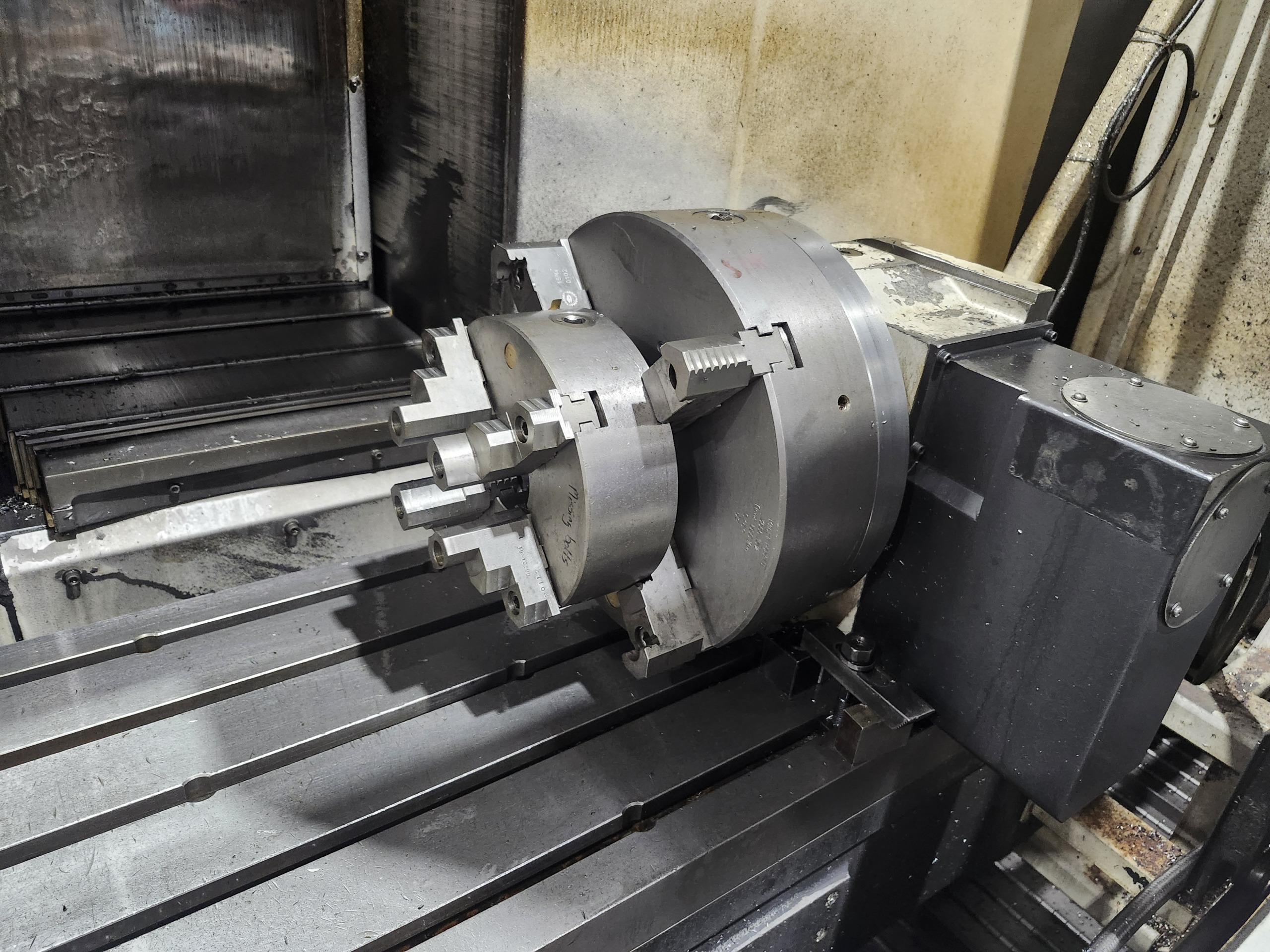

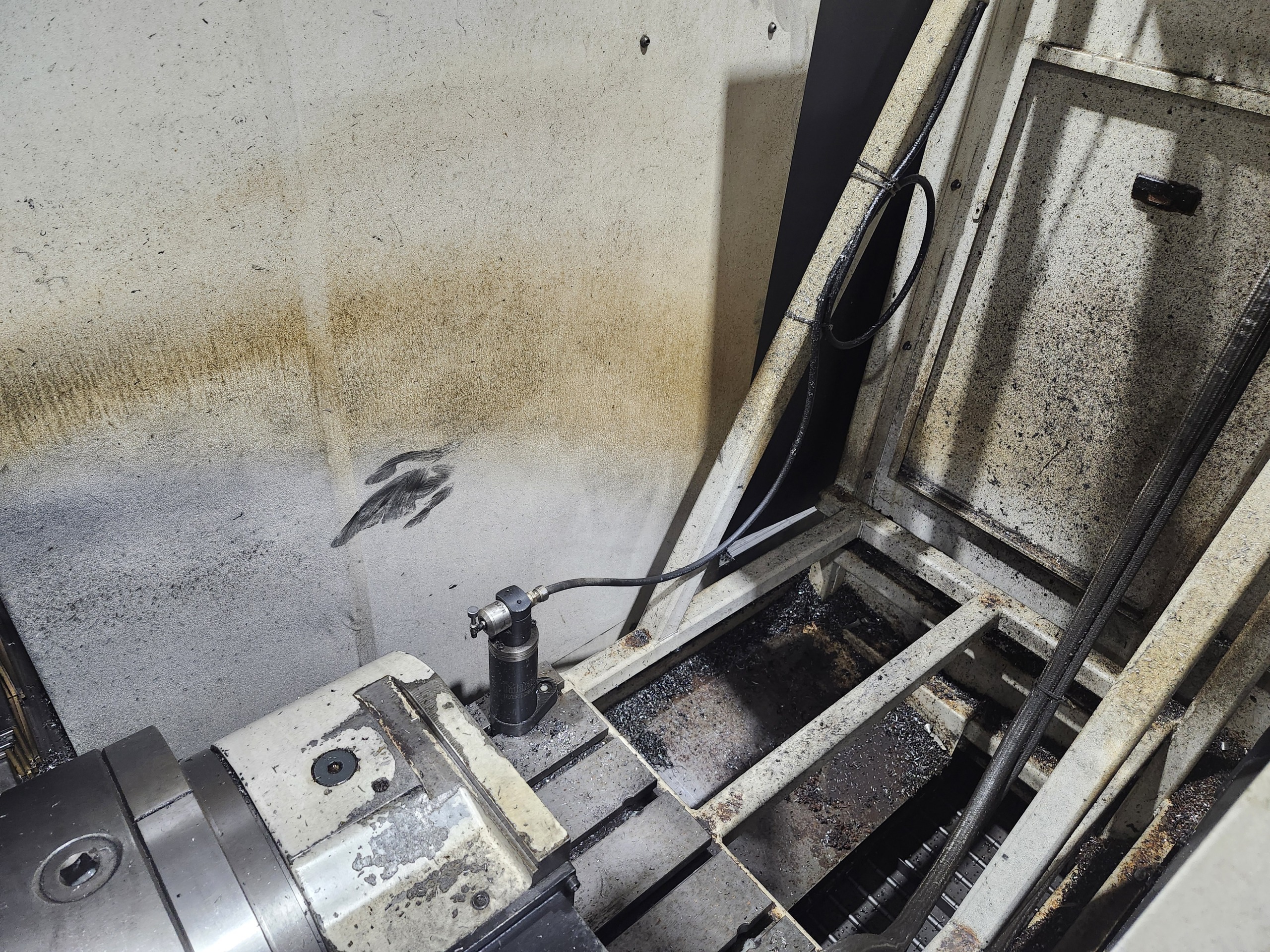

• C/w 4th axis Rotary Table & Tool Probe Part Probe
