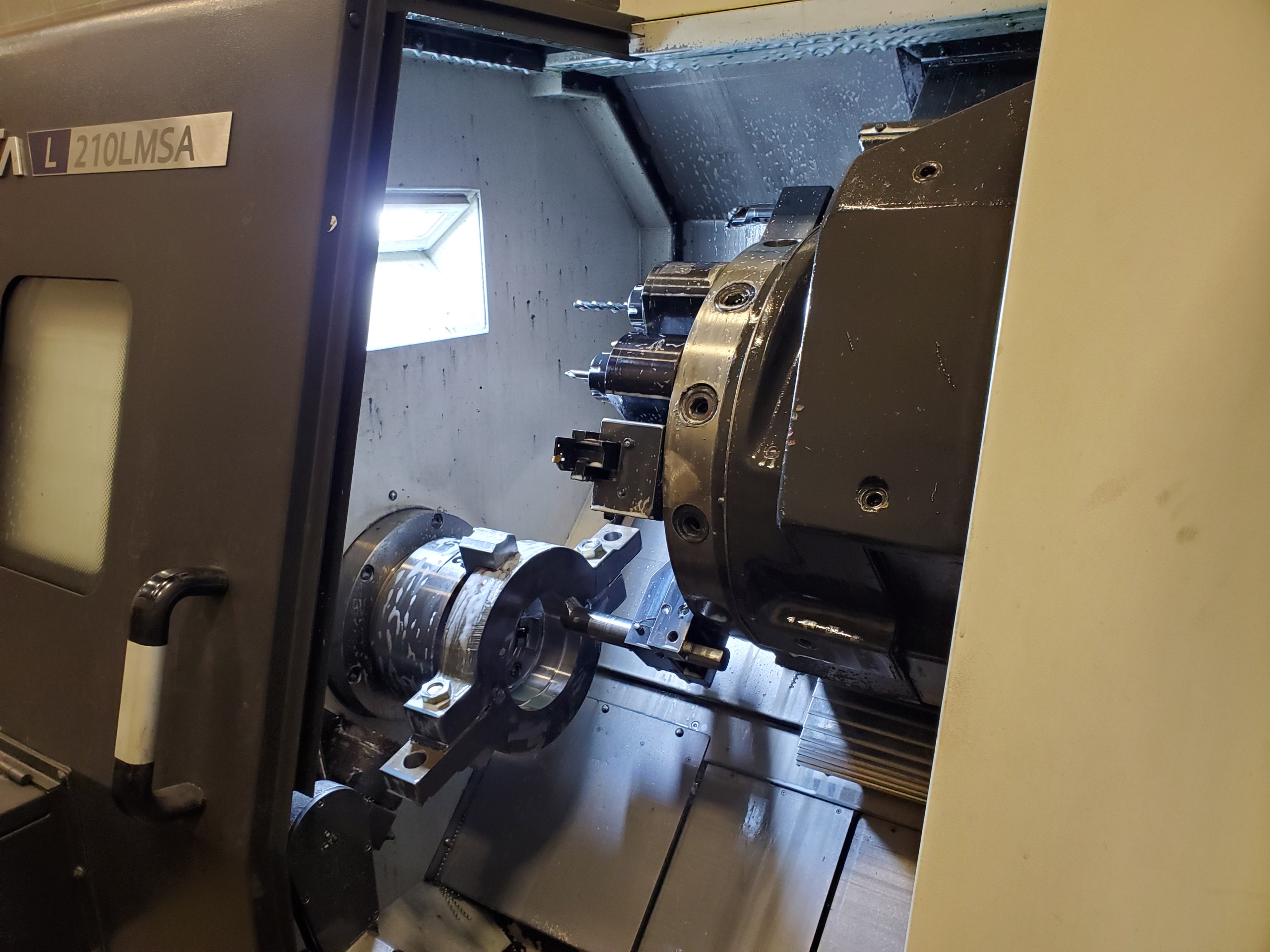

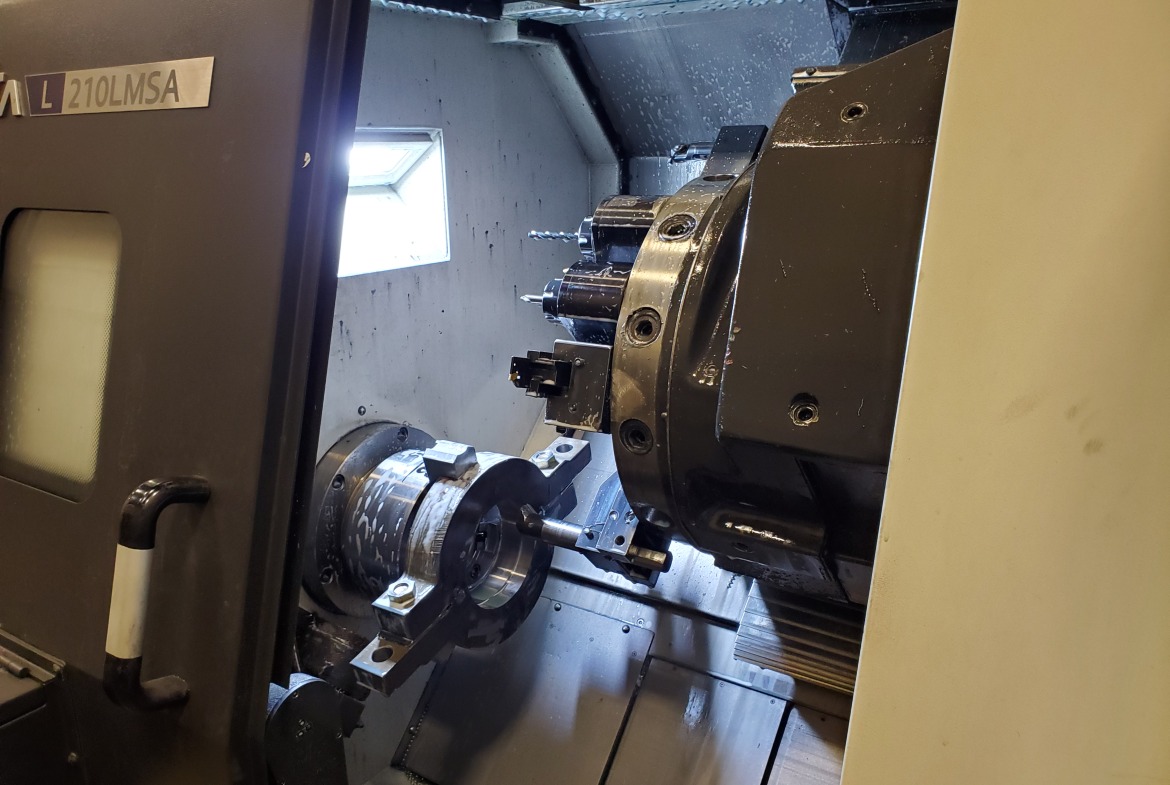

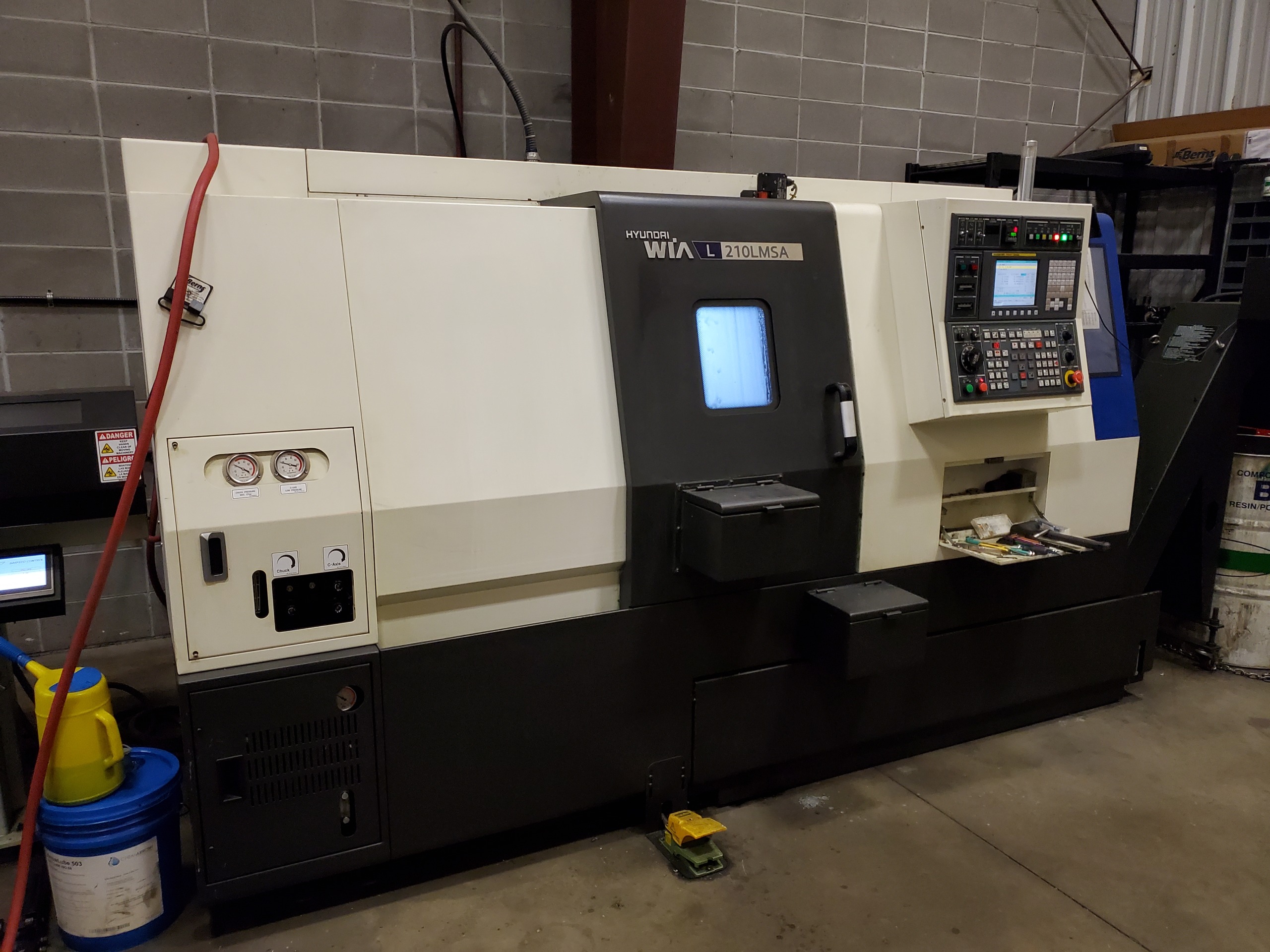

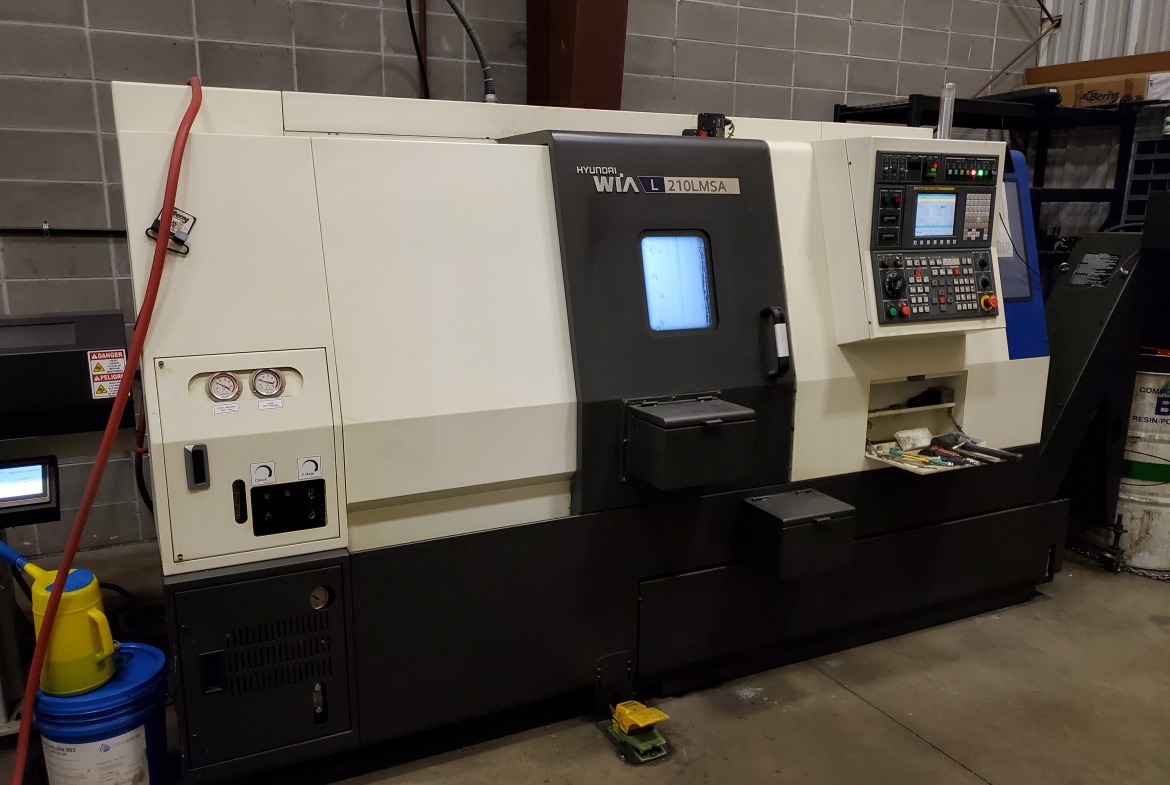

2017 L210LMSA Horizontal Multi Task Turning Center

Lamarche Machinery Inc., 8821, 60 Avenue NW, Davies Industrial West, South Industrial District, Edmonton, Alberta, T6E 6L9, Canada

👁 311

Address

Address Lamarche Machinery Inc., 8821, 60 Avenue NW, Davies Industrial West, South Industrial District, Edmonton, Alberta, T6E 6L9, Canada
City Edmonton
State/county AB Canada
Country Canada

Updated on July 23, 2025 at 8:39 pm

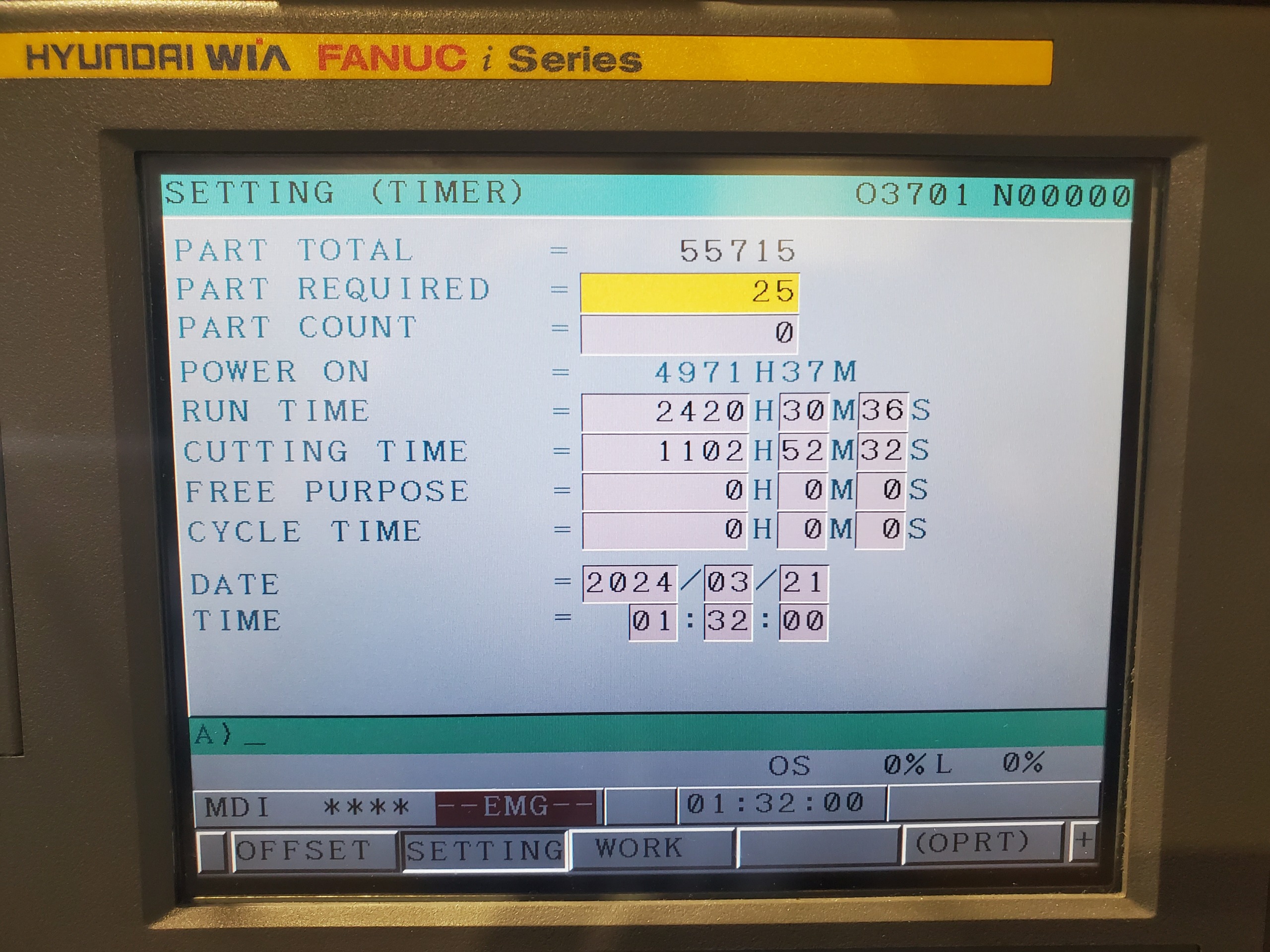

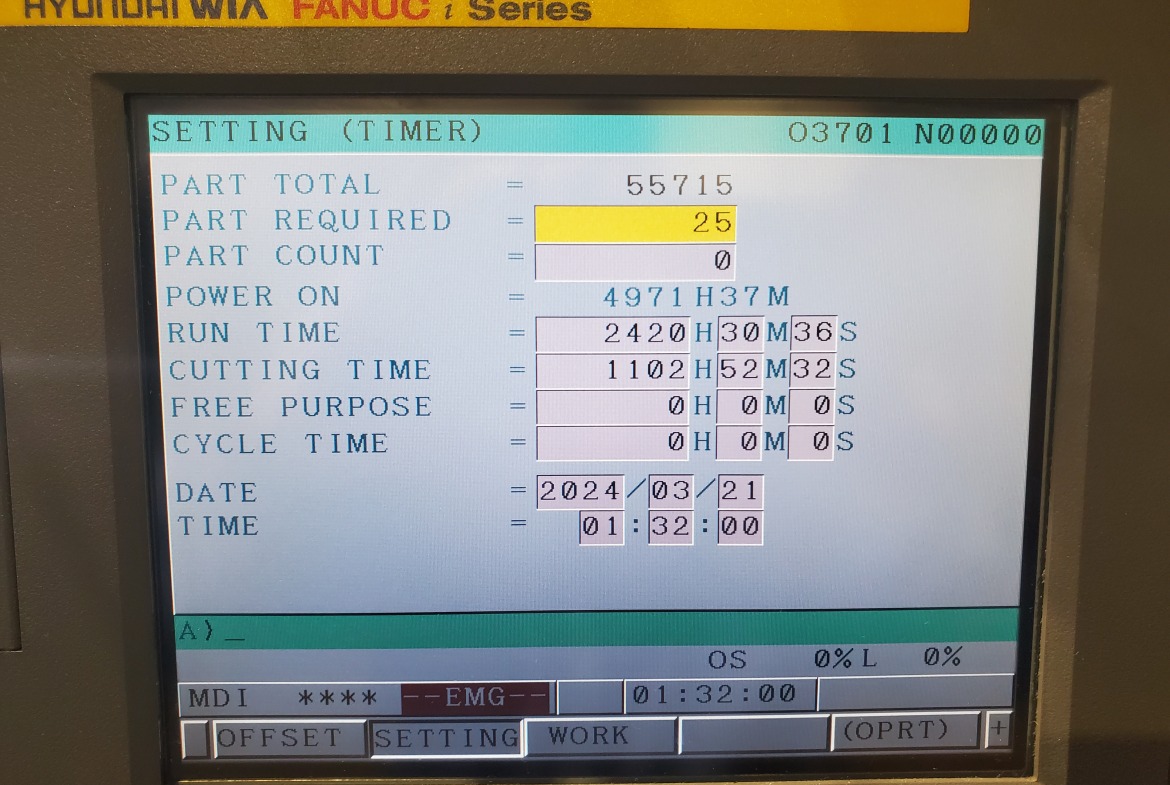

Controller	Fanuc Oi-TD
Swing	21.7″
Maximum Turning Diameter	10.6″
Maximum Workpiece Length	20.9″
Travel X Axis	8.3″
Travel Z Axis	21.7″
Ways	Schneeberger Roller Guide
Spindle	A2 – 6
Second	Flat Nose
Max Bar Work Diameter Left	2.56″
Max Bar Work Diameter Right	1.30″
Max RPM L / R	4,000 L / 6,000 R
C Axis Left Spindle	C Axis
C Axis Right Spindle	5 Degree Indexing
Rapid Traverse X Axis	1,417 ipm
Rapid Traverse Z Axis	1,417 ipm
Rapid Travere ZB	1,181 ipm

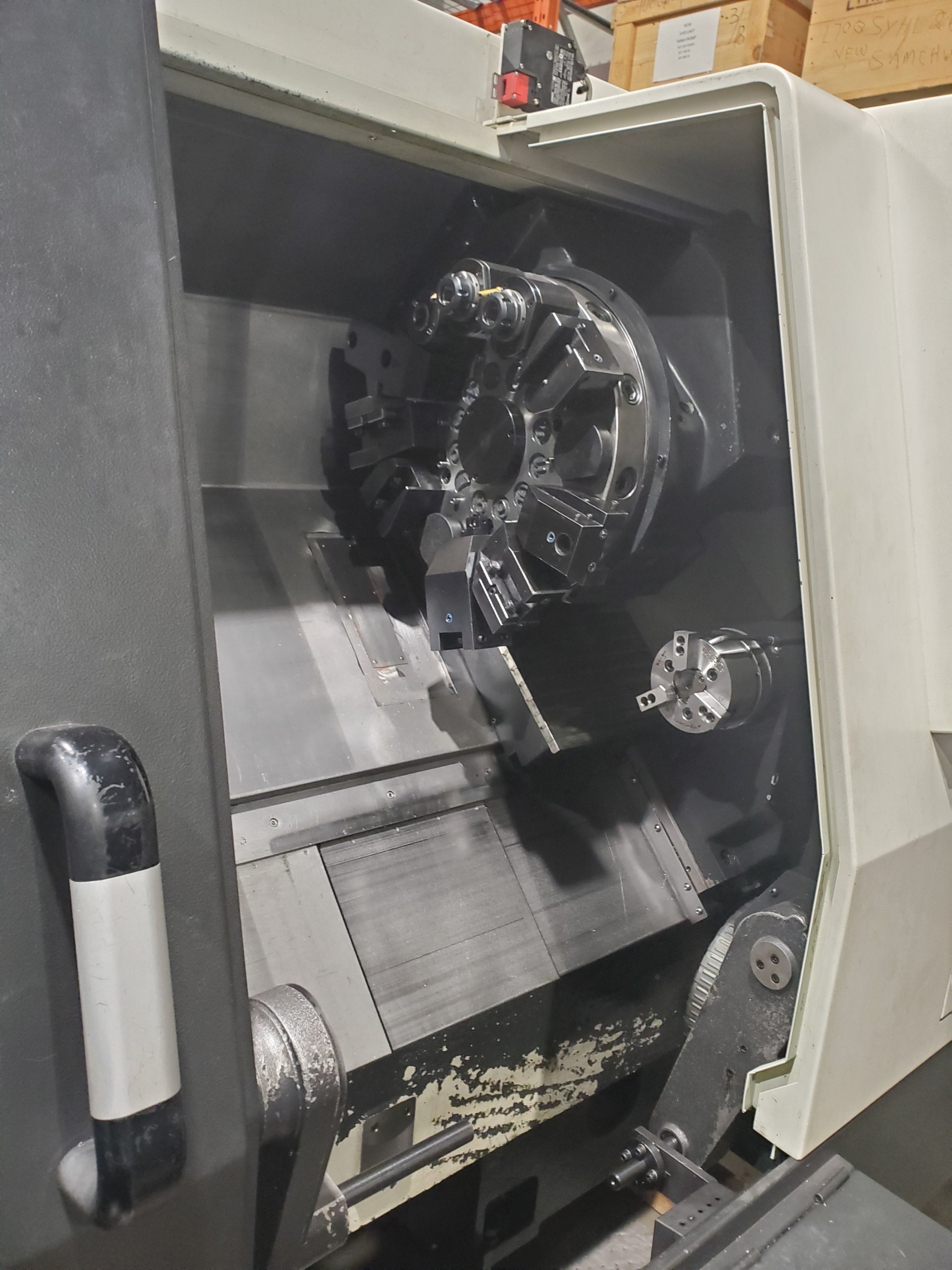

Turret	12 Tools
Tool Size (Square Shank)	1″ sq
Tool Size (Round Shank)	1.5″
Index Time – Tool to Next Tool	0.3 Sec
Chuck ( Samwoo Kitagawa )	8″Main – 5.3″ Sub
Horsepower	20-Main / 5-Sub
Torque	211.3 Ft-lbs (L) 17.4 Ft-lbs (R)
Work light	Yes
Weight	9,700 lbs
Coolant System	Yes
Automatic Tool Setter	Yes
Standard Tooling Package	Yes
Parts Catcher For Sub Spindle	Yes
VDI O.D. Holder-Front	2
VDI Face Holder	1
VDI Double OD Holder	1
VDI Double OD / ID Holder	1
VDI Double ID Holder	2
VDI ID Holder	1
VDI Live Tool Holder ( Axial )	2
VDI Live Tool Holder ( Radial )	2
Chip Conveyor	Hinge Right

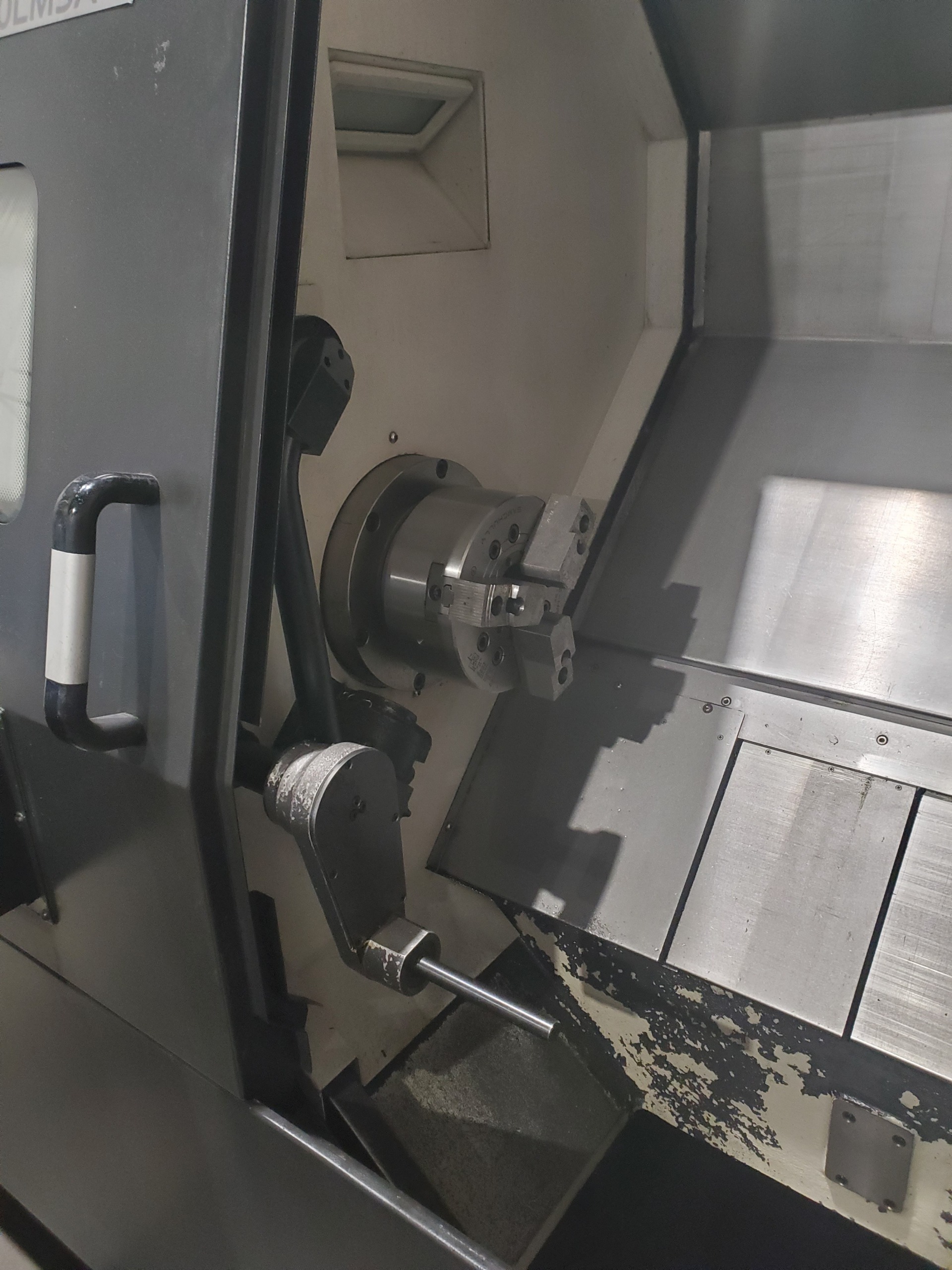

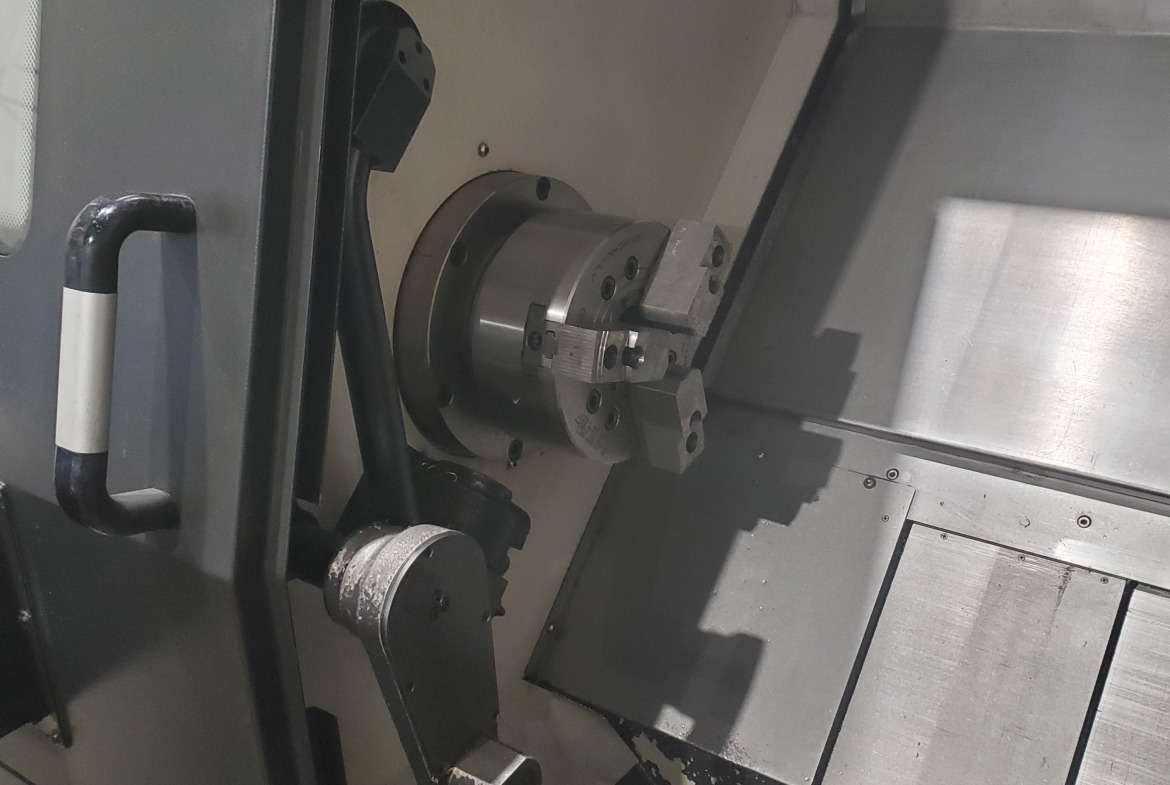

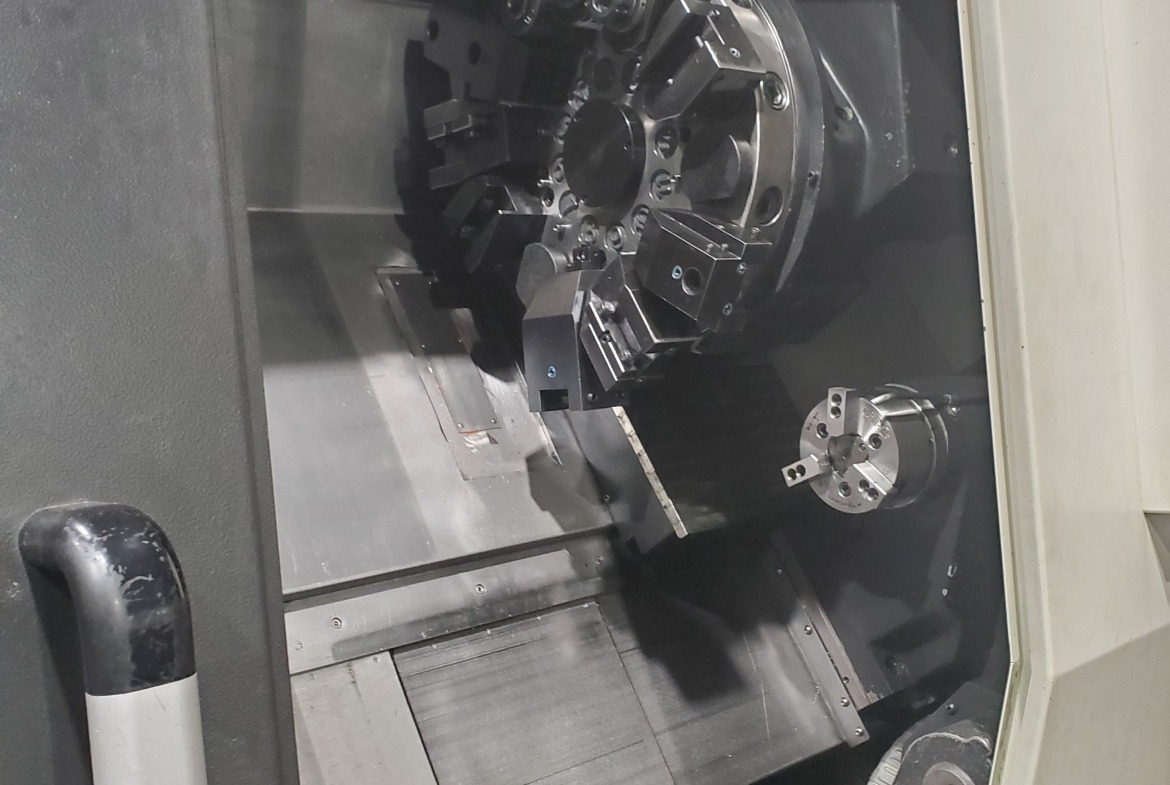

C/w 3 Jaw Chuck on Main Spindle and 3 Jaw chuck on Sub-spindle (see Pics)

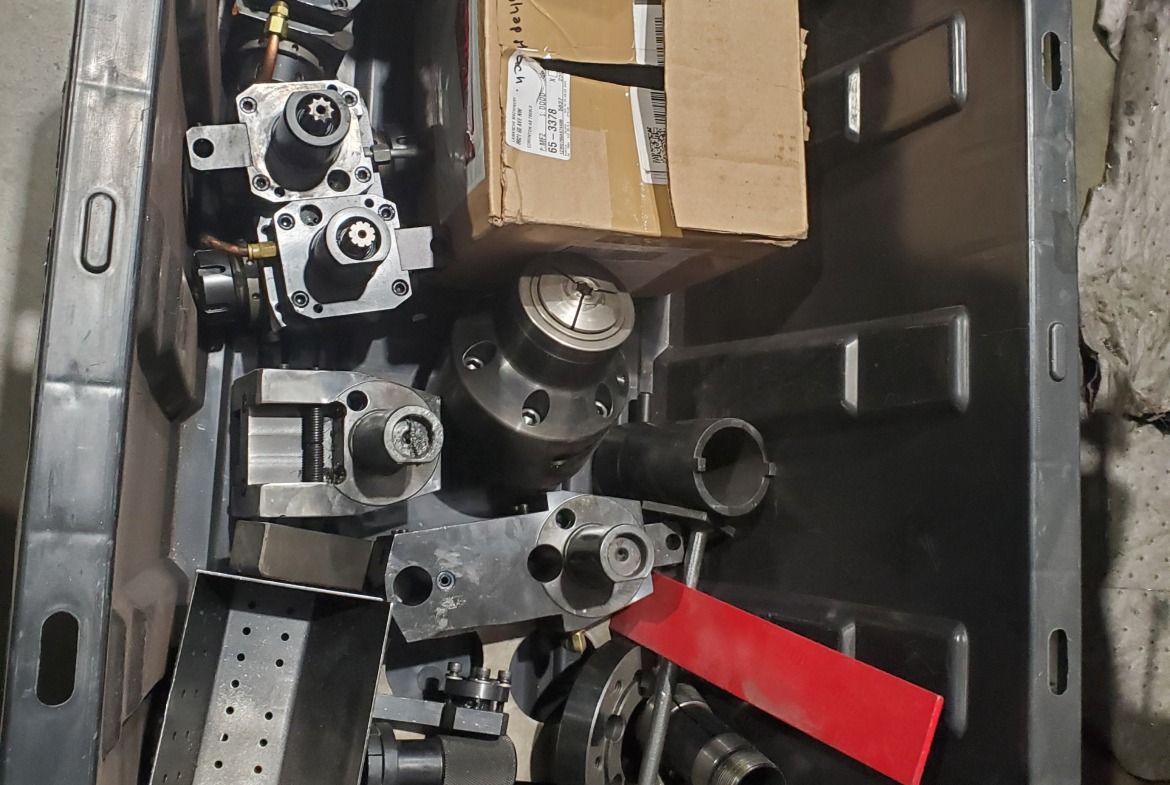

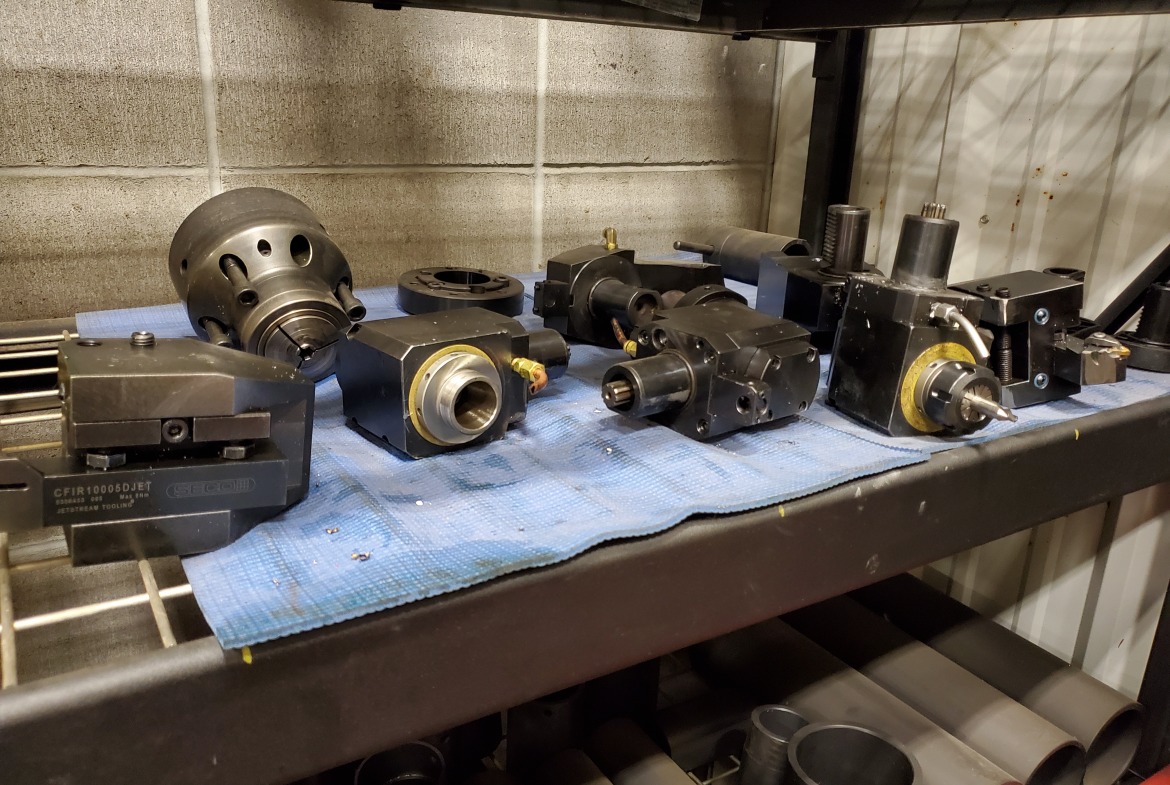

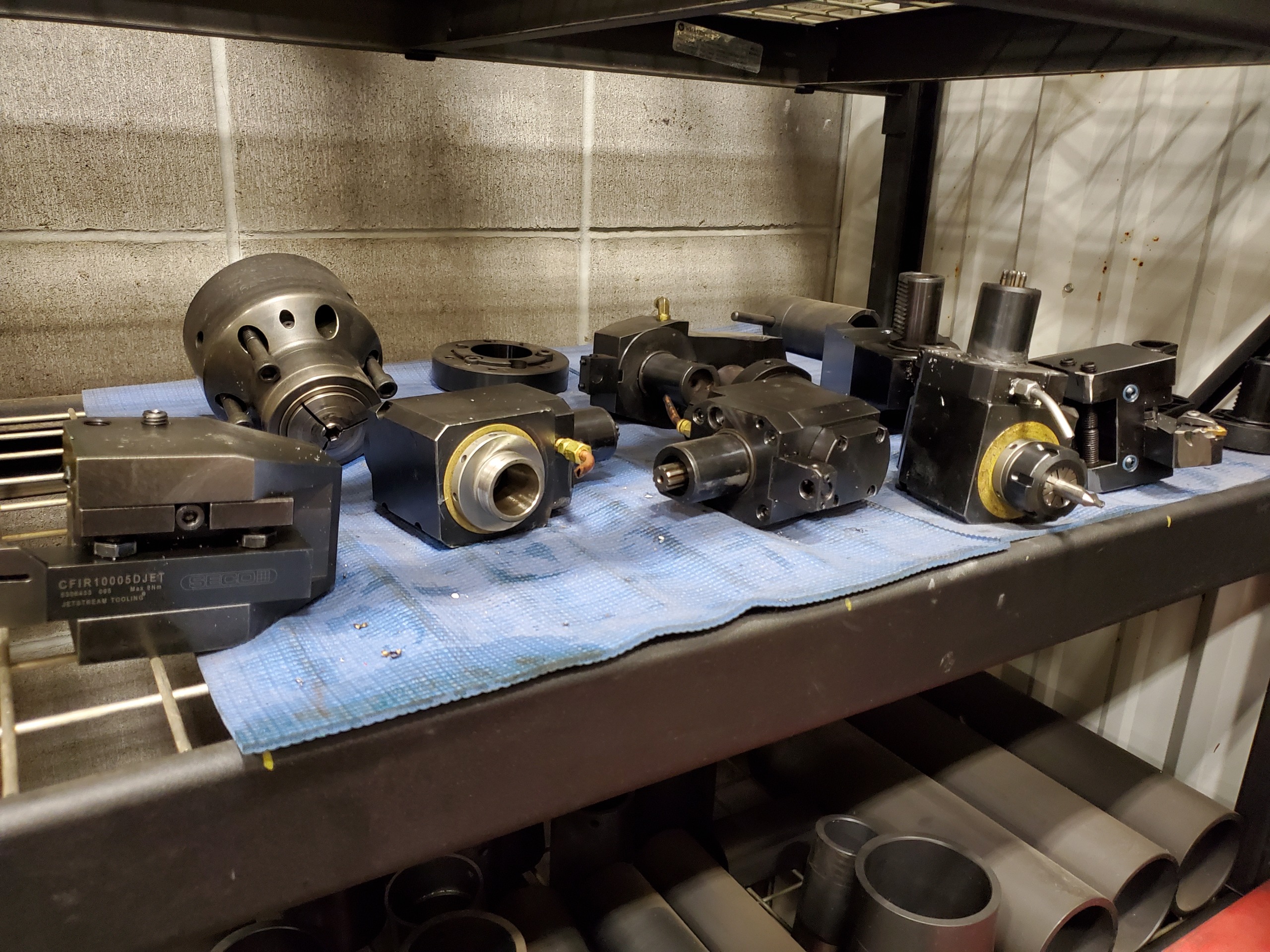

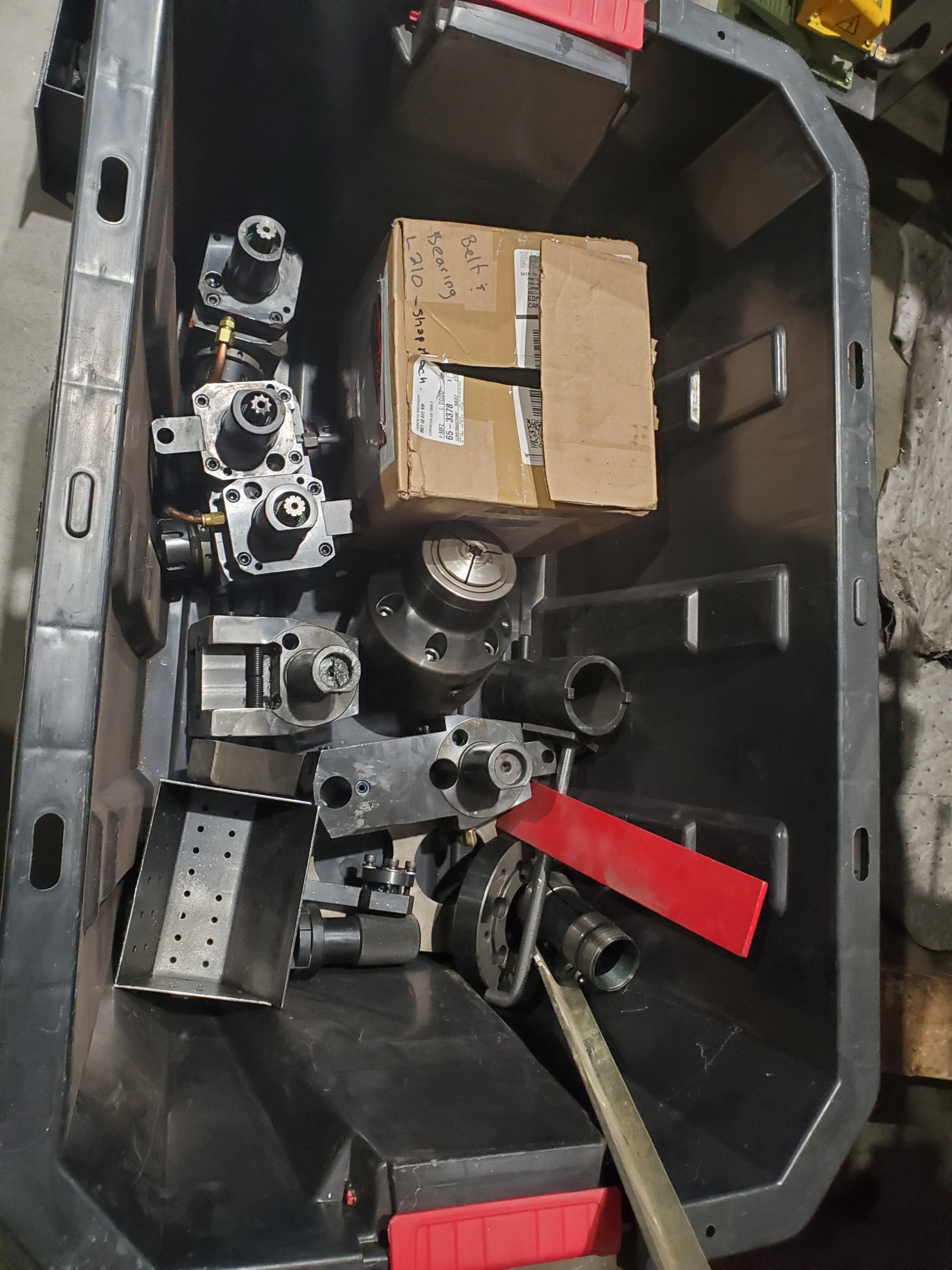

C/w tub of extra Live holdes (as per pic) no warranty on tools
ATS 3 J Collet Chuck 730AH05-60	Sub spindle- Not installed

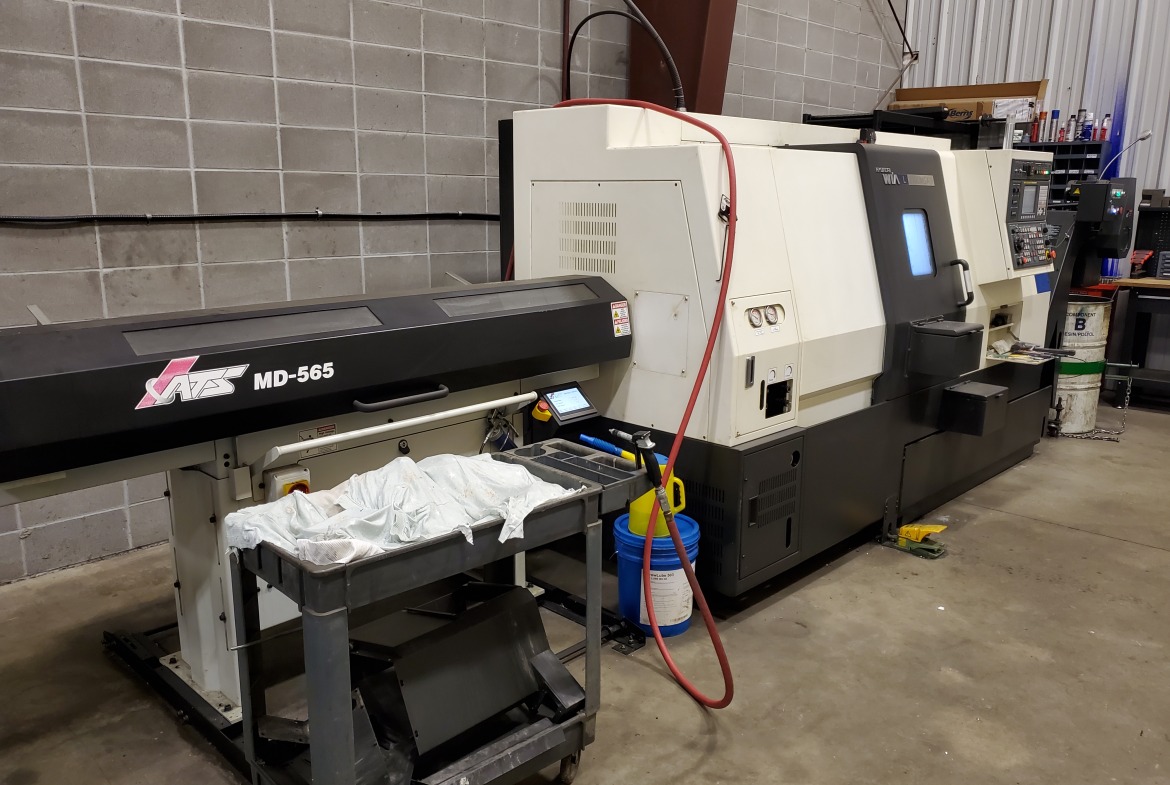

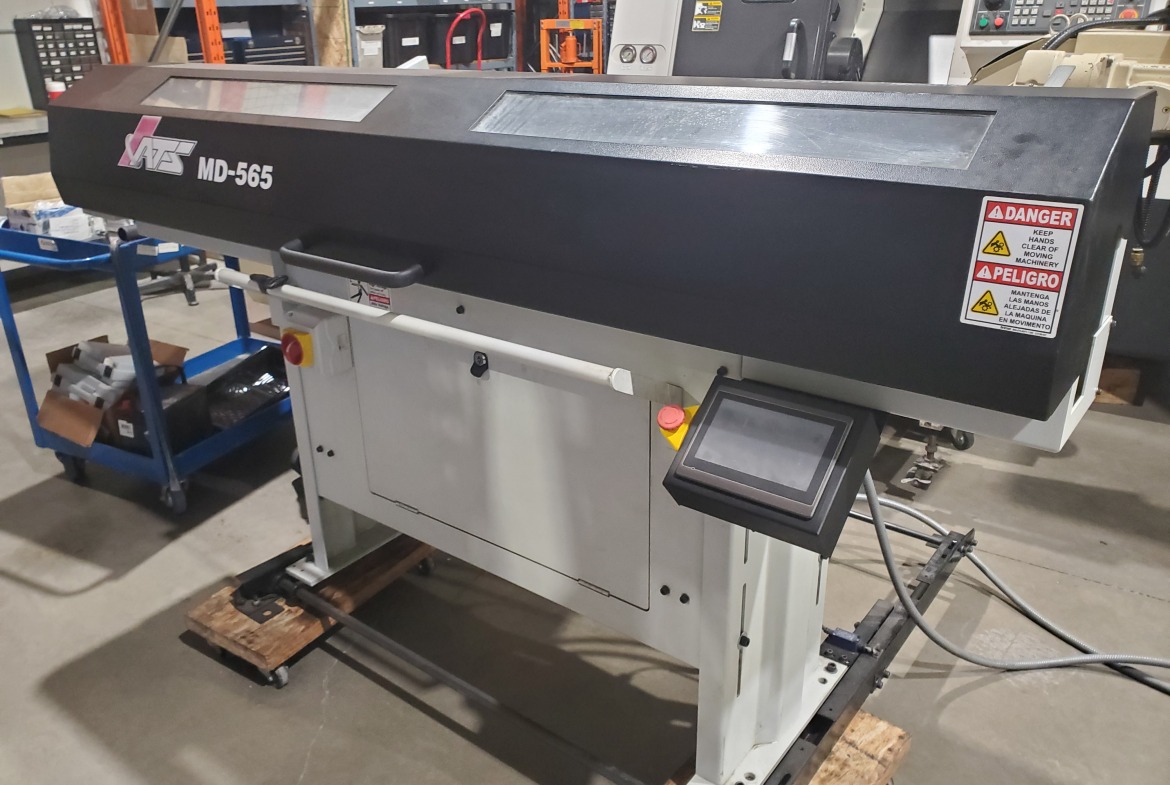

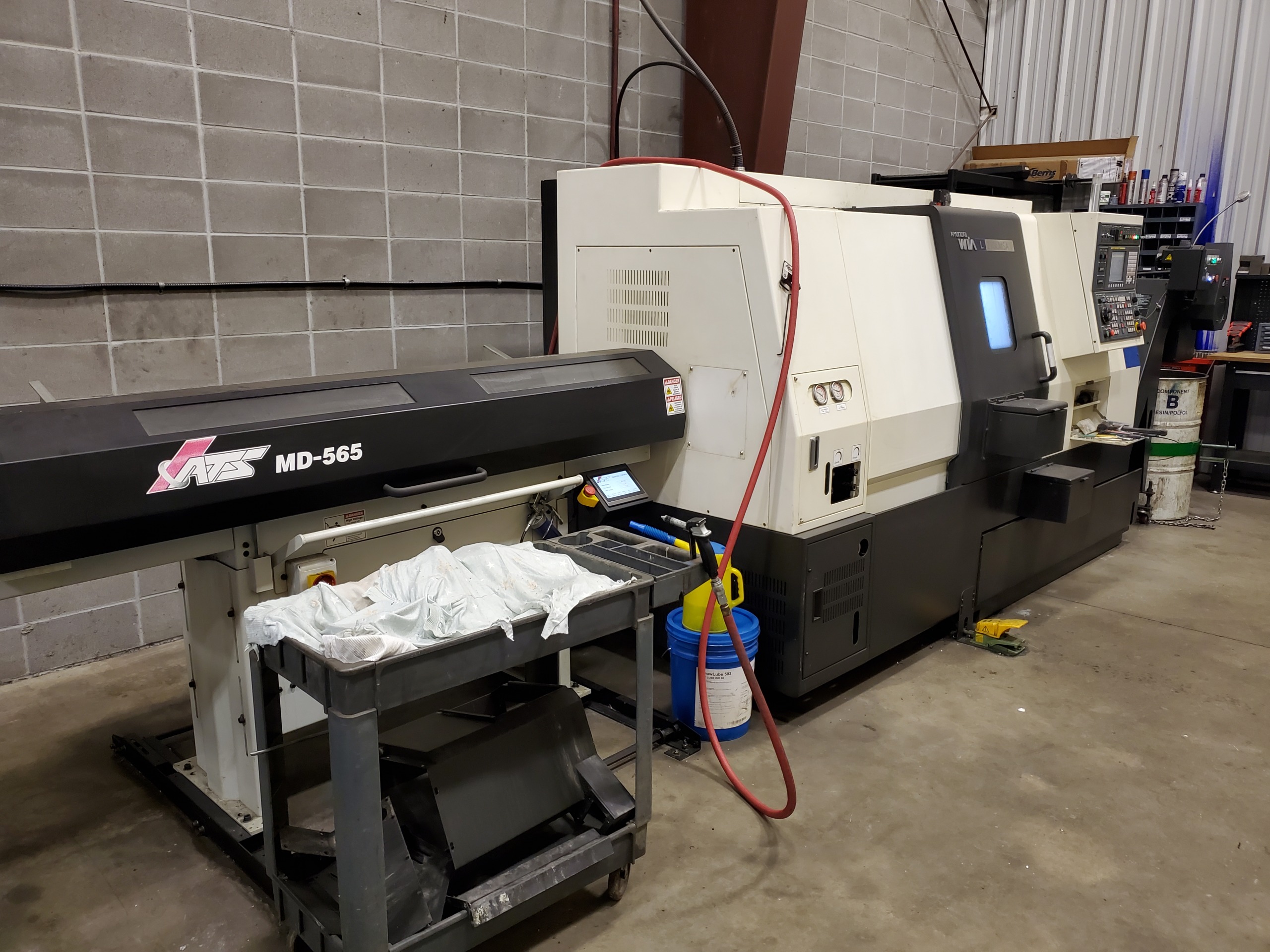

ATS Model MD-565 Bar Feeder	(Optional $5,000.00)
Min/Max Bar Diameter (inches)	0.2″ – 2.56″
Max Bar Length (inches) Head Stock Length	Max 60″
