| 2005 Hyundai SKT 21LMS |
|

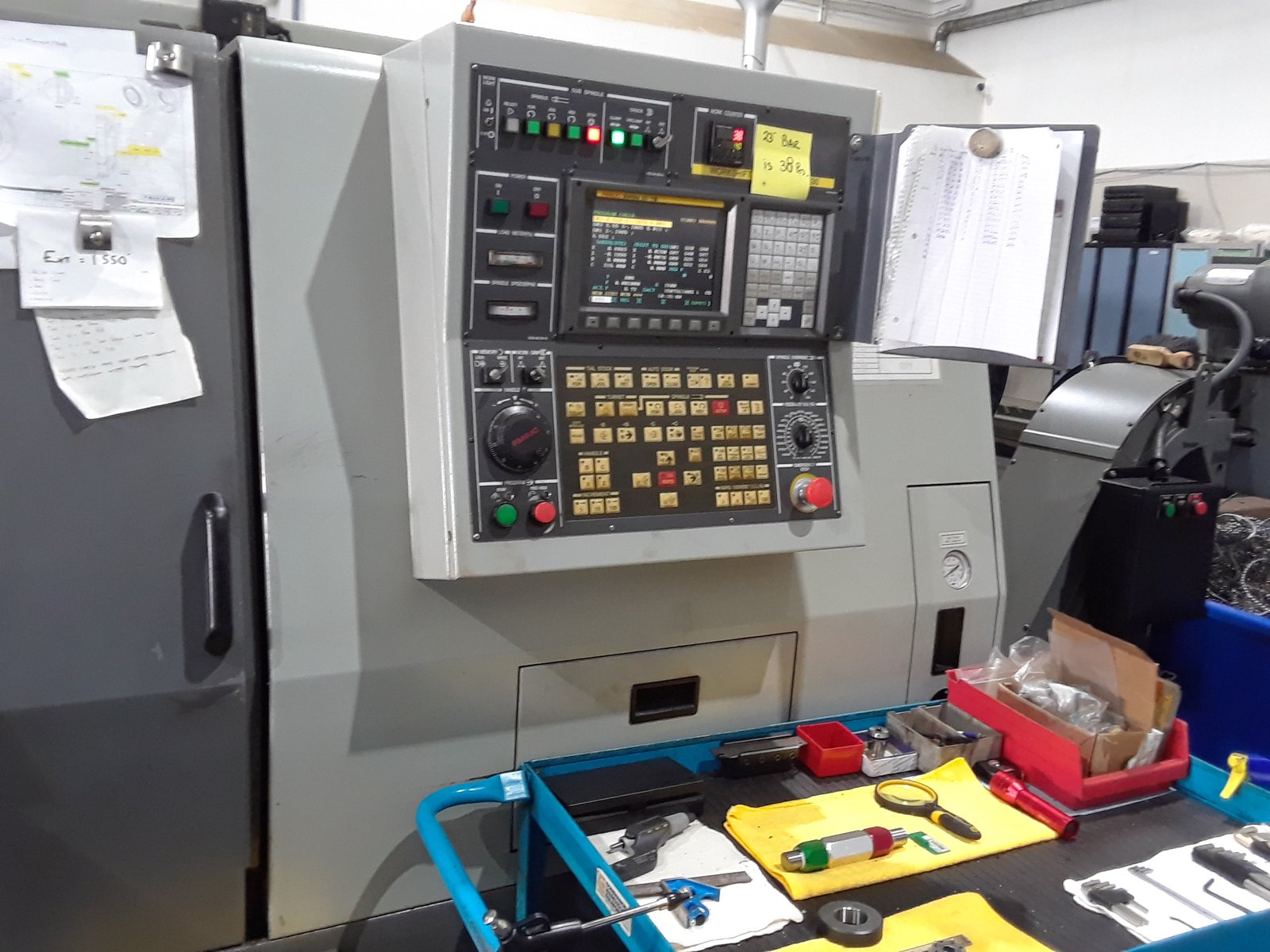

| CNC Controller |
Fanuc |
Std |
| Swing |
21.7" |
Std |
| Maximum Cutting Diameter |
13.8" |
Std |
| Maximum Workpiece Length |
20.9" |
Std |
| Travel X Axis |
8.7" |
Std |
| Travel Z Axis |
21.7" |
Std |
| Ways |
Schneeberger Roller Guide |
Std |
| Spindles |
|
|

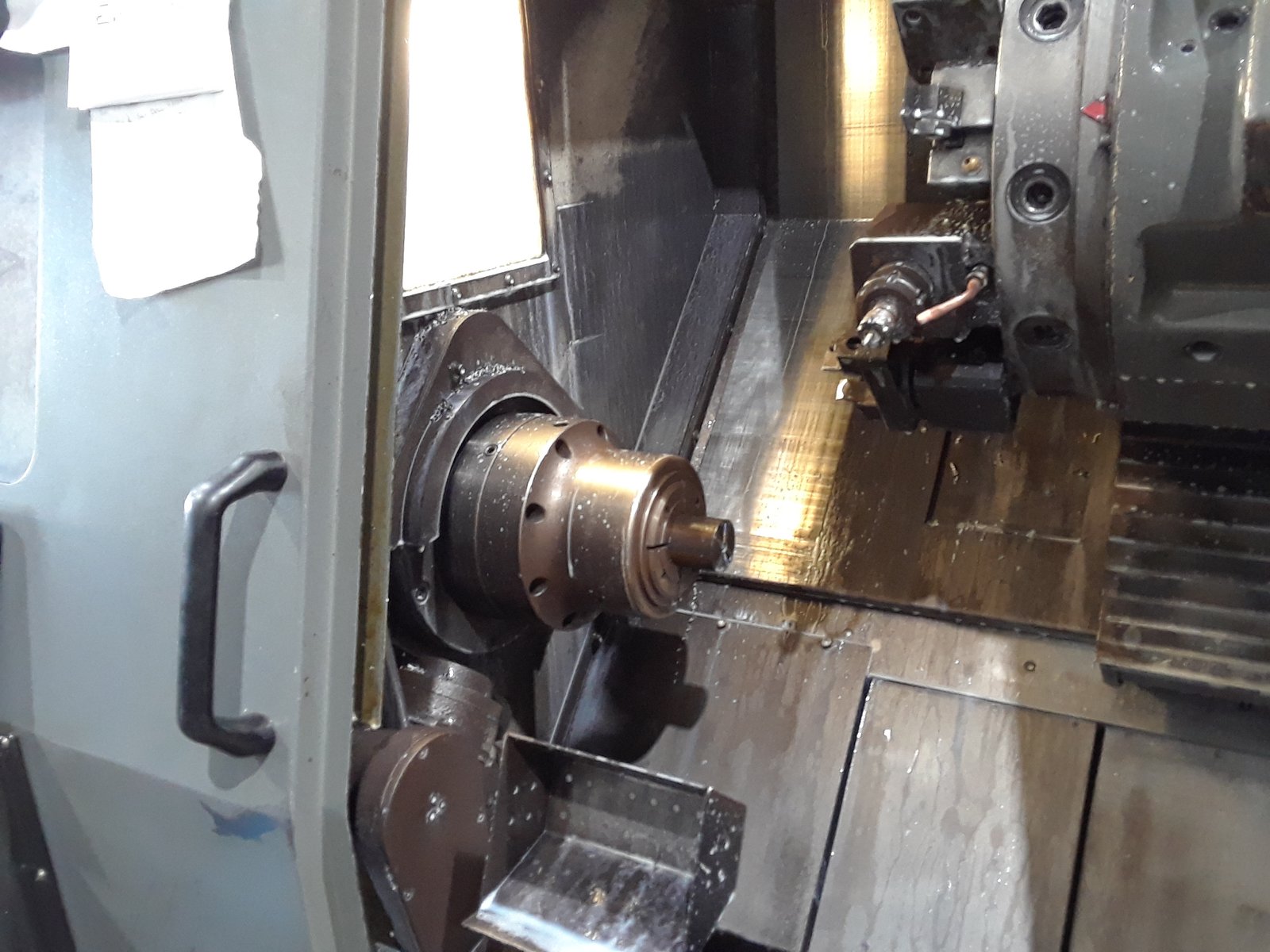

| Main Spindle |
A2-6 |
Std |

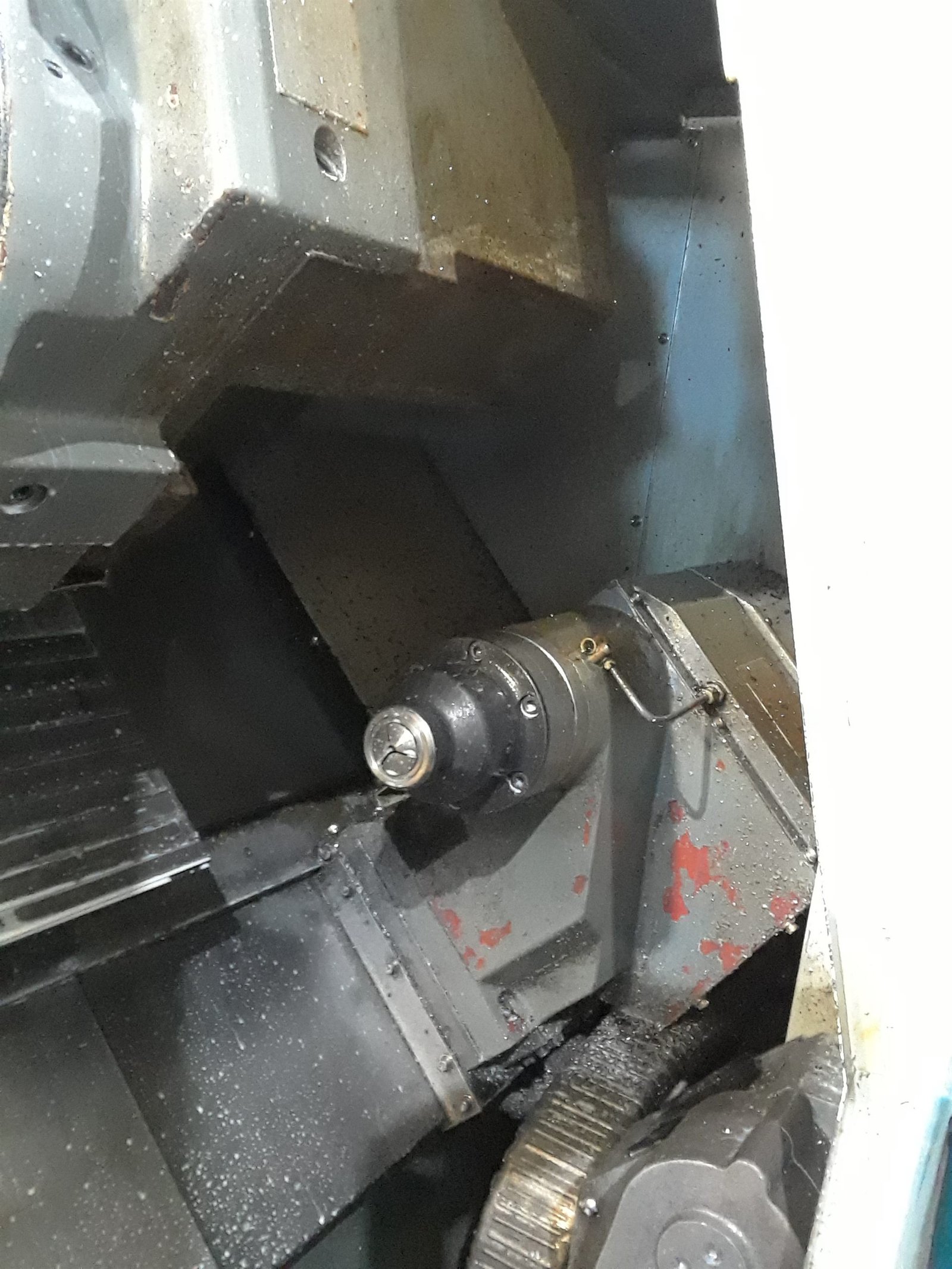

| Second Spindle |
Flat Nose |
Std |
| Max Bar Work Diameter – Left |
2.56" (Spindle Length 46.36") |
Std |
| Max Bar Work Diameter – Right |
1.375" |
Std |
| Max RPM – Left / Right |
4,000 / 6,000 rpm |
Std |
| C Axis – Left Spindle |
C Axis |
Std |
| C Axis – Right Spindle |
5 Degree Indexing |
Std |
| Travel & Turret |
|
|
| Rapid Traverse X Axis |
1,417 ipm |
Std |
| Rapid Traverse Z Axis |
1,417 ipm |
Std |

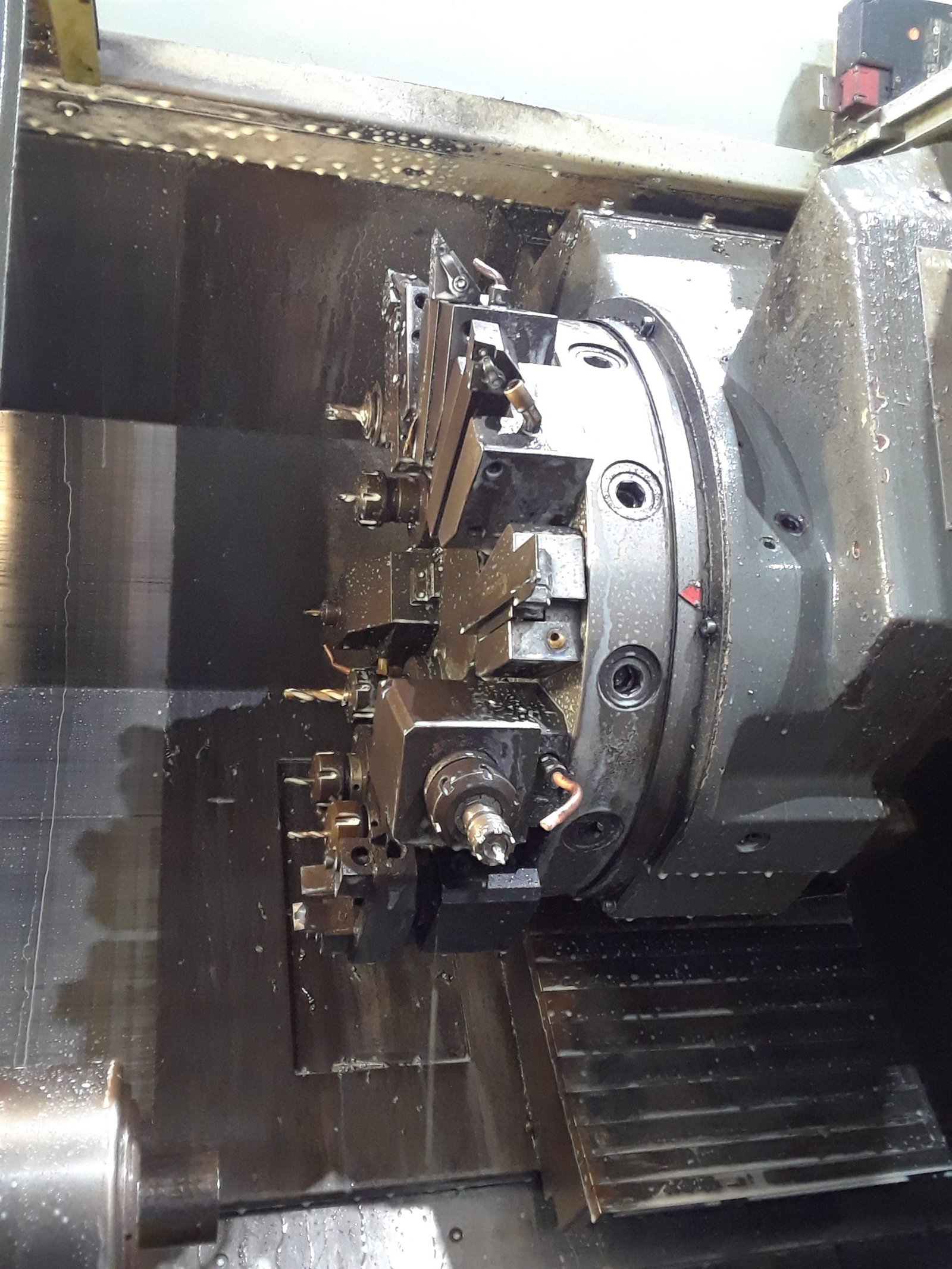

| Turret |
12 Tools |
Std |
| Tool Size (Square Shank) |
1" sq |
Std |
| Tool Size (Round Shank) |
1.5" |
Std |
| Index Time – 1 Station |
.28 sec |
Std |
| Machine Specifications |
|
|
| Chuck (Samwoo Kitagawa) |
8" Main / 5.3" Second |
Std |
| Horsepower |
20 HP |
Std |
| Torque |
211.3 ft-lbs (L) / 17.4 ft-lbs (R) |
Std |
| Work Light |
Yes |
Std |
| Weight |
9,480 lbs |
Std |
| Coolant System |
Yes |
Std |
| Automatic Tool Setter |
Yes |
Std |
| Standard Tooling Package |
Yes |
Std |
| Parts Catcher |
Yes |
Std |
| Tool Holders |
|
|
| VDI O.D. Holder – Front |
2 |
Std |
| VDI Face Holder |
1 |
Std |
| VDI Double O.D. Holder |
1 |
Std |
| VDI Double O.D. / I.D. Holder |
1 |
Std |
| VDI Double I.D. Holder |
2 |
Std |
| VDI I.D. Holder |
1 |
Std |
| VDI Live Tool Holder – Axial |
2 |
Std |
| VDI Live Tool Holder – Radial |
2 |
Std |
| Included Equipment |
|
|
| Air Blow |
Yes |
Inc |
| Chip Conveyor |
Included |
Inc |
