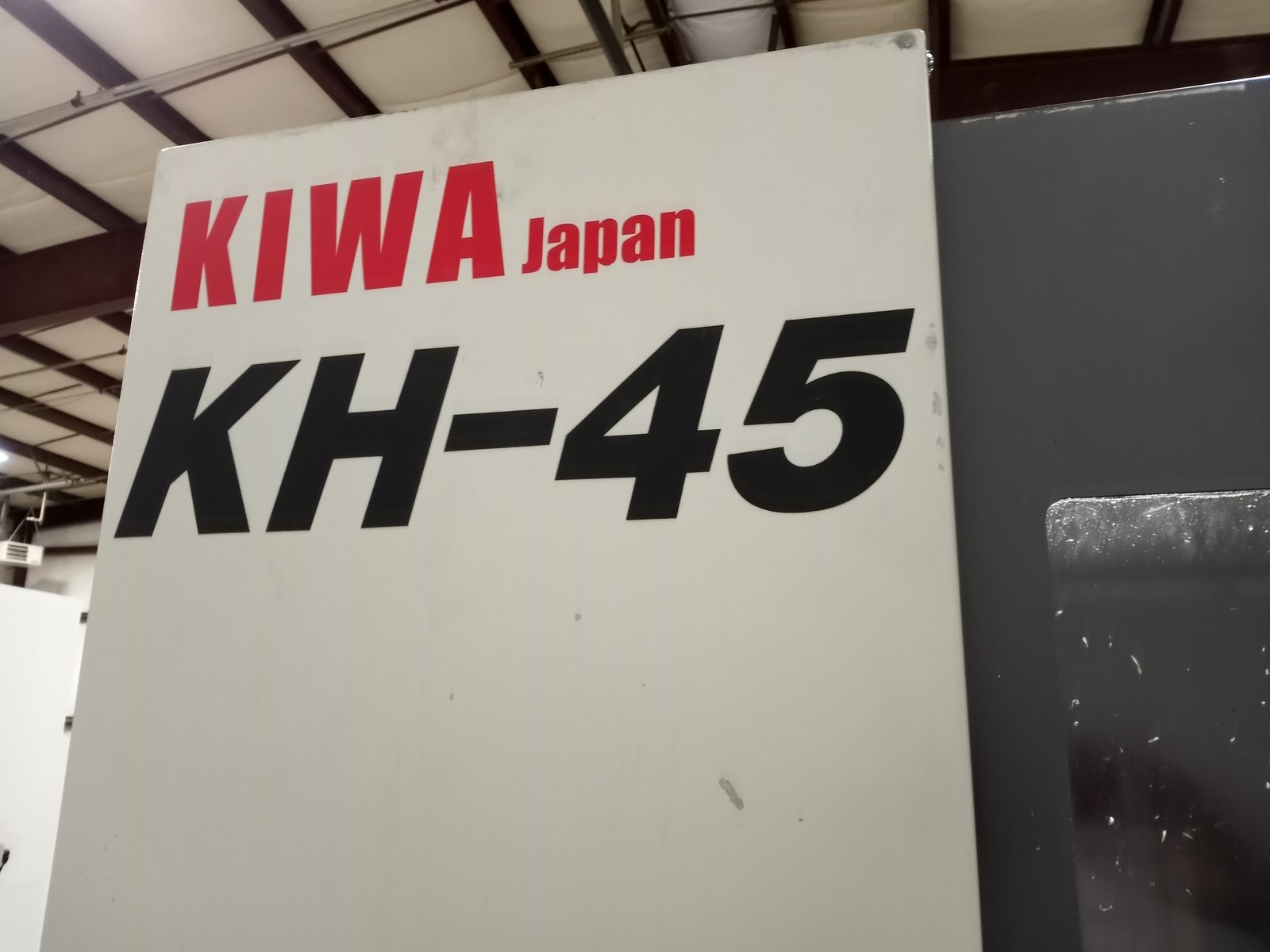

| Used 2008 KIWA KH45 Horizontal Machining Center |
|

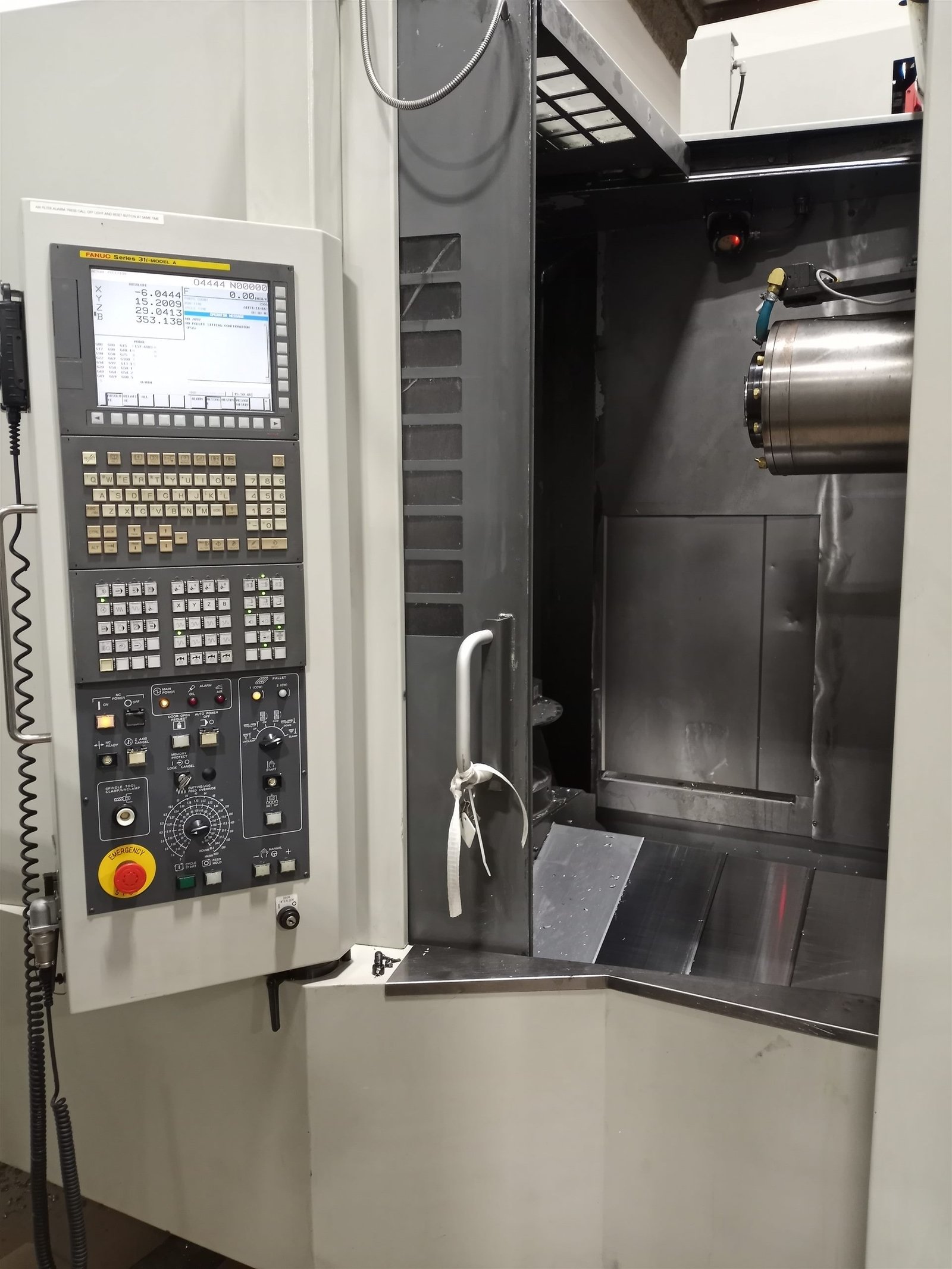

| Controller |
Fanuc 31i-MA |
Std |
| Table Size (L x W) |
15.750" x 15.750" |
Std |
| Maximum Workpiece Weight |
1,100 lbs |
Std |
| Pallet Changer |
2 Pallets |
Std |
| Rotary Table |
Full 4th Axis |
Std |
| Number of Main Spindles |
1 |
Std |
| Spindle Taper |
CAT 40 |
Std |
| Horsepower (30-Minute Rating) |
30 HP |
Std |
| Speed Ranges |
1 |
Std |
| Spindle Type |
Fixed |
Std |
| Tooling System |
|
|
| Primary Tool Carrier |
60-Tool ATC |
Std |
| Tool Change Time |
0.90 sec, tool-to-tool |
Std |
| Maximum Tool Length |
15.700" |
Std |
| Maximum Tool Diameter |
2.800" with empty adjacent pockets |
Std |
| Maximum Tool Weight |
17.60 lbs |
Std |
| Axes & Travel |
|
|
| Number of Axes |
4 |
Std |
| X Axis Travel |
25.200" |
Std |
| X Axis Feed / Rapid Traverse |
1,181 / 2,362 ipm |
Std |
| Y Axis Travel |
24.000" |
Std |
| Y Axis Feed / Rapid Traverse |
1,181 / 2,362 ipm |
Std |
| Z Axis Travel |
26.800" |
Std |
| Z Axis Feed / Rapid Traverse |
1,181 / 2,362 ipm |
Std |
| B Axis Travel |
360° |
Std |
| B Axis Speed |
33 rpm |
Std |
| Machine Dimensions |
|
|
| Machine Dimensions (L x W x H) |
95" x 179" x 109" |
Std |
| Machine Weight |
20,240 lbs |
Std |
| Spindle Nose to Table Edge |
30.7" |
Std |
| Spindle to Table Center |
3.9" |
Std |
| Equipped With |
|
|
| Chip Conveyor |
Included |
Inc |
