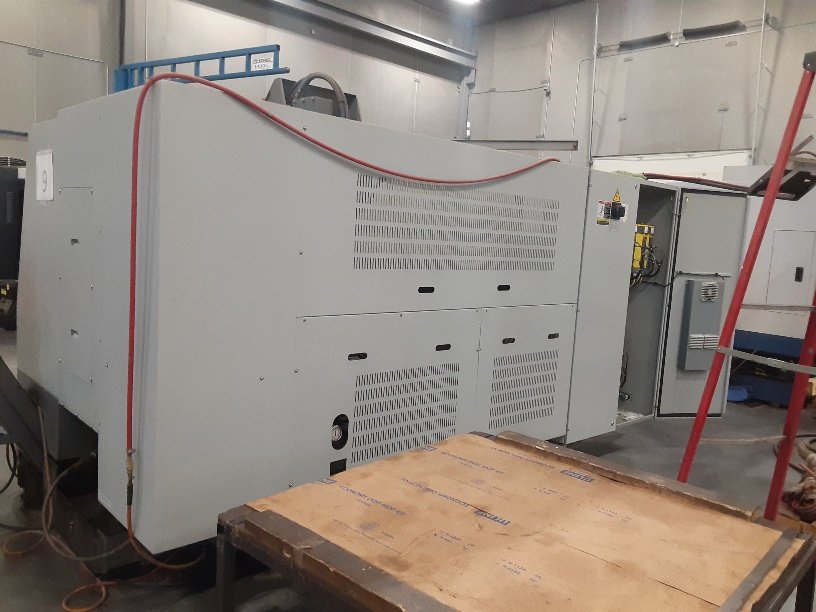

| 2009 Hyundai Kia SKT 300L |
|

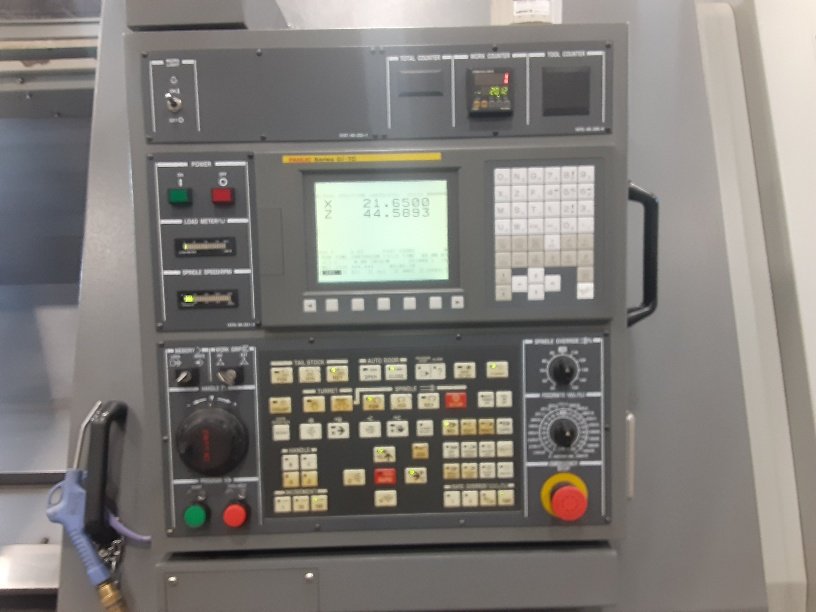

| CNC Controller |
Fanuc 0iT |
Std |
| Swing |
29.5" |
Std |
| Maximum Cutting Diameter |
22" |
Std |
| Maximum Workpiece Length |
49.3" |
Std |
| Travel X Axis |
14" |
Std |
| Travel Z Axis |
52.5" |
Std |
| Ways |
Boxed |
Std |
| Spindle |
A2-8 |
Std |
| Max Bar Work Diameter |
3.54" |
Std |
| Spindle Bore |
4.02" |
Std |
| Max RPM |
3,600 rpm |
Std |
| Rapid Traverse X Axis |
787 ipm |
Std |
| Rapid Traverse Z Axis |
945 ipm |
Std |

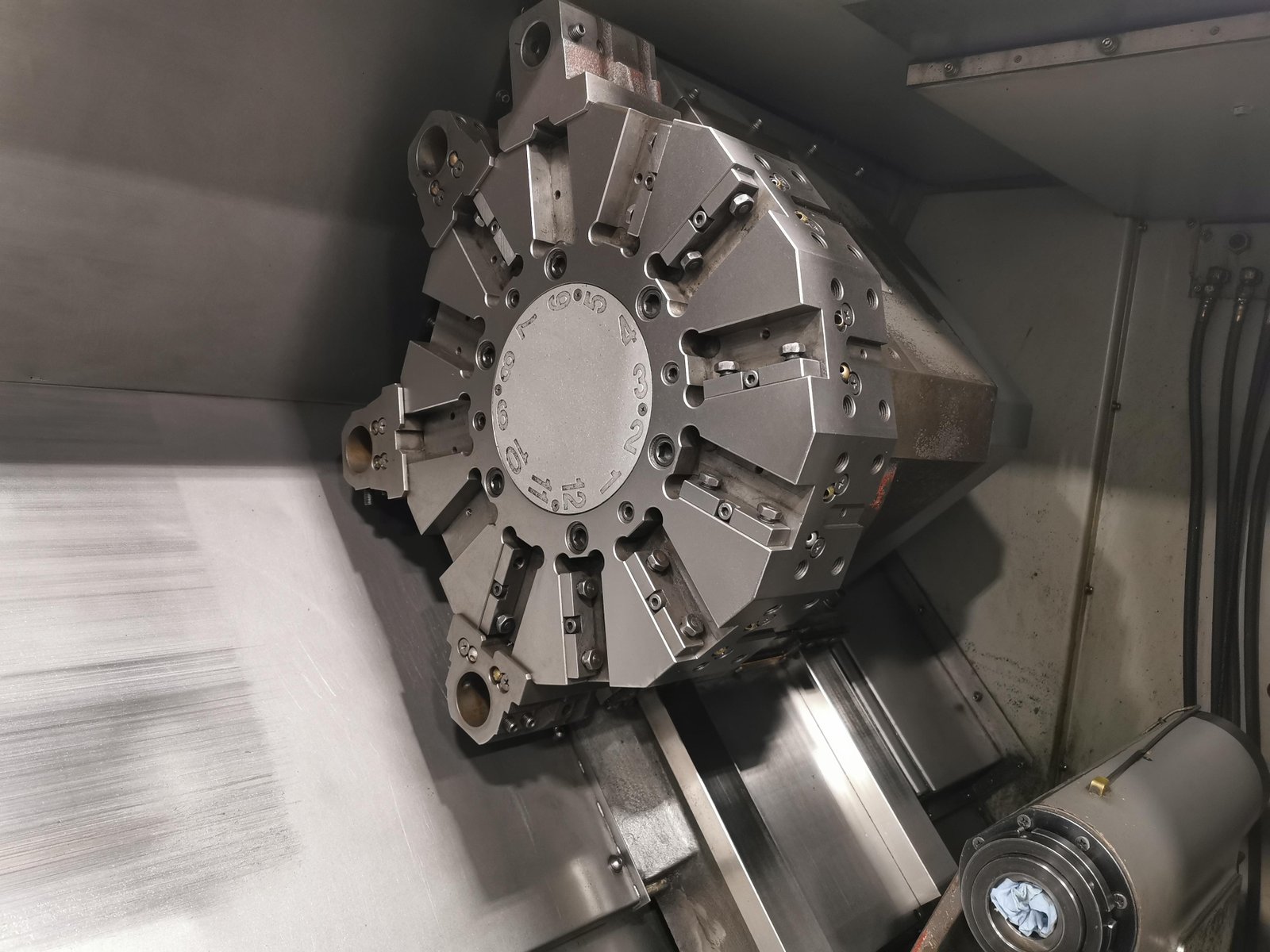

| Turret |
12 Tools |
Std |
| Tool Size (Square Shank) |
1" sq |
Std |
| Tool Size (Round Shank) |
2" |
Std |
| Index Time – 1 Station |
.3 sec |
Std |

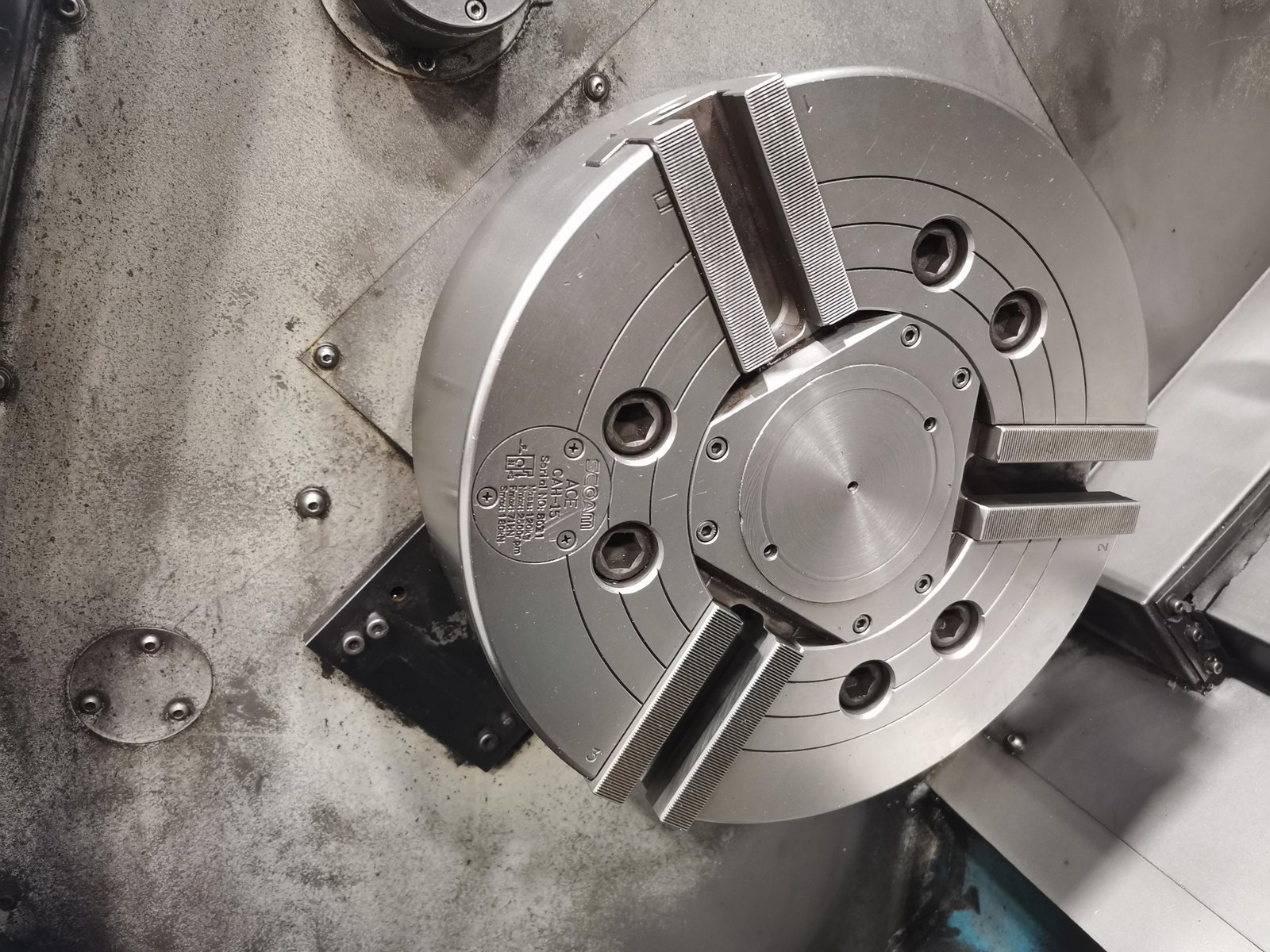

| Chuck |
15" |
Std |
| Horsepower |
35 HP |
Std |
| Geared Head |
2 Gear Ranges |
Std |
| Torque |
810 Ft-Lbs |
Std |
| Work Light |
Yes |
Std |
| Weight |
14,787 lbs |
Std |
| Bed |
45 deg |
Std |
| Coolant System |
63 psi |
Std |
| Automatic Tool Setter |
No |
Std |
| Tailstock |
|
|
| Tailstock Quill Diameter |
3.9" |
Std |
| Tailstock Quill Travel (Programmable) |
5.1" |
Std |
| Tailstock Body |
Programmable Position with Turret |
Std |
| Tailstock Quill Internal Taper |
MT #5 |
Std |
| Chip Conveyor |
Side Discharge |
Std |
