| 2014 Hyundai WIA L400LM Horizontal Lathe |
|

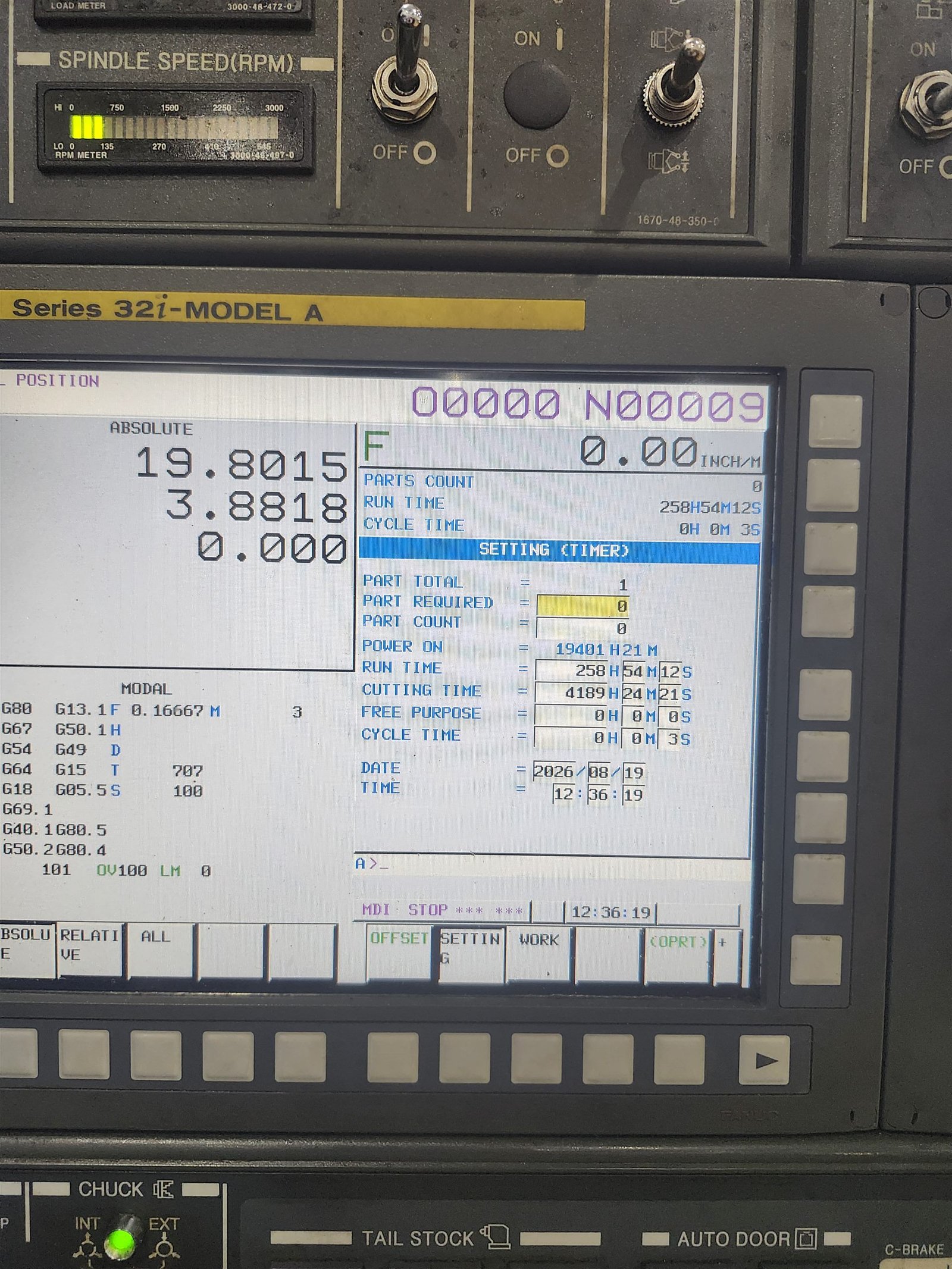

| Controller |
Fanuc 32i-A |
Std |
| Swing |
28.5" |
Std |
| Maximum Cutting Diameter |
22" |
Std |
| Maximum Workpiece Length |
82.7" |
Std |
| Mill Turret BMT 75 |
10 HP |
Std |
| Mill Turret RPM |
4,000 rpm |
Std |
| Travel X Axis |
12.6" |
Std |
| Travel Z Axis |
86.6" |
Std |
| Guide Ways |
Boxed |
Std |
| Spindle |
A2 – 11 |
Std |
| Max Bar Work Diameter |
4.6" |
Std |
| Max RPM |
2,000 rpm |
Std |
| Rapid Traverse X Axis |
787 ipm |
Std |
| Rapid Traverse Z Axis |
944 ipm |
Std |

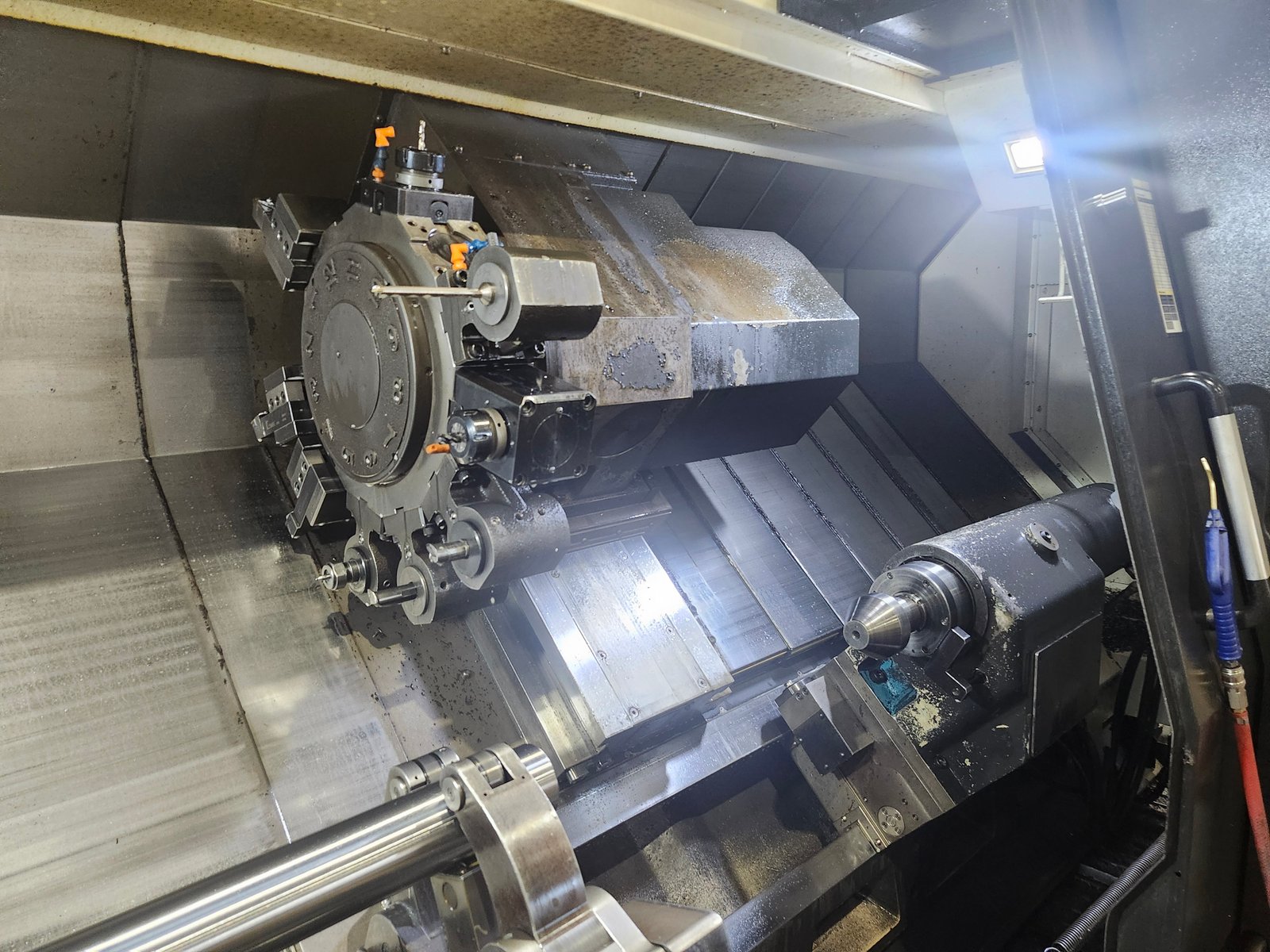

| Turret |
12 Tools |
Std |
| Tool Size (Square Shank) |
1.25" sq |
Std |
| Tool Size (Round Shank) |
2.5" |
Std |
| Index Time – Tool to Next Tool |
.2 sec |
Std |
| Chuck |
15" |
Std |
| Tailstock Quill Diameter |
5.9" |
Std |
| Tailstock Quill Travel (Programmable) |
5.9" |
Std |
| Tailstock Body Travel |
82.7" |
Std |
| Tailstock Quill Internal Taper – Built-In Type |
MT #5 |
Std |
| Horsepower |
50 HP, 2-Geared Head |
Std |
| Torque |
2,242 Ft-Lbs |
Std |
| Work Light |
Yes |
Std |
| Weight |
24,250 lbs |
Std |
| C Axis |
Indexing 0.001 Degree |
Std |
| Bed |
45 deg |
Std |
| Standard Tooling Package |
Yes |
Std |
| Tool Setter |
|
Std |
| Axial Milling / Drilling Unit |
1 |
Inc |
| Radial Milling / Drilling Unit |
1 |
Inc |
| Optional Equipment Included |
|
|
| Chip Conveyor |
Hinge Right |
Inc |
| SLU 4 Programmable Steady Rest |
1.18" to 9.65" |
Inc |
| Manual Clamp Base |
|
Inc |
| Pin Engages and Moves Base with Turret |
|
Inc |
