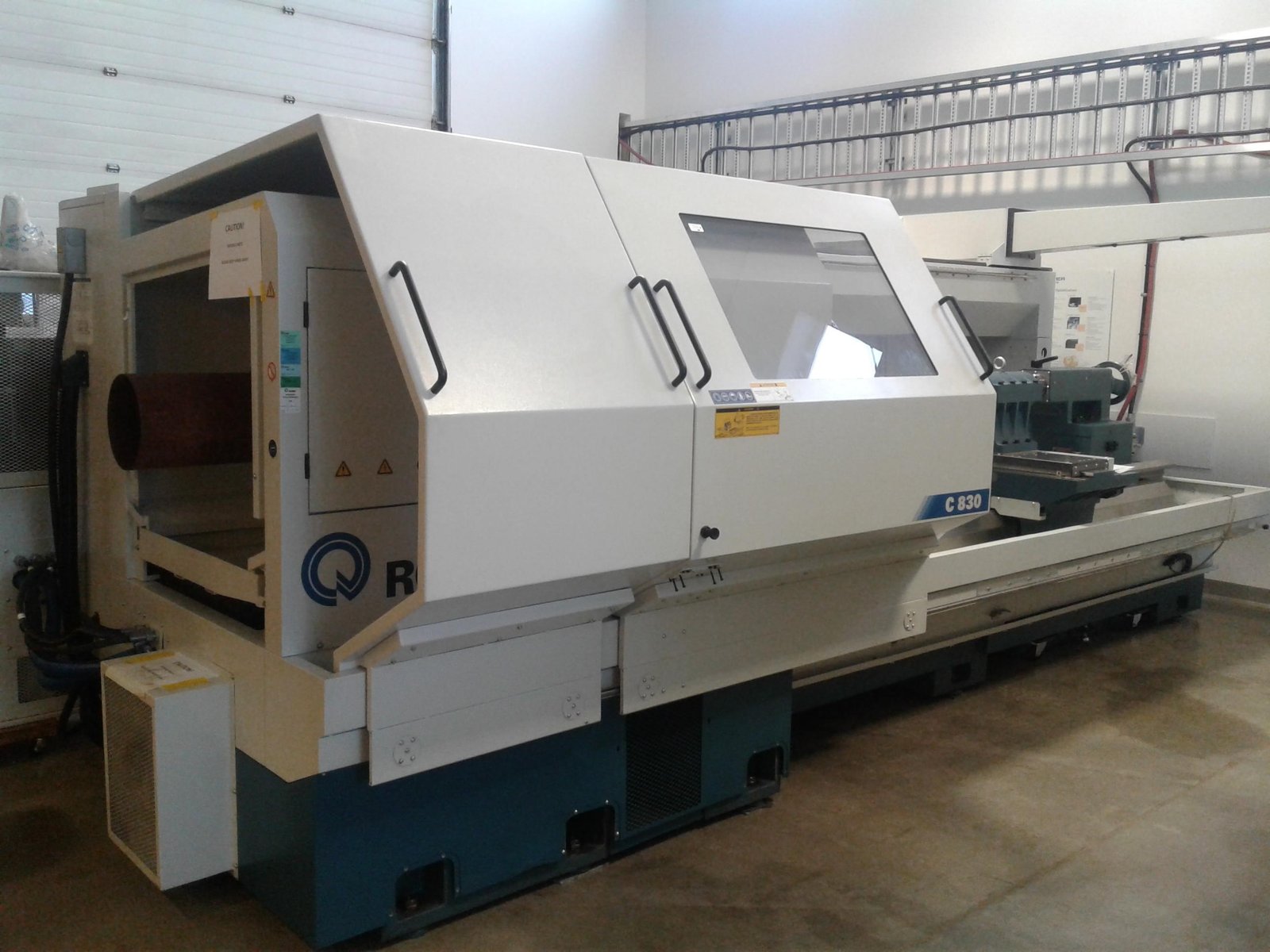

| ROMI C830 x 120 Combination Lathe – 2018 |
|
| Stock Demo Machine |
|
| Machine Configuration |
ROMI C830 x 120", ASA A2-15 spindle nose,
10.2" thru spindle, 120" bed length
|
Std |

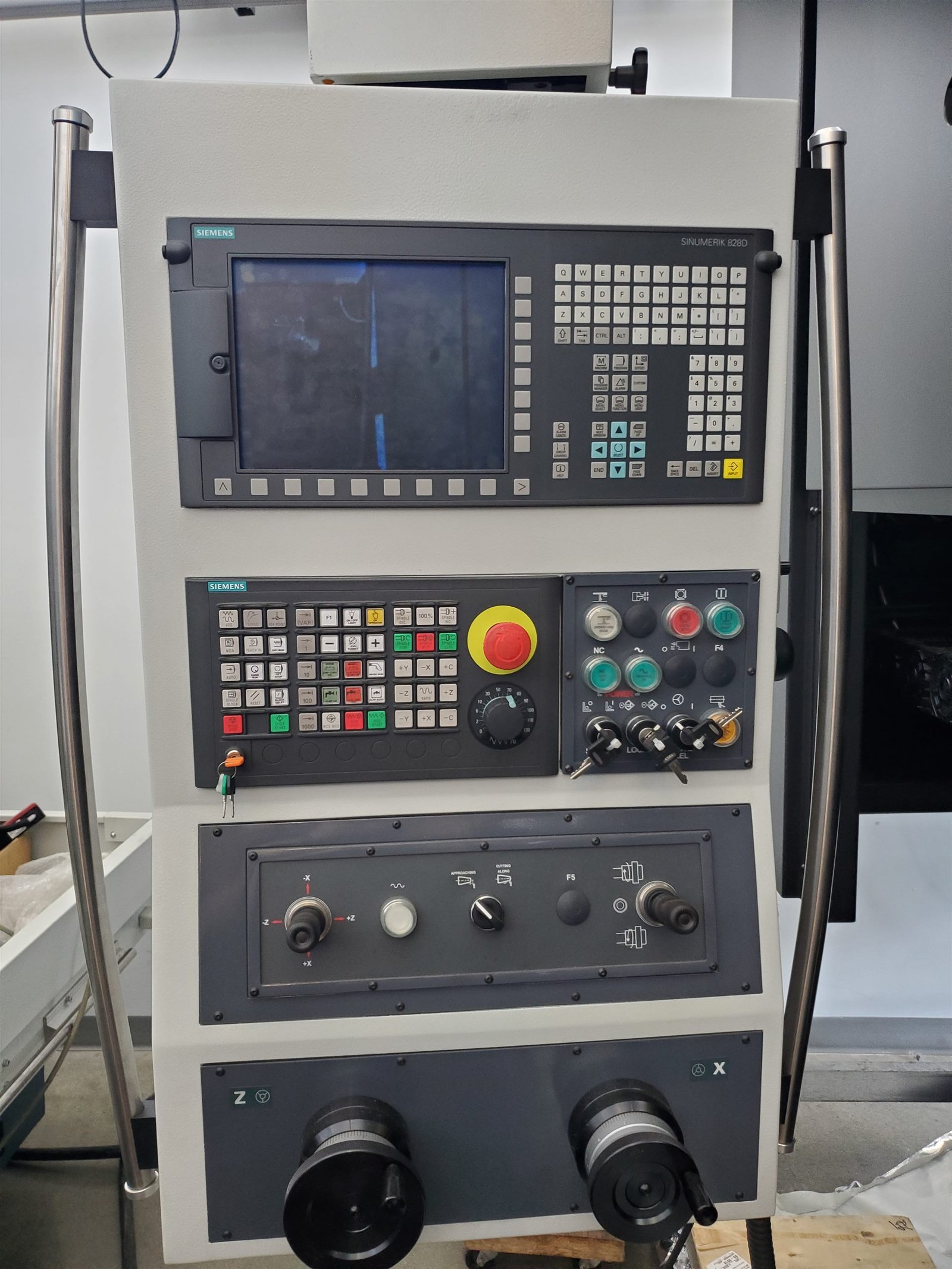

| Controller |
Siemens 828D with 10.4" color LCD monitor and control |
Std |
| Swing Over Bed |
33.46" |
Std |
| Swing Over Cross Slide |
21.65" |
Std |
| Distance Between Centers |
118.11" |
Std |
| Width of Bed |
18.11" |
Std |
| Spindle Nose |
A2-15 |
Std |
| Spindle Bore |
10.2" |
Std |
| Spindle Speed |
775 rpm |
Std |
| X Axis – Cross Travel |
20.47" |
Std |
| Z Axis – Longitudinal Travel |
118.9" |
Std |
| X Axis Rapid Traverse Feed Rate |
319 ipm |
Std |
| Z Axis Rapid Traverse Feed Rate |
315 ipm |
Std |
| Main Motor |
45 hp |
Std |

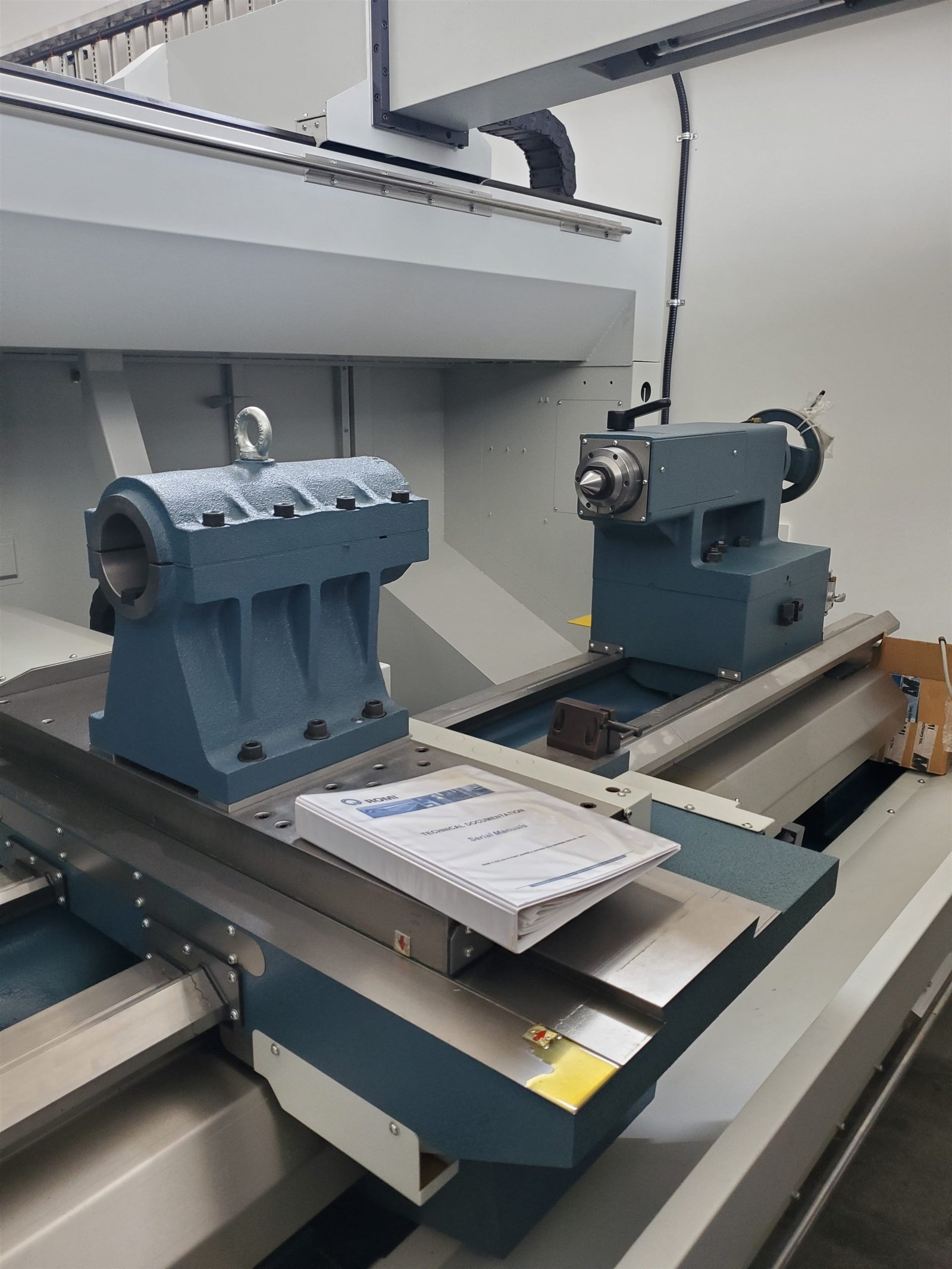

| Tailstock |
|
|
| Tailstock Quill Diameter |
5.12" |
Std |
| Tailstock Quill Travel |
7.87" |
Std |
| Tailstock Quill Taper |
MT5 |
Std |
| Machine Dimensions |
|
|
| Length |
296" |
Std |
| Width |
126" |
Std |
| Net Weight |
10,250 kg / 22,600 lbs |
Std |
| Machine Accessories – Included |
|
|
| X55916 Coolant Pump |
10 lpm @ 7 bar, 1.5 kW / 2 CV (#3) |
Inc |
| Tailstock |
Manually operated quill with built-in bearing
and MT-5 quill taper hole
|
Inc |
| SE10043 Deep Hole Drill / Support |
4" ID boring bar holder / saddle |
Inc |
| Steady Rest |
U-type, Ø100 to 440 mm capacity;
no rollers included (#5)
|
Inc |
| Set of Rollers |
100 to 305 mm (4" to 12") diameter capacity |
Inc |

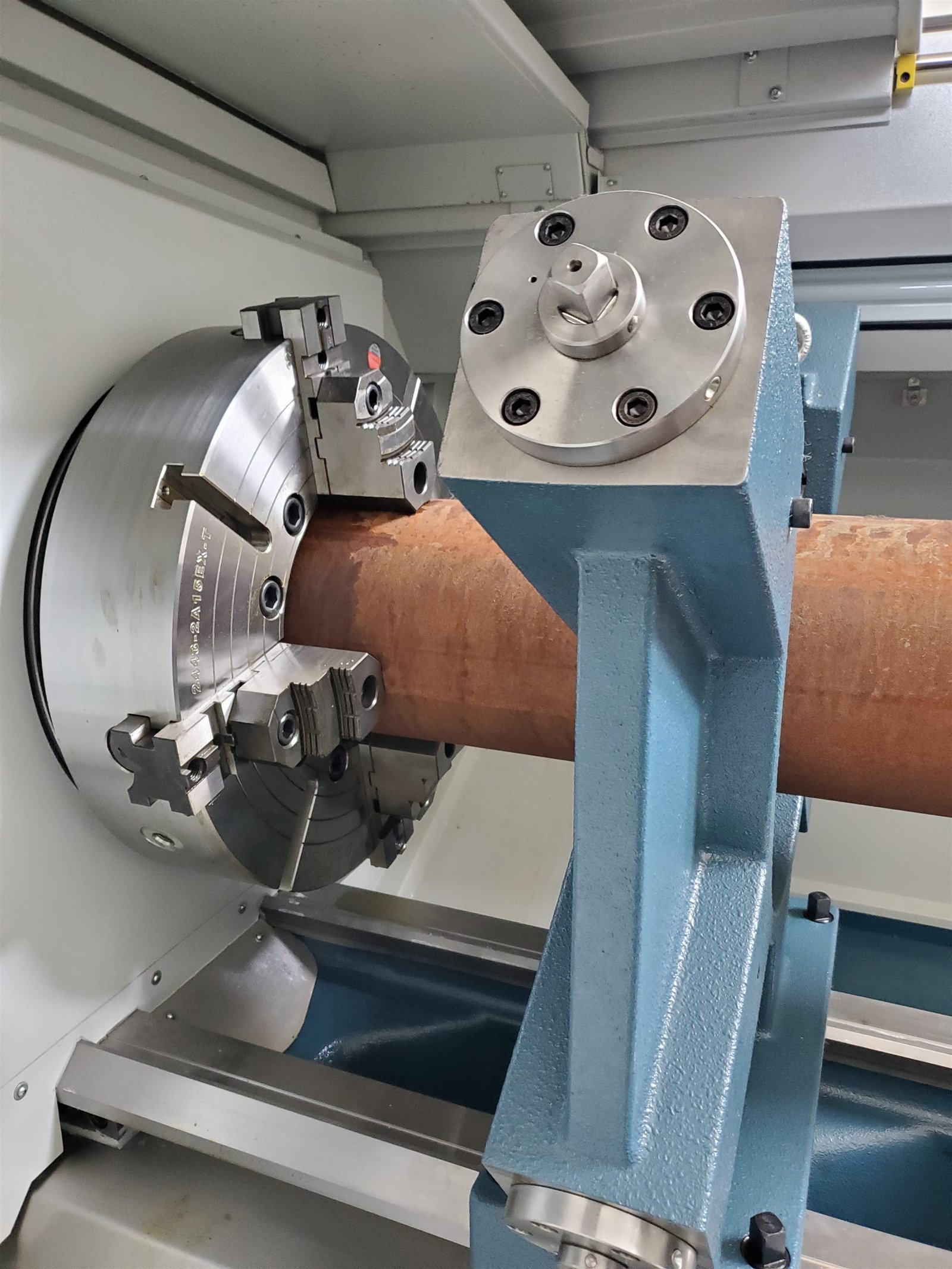

| 2443-2A15EX 24" 4-Jaw Chuck |
Extra heavy-duty oil country steel body,
A2-15, 11" thru hole
|
Inc |
| Rear Centralizing Ring |
10.2" hole, ASA A2-15 |
Inc |
