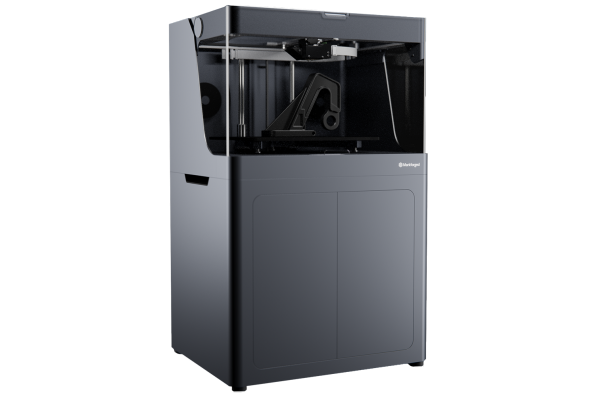

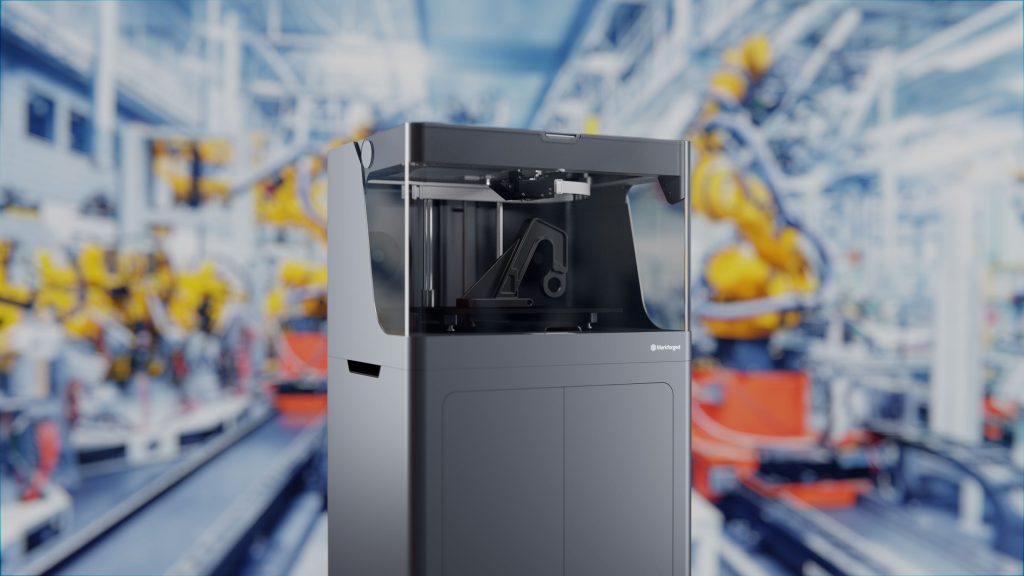

Featuring the unique dual nozzle print system, the X5 unlocks the ability to weave a strand of continuous fiberglass throughout a part to make it as strong as metal. Add that to the all-aluminum unibody enclosure, ultra-flat gantry system, machined aluminum stage with kinematic bed coupling, motor encoders and calibration laser, and tie it all together with software.
Featuring the unique dual nozzle print system, the X5 unlocks the ability to weave a strand of Continuous Fiberglass throughout a part to make it as strong as metal. Add that to the all-aluminum unibody enclosure, ultra-flat gantry system, machined aluminum stage with kinematic bed coupling, motor encoders and calibration laser, and tie it all together with software.
Process: Continuous Fiber Reinforced Plastics
Build Volume: 330 x 270 x 200 mm (13 x 10.6 x 7.9 in)
Weight: 48 kg (106 lbs)
Machine Footprint: 584 x 483 x 914 mm (23 x 19 x 36 in)
Print Bed: Kinematic coupling – Flat to within 80 um
Laser: Bed Leveling, Active Print Calibration
Power: 100-240VAC, 150W (2A peak)
X7 Upgrade Capabilities Laser In Process Inspection, Carbon Fiber, HSHT, and Kevlar
Layer Height: 100um default, 50 um minimum
Ultimate Tensile Strength: 590 MPa (19.0x ABS, 16.4x Onyx)
Max Flexural Stiffness: 22 GPa (10.7x ABS, 7.6x Onyx)
Infill Closed: Cell Infill – Multiple geometries available
Supplied Software: Markforged Eiger – Cloud Storage, Local Storage, or Fully On-Premise ($5,000 added fee)
Security: Two Factor Auth, Org Admin Access, Single Sign On
Plastics Available: Onyx
Fibers Available: Fiberglass
