Yasda H40i

Yasda H-40i

Specifications

Travel	X-axis travel (Longitudinal movement of table)	875mm
	Y-axis travel (Vertical movement of spindle head)	740mm
	Z-axis travel (Cross movement of Column)	685mm
	B-axis travel (Table rotation)	230°(-185°〜+45°)
	A-axis travel (Table rotation)	360°
Table	Table working surface	400x400mm
Table	Table loading capacity	200kg(200Nm)
Spindle	The highest revolving speed	20000min^-1
Spindle	Spindle taper hole	7/24 taper,No.40(BT40)
Automatic tool changer	Tool storage capacity	60 tools[120 and 180 and 240]
APC/PLS	The number of palettes	2nd page / [24th page ]
NC equipment		FANUC 31i-MODEL B5

Yasda H-40i

Yasda PX30

Yasda PX-30i

Specifications

Travel	X-axis travel	680mm
	Y-axis travel	400mm
	Z-axis travel	500mm
	C-axis travel (Table rotation)	360°
	B-axis travel (Table rotation)	-125°～ +65°
Traverse rate	Rapid traverse rate (X,Y,Zaxis)	60000mm/min
	Feedrate(Baxis)	MAX.75min^-1
	Feedrate(Caxis)	MAX.125min^-1
	Feedrate(X,Y,Zaxis)	20000mm/min
Table	Table working surface	Φ185mm
Table	Table loading capacity	80kg(80Nm)
Spindle	The highest revolving speed	20000min^-1
Spindle	Spindle taper hole	7/24 taper,No.40(BT40)
Automatic tool changer	Tool storage capacity	MAX.314 tools
NC equipment		FANUC 31i-MODEL B5

Yasda PX-30i

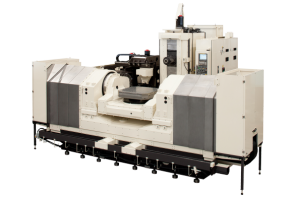

YBM-10T-100TT

Yasda YBM 10T-100TT

Specifications

Travel	X-axis travel (Longitudinal movement of table)	1500mm
	Y-axis travel (Vertical movement of spindle head)	1200mm
	Z-axis travel (Cross movement of Column)	1100mm
	B-axis travel (Table rotation)	360°
	A-axis travel (Tilting table)	100°（-95°〜+5°）
Table	Table working surface	1000x1000mm
Table	Table loading capacity	2000kg (Horizontal) 500kg・m (Vertical)
Spindle	The highest revolving speed	10000min^-1
Spindle	Spindle taper hole	7/24 taper,No.50(BT50)
Automatic tool changer	Tool storage capacity	60 tools[90〜300]
APC/PLS	The number of palettes	1L/U [5PLS]
NC equipment		FANUC 31i-MODEL B5

Yasda YBM 10T-100TT

Yasda YBM-10T-TH

Yasda YBM 10T-TH

Specifications

Travel	X-axis travel (Longitudinal movement of table)	1500mm
	Y-axis travel (Vertical movement of spindle head)	1500mm
	Z-axis travel (Cross movement of Column)	1800mm
	B-axis travel (Table rotation)	360°
	A-axis travel (spindle)	100°（-95°〜+5°）
Table	Table working surface	1000x1000mm
Table	Table loading capacity	5000kg
Spindle	The highest revolving speed	8000min^-1
Spindle	Spindle taper hole	7/24 taper,No.50(BT50)
Automatic tool changer	Tool storage capacity	60 tools[90〜450]
APC/PLS	The number of palettes	2nd page / [5th page ]
NC equipment		FANUC 31i-MODEL B5

Yasda YBM 10T-TH

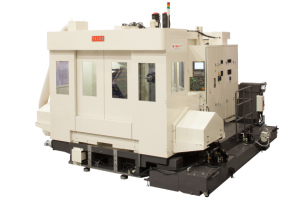

yasda YBM-7Ti

Yasda YBM 7Ti

Specifications

Travel	X-axis travel (Longitudinal movement of table)	1250mm
	Y-axis travel (Vertical movement of spindle head)	1000mm
	Z-axis travel (Cross movement of Column)	1100mm
	C-axis travel (Table rotation)	360°
	B-axis travel (tilting table rotation)	+100°〜 -100°
Traverse rate	Rapid traverse rate (Xaxis)	45000mm/min
	Rapid traverse rate (Y,Zaxis)	48000mm/min
	Feedrate(Caxis)	100min^-1
	Feedrate(Baxis)	70min^-1
	Feedrate(X,Y,Zaxis)	10000mm/min (HSM MODE)
Table	Table working surface	500 x 500mm
Table	Table loading capacity	500kg
Spindle	The highest revolving speed	10000min^-1
Spindle	Spindle taper hole	7/24 taper,No.50(BT50)
Automatic tool changer	Tool storage capacity	60 tools
NC equipment		FANUC 31i-MODEL B5

Yasda YBM 7Ti

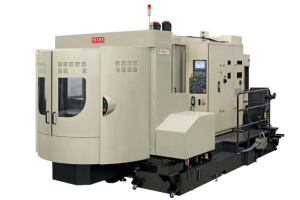

Yasda YBM-8T-TT

Yasda YBM 8T-TT

Specifications

Travel	X-axis travel (Longitudinal movement of table)	1000mm
	Y-axis travel (Vertical movement of spindle head)	1000mm
	Z-axis travel (Cross movement of Column)	1100mm
	A-axis travel (Table rotation)	-105°〜+15°
	B-axis travel (tilting table rotation)	360°
Traverse rate	Rapid traverse rate (Xaxis)	40000mm/min
	Rapid traverse rate (Y,Zaxis)	48000mm/min
	Feedrate(Aaxis)	5min^-1
	Feedrate(Baxis)	20min^-1
	Feedrate(X,Y,Zaxis)	15000mm/min (HSM MODE)
Table	Table working surface	630x630mm
Table	Table loading capacity	800kg
Spindle	The highest revolving speed	10000min^-1
Spindle	Spindle taper hole	7/24 taper,No.50(BT50)
Automatic tool changer	Tool storage capacity	60 tools～
NC equipment		FANUC 31i-MODEL B5

Yasda YBM 8T-TT

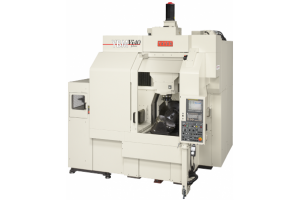

yasda YBM-Vi40

Yasda YBM Vi40

Specifications

Travel	X-axis travel (Longitudinal movement of table)	900mm
	Y-axis travel (Vertical movement of spindle head)	500mm (Under a limited condition)
	Z-axis travel (Cross movement of Column)	450mm
	C-axis travel (Table rotation)	360°
	B-axis travel (Table rotation)	±110°
Traverse rate	Rapid traverse rate (X,Y,Zaxis)	20000mm/min
	Feedrate(Baxis)	20min^-1（WORM GEAR）
	Feedrate(Caxis)	100min^-1（DD MOTOR）
	Feedrate(X,Y,Zaxis)	12000mm/min
Table	Table working surface	Φ400mm
Table	Table loading capacity	200kg(200Nm)
Spindle	The highest revolving speed	24000min^-1
Spindle	Spindle taper hole	7/24 taper,No.40(BT40)
Automatic tool changer	Tool storage capacity	60 tools
NC equipment		FANUC 31i-MODEL B5

Yasda YBM Vi40

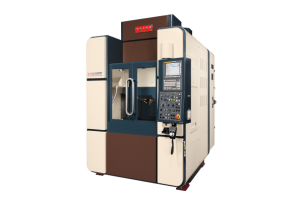

Yasda YMC-430

Yasda YMC430 RT10

Specifications

Travel	X-axis travel (Cross movement of table)	420mm
	Y-axis travel (Cross movement of table)	300mm
	Z-axis travel (Vertical movement of spindle head)	250mm
Table	Table working surface	600x350mm
Table	Table loading capacity	100kg
Spindle	The highest revolving speed	40000min^-1
Spindle	Spindle taper hole	HSK-E32
Automatic tool changer	Tool storage capacity	32 tools [90 tools]
NC equipment		FANUC 31i -MODEL B5

Yasda YMC430 RT10

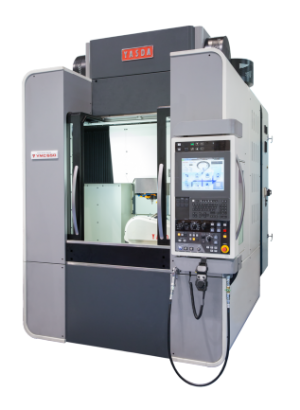

Yasda YMC650 RT20

Specifications

Travel	X-axis travel (Cross movement of table)	600mm
	Y-axis travel (Cross movement of table)	500mm
	Z-axis travel (Vertical movement of spindle head)	280mm
Table	Table working surface	700x550mm
Table	Table loading capacity	200kg
Spindle	The highest revolving speed	40000min^-1
Spindle	Spindle taper hole	HSK-E32
Automatic tool changer	Tool storage capacity	32 tools
NC equipment		FANUC 31i -MODEL B5

Yasda YMC650 RT20
