Available Option(s):

  • AF-1460

    Yama Seiki AF-1460

    Specifications

    Models AF-1460
    X-axis travel mm (inch) 1,400 ( 55.1 )
    Y-axis travel mm (inch) 620 ( 24.4 )
    Z-axis travel mm (inch) 620 ( 24.4 )
    Distance from spindle nose
    to table center    		 mm (inch) 790 ( 31.1 )
    Distance between columns mm (inch) 100 ~ 720
    ( 3.93 ~ 28.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,500 ( 59.1 )
    Table size ( Y direction ) mm (inch) 620 ( 24.4 )
    Table load capacity kg (lb) 1,000 ( 2,200 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 48 ( 1,890 )
    Z-axis rapids feed rate m/min. (IPM) 36 ( 1,418 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 300 ( 11.8 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 35
    Coolant tank capacity liter (gal) 480 ( 126.7 )
    Machine weight kg (lbs) 8,200 ( 18,040 )

    Specifications are subject to change without notice.

    Read more

    Yama Seiki AF-1460

  • af1000

    Yama Seiki AF1000

    Specifications

    Models AF-1000
    X-axis travel mm (inch) 1,020 ( 40.1 )
    Y-axis travel mm (inch) 550 ( 21.6 )
    Z-axis travel mm (inch) 550 ( 21.6 )
    Distance from spindle nose
    to table center    		 mm (inch) 610 ( 23.9 )
    Distance between columns mm (inch) 100 ~ 735
    ( 3.93 ~ 28.9 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,200( 47.2 )
    Table size ( Y direction ) mm (inch) 550 ( 21.6 )
    Table load capacity kg (lb) 700 ( 1,540 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 36 ( 1,418 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 250 ( 9.84 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 30
    Coolant tank capacity liter (gal) 350 ( 92.4 )
    Machine weight kg (lbs) 7,000 ( 15,400 )

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

    Read more

    Yama Seiki AF1000

  • AF-1060

    Yama Seiki AF1060

    Specifications

    Models AF-1060
    X-axis travel mm (inch) 1,060 ( 41.7 )
    Y-axis travel mm (inch) 600 ( 23.6 )
    Z-axis travel mm (inch) 600 ( 23.6 )
    Distance from spindle nose
    to table center    		 mm (inch) 800 ( 31.4 )
    Distance between columns mm (inch) 100 ~ 700
    ( 3.93 ~ 27.5 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,200 ( 47.2 )
    Table size ( Y direction ) mm (inch) 600 ( 23.6 )
    Table load capacity kg (lb) 700 ( 1,540 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 36 ( 1,418 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 250 ( 9.84 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 30
    Coolant tank capacity liter (gal) 400 ( 105.6 )
    Machine weight kg (lbs) 7,000 ( 15,400 )

    Specifications are subject to change without notice.

    Read more

    Yama Seiki AF1060

  • af1250

    Yama Seiki AF1250

    Specifications

    Models AF-1250
    X-axis travel mm (inch) 1,250 ( 49.2 )
    Y-axis travel mm (inch) 620 ( 24.4 )
    Z-axis travel mm (inch) 620 ( 24.4 )
    Distance from spindle nose
    to table center    		 mm (inch) 790 ( 31.1 )
    Distance between columns mm (inch) 100 ~ 720
    ( 3.93 ~ 28.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,350 ( 53.1 )
    Table size ( Y direction ) mm (inch) 620 ( 24.4 )
    Table load capacity kg (lb) 1,000 ( 2,200 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 48 ( 1,890 )
    Z-axis rapids feed rate m/min. (IPM) 36 ( 1,418 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 300 ( 11.8 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 35
    Coolant tank capacity liter (gal) 460 ( 121.4 )
    Machine weight kg (lbs) 8,000 ( 17,600 )

    Specifications are subject to change without notice.

    Read more

    Yama Seiki AF1250

  • AF-1400

    Yama Seiki AF1400

    Specifications

    Models AF-1400
    X-axis travel mm (inch) 1,400 ( 55.1 )
    Y-axis travel mm (inch) 800 ( 31.4 )
    Z-axis travel mm (inch) 800 ( 31.4 )
    Distance from spindle nose
    to table center    		 mm (inch) 963 ( 37.9 )
    Distance between columns mm (inch) 200 ~ 1,000 ( 7.87 ~ 39.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,500 ( 59.1 )
    Table size ( Y direction ) mm (inch) 800 ( 31.4 )
    Table load capacity kg (lb) 1,200 ( 2,640 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 11 ( 15 HP ) / 15 ( 20 HP )
    Spindle speed rpm Direct-driven 8,000
    Spindle taper BT50
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 30 (1,180 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 350 ( 13.7 )
    Max. tool weight kg (lb) 15 ( 33 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 127 ( 5.00 ) / Ø 200 ( 7.87 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.012 ( 0.00047 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008 ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 40
    Coolant tank capacity liter (gal) 505 ( 133.3 )
    Machine weight kg (lbs) 14,000 ( 30,800 )

    Specifications are subject to change without notice.

    Read more

    Yama Seiki AF1400

  • AF-1600

    Yama Seiki AF1600

    Specifications

    Models AF-1600
    X-axis travel mm (inch) 1,600 ( 62.9 )
    Y-axis travel mm (inch) 800 ( 31.4 )
    Z-axis travel mm (inch) 800 ( 31.4 )
    Distance from spindle nose
    to table center    		 mm (inch) 963 ( 37.9 )
    Distance between columns mm (inch) 200 ~ 1,000 ( 7.87 ~ 39.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,700 ( 66.9 )
    Table size ( Y direction ) mm (inch) 800 ( 31.4 )
    Table load capacity kg (lb) 1,500 ( 3,300 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 11 ( 15 HP ) / 15 ( 20 HP )
    Spindle speed rpm Direct-driven 8,000
    Spindle taper BT50
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 30 (1,180 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 350 ( 13.7 )
    Max. tool weight kg (lb) 15 ( 33 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 127 ( 5.00 ) / Ø 200 ( 7.87 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.012 ( 0.00047 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008 ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 40
    Coolant tank capacity liter (gal) 518 ( 136.7 )
    Machine weight kg (lbs) 16,000 ( 35,200 )

    Specifications are subject to change without notice.

    Read more

    Yama Seiki AF1600

  • AF-1800

    Yama Seiki AF1800

    Specifications

    Models AF-1800
    X-axis travel mm (inch) 1,800 ( 70.8 )
    Y-axis travel mm (inch) 800 ( 31.4 )
    Z-axis travel mm (inch) 800 ( 31.4 )
    Distance from spindle nose
    to table center    		 mm (inch) 963 ( 37.9 )
    Distance between columns mm (inch) 200 ~ 1,000 ( 7.87 ~ 39.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,900 ( 74.8 )
    Table size ( Y direction ) mm (inch) 800 ( 31.4 )
    Table load capacity kg (lb) 1,800 ( 3,960 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 11 ( 15 HP ) / 15 ( 20 HP )
    Spindle speed rpm Direct-driven 8,000
    Spindle taper BT50
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 30 (1,180 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 350 ( 13.7 )
    Max. tool weight kg (lb) 15 ( 33 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 127 ( 5.00 ) / Ø 200 ( 7.87 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.012 ( 0.00047 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008 ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 40
    Coolant tank capacity liter (gal) 600 ( 158.4 )
    Machine weight kg (lbs) 18,000 ( 39,600 )

    Specifications are subject to change without notice.

    Read more

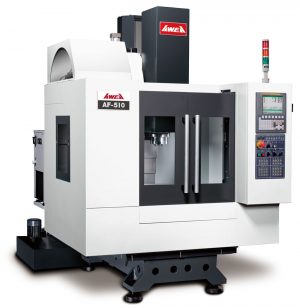

    Yama Seiki AF1800

  • Yama Seiki AF510

    Specifications

    AF-510 series Description CAT30 CAT40
    X/Y/Z Axes



    		 X-axis travel 510 mm ( 20.07″ )
    Y-axis travel 400 mm ( 15.74″ )
    Z-axis travel 330 mm ( 12.99″ )
    Distance from spindle nose to column 473 mm ( 18.62″ )
    Distance from spindle nose to table center 100 ~ 430 mm ( 3.93″ ~ 16.92″ )
    X / Y / Z axes rapid feed rate 50 m/min. ( 60 m/min. Opt. )
    ( 1,950 IPM ( 2,350 IPM Opt. )
    Cutting feed rate 20 m/min. ( 787 IPM )
    Table Table size ( X x Y ) 610 x 400 mm ( 24.01″ x 15.74″ )
    Table load capacity 250 kg ( 550 lb )
    Spindle Spindle taper CAT30 CAT40
    Spindle motor ( cont. / 30 min. ) 3.7 / 5.5 kW ( 5 / 7.4 HP ) 5.5 / 7.5 kW ( 7.4 / 10 HP )
    Spindle speed 12,000 rpm 10,000 rpm
    Tool


    		 Tool magazine capacity 20 T
    Max. tool length ( from gauge line ) 200 mm ( 7.87″ )
    Max. tool weight 4 kg ( 8.8 lb )
    Max. tool diameter / adj. pocket empty Ø 69 mm / Ø 135 mm
    ( Ø 2.71″ / Ø 5.31″ )
    Accuracy


    		 Positioning accuracy ( JIS B 6338 ) ± 0.003 mm / 300 mm
    ( ± 0.00012″ / 11.81″ )
    Positioning accuracy ( JIS 6336-2 ) P ≤ 0.01 mm ( P ≤ 0.00039″ )
    Repeatability ( JIS 6336-2 ) ± 0.002 mm ( ± 0.000078″ )
    Repeatability ( VDI 3441 ) Ps ≤ 0.008 mm ( Ps ≤ 0.00031″ )
    General



    		 Power requirement 15 kVA
    Pneumatic pressure requirement 6 kg/cm2 ( 85.34 PSI )
    Coolant tank capacity ( pump ) 160 liter ( 42.27 gal ) ( 1 HP )
    Machine weight 2,000 kg ( 4,400 lb )
    Machine dimensions ( L x W x H ) 1,600 x 2,310 x 2,330 mm
    ( 62.99″ x 90.94″ x 91.73″ )
    NC Controller FANUC Oi -MD / MITSUBISHI M-70

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

    Read more

    Yama Seiki AF510

  • Awea-AF-610

    Yama Seiki AF610

    Specifications

    Models AF-610
    X-axis travel mm (inch) 610 ( 23.9 )
    Y-axis travel mm (inch) 450 ( 17.7 )
    Z-axis travel mm (inch) 450 ( 17.7 )
    Distance from spindle nose
    to table center    		 mm (inch) 558 ( 21.9 )
    Distance between columns mm (inch) 150 ~ 600
    ( 5.91 ~ 23.6 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 700 ( 27.5 )
    Table size ( Y direction ) mm (inch) 450 ( 71.7 )
    Table load capacity kg (lb) 450 ( 990 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. ( IPM ) 32 ( 1,260 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 250 ( 9.84 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.005
    ( Ps = 0.00019 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 20
    Coolant tank capacity liter (gal) 150 ( 39.6 )
    Machine weight kg (lbs) 3,500 ( 7,700 )

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

    Read more

    Yama Seiki AF610

  • af650

    Yama Seiki AF650

    Specifications

    Models AF-650
    X-axis travel mm ( inch ) 650 ( 25.5 )
    Y-axis travel mm ( inch ) 510 ( 20.1 )
    Z-axis travel mm ( inch ) 510 ( 20.1 )
    Distance from spindle nose
    to table center    		 mm ( inch ) 600 ( 23.6 )
    Distance between columns mm ( inch ) 100 ~ 610
    ( 3.93 ~ 23.9 )
    WORKING TABLE
    Table size ( X direction ) mm ( inch ) 750 ( 29.5 )
    Table size ( Y direction ) mm ( inch ) 510 ( 20.1 )
    Table load capacity kg ( lb ) 500 ( 1,100 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW ( HP ) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. ( IPM ) 32 ( 1,260 )
    Z-axis rapids feed rate m/min. ( IPM ) 24 ( 945 )
    Cutting feed rate m/min. ( IPM ) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm ( inch ) 250 ( 9.84 )
    Max. tool weight kg ( lb ) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty    		 mm ( inch ) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm ( inch ) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm ( inch ) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm ( inch ) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm ( inch ) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 ( PSI ) 6 ( 85 )
    Power requirement kVA 25
    Coolant tank capacity liter ( gal ) 320 ( 84.4 )
    Machine weight kg ( lbs ) 4,200 ( 9,240 )

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.



    Read more

    Yama Seiki AF650

  • AF-860

    Yama Seiki AF860

    Specifications

    Models AF-860
    X-axis travel mm (inch) 860 ( 33.8 )
    Y-axis travel mm (inch) 600 ( 23.6 )
    Z-axis travel mm (inch) 600 ( 23.6 )
    Distance from spindle nose
    to table center    		 mm (inch) 800 ( 31.4 )
    Distance between columns mm (inch) 100 ~ 700
    ( 3.93 ~ 27.5 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,000 ( 39.3 )
    Table size ( Y direction ) mm (inch) 600 ( 23.6 )
    Table load capacity kg (lb) 700 ( 1,540 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 36 ( 1,418 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 250 ( 9.84 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty    		 mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 30
    Coolant tank capacity liter (gal) 355 ( 93.7 )
    Machine weight kg (lbs) 5,800 ( 12,760 )

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.



    Read more

    Yama Seiki AF860

  • yama seiki av610

    Yama Seiki AV610

    Model AV-610
    X-axis travel 610 mm ( 23.9″ )
    Y-axis travel 450 mm ( 17.7″ )
    Z-axis travel 450 mm ( 17.7″ )
    Dist. from spinle nose
    to column    		 558 mm ( 21.9″ )
    Dist. from spindle nose
    to table top    		 150 ~ 600 mm
    ( 5.91″ ~ 23.6″ )
    FEED RATE
    X / Y axes rapids feed rate 32 m/min.
    ( 1,260 IPM )
    Z-axis rapids feed rate 24 m/min.
    ( 945 IPM )
    Cutting feed rate 10 m/min. ( 394 IPM )
    WORKING TABLE
    Table size ( X ) 700 mm ( 27.5″ )
    Table size ( Y ) 450 mm ( 17.7″ )
    Table load capacity 450 kg ( 990 lb )
    SPINDLE
    Spindle motor
    ( cont. / 30 min. )    		 7.5 / 11 kW
    ( 10 / 15 HP )
    Spindle speed Belt-drive 8,000 / 10,000 rpm ( Opt. )
    Spindle taper CAT40
    TOOL MAGAZINE
    TOOL MAGAZINE 24 T
    Max. tool length
    ( from gauge line )    		 300 mm ( 11.8″ )
    Max. tool weight 7 kg ( 15.4 lb )
    Max. tool diameter
    / adj. pocket empty    		 Ø 80 mm ( 3.14″ ) / Ø 150 mm ( 5.91″ )
    ACCURACY
    Positioning accuracy
    ( JIS B 6338 )    		 ± 0.003 / 300 mm ( ± 0.000118″ / 11.8″ )
    Positioning accuracy
    ( VDI 3441 )    		 P ≤ 0.01 / 300 mm ( P ≤ 0.00039″ )
    Repeatability
    ( JIS B 6338 )    		 ± 0.002 mm ( ± 0.000078″ )
    Repeatability
    ( JIS B 6338 )    		 Ps ≤ 0.008 mm ( Ps ≤ 0.00031″ )
    GENERAL
    Control system FANUC Oi-MD / MITSUBISHI M70
    Pneumatic pressure
    requirement    		 6 kg / cm² ( 85.2 PSI )
    Power requirement 20 KVA
    Coolant tank capacity 150 L ( 40 gal. )
    Machine weight 3,500 kg
    ( 7,700 lb )
    Read more

    Yama Seiki AV610

SHOP BY MACHINE TYPE
