Horizontal Turning Centers

CNC Lathe – Hyundai Wia Machines

Machines Available in Pacific NortWest – USA

Horizontal Turning Centers are the most widely recognized. Vertical turning centers are regularly called a vertical turret lathe or VTL. With a horizontal turning center, the spindle is horizontally oriented, and tools are mounted out of the side of tool holder and cut across the work-piece

Brand
( view all )

Live Tooling Turret

  • Specification:

    Description Unit E160LMA
    Max Turning Dia inch 7.5″
    Max Turning Length inch 17.7″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output HP 15/20
    Spindle Torque lbf.ft 38.7/70.4
    Travel(X/Z) inch 6.5″/18.1″
    Rapid Travel(X/Z) in/min 1181 / 1181
    Slide Type LM
    No. of Tools EA 12
    Tool Size (ID/OD) inch 0.75″/1.25
    Milling Tool Speed r/min 4,500

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Description Unit E200MA
    Max Turning Dia inch 11.4″
    Max Turning Length inch 10″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output hp 14.75/20
    Spindle Torque ft.lb 38.7/68.2
    Travel(X/Z) inch 8.3″ / 13″
    Rapid Travel(X/Z) in/min 1,417/1,417
    Slide Type LM
    No. of Tools EA 12
    Tool Size (OD/ID) inch 0.75″/ 1.25″
    Milling Tool Speed r/min 4,500

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Specifications

    Description Unit L160MA
    Max Turning Dia in 12.2″
    Max Turning Length in 15.3″
    Chuck Size in 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output hp 15/10
    Spindle Torque ft.lbs 51.6/35.4
    Travel(X/Z) in 8.66/15.75
    Rapid Travel(X/Z) in/min 1417/1417
    Slide Type LM
    No. of Tools EA 12
    Tool Size in 1″/1.5″
    Milling Tool Speed r/min 5,000

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Description Unit LF1600M/2SP
    Max Turning Dia inch 10.2″
    Max Turning Length inch 6.5″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 4,500
    Spindle Output HP 7.4/10
    Spindle Torque ft.lb 25.5/34.8
    Travel(X/Z) inch 5.5″/6.5″
    Rapid Travel(X/Z) m/min 945/945
    Slide Type BOX
    No. of Tools EA 2 x 10
    Tool Size (ID/OD) inch 0.75″/1.25″
    Milling Tool Speed r/min 4000
    CNC F31i

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Specification

    Description Unit SE2000MA
    Max Turning Dia in 11.4″
    Max Turning Length in 10″
    Chuck Size in 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output (max/cont.) hp 20/15
    Spindle Torque (max/cont.) ft.lbs 68/38.7
    Travel(X/Z) in 5.8″/11.26″
    Rapid Travel(X/Z) in/min 1417/1417
    Slide Type LM
    No. of Tools EA 12
    Tool Size in 1″/1.25″
    Milling Tool Speed r/min 4,500

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Description Unit SE2200LMA
    Max Turning Dia inch 13.75″
    Max Turning Length inch 12.16″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output HP 20
    Spindle Torque lbf.ft 93
    Travel(X/Z) inch 8.3″/22″
    Rapid Travel(X/Z) m/min 1181 / 1417
    Slide Type Roller LM Guide
    No. of Tools EA 12
    Tool Size inch 0.75″/1.25″
    Milling Tool Speed r/min 6000
    Mill Motor Power HP 3.69

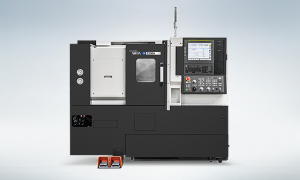

  • Description Unit SE2200MA
    Max Turning Dia inch 13.75″
    Max Turning Length inch 12.16″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output HP 20
    Spindle Torque lbf.ft 93
    Travel(X/Z) inch 8.3″/13.4″
    Rapid Travel(X/Z) m/min 1181 / 1417
    Slide Type Roller LM Guide
    No. of Tools EA 12
    Tool Size inch 0.75″/1.25″
    Milling Tool Speed r/min 6000
    Mill Motor Power HP 3.69
