Specifications
Description Unit Hi-MOLD560/5A Table Size in Ø 19.67″ × 10.63″ Max. Load Capacity lbs 551 Spindle Driving Method – Built in Spindle Taper – HSK-A63 Spindle RPM r/min 24,000 Spindle Power hp 45/33.5 Spindle Torque ft.lbs 70.8/ 53.5 Travel(X/Y/Z) in 39.37(+13.78 ATC)
/22/17.7Travel(A/C) deg +30° ~ -120°/360° Rapid Feed Rate(X/Y/Z) in/min 51967/1967/1967 Rapid Feed Rate(A/C) r/min 100/170 Slide Type – LM No. of Tools EA 24 Tool Change Time
(Chip To Chip)sec 5.5 Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog. -
Description Unit Hi-MOLD750/5A Table Size in Ø 24.8″× 19.69″ Max. Load Capacity lbs 1102 Spindle Driving Method – Built in Spindle Taper – HSK-A63 Spindle RPM r/min 15,000 Spindle Power hp 33.5/30 Spindle Torque ft.lbs 123/70 Travel(X/Y/Z) in 25.6/30.12 (+13.78ATC)
/20Travel(A/C) deg 150°(+30°~-120°)/360° Rapid Feed Rate(X/Y/Z) in/min 1968.5″ /1968.5″ /1968.5″ Rapid Feed Rate(A/C) r/min 40/50 Slide Type – LM No. of Tools EA 30 Tool Change Time
(Chip To Chip)sec 4.5 Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog. -
Specifications
Description Unit XF2000 Table Size in Ø7.87 Max. Load Capacity lbs 33 Spindle Driving Method – Built in Spindle Taper – HSK-E40 Spindle RPM r/min 40,000 Spindle Power hp 35/25 Spindle Torque ft.lbs 7.3/5 Travel(X/Y/Z) in 11.8/11.8/7.87 Rapid Feed Rate(X/Y/Z) m/min 1969/1969/1969 Slide Type – ROLLER No. of Tools EA 20 Tool Change Time
(Chip To Chip)sec 4.5 Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog. -
Specifications
Description Unit XF2000i Table Size in Ø10.23 Max. Load Capacity lbs 110 Spindle Driving Method – Built in Spindle Taper – HSK-E40 Spindle RPM r/min 24,000 Spindle Power hp 14/10.7 Spindle Torque ft.lbs 5.9/4.4 Travel(X/Y/Z) in 11.8/11.8/7.87 Rapid Feed Rate(X/Y/Z) m/min 1969/1969/1969 Slide Type – ROLLER No. of Tools EA 40 Tool Change Time
(Chip To Chip)sec 5.0 Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog. -
Specifications
Description Unit XF6300 Table Size in 24.8″ × 15.75 Max. Load Capacity lbs 1323 Spindle Driving Method – Built in Spindle Taper – HSK-A63 Spindle RPM r/min 15,000 Spindle Power hp 40/33.5 Spindle Torque ft.lbs 113/90.7 Travel(X/Y/Z) in 25.6/23.6/19.7 Rapid Feed Rate(X/Y/Z) in/min 2362/2362/2362 Slide Type – ROLLER No. of Tools EA 34 Tool Change Time
(Chip To Chip)sec 4.5 Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog. -
Specifications
Description Unit XF8500 Table Size in 33.5 × 15.75 Max. Load Capacity lbs 2200 Spindle Driving Method – Built in Spindle Taper – HSK-A63 Spindle RPM r/min 9,000 Spindle Power hp 55/40 Spindle Torque ft.lbs 129/95.9 Travel(X/Y/Z) in 33.5/36/23.6 Rapid Feed Rate(X/Y/Z) in/min 1772/1772/1772 Slide Type – ROLLER No. of Tools EA 34 Tool Change Time
(Chip To Chip)sec 4.98 Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog. -

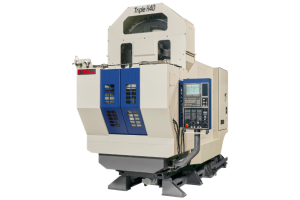

Specifications
Type of tool shank BT40 (OP. CAT40) Spindle speed (min-1) 8,000 (OP. 12,000) Number of pallets Single (OP. 2) Pallet size (mm [inch]) Single:820 x 450 [32.3 x 17.7]
2APC:820 x 410 [32.3 x 16.1]Max. work piece height (mm [inch]) 790 [31.1] X, Y, Z axes (mm [inch]) 510 x 510 x 400 [20.1 x 20.1 x 15.7]
(OP. X-axis 700 [27.6])Rapid feed (X/Y/Z) (mm/min. [ipm]) 60,000 [2,362] Number of tools 20 (OP. 40/60/80) NC FANUC 0i-M Floor space
(Excluding chip conveyor) (mm [inch])Single:1,400 x 3,150 [55.1 x 124.0] *Inch expression is approximate.
[OP.] … Option- Column traverse structure assures high rigidity. Easily cuts ferrous materials!
- Adaptable to a variety of applications due to the fixed table arrangement; it will solve the customer’s various requirements.
- Trouble-free design with complete isolation of machining area from mechanism
- Space saving (just 1,400 mm wide); most suitable for machining lines.
-
TRAVEL
- X axis Travel
- 24.4″ (620 mm)
- Y axis Travel
- 20.5″ (520 mm)
- Z axis Travel
- 18.1″ (460 mm)
- B axis – Tilting
- -50° ~ +110°
- C axis – Rotary
- 360°
TABLE
- Table Dimensions
- Ø25.59 in (Ø650 mm)
- Maximum Load
- 661 lbs (300 kg)
- Spindle Nose to Table Surface
- 5.9” ~ 24” (150 ~ 610 mm)
SPINDLE
- Spindle Speed
- 15,000 rpm
- Spindle Taper
- Big Plus/CAT40
- Spindle Power
- 25 hp
- Spindle Torque
- 106 ft/lb (143.7 Nm)
- Spindle Lube
- Oil / Air
FEEDRATE
- X-Axis Rapid Traverse
- 1417 in/min (36 m/min)
- Y-Axis Rapid Traverse
- 1417 in/min (36 m/min)
- Z-Axis Rapid Traverse
- 1417 in/min (36 m/min)
- B/C Axes Rotation Speed
- 25 rpm
ATC
- Maximum Number of Tools
- 48
- Tool-to-Tool Change Time
- 2.5 sec
- Max Diameter
- 3.0″ (75 mm)
- Max Weight
- 15.4 lbs (7 kg)
DIMENSIONS/ WEIGHT/ CAPACITIES
- Weight
- 19,400 lbs (8800 kg)
- Coolant Tank Capacity
- 68.7 gal (260 L)
- Control
- FANUC 31i-MB5
Specifications subject to change without notice.
-

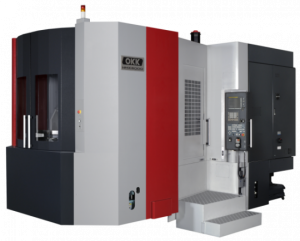

Main SpecificationX Axis Travel 1050(41.34″) Y Axis Travel 900(35.43″) Z Axis Travel 820(32.28″) A Axis Travel -20 to 110 degrees B Axis Travel 360 degrees Rapid Tranverse Rate 75(2953ipm) Spindle Speeds 35 to 12000 Spindle Motor 40/34HP Magazine Capacity 60 (OP: 116, 176, 300) Table Size 600 (23.62″) Square Spindle Taper 50 Taper Big Plus -
Main SpecificationX Axis Travel 51.18″ (1300mm) Y Axis Travel 43.31″ (1100mm) Z Axis Travel 61.02″ (1550mm) A Axis Travel -110~+40 Spindle Speeds 35~12000RPM Spindle Motor 40HP Magazine Capacity 60 Spindle Taper 50 Taper Big Plus Pallet Dimension 800mm X 800mm Controller Type Fanuc 31iB5 -
Main SpecificationX Axis Travel 3500(137.79″) Y Axis Travel 1020+45(40.15+1.77″) Z Axis Travel 720(28.34″) A Axis Travel -35 to +35 degrees B Axis Travel -35 to +35 degrees Rapid Tranverse Rate XYZ:20(787ipm) Spindle Speeds 35 to 12,000 Spindle Motor 50/40HP Magazine Capacity 40 (OP: 30) Table Size 3500 (149.61″) x 1020 (40.16″) Spindle Taper No.50
5 Axis CNC Machines
5 Axis CNC Machines is a type of CNC machine that has a cutting tool moves across the X, Y, and Z linear axes as well as rotates on the A and B axes to approach the workpiece from any direction. In other words, you can process five sides of a part in a single setup. 5-axis machining provides infinite possibilities as to the part sizes and shapes you can effectively create.
Benefits of 5 Axis CNC Machines:
- Machine complex shapes in a single setup for increased productivity
- Save time and money with less fixture preparation
- Boost throughput and cash flow, while shortening lead times
- Higher part accuracy because the workpiece does not move across multiple workstations
- Ability to use shorter cutting tools for higher cutting speeds and less tool vibrations
- Achieve superior surface finishes and overall better part quality
