Ocean -EDM

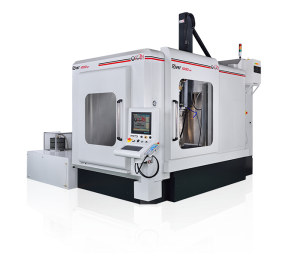

  • ocean river 1000
    Model noRiver 1000
    Table travel (X,Y axes)1000 x 1200 mm
    Work table size1200 x 1250 mm
    Z axis travel1000 mm
    W axis travel700 mm
    Max. workpiece height1100 mm
    Max. workpiece weight3000 kgs (with tool fixture)
    Power inputAccording to local voltage
    Max. average current32 Amps / (64 Amps optional)
    Power capacity6 KVA
    Electrode diameter0.1~3.0 mm / (3.1~6.3 mm Optional)
    Machine net weight7000 kgs
    Depth / Width / Height4350 x 4250 x 4000 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.

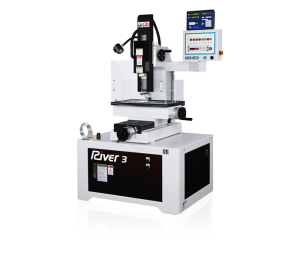

  • Model noRiver 3
    Table travel (X,Y axes)300 x 200 mm
    Work table size350 x 250 mm
    Z axis travel350 mm
    W axis travel200 mm (300 Opt.)
    Max. workpiece height180 mm (300 Opt.)
    Max. workpiece weight150 kgs
    Power inputAccording to local voltage
    Max. average current25 Amps
    Power capacity3.8 KVA
    Electrode diameter0.2 ~ 3.0mm
    Machine net weight600 kgs
    Depth / Width / Height1100 x 1100 x 2000 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.

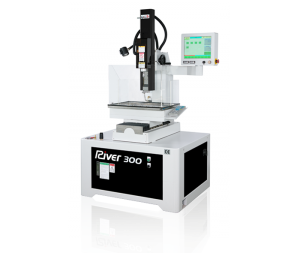

  • Ocean River-300
    Model noRiver 300
    Table travel (X,Y axes)300 x 200 mm
    Work table size350 x 250 mm
    Z axis travel200 mm ( 300 OPTION )
    W axis travel350 mm
    Max. workpiece height180 mm ( 300 OPTION )
    Max. workpiece weight150 kgs
    Power inputAccording to Local voltage
    Max. average current25 Amps
    Power capacity3.8 KVA
    Electrode diameter0.1~3.0 mm
    Machine net weight600 kgs
    Depth / Width / Height1100 x 1000 x 2000 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.

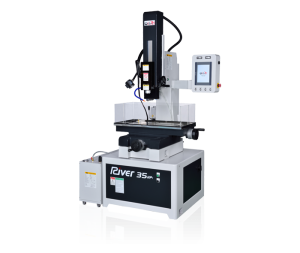

  • Model noRiver 35
    Table travel (X,Y axes)350 x 250 mm
    Work table size600 x 300 mm
    Z axis travel350 mm
    W axis travel200 mm
    Max. workpiece height330 mm
    Max. workpiece weight250 kgs
    Power inputAccording to local voltage
    Max. average current32 Amps (64A optional)
    Power capacity3.8 KVA
    Electrode diameter0.1 ~ 3.0mm (3.0 ~ 6.3mm Opt.)
    Machine net weight1000 kgs
    Depth / Width / Height1200 x 1550 x 2230 mm

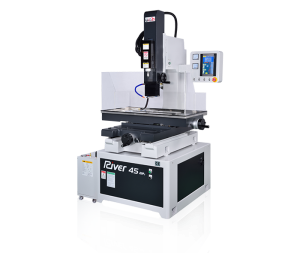

  • Ocean River 45
    Model noRiver 45
    Table travel (X,Y axes)450 x 350 mm
    Work table size600 x 376 mm
    Z axis travel350 mm
    W axis travel200 mm
    Max. workpiece height360 mm
    Max. workpiece weight600 kgs
    Power inputAccording to local voltage
    Max. average current32 Amps (64A optional)
    Power capacity3.8 KVA
    Electrode diameter0.1 ~ 3.0mm (3.0 ~ 6.3mm Opt.)
    Machine net weight1300 kgs
    Depth / Width / Height1520 x 1620 x 2230 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.

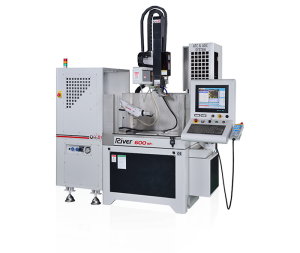

  • Ocean River-600
    Model noRiver 600
    Table travel (X,Y axes)600 x 400 mm
    Work table size600 x 400 mm
    Z axis travel400 mm
    W axis travel450 mm
    Max. workpiece height400 mm
    Max. workpiece weight800 kgs
    Power inputAccording to local voltage
    Max. average current25 Amps( 32 / 64 Amps Optional )
    Power capacity3.8 KVA
    Electrode diameter0.1 ~ 3.0mm
    Machine net weight1100 kgs
    Depth / Width / Height1030 x 1630 x 1960 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.

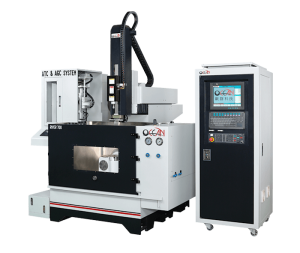

  • Ocean River-700
    ITEMRiver 700
    Table travel (X,Y axes travel)700×500 mm
    Z axis travel500mm
    W axis travel500mm
    Rotary table diameterΦ250mm
    Max. vertical workpiece height340 mm
    Max. workpiece swiveling range300mm
    Max. table load40kgs (When Tilting 30 kgs)
    A axis swiveling range-110° ~ +110°
    B axis rotation range360°
    Power consumption8 ~ 10 KVA
    Electrode diameter0.1 ~ 3.0mm (Opt.: 3.1 ~ 6.3)
    Tank Capacity (submerge)600 liters
    Max. electrode length (opt.)500 mm
    Power inputLocal Specification
    Max. average current32A (Opt: 64 Amps)
    Machine net weight (N.W.)3500 kg
    Machine diameter (W x D x H)2050 x 2200 x 2000 mm

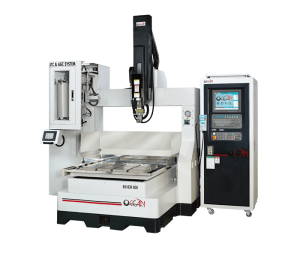

  • Ocean River-800
    Item / ModelRiver 800 (GANTRY TYPE)
    X,Y travel800 x 600 mm
    Working table800 x 600 mm
    Z axis travel500 mm
    W axis travel500 mm
    max. workpiece height500 mm
    Max. workpiece weight1800 kgs
    Power inputAccording to local voltage
    Max. average current32 Amps
    Power capacity3.8 KVA
    Electrode diameter0.1~3.0 mm
    Machine net weight2500 kgs
    Depth / Width / Height2250 x 2450 x 2520 mm
    * All specification are subject to change without prior notice.
    *All the specifications are subject to change without prior notice.
