40 Taper - Kiwa - HMC

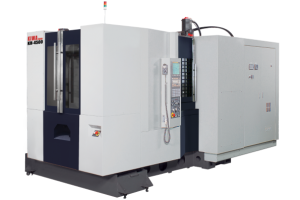

  • Kiwa KH-4500

    Specifications

    Type of tool shankBT 40 (OP. CAT 40)
    Spindle speed (min-1)10,000 Direct drive
    (OP. 12,000 Direct drive)
    (OP. 15,000 Direct drive)
    (OP. 20,000 Built-in)
    Number of pallets2 (OP. Single / 6 / 8)
    Pallet size (mm [inch])400 x 400 [15.7 x 15.7]
    (OP. 500 x 500[19.7 x 19.7])
    Max. work piece size (mm [inch])φ750 x 1,000 [φ29.5 x 39.4]
    6APC: φ750 x 900 [φ29.5 x 35.4]
    8APC: φ650 x 900 [φ25.6 x 35.4]
    X, Y, Z axes (mm [inch])640 x 610 x 680 [25.2 x 24.0 x 26.8]
    (OP. 700 x 740 x 680 [27.6 x 29.1 x 26.8])
    Rapid feed (X/Y/Z) (mm/min. [ipm])80,000 [3,150]
    Number of tools40 (OP. 60 / 80 / 120 / 240)
    NCFANUC 32i [OP. 31i / 0i-M]
    Floor space
    (Excluding chip conveyor) (mm [inch])
    2APC+40/60ATC: 2,398 x 4,539 [94.4 x 178.7]
    2APC+80/120ATC: 2,541 x 4,539 [100.0 x 178.7]

    *Inch expression is approximate.
    [OP.] … Option
