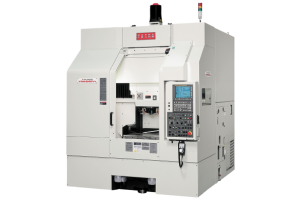

• Yasda YBM640V

    Specifications

    TravelX-axis travel (Longitudinal movement of spindle head)600mm
    Y-axis travel (Cross movement of table)400mm
    Z-axis travel (Vertical movement of spindle head)350mm
    TableTable working surface700x450mm
    Table loading capacity300kg
    SpindleThe highest revolving speed24000min-1[30000min-1]
    Spindle taper hole7/24 taper,No.40(BT40)
    Automatic tool changerTool storage capacity30 tools[40 and 60]
    APC/PLSThe number of palettes[2nd page] / [5th page]
    NC equipmentFANUC 31i -MODEL B5

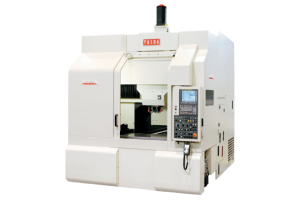

  • Yasda YBM-950V

    Specifications

    TravelX-axis travel (Longitudinal movement of spindle head)900mm
    Y-axis travel (Cross movement of table)500mm
    Z-axis travel (Vertical movement of spindle head)350mm
    TableTable working surface1000x500mm
    Table loading capacity800kg
    SpindleThe highest revolving speed24000min-1[30000min-1]
    Spindle taper hole7/24 taper,No.40(BT40)
    Automatic tool changerTool storage capacity30 tools[40 and 60]
    APC/PLSThe number of palettes[2nd page] / [4th page]
    NC equipmentFANUC 31i-MODEL B5
