• <p class=”stits bold”><strong>Specifications</strong></p>
    <table>
    <tbody>
    <tr>
    <td></td>
    <td><b>Description</b></td>
    <td><b>Unit</b></td>
    <td><b>KIT450</b></td>
    </tr>
    <tr>
    <td rowspan=”4″><b>CAPACITY</b></td>
    <td><span style=”font-weight: 400;”>Swing Over the Bed</span></td>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>ø530 (20.9″)</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Max. Turning Dia.</span></td>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>ø165 (6.5″)</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Max. Turning Length</span></td>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>325 (12.8″)</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Bar Capacity</span></td>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>ø45 (1.8″)</td>
    </tr>
    <tr>
    <td rowspan=”7″><b>SPINDLE</b></td>
    <td><span style=”font-weight: 400;”>Chuck Size</span></td>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>ø165 (6.5″)</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Spindle Bore</span></td>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>ø52 (2.05″) [ø53 (2.09″)]</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Spindle Speed (rpm)</span></td>
    <td><span style=”font-weight: 400;”>r/min</span></td>
    <td>50~6,000</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Motor (Max/Cont.)</span></td>
    <td><span style=”font-weight: 400;”>kW(HP)</span></td>
    <td>15/11 (20/15) [12/9 (16/12)]</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Torque (Max/Cont.)</span></td>
    <td><span style=”font-weight: 400;”>N.m</span></td>
    <td>95.5/70 [76.4/57.3]</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Spindle Type</span></td>
    <td><span style=”font-weight: 400;”>-</span></td>
    <td><span style=”font-weight: 400;”>BELT</span></td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Spindle Nose</span></td>
    <td><span style=”font-weight: 400;”>-</span></td>
    <td>A2-5</td>
    </tr>
    <tr>
    <td rowspan=”3″><b>FEED</b></td>
    <td><span style=”font-weight: 400;”>Travel (X/Z)</span></td>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>450/300 (17.7″/11.8″)</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Rapid Travel (X/Z)</span></td>
    <td><span style=”font-weight: 400;”>m/min</span></td>
    <td>30/36</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Slide Type</span></td>
    <td><span style=”font-weight: 400;”>-</span></td>
    <td><span style=”font-weight: 400;”>LM GUIDE</span></td>
    </tr>
    <tr>
    <td rowspan=”3″><b>BLOCK TOOL</b></td>
    <td><span style=”font-weight: 400;”>No. of Tool</span></td>
    <td><span style=”font-weight: 400;”>EA</span></td>
    <td>6</td>
    </tr>
    <tr>
    <td rowspan=”2″><span style=”font-weight: 400;”>Tool Size</span></td>
    <td><b>OD</b><span style=”font-weight: 400;”> mm(in)</span></td>
    <td><span style=”font-weight: 400;”>□20×20 (□1″×1″)</span></td>
    </tr>
    <tr>
    <td><b>ID   </b><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>ø32 (1.3″)</td>
    </tr>
    <tr>
    <td rowspan=”2″><b>TANK CAPACITY</b></td>
    <td><span style=”font-weight: 400;”>Coolant Tank</span></td>
    <td><span style=”font-weight: 400;”>ℓ(gel)</span></td>
    <td>120 (31.7)</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Lubricating Tank</span></td>
    <td><span style=”font-weight: 400;”>ℓ(gel)</span></td>
    <td><span style=”font-weight: 400;”>1.8 (0.48) </span></td>
    </tr>
    <tr>
    <td rowspan=”3″><b>POWER SUPPLY</b></td>
    <td><span style=”font-weight: 400;”>Electric Power Supply</span></td>
    <td><span style=”font-weight: 400;”>kVA</span></td>
    <td><span style=”font-weight: 400;”>20</span></td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Thickness of Power Cable</span></td>
    <td><span style=”font-weight: 400;”>Sq</span></td>
    <td><span style=”font-weight: 400;”>OVER 16</span></td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Voltage</span></td>
    <td><span style=”font-weight: 400;”>V/Hz</span></td>
    <td><span style=”font-weight: 400;”>220/60 (200/50)</span></td>
    </tr>
    <tr>
    <td rowspan=”4″><b>MACHINE</b></td>
    <td rowspan=”2″><span style=”font-weight: 400;”>Floor Space (L×W)</span></td>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>2,100×1,435</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>mm(in)</span></td>
    <td>(82.7″×56.5″)</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Height</span></td>
    <td><span style=”font-weight: 400;”>mm(in</span></td>
    <td>1,830 (72″)</td>
    </tr>
    <tr>
    <td><span style=”font-weight: 400;”>Weight</span></td>
    <td><span style=”font-weight: 400;”>kg(lb)</span></td>
    <td>2,700 (5,952)</td>
    </tr>
    <tr>
    <td><b>NC</b></td>
    <td><span style=”font-weight: 400;”>Controller</span></td>
    <td></td>
    <td>HYUNDAI WIA FANUC i Series [SIEMENS 802D sl]</td>
    </tr>
    </tbody>
    </table>

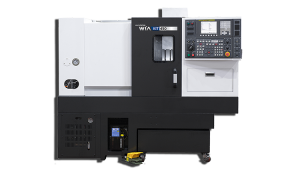

  • HYUNDAI WIA KIT4500

    Travel(X/Z) ( 17.7″/11.8″ )

    DescriptionUnitKIT4500
    Max Turning Diainch6.5″
    Max Turning Lengthinch11.8″
    Chuck Sizeinch6″
    Driving MethodBelt
    Spindle RPMr/min6,000
    Spindle OutputHP20/15
    Spindle Torquelbf.ft70.5/51.6
    Travel(X/Z)inch17.7″/11.8″
    Rapid Travel(X/Z)m/min30/36
    Slide TypeLM
    No. of ToolsEA6
    Tool Sizeinch0.8″/1.3″

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalogue.
