Live Tooling Turret-126
Specifications
Description Unit GS-4000ML CAPACITY Max. / Swing over saddle mm(in) 770 mm (30.3″) Max. Turning Diameter mm(in) 620 mm (24.4″) Max. Turning Length mm(in) 818 mm (32.2″) Bar Capacity mm(in) 259 mm (4.5’) SPINDLE Chuck Size (in) (18″) Hole through spindle mm(in) 130 mm (5.12″) Spindle Speed (rpm) rpm 2,000 rpm Motor output ( cont. / 30 min.) Hp / kW 30 / 37 kW ( 40 / 50 HP ) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – 2-Speed Gear box Spindle Nose – A2-11 FEED Travel (X/Z) mm(in) 350mm (13.78’) / 850mm (33.46’) Rapid Travel (X/Z) m/min 24 m/min Slide Type – Hardened & Ground Box Ways X-axis servo motor HP (KW) Z-axis servo motor HP (KW) BLOCK TOOL No. of Tool / Stations T 12 Tool Size OD mm(in) 32 mm (1”) ID mm(in) 60mm (2”) TANK CAPACITY Coolant Tank Gallon / litre 85 gal (330L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 65 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 4,700 × 2,480 × 2,120 mm ( 185″ x 97″ x 84″ ) Weight kg(lb) 8,000 kg ( 17,637 lb ) NC Controller FANUC Oi-TD
Specifications
Description Unit GS-4000YL CAPACITY Max. / Swing over saddle mm(in) 770 mm (30.3″) Max. Turning Diameter mm(in) 620 mm (24.4″) Max. Turning Length mm(in) 818 mm (32.2″) Bar Capacity mm(in) 114 mm (4.5’) SPINDLE Chuck Size (in) (15″) Hole through spindle mm(in) 130 mm (5.12″) Spindle Speed (rpm) rpm 2,000 rpm Motor output ( cont. / 30 min.) Hp / kW 30 / 37 kW ( 40 / 50 HP ) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – 2-Speed Gear box Spindle Nose – A2-11 FEED Travel (X/Z) mm(in) 350mm (13.78’) / 850mm (33.46’) Rapid Travel (X/Z) m/min 24 m/min Slide Type – Hardened & Ground Box Ways X-axis servo motor HP (KW) Z-axis servo motor HP (KW) BLOCK TOOL No. of Tool / Stations T 12 Tool Size OD mm(in) 32 mm (1”) ID mm(in) 60mm (2”) TANK CAPACITY Coolant Tank Gallon / litre 85 gal (330L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 65 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 4,700 × 2,480 × 2,120 mm ( 185″ x 97″ x 84″ ) Weight kg(lb) 8,000 kg ( 17,637 lb ) NC Controller FANUC Oi-TD

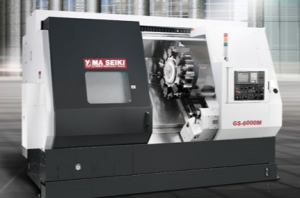

Specifications
Description Unit GS-6000ML CAPACITY Max. / Swing over saddle mm(in) 980 mm (38.6″) Max. Turning Diameter mm(in) 879 mm (34.6″) Max. Turning Length mm(in) 950 mm (37.4″) Bar Capacity mm(in) 259 mm (4.5’) SPINDLE Chuck Size (in) (18″) Hole through spindle mm(in) 130 mm (5.11″) Spindle Speed (rpm) rpm 1,200 rpm Motor output ( cont. / 30 min.) Hp / kW 40 / 50 HP ( 30 / 37 kW ) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – V-Belt + Gear Box Spindle Nose – A2-11 FEED Travel (X/Z) mm(in) 500mm (19.68’) / 980mm (38.58’) Rapid Travel (X/Z) m/min 24 m/min Slide Type – Box Way X-axis servo motor HP (KW) Z-axis servo motor HP (KW) BLOCK TOOL No. of Tool / Stations T 12 Tool Size OD mm(in) 32 mm (1”) ID mm(in) 60mm (2”) TANK CAPACITY Coolant Tank Gallon / litre 63 gal (240L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 64 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 145.51″ x 95.27″ x 101.10″ ( 3,696 x 2,420 x 2,568 mm ) Weight kg(lb) 12,000 kg ( 26,450 lb ) NC Controller Oi-TD
Specifications
Description Unit GS-8000ML CAPACITY Max. / Swing over saddle mm(in) 1029 mm (40.5″) Max. Turning Diameter mm(in) 960 mm (37.8″) Max. Turning Length mm(in) 1148 mm (45.2″) Bar Capacity mm(in) 203 mm (8’) SPINDLE Chuck Size (in) (18″) Hole through spindle mm(in) 205 mm (8.07″) Spindle Speed (rpm) rpm 700 rpm Motor output ( cont. / 30 min.) Hp / kW 30 / 45 kW ( 40 / 60 HP ) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – 3-Speed Gear Spindle Nose – A2-15 FEED Travel (X/Z) mm(in) 525mm (20.66’) / 1,200mm (47.24’) Rapid Travel (X/Z) m/min 12 m/min Slide Type – Box Way X-axis servo motor HP (KW) 8 HP (6 kW) Z-axis servo motor HP (KW) 9 HP (7 kW) BLOCK TOOL No. of Tool / Stations T 12 Tool Size OD mm(in) 32 mm (1”) ID mm(in) 60mm (2.36”) TANK CAPACITY Coolant Tank Gallon / litre 155 gal (590L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 80 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 5,650 x 3,150 x 3,060 mm ( 222.44″ x 124.01″ x 120.47″ ) Weight kg(lb) 13,700 kg ( 30,200 lb ) NC Controller FANUC Oi-TD
Specifications
Description Unit GS-8000YL CAPACITY Max. / Swing over saddle mm(in) 1029 mm (40.5″) Max. Turning Diameter mm(in) 960 mm (37.8″) Max. Turning Length mm(in) 1148 mm (45.2″) Bar Capacity mm(in) 259 mm (10.2’) SPINDLE Chuck Size (in) (18″) Hole through spindle mm(in) 205 mm (8.07″) Spindle Speed (rpm) rpm 800 rpm Motor output ( cont. / 30 min.) Hp / kW 30 / 45 kW ( 40 / 60 HP ) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – 3-Speed Gear Spindle Nose – A2-15 FEED Travel (X/Z) mm(in) 525mm (20.66’) / 1,200mm (47.24’) Rapid Travel (X/Z) m/min 12 m/min Slide Type – Box Way X-axis servo motor HP (KW) Z-axis servo motor HP (KW) BLOCK TOOL No. of Tool / Stations T 12 Tool Size OD mm(in) 32 mm (1”) ID mm(in) 60mm (2.36”) TANK CAPACITY Coolant Tank Gallon / litre 155 gal (590L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 80 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 5,650 x 3,150 x 3,060 mm ( 222.44″ x 124.01″ x 120.47″ ) Weight kg(lb) 13,700 kg ( 30,200 lb ) NC Controller FANUC Oi-TD
