Electrical Discharge Machine

Available Option(s):

  • Specifications:  Fanuc Eco plus logo

    TRAVEL
    X-Axisin (mm)19.7 (500) in (mm)
    Y-Axisin (mm)15.7 (400) in (mm)
    Z-Axisin (mm)13 (320) in (mm)
    TABLE
    Table Sizein (mm)25.6×15.7 (650×400) in (mm)
    Max. Table LoadLbs660 Lbs.
    GENERAL
    Machine WeightLbs (kg)4400 (1996) lbs (kg)
    Floor Spacein (mm)63.5 x 80.7
    (1,615 x 2,050)
    Heightin (mm)88 (2,236)
    Controllable Axis5
    Controller31i-B
    SPINDLE
    Spindle Speedrpm24,000
    Spindle TaperBIG-PLUS BBT-30
    FEED RATE
    Rapid Traverse Rate2125 IPM/1181 IPM
    TOOLING / TURRET
    ATC type14/21
    Tool-to-Tool Timesec0.9
    Chip-to-Chip Timesec1.3
    Max. Tool Weightlbs8.8 (4)
    Max. Tool Lengthin9.8
  • ocean river 1000
    Model noRiver 1000
    Table travel (X,Y axes)1000 x 1200 mm
    Work table size1200 x 1250 mm
    Z axis travel1000 mm
    W axis travel700 mm
    Max. workpiece height1100 mm
    Max. workpiece weight3000 kgs (with tool fixture)
    Power inputAccording to local voltage
    Max. average current32 Amps / (64 Amps optional)
    Power capacity6 KVA
    Electrode diameter0.1~3.0 mm / (3.1~6.3 mm Optional)
    Machine net weight7000 kgs
    Depth / Width / Height4350 x 4250 x 4000 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.
  • Model noRiver 3
    Table travel (X,Y axes)300 x 200 mm
    Work table size350 x 250 mm
    Z axis travel350 mm
    W axis travel200 mm (300 Opt.)
    Max. workpiece height180 mm (300 Opt.)
    Max. workpiece weight150 kgs
    Power inputAccording to local voltage
    Max. average current25 Amps
    Power capacity3.8 KVA
    Electrode diameter0.2 ~ 3.0mm
    Machine net weight600 kgs
    Depth / Width / Height1100 x 1100 x 2000 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.
  • Ocean River-300
    Model noRiver 300
    Table travel (X,Y axes)300 x 200 mm
    Work table size350 x 250 mm
    Z axis travel200 mm ( 300 OPTION )
    W axis travel350 mm
    Max. workpiece height180 mm ( 300 OPTION )
    Max. workpiece weight150 kgs
    Power inputAccording to Local voltage
    Max. average current25 Amps
    Power capacity3.8 KVA
    Electrode diameter0.1~3.0 mm
    Machine net weight600 kgs
    Depth / Width / Height1100 x 1000 x 2000 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.
  • Model noRiver 35
    Table travel (X,Y axes)350 x 250 mm
    Work table size600 x 300 mm
    Z axis travel350 mm
    W axis travel200 mm
    Max. workpiece height330 mm
    Max. workpiece weight250 kgs
    Power inputAccording to local voltage
    Max. average current32 Amps (64A optional)
    Power capacity3.8 KVA
    Electrode diameter0.1 ~ 3.0mm (3.0 ~ 6.3mm Opt.)
    Machine net weight1000 kgs
    Depth / Width / Height1200 x 1550 x 2230 mm
  • Ocean River 45
    Model noRiver 45
    Table travel (X,Y axes)450 x 350 mm
    Work table size600 x 376 mm
    Z axis travel350 mm
    W axis travel200 mm
    Max. workpiece height360 mm
    Max. workpiece weight600 kgs
    Power inputAccording to local voltage
    Max. average current32 Amps (64A optional)
    Power capacity3.8 KVA
    Electrode diameter0.1 ~ 3.0mm (3.0 ~ 6.3mm Opt.)
    Machine net weight1300 kgs
    Depth / Width / Height1520 x 1620 x 2230 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.
  • Ocean River-600
    Model noRiver 600
    Table travel (X,Y axes)600 x 400 mm
    Work table size600 x 400 mm
    Z axis travel400 mm
    W axis travel450 mm
    Max. workpiece height400 mm
    Max. workpiece weight800 kgs
    Power inputAccording to local voltage
    Max. average current25 Amps( 32 / 64 Amps Optional )
    Power capacity3.8 KVA
    Electrode diameter0.1 ~ 3.0mm
    Machine net weight1100 kgs
    Depth / Width / Height1030 x 1630 x 1960 mm
    *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.
  • Ocean River-700
    ITEMRiver 700
    Table travel (X,Y axes travel)700×500 mm
    Z axis travel500mm
    W axis travel500mm
    Rotary table diameterΦ250mm
    Max. vertical workpiece height340 mm
    Max. workpiece swiveling range300mm
    Max. table load40kgs (When Tilting 30 kgs)
    A axis swiveling range-110° ~ +110°
    B axis rotation range360°
    Power consumption8 ~ 10 KVA
    Electrode diameter0.1 ~ 3.0mm (Opt.: 3.1 ~ 6.3)
    Tank Capacity (submerge)600 liters
    Max. electrode length (opt.)500 mm
    Power inputLocal Specification
    Max. average current32A (Opt: 64 Amps)
    Machine net weight (N.W.)3500 kg
    Machine diameter (W x D x H)2050 x 2200 x 2000 mm
  • Ocean River-800
    Item / ModelRiver 800 (GANTRY TYPE)
    X,Y travel800 x 600 mm
    Working table800 x 600 mm
    Z axis travel500 mm
    W axis travel500 mm
    max. workpiece height500 mm
    Max. workpiece weight1800 kgs
    Power inputAccording to local voltage
    Max. average current32 Amps
    Power capacity3.8 KVA
    Electrode diameter0.1~3.0 mm
    Machine net weight2500 kgs
    Depth / Width / Height2250 x 2450 x 2520 mm
    * All specification are subject to change without prior notice.
    *All the specifications are subject to change without prior notice.

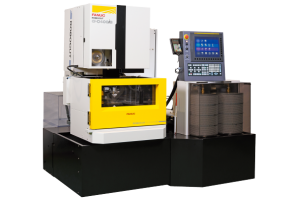

  • RoboCut-C400iB

    Specifications:

    ROBOT
    Maximum Workpiece Sizein (mm)28.7×24.8×9.8 (730x630x250) in (mm) W/O Auto Door
    Maximum Workpiece WeightLbs (kg)1100 (500) lbs (kg)
    U/V Travelsin (mm)±2.362 (60) in (mm)
    Z-Axis Travelin (mm)10.0 (255) in (mm)
    Maximum Cutting Speed (Brass)31 (788)
    uto Wire Feed (AWF 2)Standard
    Wire Diameterin (mm)ø 0.004 – 0.012 (0.21-0.31) in (mm)
    Maximum Wire Spool Weight35 (16) lbs (kg)
    Positioning Accuracy±.0001 in
    DIELECTRIC TANK
    Tank Capacity145 (550) gal (L)
    Paper Filter (Cartridge Type)2 quantity
    Inverter Chiller)Standard
    POWER SUPPLY
    Digital Power SupplyStandard
    WEIGHT
    Machine Weight4000 (1815) lbs (kg)

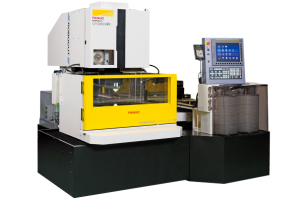

  • Robocut-C600iB

    Specifications:

    ROBOT
    Maximum Workpiece Sizein (mm)41.3×32.3×11.8 (1050x820x300) in (mm) W/O Auto Door
    Maximum Workpiece WeightLbs (kg)3550 (1610) lbs (kg)
    U/V Travelsin (mm)±3.937 (100) in (mm)
    Z-Axis Travelin (mm)12.2 (310) in (mm)
    Maximum Cutting Speed (Brass)31 (788)
    uto Wire Feed (AWF 2)Standard
    Wire Diameterin (mm)ø 0.004 – 0.012 (0.21-0.31) in (mm)
    Maximum Wire Spool Weight35 (16) lbs (kg)
    Positioning Accuracy±.0001 in
    DIELECTRIC TANK
    Tank Capacity301 (1140) gal (L)
    Paper Filter (Cartridge Type)2 quantity
    Inverter Chiller)Standard
    POWER SUPPLY
    Digital Power SupplyStandard
    WEIGHT
    Machine Weight6700 (3040) lbs (kg)
  • Robocut-C600iB

    Specifications:

    ROBOT
    Maximum Workpiece Sizein (mm)41.3×32.3×16.1 (1050x820x410) in (mm)
    Maximum Workpiece WeightLbs (kg)3550 (1610) lbs (kg)
    U/V Travelsin (mm)±3.937 (100) in (mm)
    Z-Axis Travelin (mm)16.2 (412) in (mm)
    Maximum Cutting Speed (Brass)31 (788)
    uto Wire Feed (AWF 2)Standard
    Wire Diameterin (mm)ø 0.004 – 0.012 (0.21-0.31) in (mm)
    Maximum Wire Spool Weight35 (16) lbs (kg)
    Positioning Accuracy±.0001 in
    DIELECTRIC TANK
    Tank Capacity278 (1053) gal (L)
    Paper Filter (Cartridge Type)2 quantity
    Inverter Chiller)Standard
    POWER SUPPLY
    Digital Power SupplyStandard
    WEIGHT
    Machine Weight6900 (3130) lbs (kg)
