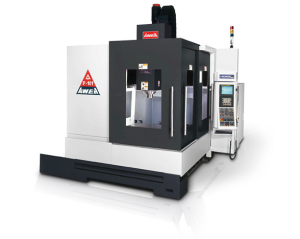

  • f101

    Specifications

    Model F-101
    X-axis travel ( left & right ) 1,000 mm ( 39.4″ )
    Y-axis travel ( in & out ) 1,000mm ( 39.4″ )
    Z-axis travel ( up & down ) 500 mm ( 19.7″ )
    Distance from spindle
    nose to table top
    175 ~ 683 mm ( 6.9″ ~ 26.9″ )
    Cutting feede rate 20 m/min. ( 787 IPM )
    Rapid feed rate 30 m/min. ( 1180 IPM )
    TABLE
    Table size ( L x W ) 1,500 x 650 mm
    T slot ( Width x No. x pitch ) 18 x 7 x 140 mm
    ( 0.7″ x 0.3″ x 5.5″ )
    Table load 2,000 kg ( 4,400 lb )
    SPINDLE
    Spindle speed 12,000 rpm
    Spindle brand FANUC ( Direct Driven )
    Spindle motor ( cont. / 30min. ) 18.5 kW ( 24.8 HP )
    Max. torque 118 N-M
    Spindle taper CAT40
    Bearing lubrication Grease
    Spindle bearing diameter Ø70mm ( 2.8″ )
    Spindle cooling
    system
    The same temperature
    as indoor ± 1°C
    ATC
    Max. tool diameter Ø76mm ( 3.0″ )
    Max.tool length 300mm ( 11.8″ )
    Max.tool weight 7 kg ( 15.4 lb )
    Number of tools 30 pcs
    Mode Arm type
    GENERAL
    Air resource 99.57 PSI ( 7 kg / cm² )
    Total capacity 55 KVA
    Pump 0.7 + 1.17 = ( 1.87 kW )
    Volume of tank 450 L
    Machine size ( length x width x height ) 3,260 x 2,400 x 3,200 mm
    ( 128.3″ x 122.8″ x 126.0″ )
    Machine weight 12,500 kg ( 27,500 lb )
  • f16 machine

    Specifications

    Model F-16
    X-axis travel ( left & right ) 1,000 mm ( 39.4″ )
    Y-axis travel ( in & out ) 600 mm ( 23.6″ )
    Z-axis travel ( up & down ) 500 mm ( 19.7″ )
    Distance from spindle
    nose to table top
    125 ~ 625 mm ( 4.9″ ~ 24.6″ )
    Cutting feede rate 20 m/min. ( 787 IPM )
    Rapid feed rate 30 m/min. ( 1180 IPM )
    TABLE
    Table size ( L x W ) 1,300 x 600 mm
    T slot ( Width x No. x pitch ) 18 x 5 x 115 mm
    ( 0.7″ x 0.2″ x 4.5″ )
    Table load 1,000 kg ( 2,200 lb )
    SPINDLE
    Spindle speed 12,000 rpm
    Spindle brand FANUC ( Direct Driven )
    Spindle motor ( cont. / 30min. ) 18.5 kW ( 24.8 HP )
    Max. torque 118 N-M
    Spindle taper CAT40
    Bearing lubrication Grease
    Spindle bearing diameter Ø70mm ( 2.8″ )
    Spindle cooling
    system
    The same temperature
    as indoor ± 1°C
    ATC
    Max. tool diameter Ø80mm ( 3.1″ )
    Max.tool length 300mm ( 11.8″ )
    Max.tool weight 7 kg ( 15.4 lb )
    Number of tools 20 pcs
    Mode Umbrella Type
    GENERAL
    Air resource 99.57 PSI ( 7 kg / cm² )
    Total capacity 55 KVA
    Pump 0.7 + 1.17 = ( 1.87 kW )
    Volume of tank 360 L
    Machine size ( length x width x height ) 3,050 x 2,850 x 3,200 mm
    ( 120.1″ x 112.2″ x 126.0″ )
    Machine weight 11,000 kg ( 24,200 lb )

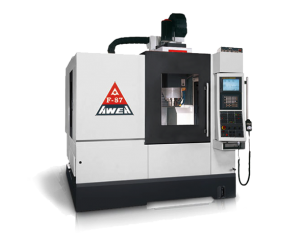

  • Yama Seiki F 87

    Specifications

    Model F-87
    X-axis travel ( left & right ) 800 mm ( 31.5″ )
    Y-axis travel ( in & out ) 700 mm ( 27.6″ )
    Z-axis travel ( up & down ) 420 mm ( 16.5″ )
    Distance from spindle
    nose to table top
    150 ~ 570 mm ( 5.9″ ~ 22.4″ )
    Cutting feede rate 24 m/min. ( 945 IPM )
    Rapid feed rate 30 m/min. ( 1180 IPM )
    TABLE
    Table size ( L x W ) 1,120 x 600 mm
    T slot ( Width x No. x pitch ) 18 x 5 x 125 mm ( 0.7″ x 0.2″ x 4.9″ )
    Table load 800 kg ( 1,760 lb )
    SPINDLE
    Spindle speed 15,000 rpm
    Spindle brand MIRL-Neo (Built – In )
    Spindle motor ( cont. / 30min. ) 22 kW ( 29.5 HP )
    Max. torque 118 N-M
    Spindle taper CAT40
    Bearing lubrication Grease
    Spindle bearing diameter Ø70mm ( 2.8″ )
    Spindle cooling
    system
    The same temperature
    as indoor ± 1°C
    ATC
    Max. tool diameter Ø35mm ( 1.4″ )
    Max.tool length 220mm ( 8.7″ )
    Max.tool weight 7 kg ( 15.4 lb )
    Number of tools 20 pcs
    Mode Umbrella Type
    GENERAL
    Air resource 85.34 PSI ( 6 kg / cm² )
    Total capacity 40 KVA
    Pump 0.7 + 1.17 = ( 1.87 kW )
    Volume of tank 250 L
    Machine size ( length x width x height ) 2,930 x 2,240 x 3,000 mm ( 115.4″ x 88.2″ x 118.1″ )
    Machine weight 7,000 kg ( 15,400 lb )
  • Yama seiki SP-2016HSS

    Specifications

    Model SP-2016HSS
    WORKING CAPACITY
    X travel 82.7″
    Y travel 63.0″
    Z travel 30.0″
    Table size 90.9″ x 59.0″
    Max. table load 17,600 lb
    Distance between columns 66.9″
    HEADSTOCK
    Spindle motor ( cont. / 30min. ) 25 / 30 HP
    Spindle speed 10 ~ 15,000 rpm
    Spindle taper CAT40
    Distance nose to table 6.3″ ~ 36.2″
    FEEDRATE
    Rapid traverse ( X,Y axes ) 787.4 IPM.
    Z axis 590.5 IPM.
    Cutting feedrate 0.04 ~ 590.5 IPM.
    ACCURACY
    Repeatability ± 0.0001″
    Positioning accuracy ± 0.0004″ Full travel
    TOOL MAGAZINE
    Tool capacity 32
    Tool holder spec. CAT50
    Max. tool DIA. / adjacent empty 4.0″ / 5.0″
    Max. tool length 11.8″
    Max. tool weight 15 lb
    Tool changing time ( tool to tool ) 12 sec.
    DIMENSION ( APPROX. )
    Length 264″
    Width 184″
    Height 153″
  • Yama seiki sp3016

    Specifications

    Model SP-3016HSS
    WORKING CAPACITY
    X travel 120.5″
    Y travel 63.0″
    Z travel 30.0″
    Table size 128.3″ x 59.0″
    Max. table load 22,000 lb
    Distance between columns 66.9″
    HEADSTOCK
    Spindle motor ( cont. / 30min. ) 25 / 30 HP
    Spindle speed 10 ~ 15,000 rpm
    Spindle taper CAT40
    Distance nose to table 6.3″ ~ 36.2″
    FEEDRATE
    Rapid traverse ( X,Y axes ) 787.4 IPM.
    Z axis 590.5 IPM.
    Cutting feedrate 0.04 ~ 590.5 IPM.
    ACCURACY
    Repeatability ± 0.0001″
    Positioning accuracy ± 0.0004″ Full travel
    TOOL MAGAZINE
    Tool capacity 32
    Tool holder spec. CAT50
    Max. tool DIA. / adjacent empty 4.0″ / 5.0″
    Max. tool length 11.8″
    Max. tool weight 15 lb
    Tool changing time ( tool to tool ) 12 sec.
    DIMENSION ( APPROX. )
    Length 342″
    Width 184″
    Height 153″
  • vp212hss yama seiki vp 212hss

    Specifications

    Model VP-2012HSS
    WORKING CAPACITY
    X travel 78.7″
    Y travel 47.2″
    Z travel 30.0″
    Table size 78.7″ x 43.3″
    Max. table load 7,700 lb
    Distance between columns 51.2″
    HEADSTOCK
    Spindle motor ( cont. / 30min. ) 25 / 30 HP
    Spindle speed 10 ~ 15,000 rpm
    Spindle taper CAT40
    Distance nose to table 6.3″ ~ 36.2″
    FEEDRATE
    Rapid traverse ( X,Y axes ) 787.4 IPM.
    Z axis 787.4 IPM.
    Cutting feedrate 0.04 ~ 590.5 IPM.
    ACCURACY
    Repeatability ± 0.0001″
    Positioning accuracy ± 0.0002″ Full travel
    TOOL MAGAZINE
    Tool capacity 32
    Tool holder spec. CAT40
    Max. tool DIA. / adjacent empty 4.0″ / ——
    Max. tool length 11.8″
    Max. tool weight 15 lb
    Tool changing time ( tool to tool ) 12 sec.
    DIMENSION ( APPROX. )
    Length 228″
    Width 194″
    Height 141″
