Fanuc - Electrical Discharge Machine

  • Specifications:  Fanuc Eco plus logo

    TRAVEL
    X-Axisin (mm)19.7 (500) in (mm)
    Y-Axisin (mm)15.7 (400) in (mm)
    Z-Axisin (mm)13 (320) in (mm)
    TABLE
    Table Sizein (mm)25.6×15.7 (650×400) in (mm)
    Max. Table LoadLbs660 Lbs.
    GENERAL
    Machine WeightLbs (kg)4400 (1996) lbs (kg)
    Floor Spacein (mm)63.5 x 80.7
    (1,615 x 2,050)
    Heightin (mm)88 (2,236)
    Controllable Axis5
    Controller31i-B
    SPINDLE
    Spindle Speedrpm24,000
    Spindle TaperBIG-PLUS BBT-30
    FEED RATE
    Rapid Traverse Rate2125 IPM/1181 IPM
    TOOLING / TURRET
    ATC type14/21
    Tool-to-Tool Timesec0.9
    Chip-to-Chip Timesec1.3
    Max. Tool Weightlbs8.8 (4)
    Max. Tool Lengthin9.8
  • RoboCut-C400iB

    Specifications:

    ROBOT
    Maximum Workpiece Sizein (mm)28.7×24.8×9.8 (730x630x250) in (mm) W/O Auto Door
    Maximum Workpiece WeightLbs (kg)1100 (500) lbs (kg)
    U/V Travelsin (mm)±2.362 (60) in (mm)
    Z-Axis Travelin (mm)10.0 (255) in (mm)
    Maximum Cutting Speed (Brass)31 (788)
    uto Wire Feed (AWF 2)Standard
    Wire Diameterin (mm)ø 0.004 – 0.012 (0.21-0.31) in (mm)
    Maximum Wire Spool Weight35 (16) lbs (kg)
    Positioning Accuracy±.0001 in
    DIELECTRIC TANK
    Tank Capacity145 (550) gal (L)
    Paper Filter (Cartridge Type)2 quantity
    Inverter Chiller)Standard
    POWER SUPPLY
    Digital Power SupplyStandard
    WEIGHT
    Machine Weight4000 (1815) lbs (kg)
  • Robocut-C600iB

    Specifications:

    ROBOT
    Maximum Workpiece Sizein (mm)41.3×32.3×11.8 (1050x820x300) in (mm) W/O Auto Door
    Maximum Workpiece WeightLbs (kg)3550 (1610) lbs (kg)
    U/V Travelsin (mm)±3.937 (100) in (mm)
    Z-Axis Travelin (mm)12.2 (310) in (mm)
    Maximum Cutting Speed (Brass)31 (788)
    uto Wire Feed (AWF 2)Standard
    Wire Diameterin (mm)ø 0.004 – 0.012 (0.21-0.31) in (mm)
    Maximum Wire Spool Weight35 (16) lbs (kg)
    Positioning Accuracy±.0001 in
    DIELECTRIC TANK
    Tank Capacity301 (1140) gal (L)
    Paper Filter (Cartridge Type)2 quantity
    Inverter Chiller)Standard
    POWER SUPPLY
    Digital Power SupplyStandard
    WEIGHT
    Machine Weight6700 (3040) lbs (kg)
  • Robocut-C600iB

    Specifications:

    ROBOT
    Maximum Workpiece Sizein (mm)41.3×32.3×16.1 (1050x820x410) in (mm)
    Maximum Workpiece WeightLbs (kg)3550 (1610) lbs (kg)
    U/V Travelsin (mm)±3.937 (100) in (mm)
    Z-Axis Travelin (mm)16.2 (412) in (mm)
    Maximum Cutting Speed (Brass)31 (788)
    uto Wire Feed (AWF 2)Standard
    Wire Diameterin (mm)ø 0.004 – 0.012 (0.21-0.31) in (mm)
    Maximum Wire Spool Weight35 (16) lbs (kg)
    Positioning Accuracy±.0001 in
    DIELECTRIC TANK
    Tank Capacity278 (1053) gal (L)
    Paper Filter (Cartridge Type)2 quantity
    Inverter Chiller)Standard
    POWER SUPPLY
    Digital Power SupplyStandard
    WEIGHT
    Machine Weight6900 (3130) lbs (kg)

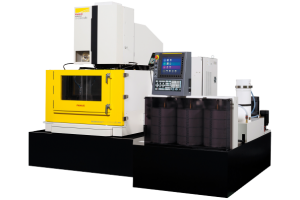

  • Fanuc C800

    Specifications:

    ROBOT
    Maximum Workpiece Sizein (mm)49.2×38.3×11.8 (1250x975x300) in (mm)
    Maximum Workpiece WeightLbs (kg)6613 (3000) lbs (kg)
    U/V Travelsin (mm)±3.937 (100) in (mm)
    Z-Axis Travelin (mm)12.2 (310) in (mm)
    Maximum Cutting Speed (Brass)31 (788)
    uto Wire Feed (AWF 2)Standard
    Wire Diameterin (mm)ø 0.004 – 0.012 (0.21-0.31) in (mm)
    Maximum Wire Spool Weight35 (16) lbs (kg)
    Positioning Accuracy±.0001 in
    DIELECTRIC TANK
    Tank Capacity265 (970) gal (L)
    Paper Filter (Cartridge Type)2 quantity
    Inverter Chiller)Standard
    POWER SUPPLY
    Digital Power SupplyStandard
    WEIGHT
    Machine Weight9260 (4200) lbs (kg)
  • Fanuc C800

    Specifications:

    ROBOT
    Maximum Workpiece Sizein (mm)49.2×38.3×20.2 (1250x975x510) in (mm)
    Maximum Workpiece WeightLbs (kg)6613 (3000) lbs (kg)
    U/V Travelsin (mm)±3.937 (100) in (mm)
    Z-Axis Travelin (mm)20.2 (510) in (mm)
    Maximum Cutting Speed (Brass)31 (788)
    uto Wire Feed (AWF 2)Standard
    Wire Diameterin (mm)ø 0.002 – 0.012 (0.21-0.31) in (mm)
    Maximum Wire Spool Weight35 (16) lbs (kg)
    Positioning Accuracy±.0001 in
    DIELECTRIC TANK
    Tank Capacity265 (970) gal (L)
    Paper Filter (Cartridge Type)2 quantity
    Inverter Chiller)Standard
    POWER SUPPLY
    Digital Power SupplyStandard
    WEIGHT
    Machine Weight9500 (4310) lbs (kg)
