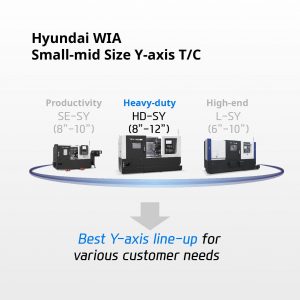

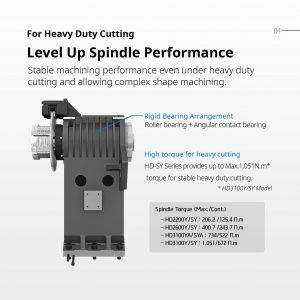

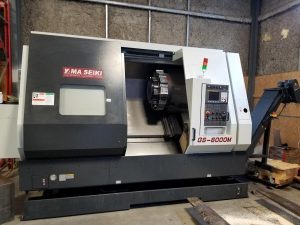

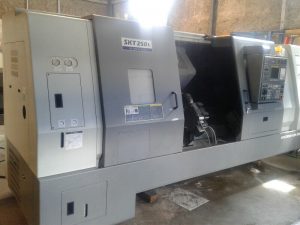

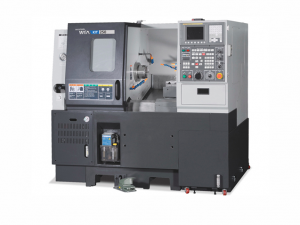

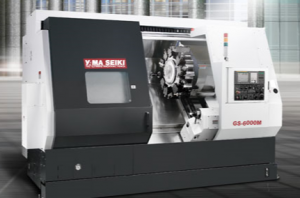

Horizontal Turning Centers
CNC Lathe
Pacific NortWest – USA
Horizontal Turning Centers are the most widely recognized. Vertical turning centers are regularly called a vertical turret lathe or VTL. With a horizontal turning center, the spindle is horizontally oriented, and tools are mounted out of the side of tool holder and cut across the work-piece
Vertical Turning Centers
CNC Lathe
Pacific NortWest – USA
A vertical turning center is a hybrid of the turning center and the vertical lathe. Shorter components not requiring sub-spindle, tail stock or bottom turret can benefit from a vertical construction lathe rather than a horizontal one, to keep the machine footprint small

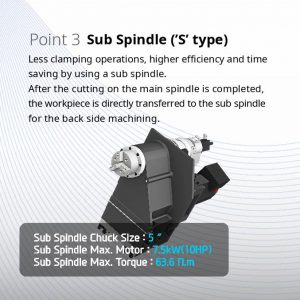

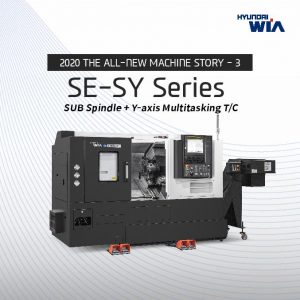

Multi-Axis Turning Centers
CNC Lathe
Pacific NortWest – USA

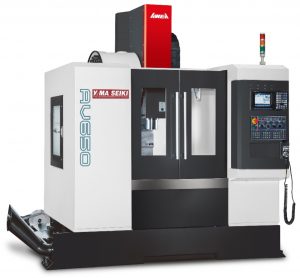

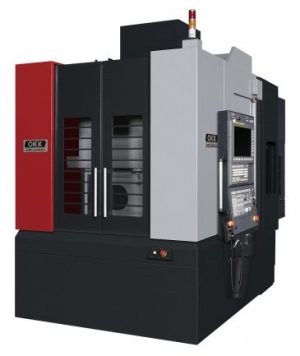

Vertical Machine Centers
CNC
Pacific NortWest – USA
Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder, and often cut across the top of a work-piece.
Hyundai Wia KF7700B
Travel (X/Y/Z)
59" /30″ /25″Hyundai Wia KF7700B
Travel (X/Y/Z)
59" /30″ /25″
Hyundai Wia F850
Travel (X / Y / Z)
63" / 33.4" / 22.8"Hyundai Wia F850
Travel (X / Y / Z)
63" / 33.4" / 22.8"

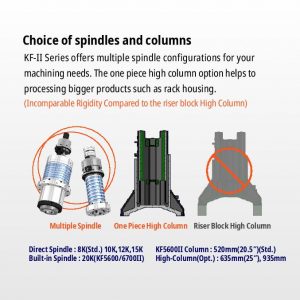

Hyundai Wia KF5700B
Travel (X/Y/Z)
43.3" / 22.44 "/ 20.47"Hyundai Wia KF5700B
Travel (X/Y/Z)
43.3" / 22.44 "/ 20.47"
Vertical Drill Tap Centers
CNC
Pacific NortWest – USA
Hyundai Wia i-CUT400T
Travel(X/Y/Z)
19.7″/15.7″/13″Hyundai Wia i-CUT400T
Travel(X/Y/Z)
19.7″/15.7″/13″Hyunda Wia i-CUT400M
Travel(X/Y/Z)
19.7″/15.7″/13″Hyunda Wia i-CUT400M
Travel(X/Y/Z)
19.7″/15.7″/13″
Hyundai Wia iCUT400TD
Travel(X/Y/Z)
20.5″/15.7″/13″Hyundai Wia iCUT400TD
Travel(X/Y/Z)
20.5″/15.7″/13″Hyundai Wia i-CUT400DC
Travel(X/Y/Z)
9.8′′/9.8′′/13′′Hyundai Wia i-CUT400DC
Travel(X/Y/Z)
9.8′′/9.8′′/13′′
Hyundai Wia i-Cut450T
Travel(X/Y/Z)
27.6″/17.7″/13″Hyundai Wia i-Cut450T
Travel(X/Y/Z)
27.6″/17.7″/13″Hyundai Wia iCUT400T/BT40
Travel(X/Y/Z)
20.5′′/15.7′′/18.9′′Hyundai Wia iCUT400T/BT40
Travel(X/Y/Z)
20.5′′/15.7′′/18.9′′
5 Axis Machines
CNC
Pacific NortWest – USA
AÂ 5 Axis Mill rotates on the A and B axis and also moves across X, Y and Z in a linear direction. In other words, a 5 Axis mill can mill a part in any direction. This ability allows for manufacturers to mill very complex parts. Some of the top 5 Axis Mill brands include Hyundai Wia, Methods, OKK, Yasda, Kiwa Japan.

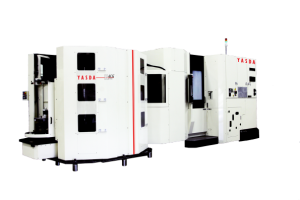

Horizontal Machining Centers
CNC
Pacific Nort-West – USA
In CNC milling, a machine cutting tool rotates and moves back and forth along the surface of a work-piece, removing material. A horizontal mill operates with its spindle in a horizontal position. Some of the major machine manufacturers that make CNC Horizontal Milling Machines are Hyundai Wia, Kiwa Japan, OKKÂ and Yasda

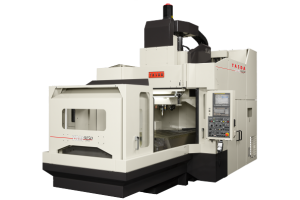

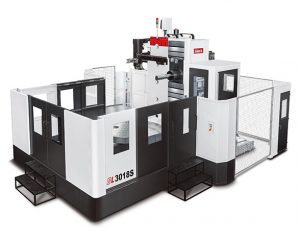

Bridge Mills
CNC
Pacific Nort-West – USA
A bridge mill is a vertical machining center with a fully supported, extended Y-axis (with the option for fixed angle or 5-axis heads). A bridge mill is constructed with a base/bed casting and a one-piece bridge structure that is bolted to the bed. Along the bridge structure is the Y-axis, and along the length of the bed is the X-axis.
5 Face Bridge Mills
CNC
Pacific Nort-West – USA

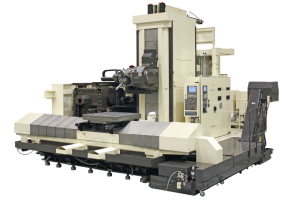

Boring Mills
CNC
Pacific Nort-West – USA
