• Main Specification
    X Axis Travel700mm (27.56″)
    Y Axis Travel850mm (33.46″)
    Z Axis Travel610mm (24.02″)
    A Axis Travel-120 to +30 degrees
    C Axis Travel360 degrees
    Rapid Tranverse RateXY: 48m/min-1 (1889ipm), Z: 32m/min (1259ipm)
    Spindle Speeds20,000 min-1 (OP: 12,000)
    Spindle Motor30/25HP
    Magazine Capacity60 (OP: 120)
    Table Size500mm (19.69″) Square
    Spindle TaperNo. 40
    Controller TypeFANUC31iB5
    Max. Work Dia/Height700mm (27.6″) / 500mm (19.7″)
    Max. Weight Loadable on Table500kg (1102 lbs)

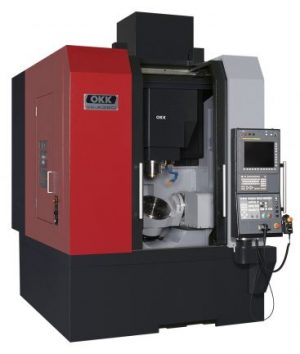

  • OKK VC X350
    Main Specification
    X Axis Travel600mm (23.62″)
    Y Axis Travel430mm ( 16.93″)
    Z Axis Travel460mm (18.11″)
    A Axis Travel-120 to 30 deg
    C Axis Travel360 deg
    Rapid Tranverse RateXY: 50 m/min-1 ( 1969 ipm) Z: 36 m/min-1 (1418 ipm) A 44.4 rpm C 66.7 rpm
    Spindle Speeds100 to 12,000 (OP: 20,000)
    Magazine Capacity30 (OP: 40, 60, 80, 120)
    Table Size350 (13.78″)
    Spindle TaperNo.40
    Controller TypeFANUC 31-iA5
    Cutting Feed RateXYZ: 1?~?36,000 mm/min- (0.04 ~?1418 ipm) A 44.4 rpm C 66.7 rpm
  • OKK VC X350



    Main Specification

    Travel(X/Y/Z)600/430/460mm
    Travel (A/C)-120 to 30/360 deg.
    Table sizeφ350mm
    Max. loadable weight100kg
    Rapid speed (X/Y/Z)XY:50m/min  Z:36m/min
    Rapid speed (A/C)A:44.4min-1  C:100min-1 (1000min-1 at turining mode)
    Spindle speed12000min-1(OP:20000min-1
    Spindle taperNo. 40
    Magazine capacity20 (OP:30,40,60,80)
  • OKK VM-X53R
    Main Specification
    X Axis Travel820mm (32.28″)
    Y Axis Travel320mm (12.60″)+130mm /set up stroke(5.12″)
    Z Axis Travel510mm (20.08″)
    A Axis Travel360 deg
    B Axis Travel+60 ~ -60 deg
    Rapid Tranverse RateXY: 30m/min-1 (1181ipm) Z: 20m/min-1 (787 ipm)
    Spindle Speeds100 ~ 12000 min-1
    Spindle Motor30 / 22HP
    Table Size250 (9.84″)
    Spindle TaperNo.40
    Controller TypeFANUC 31-iB5
    Cutting Feed RateXYZ: 1 ~ 20,000 mm/min-1 (0.04 ~ 787 ipm) A: 100 min-1 B: 30 min-1
  • Main Specification

    Travel(X/Y/Z)600/410/460mm
    Table size900x410mm
    Max. loadable weight500kg
    Rapid speedXY:48m/min  Z:36m/min
    Spindle speed12000(OP:20000,30000)min-1
    Spindle taperNo. 40
    Magazine capacity20 (OP:30,40,60,80,120)

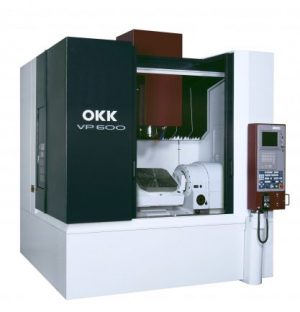

  • OKK VP600
    Main Specification
    X Axis Travel1120 (44.09″)
    Y Axis Travel610 (24.02″)
    Z Axis Travel460 (18.11″)
    A Axis Travel-105 to +15 degrees
    C Axis Travel360 degrees
    Rapid Tranverse Rate48m/mn (X and Y axes) 36m/mn (Z axis)
    Spindle Speeds100 to 12,000 (OP: 20,000)
    Spindle Motor30/25HP
    Magazine Capacity30 (OP: 40, 60, 80, 120)
    Table Size500 (19.69″) Square
    Spindle TaperNo.40
  • OKK VP9000-5AX
    Main Specification
    X Axis Travel820(32.28″)
    Y Axis Travel1020(40.16″)
    Z Axis Travel560(22.05″)
    A Axis Travel-120 to +30 degrees
    C Axis Travel360 degrees
    Rapid Tranverse RateXYZ:32m/mn (1260ipm)
    Spindle Speeds100 to 12,000 (OP: 20,000)
    Spindle Motor30/25HP
    Magazine Capacity40 (OP: 60, 80, 120)
    Table Size800 (31.50″)
    Spindle TaperNo.40
