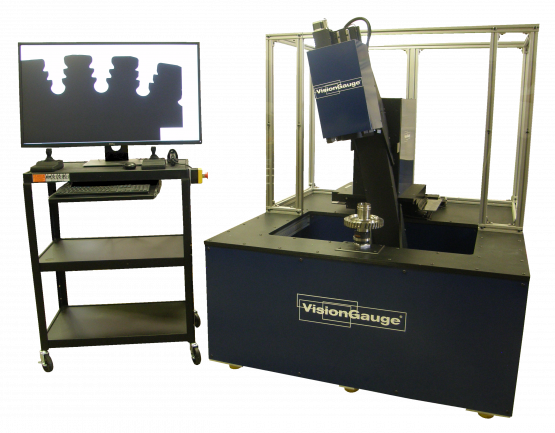

VisionGauge Disk inspection & Measurement System
The VisionGauge® Disk Inspection & Measurement System is the ideal solution for the inspection & measurement of slots in turbine disks, both large & small.
Automatically carry out 100% inspection, to very high-accuracy, and collect operator-independent results, directly on the shop floor.
The VisionGauge® Digital Optical Comparator 5-Axis Inspection and Measurement Systems are a very cost-effective, perfectly adapted solution for checking EDM and LASER-drilled drilled holes and slots. It is rapidly becoming the new standard in the industry!
FEATURES & BENEFITS
- 5 axes of motion (X, Y, Z, Rotary, Tilt) to properly view slots at all angles, increment from slot-to-slot, etc.
- Fully-automated operation.
- No operator-to-operator variation
- Quickly, easily and accurately inspect 100% of a disk’s slots
- Easy to program (can use your CAD data directly!)
- Fast, accurate & easy-to-use
- Extensive set of measurement tools
- Straightforward operator interface: barcode-reader and joystick
- Intuitive software
- Patented & patent pending technology
- Powerful & innovative software tools
- Sharp, clear & ultra-high resolution image!
- Ultra-bright all-LED computer-controlled illumination is standard!
- High-resolution precision optics to resolve very fine details with great clarity
- Extended optical depth of field and extended working distance for maximum flexibility!
- Automatically create reports and collect measurements, statistics, images and other data for complete documentation
- Automatic image & data collection with built-in SPC and data-exchange capabilities
- Fast and intuitive “operator review” mode to quickly revisit out-of-tolerance areas
- High-precision movements on all axes
- All axes are encoded
- Extended travels available to accommodate large disks
- High load capacity (for large & heavy disks)
- Robust shop-floor design
