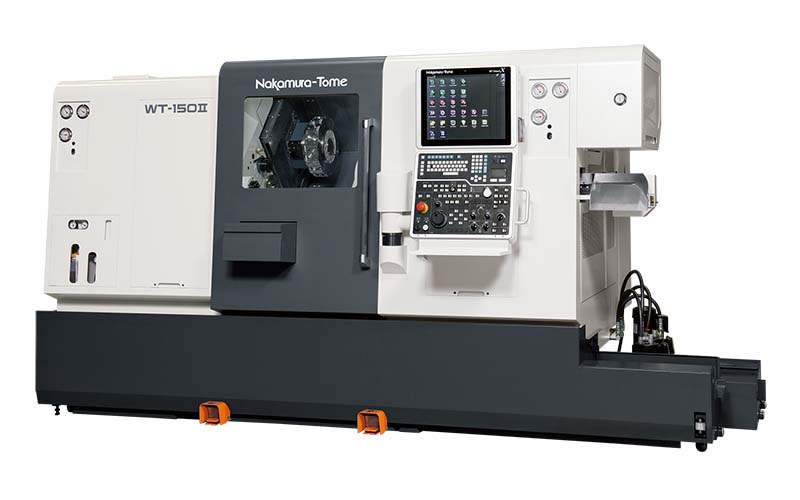

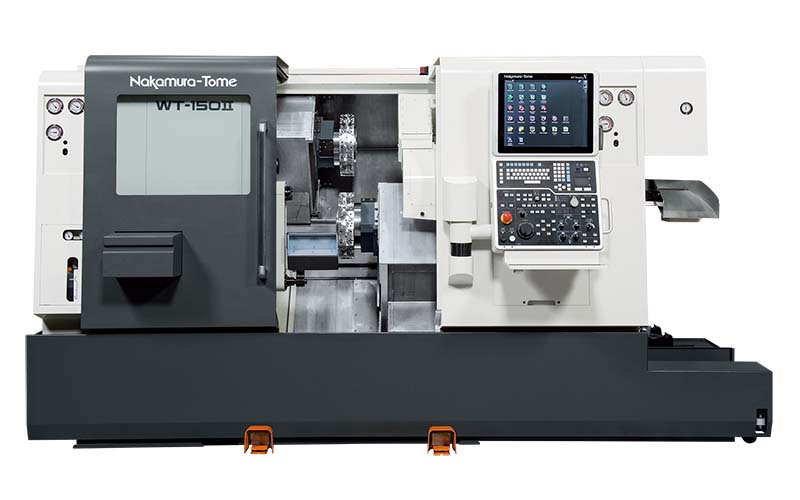

Nakamura Tome WT150ii **View Specs**

Roll over image to zoom in

Status:In stock

		φ2.56″
Capacity
Max. turning diameter/Max. turning length	7.44″ – 20.13″
Distance between spindle nose	max. 31.5″ – min. 8″
Bar capacity	2″	2.56″
Chuck size	6″ (165mm)
Axis travel
Slide travel X1/X2	6.63″ – 6.63″	6″ – 6.63″
Slide travel Z1/Z2/B	20.31″ \| 20.31″ \| 23.63″
Slide travel Y upper turret	± 1.38
Left spindle Right spindle
Spindle speed	5,000min-1	4,500min-1(L)
Left spindle motor	20/15hp
Right spindle motor	15/10hp
Upper turret
Number of turrets	1
Spindle speed	6,000min-1
Type of turret head/Number of index positions	Dodecagonal/24
Driven motor power and torque (max/cont.)	7.5/5hp
Rotary system/Number of driven-tool stations	Individual rotation/12
Lower turret
Number of turrets	1
Spindle speed	6,000min-1
Type of turret head/Number of index positions	Dodecagonal/24
Driven motor power and torque (max/cont.)	7.5/5hp
Rotary system/Number of driven-tool stations	Individual rotation/12
General
Floor space （L×W×H）	145″ × 90″ × 75″
Machine weight	9,000kg

Categories: Horizontal Turning Centers, Live Tooling & Sub-Spindle, Live Tooling Turret, Nakamura Tome

High Speed, High Rigidity and Compact Multi Tasking Machine.

Up to 26kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 15/11kW、Right spindle motor 11/7.5kW)
Driven-Tool Motor Power 5.5/3.7kW,for heavy cutting with small tools.
With upper / lower turret construction,4-axis machining as well as various other machining combinations possible on either spindle
With upper / lower turrets and opposed two-spindle construction,cycle time balancing and reduction is possible.
With up to 24-tools per turret,48 tools can be permanently available.
