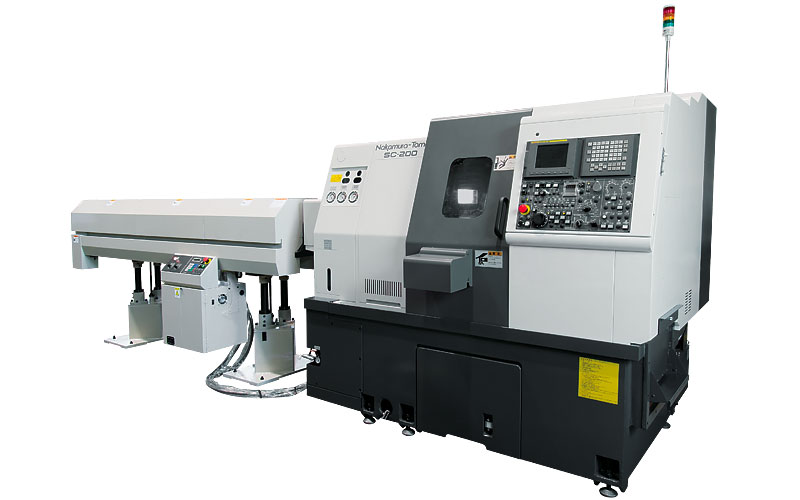

Roll over image to zoom in
Compare Nakamura Tome SC200L with other machines in its class 8 inch, Horizontal Turning Centers, Live Tooling & Sub-Spindle, Live Tooling Turret, Nakamura Tome, Standard Turret
Specifications:
| Capacity | ||||
|---|---|---|---|---|
| Max. turning diameter | 16 (410) in (mm) | |||
| Distance Between Spindles | 31.5 (800) in (mm) | |||
| Max. turning length | 21 (530) in (mm) | |||
| Bar capacity | 2.6 (65) in (mm) | |||
| Chuck size | 8 (215) in (mm) | |||
| Axis travel | ||||
| Slide travel (X) | ||||
| Slide travel (Z) | 10.0 (261) in (mm) | |||
| Slide travel (Y) | ±1.6 (41)(op.) in (mm) | |||
| Slide Travel (B) | ||||
| Rapid feed (X) | 945 (24) in/min (m/min) | |||
| Rapid feed (Z) | 1418 (36) in/min (m/min) | |||
| Rapid feed (B) | 945 (24)(op.) in/min (m/min) | |||
| Rapid feed (Y) | 236 (6)(op.) in/min (m/min) | |||
| Spindle | ||||
| Spindle speed | 4500 rpm | |||
| Spindle Speed Range | Stepless | |||
| Spindle Nose | A2-6 | |||
| Hole Through Draw Tube | 2.6 (66) in (mm) | |||
| SUB SPINDLE (OP.) | ||||
| Spindle Speed | 6000 rpm | |||
| Spindle Speed Range | Stepless | |||
| Spindle Nose | A2-5 | |||
| Hole Through Draw Tube | 1.7 (43) in (mm) | |||
| C-AXIS | ||||
| Least Input Increment | 1E-3 degree | |||
| Turret | ||||
| Number of Tool Stations | 24 | |||
| Rotary system/Number of driven-tool stations | 24 | |||
| MILLING TOOLS | ||||
| Spindle Speed | 6000 rpm | |||
| Number of Milling-Tool Stations | 12 | |||
| ROTATING TOOL | ||||
| Rotary System | Individual Rotation | |||
| Spindle Speed | 6000 rpm | |||
| Spindle Speed Range | Stepless | |||
| Number of Rotation Tool Station | 12 | |||
| DRIVE MOTOR POWER | ||||
| Main Spindle | 15 HP | |||
| Sub Spindle (op.) | 7.5 HP | |||
| Driven Tool Spindle | 7.5 HP | |||
| TAILSTOCK (OP.) | ||||
| Quill Diameter | 3.2 (80) in (mm) | |||
| Quill Taper | MT-3 built-in center | |||
| Quill Stroke | 3.2 (80) in (mm | |||
| General | ||||
| Machine weight | 11023 (5000) lbs (kg) | |||
