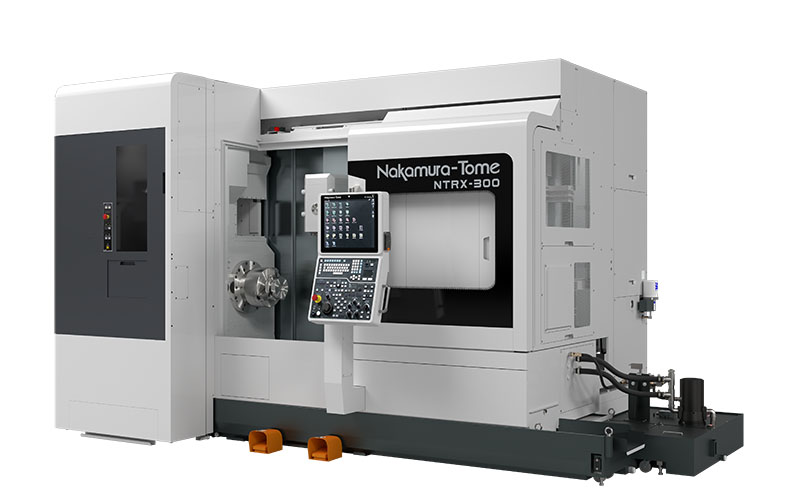

Nakamura Tome NTRX 300 **View Specs**

Roll over image to zoom in

Status:In stock

Capacity
Max Turning Diameter	25.2 (640) in (mm)
Max Turning Length	45.3 (1150) in (mm)
Bar Capacity L-Spindle	2.6 (65) / 3.2 (80)(op.) / 3.6 (90)(op.) in (mm)
Bar Capacity R-Spindle	2.6 (65) / 3.2 (80)(op.) in (mm)
Chuck size	8.0″ (203mm) / 10″ (254mm)
Axis travel
Slide travel (Y)	9.9 (250) (±4.9 (125)) in (mm)
Rapid feed (Y)	1417 (36) in/min (m/min)
Slide Travel (B2-axis)	43.3 (1100) in (mm)
Rapid Feed (B2 Axis)	1063 (27) in/min (m/min)
LEFT SPINDLE
Spindle Speed	4500 / 3500 / 2500 rpm
Spindle Speed Range	Stepless
Spindle Nose	A2-6 / A2-8
Hole Through Draw Tube	2.6 (66) / 3.2 (81) / 3.6 (91) in (mm)
RIGHT SPINDLE
Spindle speed	4500 / 3500 rpm
Spindle Speed Range	Stepless
Spindle Nose	A2-6 / A2-8
Hole Through Draw Tube	2.6 (66) / 3.2 (81) in (mm)
C-AXIS
Least Input Increment	1E-3 degree

TOOL SPINDLE
Spindle Speed	12,000 rpm
Tool Shank Type	CaptoC6
Number of Tool Stock	40（op. 60, 80, 120）
Max Tool Diameter/without Adjacent Tool	3.6 (90) / 5.2 (130) in (mm)
Max Tool Weight	11.8 (300) / 26.5 (12) in (mm)/ lbs (kg)
ATC Time (tool to tool)	1.5 sec
TOOL SPINDLE B1-AXIS
Swiveling Range	225°（-120°, +105°） degree
Clamp Function	Curvic coupling (5 degree) Brake (0.001 degree)
DRIVE MOTOR POWER
Main Spindle	30 HP
Right Spindle	30
TAILSTOCK (OP.)
Tailstock Positioning Stroke	43.3 (1100) in (mm)
General
Machine weight	37,479 (17,000) lbs (kg)

Categories: 10" chuck, 8" chuck, Multi-Axis Turning Centers, Nakamura Tome Multi Axis Turning Centers

ATC tool spindle on twin-turret machine

X and Y axis travel ensure a wide machining range. X-axis travel 125mm below spindle center ensures a wider machining range.
Highly Rigid Design. All units are located on the main frame vertically for high rigidity
Operator friendly design. Spindle center is easy to reach, thanks to 450mm distance from the machine front and 1100mm height from the floor.
New operation panel with NT Smart X featuring. Operation Level Management,Camera,Voice Guidance,Production Management and 3D collision check, all included as standard.
Modular design. Choose from R-spindle type or tailstock type
