| X Axis Travel | 1540(60.63″) |
| Y Axis Travel | 760(29.92″) |
| Z Axis Travel | 660(25.98″) |
| Rapid Tranverse Rate | XY:24m/mn(945ipm) Z:20(787ipm) |
| Spindle Speeds | 35 to 12,000 Gear (OP: 8,000) |
| Spindle Motor | 40/34HP (25/20HP) |
| Magazine Capacity | 30 (OP: 20, 40, 60) |
| Table Size | 1550 (61.02″) x 760 (29.92″) |
| Spindle Taper | No.50 |

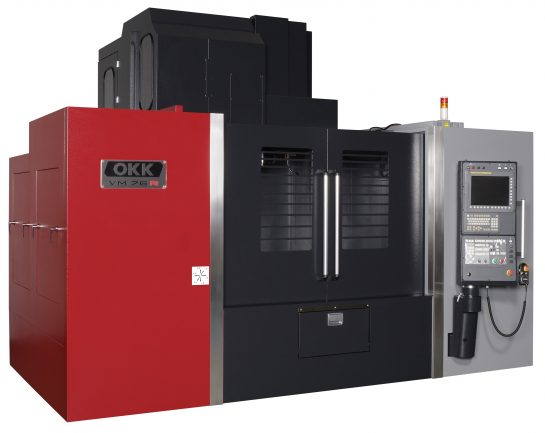

The VM/R series increased rigidity of the main body and the spindle to provide even higher cutting performance. Its feed axes utilize highly rigid and acurate box-ways like conventional machines. This enables machining of not only general parts but also parts made of difficult-to-cut materials such as titanium. The main body design delivers heavy and accurate machining in an ergonomic friendly design.
Travel (X / Y / Z)
51.18" / 26" / 25"
Travel (X / Y / Z)
51.18" / 26" / 25"
Travel (X / Y / Z)
31.5" / 23.6" / 23.6"
Travel (X / Y / Z)
31.5" / 23.6" / 23.6"
Travel (X / Y / Z)
43.3" / 20.04" / 25"
Travel (X / Y / Z)
43.3" / 20.04" / 25"
Travel ( X/Y/Z )
39.4" / 20.5" / 20.7"
Travel ( X/Y/Z )
39.4" / 20.5" / 20.7"
