“Special Featured Machine” Discounted Pricing!

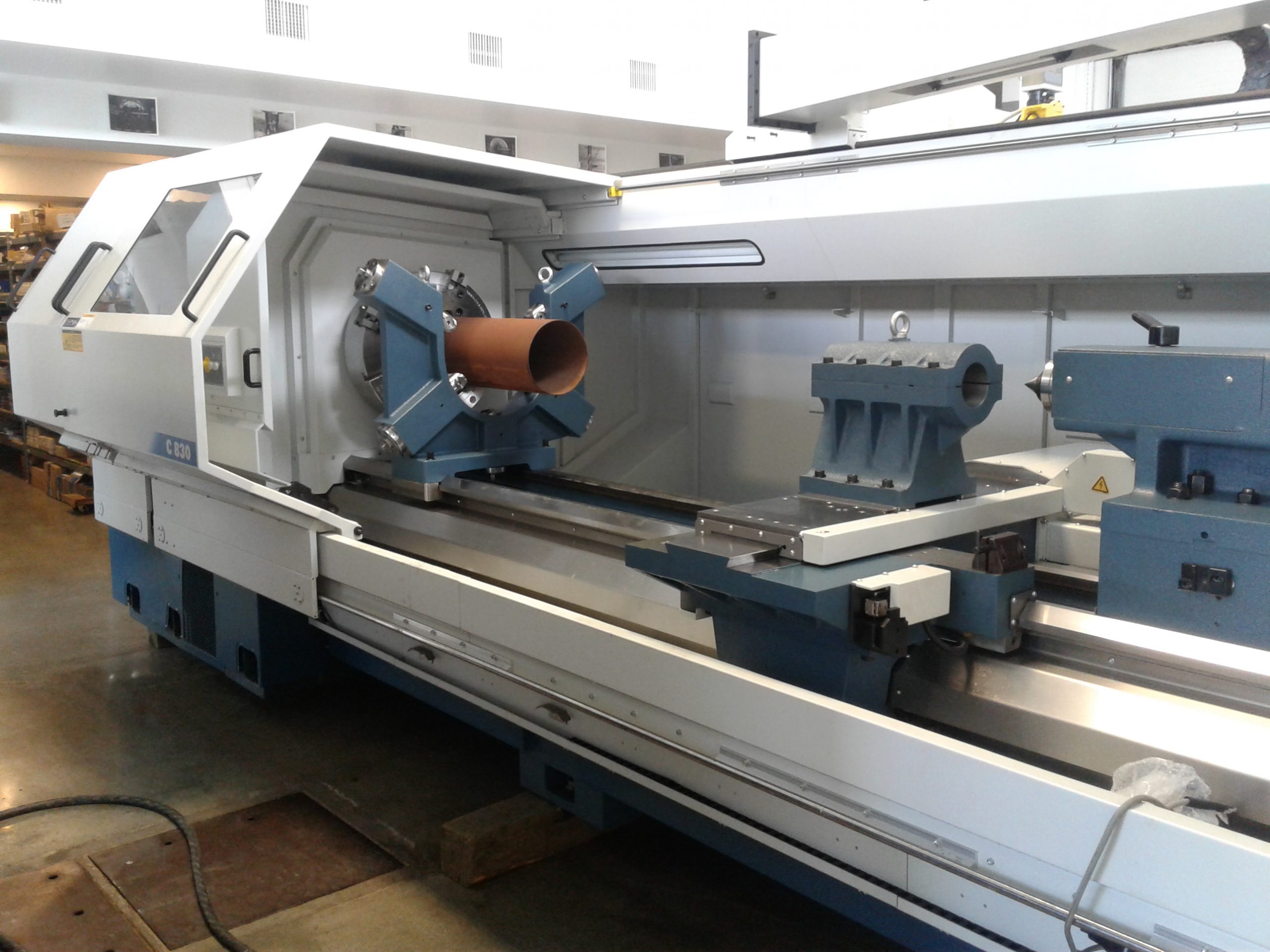

| ROMI C 830 Combination Lathe Version 6.0 | |
| Romi C 830×120″ASA A2-15 Spindle nose, 260mm (10.2) Thru Spindle 120″Bed length | |
| • Siemens 828D with LCD 10.4″ color monitor and control | |
| Swing over Bed | 33.46 |
| Swing over cross slide | 21.65 |
| Distance between centers | 118.11 |
| Width of bed | 18.11 |
| Spindle nose | A2-15 |
| Spindle Bore | 10.2 |
| Spindle Speed (RPM) | 775 |
| X Axis (cross travel) | 20.47 |
| Z axis (Longitudinal travel ) | 118.9 |
| X axis rapid traverse Feed rate | 319/ipm |
| Z axis rapid traverse Feed Rate | 315/ipm |
| Main motor | 45 HP |
| Tail Stock | |
| Quil diameter Tailstock | 5.12 |
| Quill travel Tailstock | 7.87 |
| Quill Taper Tailstock | MT5 |
| Length | 296 |
| Width | 126 |
| N.W. (kg / lbs) | 10,250 (22,600) |
| Machine Accessories- C/w Machine | |
| X55916 Coolant pump (10 lpm @ 7bar, 1.5kw / 2cv) (#3) | |
| Tailstock with manually operated quill with built-in | bearing and MT-5 quill taper hole |
| SE10043 Deep Hole Drill/Support | Boring Bar Saddle |
| Steady rest U type, Ø 100 to 440mm capacity | (no rollers included) (#5) |
| Set of rollers for 100 to 305mm (4 to 12″) Ø capacity | |
| 2443-2A15EX 24″ 4-Jaw Extra Heavy Dty Oil Country | Steel Body A2-15 11″ thru hole |
| Rear Centralizing Ring W/ 10.2″ Hole | ASA A2-15 |
