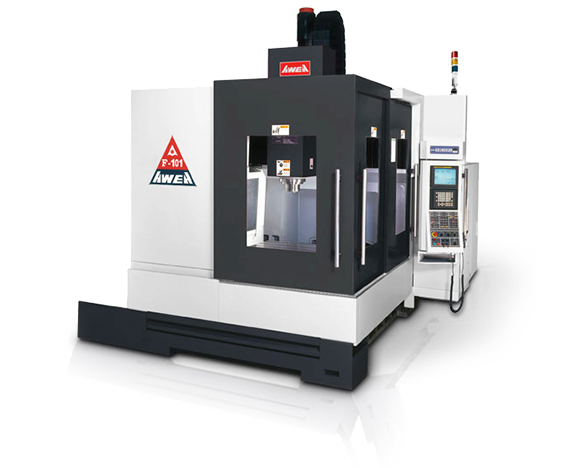

Yama Seiki FM-101

cnc machine qoute
f101
Roll over image to zoom in
Click to open expanded view

Compare Yama Seiki FM-101 with other machines in its class , ,

In stock

Specifications

Model F-101
X-axis travel ( left & right ) 1,000 mm ( 39.4″ )
Y-axis travel ( in & out ) 1,000mm ( 39.4″ )
Z-axis travel ( up & down ) 500 mm ( 19.7″ )
Distance from spindle
nose to table top		 175 ~ 683 mm ( 6.9″ ~ 26.9″ )
Cutting feede rate 20 m/min. ( 787 IPM )
Rapid feed rate 30 m/min. ( 1180 IPM )
TABLE
Table size ( L x W ) 1,500 x 650 mm
T slot ( Width x No. x pitch ) 18 x 7 x 140 mm
( 0.7″ x 0.3″ x 5.5″ )
Table load 2,000 kg ( 4,400 lb )
SPINDLE
Spindle speed 12,000 rpm
Spindle brand FANUC ( Direct Driven )
Spindle motor ( cont. / 30min. ) 18.5 kW ( 24.8 HP )
Max. torque 118 N-M
Spindle taper CAT40
Bearing lubrication Grease
Spindle bearing diameter Ø70mm ( 2.8″ )
Spindle cooling
system		 The same temperature
as indoor ± 1°C
ATC
Max. tool diameter Ø76mm ( 3.0″ )
Max.tool length 300mm ( 11.8″ )
Max.tool weight 7 kg ( 15.4 lb )
Number of tools 30 pcs
Mode Arm type
GENERAL
Air resource 99.57 PSI ( 7 kg / cm² )
Total capacity 55 KVA
Pump 0.7 + 1.17 = ( 1.87 kW )
Volume of tank 450 L
Machine size ( length x width x height ) 3,260 x 2,400 x 3,200 mm
( 128.3″ x 122.8″ x 126.0″ )
Machine weight 12,500 kg ( 27,500 lb )
Categories: , ,

yamaseiki fm_overview

F-101 High Speed Machine

The sample machine is equipped with FANUC 31i controller and built-in high speed spindle MIRL-Neo ( 15,000 rpm ) developed by ITRI, Taiwan.

The brand new high speed series, with YAMA SEIKI core strengths, possess superb bridge type structure. The series are equipped with advanced FANUC controller and the software of YAMA SEIKI Optimal Parameter System. F-16 series are particularly suitable for high-end precision molding industry and other precision parts manufacturing in a wide range of industries.

The trustworthy series have excellent features including high speed, accuracy and durability. YAMA SEIKI superb products are capable of working as pioneers to explore business for customers.

1. Advanced and Novel Design
2. Solid Bridge Type Structure
3. Rapid, Accurate, Durable
4. Superior High Speed Mold-making Machine

Maximum Strength Structure

  • High-End Plastic Precision Die / Mold
  • High-End Automotive Light Mold
  • Mold Making in Telecom Industry
  • Mold Making in Electronic Industry
  • Mold Making in Computer Industry
  • Mold Making in Optical Industry
  • Precision Parts Manufacturing

Built-in Spindle

Item Code Spindle Speed
( Max. )		 Power
( Max ).		 Torque
( Max. )		 Spindle Taper Lubrication Motor Brand Model
1 A22 22,000 rpm 35 Kw 60 N.m Short Nose HSK A63 Oil-Air TDM, Swiss F-16
F-101
2 A21 21,000 rpm 20 Kw 20 N.m Short Nose HSK A63 Grease TDM, Swiss F-7
3 A30 30,000 20 Kw 20 N.m Short Nose HSK A63 Oil-Air TDM, Swiss F-7



Built in spindle

spindle_chart_1

spindle_chart_2

High Speed – Spindle

Built-in Spindle

Item Code Spindle Speed
( Max. )		 Power
( Max ).		 Torque
( Max. )		 Spindle Taper Lubrication Motor Brand Model
1 M15 15,000 rpm 22 Kw 118 N.m CAT40 Grease FANUC, Japan F-87
F-16
F-101
2 M20 20,000 rpm 18.5 Kw 95 N.m Short Nose HSK A63 Oil-Air FANUC, Japan F-87
F-16
F-101



direct drive spindle

Direct-Drive Spindle

Item Code Spindle Speed
( Max. )		 Power
( Max ).		 Torque
( Max. )		 Spindle Taper Lubrication Motor Brand Model
1 B12 12,000 rpm 18.5 Kw 118 N.m CAT40 Grease FANUC, Japan F-16
F-101
2 B15 15,000 rpm 15 Kw 95 N.m CAT40 Grease FANUC, Japan F-16
F-101
