Specifications

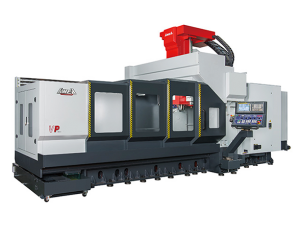

Model VP-1612HS CAPACITY X-axis travel 1,600 mm ( 62.9″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 mm ( 29.9″ ) Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 1,600 mm ( 62.9″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 3,000 kg ( 6,610 lb ) SPINDLE Spindle taper BBT50 ( Opt. BBT40 ) Spindle power ( cont. / 30 min. ) 22 / 26 kW ( 30 / 35 HP ) Spindle speed Direct-driven spindle 10,000 rpm FEED RATE X-axis rapid feed rate 24 m/min. ( 944 IPM ) Y-axis rapid feed rate 24 m/min. ( 944 IPM ) Z-axis rapid feed rate 20 m/min. ( 787 IPM ) Cutting feed rate 12 m/min. ( 472 IPM ) TOOL MAGAZINE Tool magazine capacity 32 T ( Opt. 24 / 40 T ) Max. tool diameter / adj. pocket empty Ø 125 / Ø 229 mm ( 4.9″ / 9″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.010 mm ( 0.00039″ ) / Full Travel Positioning accuracy ( VDI 3441 ) P ≤ 0.02 mm / Full Travel Repeatability ( JIS B 6338 ) ± 0.003 mm ( 0.0011″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.015 mm ( 0.00059″ ) GENERAL Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA Pneumatic pressure requirement ( min. ) 5 ~ 7 kg / cm² ( 71.1 ~ 99.5 ISP ) Lubrication oil tank capacity 4.5 liter ( 1.1 gal ) Hydraulic unit tank capacity ( pump ) 400 liter ( 1 HP ) [ 105.6 gal ( 1 HP ) ] Machine weight 14,000 kg ( 30,870 lb ) Specifications are subject to change without notice.
-
Specifications
Model VP-2012HS CAPACITY X-axis travel 2,000 mm Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 mm Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 2,000 mm ( 78.7″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 3,500 kg ( 7,710 lb ) SPINDLE Spindle taper BBT50 ( Opt. BBT40 ) Spindle power ( cont. / 30 min. ) 22 / 26 kW ( 30 / 35 HP ) Spindle speed Direct-driven spindle 10,000 rpm FEED RATE X-axis rapid feed rate 20 m/min. ( 787 IPM ) Y-axis rapid feed rate 24 m/min. ( 944 IPM ) Z-axis rapid feed rate 20 m/min. ( 787 IPM ) Cutting feed rate 12 m/min. ( 472 IPM ) TOOL MAGAZINE Tool magazine capacity 32 T ( Opt. 24 / 40 T ) Max. tool diameter / adj. pocket empty Ø 125 / Ø 229 mm ( 4.9″ / 9″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.010 mm ( 0.00039″ ) / Full Travel Positioning accuracy ( VDI 3441 ) P ≤ 0.02 mm / Full Travel Repeatability ( JIS B 6338 ) ± 0.003 mm ( 0.0011″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.015 mm ( 0.00059″ ) GENERAL Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA Pneumatic pressure requirement ( min. ) 5 ~ 7 kg / cm² ( 71.1 ~ 99.5 ISP ) Lubrication oil tank capacity 4.5 liter ( 1.1 gal ) Hydraulic unit tank capacity ( pump ) 400 liter ( 1 HP ) [ 105.6 gal ( 1 HP ) ] Machine weight 16,000 kg ( 35,280 lb ) Specifications are subject to change without notice.
-
Specifications
Model VP-3012HS CAPACITY X-axis travel 3,000 mm ( 118.1″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 mm Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 3,000 mm ( 118.1″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 4,500 kg ( 9,920 lb ) SPINDLE Spindle taper BBT50 ( Opt. BBT40 ) Spindle power ( cont. / 30 min. ) 22 / 26 kW ( 30 / 35 HP ) Spindle speed Direct-driven spindle 10,000 rpm FEED RATE X-axis rapid feed rate 20 m/min. ( 787 IPM ) Y-axis rapid feed rate 24 m/min. ( 944 IPM ) Z-axis rapid feed rate 20 m/min. ( 787 IPM ) Cutting feed rate 12 m/min. ( 472 IPM ) TOOL MAGAZINE Tool magazine capacity 32 T ( Opt. 24 / 40 T ) Max. tool diameter / adj. pocket empty Ø 125 / Ø 229 mm ( 4.9″ / 9″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.010 mm ( 0.00039″ ) / Full Travel Positioning accuracy ( VDI 3441 ) P ≤ 0.02 mm / Full Travel Repeatability ( JIS B 6338 ) ± 0.003 mm ( 0.0011″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.015 mm ( 0.00059″ ) GENERAL Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA Pneumatic pressure requirement ( min. ) 5 ~ 7 kg / cm² ( 71.1 ~ 99.5 ISP ) Lubrication oil tank capacity 4.5 liter ( 1.1 gal ) Hydraulic unit tank capacity ( pump ) 400 liter ( 1 HP ) [ 105.6 gal ( 1 HP ) ] Machine weight 20,000 kg ( 44,100 lb ) Specifications are subject to change without notice.
-
Specifications
Model VP-4012HS CAPACITY X-axis travel 4,000 mm ( 157.4″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 mm Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 4,000 mm ( 157.4″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 6,000 kg ( 13,220 lb ) SPINDLE Spindle taper BBT50 ( Opt. BBT40 ) Spindle power ( cont. / 30 min. ) 22 / 26 kW ( 30 / 35 HP ) Spindle speed Direct-driven spindle 10,000 rpm FEED RATE X-axis rapid feed rate 10 m/min. ( 393 IPM ) Y-axis rapid feed rate 24 m/min. ( 944 IPM ) Z-axis rapid feed rate 20 m/min. ( 787 IPM ) Cutting feed rate 10 m/min. ( 393 IPM ) TOOL MAGAZINE Tool magazine capacity 32 T ( Opt. 24 / 40 T ) Max. tool diameter / adj. pocket empty Ø 125 / Ø 229 mm ( 4.9″ / 9″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) P ≤ 0.03 mm ( 0.0011″ ) / Full Travel Positioning accuracy ( VDI 3441 ) P ≤ 0.02 mm / Full Travel Repeatability ( JIS B 6338 ) ± 0.003 mm ( 0.0011″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.02 mm ( 0.00078″ ) GENERAL Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA Pneumatic pressure requirement ( min. ) 5 ~ 7 kg / cm² ( 71.1 ~ 99.5 ISP ) Lubrication oil tank capacity 4.5 liter ( 1.1 gal ) Hydraulic unit tank capacity ( pump ) 400 liter ( 1 HP ) [ 105.6 gal ( 1 HP ) ] Machine weight 24,000 kg ( 52,910 lb ) Specifications are subject to change without notice.
-
Specifications

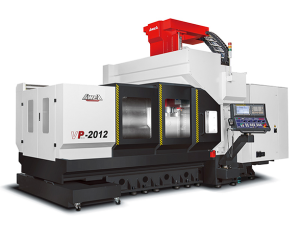

Model VP-2012 CAPACITY X-axis travel 2,000 mm ( 78.7″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 mm Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 2,000 mm ( 78.7″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 3,500 kg ( 7,715 lb ) SPINDLE Spindle taper CAT50 Spindle power ( cont. / 30 min. ) 11 / 15 kW ( 15 / 20 HP ) ( Std. )
22 / 26 kW ( 30 / 35 HP ) ( Opt. )Spindle speed 6,000 rpm ( Opt. 8,000 / 10,000 rpm ) FEED RATE X-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Y-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Z-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Cutting feed rate 10,000 mm/min. ( 393 IPM ) TOOL MAGAZINE Tool magazine capacity 30 T ( Opt. 40 T ) Max. tool diameter / adj. pocket empty Ø 125 / 215 mm ( Ø 0.47″ / 8.46″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.010 mm ( ± 0.00039″ ) Positioning accuracy ( VDI 3441 ) P ≤ 0.02 mm / Full Travel Repeatability ( JIS B 6338 ) ± 0.003 mm ( 0.0011″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.015 mm ( Ps ≤ 0.00059″ ) GENERAL Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA Pneumatic pressure requirement ( min. ) 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) Lubrication oil tank capacity 6 liter ( 1.58 gal ) Hydraulic unit tank capacity ( pump ) 120 liter ( 31.7 gal ), [ 10 HP ] Machine weight 18,000 kg ( 39,680 lb ) Specifications are subject to change without notice.
-
Specifications
Model VP-3012 CAPACITY X-axis travel 3,000 mm ( 118.1″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 mm Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 3,000 mm ( 118.1″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 4,500 kg ( 9,920 lb ) SPINDLE Spindle taper CAT50 Spindle power ( cont. / 30 min. ) 11 / 15 kW ( 15 / 20 HP ) ( Std. )
22 / 26 kW ( 30 / 35 HP ) ( Opt. )Spindle speed 6,000 rpm ( Opt. 8,000 / 10,000 rpm ) FEED RATE X-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Y-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Z-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Cutting feed rate 10,000 mm/min. ( 393 IPM ) TOOL MAGAZINE Tool magazine capacity 30 T ( Opt. 40 T ) Max. tool diameter / adj. pocket empty Ø 125 / 215 mm ( Ø 0.47″ / 8.46″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.010 mm ( ± 0.00039″ ) Positioning accuracy ( VDI 3441 ) P ≤ 0.02 mm / Full Travel Repeatability ( JIS B 6338 ) ± 0.003 mm ( 0.0011″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.015 mm ( Ps ≤ 0.00059″ ) GENERAL Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA Pneumatic pressure requirement ( min. ) 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) Lubrication oil tank capacity 6 liter ( 1.58 gal ) Hydraulic unit tank capacity ( pump ) 120 liter ( 31.7 gal ), [ 10 HP ] Machine weight 22,500 kg ( 49,605 lb ) Specifications are subject to change without notice.
-
Specifications
Model VP-4012 CAPACITY X-axis travel 4,000 mm ( 157.4″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 mm Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 4,000 mm ( 157.4″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 6,000 kg ( 13,225 lb ) SPINDLE Spindle taper CAT50 Spindle power ( cont. / 30 min. ) 11 / 15 kW ( 15 / 20 HP ) ( Std. )
22 / 26 kW ( 30 / 35 HP ) ( Opt. )Spindle speed 6,000 rpm ( Opt. 8,000 / 10,000 rpm ) FEED RATE X-axis rapid feed rate 10,000 mm/min. ( 393 IPM ) Y-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Z-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Cutting feed rate 10,000 mm/min. ( 393 IPM ) TOOL MAGAZINE Tool magazine capacity 30 T ( Opt. 40 T ) Max. tool diameter / adj. pocket empty Ø 125 / 215 mm ( Ø 0.47″ / 8.46″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.010 mm ( ± 0.00039″ ) Positioning accuracy ( VDI 3441 ) P ≤ 0.03 mm ( P ≤ 0.00118″ ) / Full Travel Repeatability ( JIS B 6338 ) ± 0.003 mm ( 0.0011″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.02 mm ( P ≤ 0.00078″ ) GENERAL Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA Pneumatic pressure requirement ( min. ) 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) Lubrication oil tank capacity 6 liter ( 1.58 gal ) Hydraulic unit tank capacity ( pump ) 120 liter ( 31.7 gal ), [ 10 HP ] Machine weight 25,000 kg ( 55,115 lb ) Specifications are subject to change without notice.
-
Specifications
Model VP-5012 CAPACITY X-axis travel 5,000 mm ( 196.8″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 mm Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 5,000 mm ( 196.8″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 8,000 kg ( 17,635 lb ) SPINDLE Spindle taper CAT50 Spindle power ( cont. / 30 min. ) 11 / 15 kW ( 15 / 20 HP ) ( Std. )
22 / 26 kW ( 30 / 35 HP ) ( Opt. )Spindle speed 6,000 rpm ( Opt. 8,000 / 10,000 rpm ) FEED RATE X-axis rapid feed rate 8,000 mm/min. ( 315 IPM ) Y-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Z-axis rapid feed rate 20,000 mm/min. ( 787 IPM ) Cutting feed rate 8,000 mm/min. ( 315 IPM ) TOOL MAGAZINE Tool magazine capacity 30 T ( Opt. 40 T ) Max. tool diameter / adj. pocket empty Ø 125 / 215 mm ( Ø 0.47″ / 8.46″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.010 mm ( ± 0.00039″ ) Positioning accuracy ( VDI 3441 ) P ≤ 0.04 mm( P ≤ 0.00157″ ) / Full Travel Repeatability ( JIS B 6338 ) ± 0.003 mm ( 0.0011″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.03 mm ( P ≤ 0.00118″ ) GENERAL Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA Pneumatic pressure requirement ( min. ) 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) Lubrication oil tank capacity 6 liter ( 1.58 gal ) Hydraulic unit tank capacity ( pump ) 120 liter ( 31.7 gal ), [ 10 HP ] Machine weight 28,000 kg ( 61,730 lb ) Specifications are subject to change without notice.
-
Specifications
Model HD-2012 CAPACITY X-axis travel 2,000 ( 78.74″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 ( 29.92″ ) Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 2,000 ( 78.74″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 4,500 ( 9,920 ) SPINDLE Spindle taper CAT50 Spindle power ( cont. / 30 min. ) 22 / 26 ( 30 / 35 ) kW ( HP ) Spindle speed 6,000 rpm FEED RATE X-axis rapid feed rate 24,000 mm/min. ( 945 IPM ) Y-axis rapid feed rate 24,000 mm/min. ( 945 IPM ) Z-axis rapid feed rate 15,000 mm/min. ( 590 IPM ) Cutting feed rate 10,000 mm/min. ( 394 IPM ) TOOL MAGAZINE Tool magazine capacity 32 ( Opt. 40 ) Max. tool diameter / adj. pocket empty Ø 125 mm / 229 mm ( Ø 4.92″ / 9.01″ ) Max. tool length ( from gauge line ) 400 ( 15.74″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.015 ( 0.0006″ ) / Full travel Positioning accuracy ( VDI 3441 ) P ≤ 0.02 ( 0.0008″ ) / Full travel Repeatability ( JIS B 6338 ) ± 0.003 ( 0.00012″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.015 ( 0.0006″ ) / Full travel GENERAL Power requirement AC 220 ± 10% 3 Phase , 60 / 50 Hz / 50 kVA Pneumatic pressure requirement ( min. ) 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) Lubrication oil tank capacity 4.5 L Hydraulic unit tank capacity ( pump ) 48 liter, [ 3 HP ] Coolant tank capacity ( pump ) 400 L ( 1 HP ) Machine weight 18,500 kg ( 40,800 lb ) Specifications are subject to change without notice.
-
Specifications
Model HD-3012 CAPACITY X-axis travel 3,000 ( 118.11″ ) Y-axis travel 1,200 mm ( 47.2″ ) Z-axis travel 760 ( 29.92″ ) Dist. form spindle nose to table top 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) Dist. between columns 1,300 mm ( 51.1″ ) WORKING TABLE Table size ( X direction ) 3,000 ( 118.11″ ) Table size ( Y direction ) 1,100 mm ( 43.3″ ) Table load capacity 5,500 ( 12,120 ) SPINDLE Spindle taper CAT50 Spindle power ( cont. / 30 min. ) 22 / 26 ( 30 / 35 ) kW ( HP ) Spindle speed 6,000 rpm FEED RATE X-axis rapid feed rate 20,000 mm/min. ( 788 IPM ) Y-axis rapid feed rate 24,000 mm/min. ( 945 IPM ) Z-axis rapid feed rate 15,000 mm/min. ( 590 IPM ) Cutting feed rate 10,000 mm/min. ( 394 IPM ) TOOL MAGAZINE Tool magazine capacity 32 ( Opt. 40 ) Max. tool diameter / adj. pocket empty Ø 125 mm / 229 mm ( Ø 4.92″ / 9.01″ ) Max. tool length ( from gauge line ) 400 ( 15.74″ ) Max. tool weight 15 kg ( 33 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.015 ( 0.0006″ ) / Full travel Positioning accuracy ( VDI 3441 ) P ≤ 0.025 ( 0.001″ ) / Full travel Repeatability ( JIS B 6338 ) ± 0.003 ( 0.00012″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.02 ( 0.0008″ ) / Full travel GENERAL Power requirement AC 220 ± 10% 3 Phase , 60 / 50 Hz / 50 kVA Pneumatic pressure requirement ( min. ) 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) Lubrication oil tank capacity 4.5 L Hydraulic unit tank capacity ( pump ) 48 liter, [ 3 HP ] Coolant tank capacity ( pump ) 400 L ( 1 HP ) Machine weight 22,500 ( 49,600 lb ) Specifications are subject to change without notice.
-
Specifications
Model SP-2016 CAPACITY X-axis travel 2,100 mm ( 82.7″ ) Y-axis travel 1,600 mm ( 62.9″ ) Z-axis travel 760 mm ( 29.9″ ) Dist. form spindle nose to table top 240 ~ 1,000 mm ( 9.4″~ 39.3″) Dist. between columns 1,700 mm ( 66.9″ ) WORKING TABLE Table size ( X direction ) 2,310 mm ( 90.9″ ) Table size ( Y direction ) 1,500 mm ( 59.1″ ) Table load capacity 8,000 kg ( 17,600 lb ) SPINDLE Spindle taper CAT50 Spindle power ( cont. / 30 min. ) 22 / 26 kW ( 30 / 35 HP ) Spindle speed 6,000 rpm FEED RATE X-axis rapid feed rate 20,000 mm/min. ( 788 IPM ) Y-axis rapid feed rate 20,000 mm/min. ( 788 IPM ) Z-axis rapid feed rate 15,000 mm/min. ( 590 IPM ) Cutting feed rate 10,000 mm/min. ( 394 IPM ) TOOL MAGAZINE Tool magazine capacity 32 ( 60 / 90 / 120 Opt. ) Max. tool diameter / adj. pocket empty Ø 127 / 215 mm ( Ø 5.0″ / 8.4″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 20 kg ( 44 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.015 ( 0.0006″ ) / Full travel Positioning accuracy ( VDI 3441 ) P ≤ 0.020 mm ( P ≤ 0.00078″ ) Repeatability ( JIS B 6338 ) ± 0.003 ( 0.00012″ ) Repeatability ( VDI 3441 ) Ps ± 0.015 ( 0.0006″ ) / Full travel GENERAL Power requirement 220 V ± 10 % Pneumatic pressure requirement ( min. ) 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) Lubrication oil tank capacity 6 liter ( 1.6 gal ) Hydraulic unit tank capacity ( pump ) 120 liter ( 31.5 gal ), [ 10 HP ] Coolant tank capacity ( pump ) 420 liter ( 110 gal ) , [ 1.5 HP ] Machine weight 23,000 kg ( 50,600 lb ) Specifications are subject to change without notice.
-
Specifications
Model SP-3016 CAPACITY X-axis travel 3,060 mm ( 120.5″ ) Y-axis travel 1,600 mm ( 62.9″ ) Z-axis travel 760 mm ( 29.9″ ) Dist. form spindle nose to table top 240 ~ 1,000 mm ( 9.4″~ 39.3″) Dist. between columns 1,700 mm ( 66.9″ ) WORKING TABLE Table size ( X direction ) 3,260 mm ( 128.3″ ) Table size ( Y direction ) 1,500 mm ( 59.1″ ) Table load capacity 10,000 kg ( 22,000 lb ) SPINDLE Spindle taper CAT50 Spindle power ( cont. / 30 min. ) 22 / 26 kW ( 30 / 35 HP ) Spindle speed 6,000 rpm FEED RATE X-axis rapid feed rate 20,000 mm/min. ( 788 IPM ) Y-axis rapid feed rate 20,000 mm/min. ( 788 IPM ) Z-axis rapid feed rate 15,000 mm/min. ( 590 IPM ) Cutting feed rate 10,000 mm/min. ( 394 IPM ) TOOL MAGAZINE Tool magazine capacity 32 ( 60 / 90 / 120 Opt. ) Max. tool diameter / adj. pocket empty Ø 127 / 215 mm ( Ø 5.0″ / 8.4″ ) Max. tool length ( from gauge line ) 350 mm ( 13.7″ ) Max. tool weight 20 kg ( 44 lb ) ACCURACY Positioning accuracy ( JIS B 6338 ) ± 0.015 ( 0.0006″ ) / Full travel Positioning accuracy ( VDI 3441 ) P ≤ 0.025 mm ( P ≤ 0.00098″ ) Repeatability ( JIS B 6338 ) ± 0.003 ( 0.00012″ ) Repeatability ( VDI 3441 ) Ps ≤ 0.020 mm ( Ps ≤ 0.00078″ ) GENERAL Power requirement 220 V ± 10 % Pneumatic pressure requirement ( min. ) 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) Lubrication oil tank capacity 6 liter ( 1.6 gal ) Hydraulic unit tank capacity ( pump ) 120 liter ( 31.5 gal ), [ 10 HP ] Coolant tank capacity ( pump ) 420 liter ( 110 gal ) , [ 1.5 HP ] Machine weight 28,000 kg ( 61,600 lb ) Specifications are subject to change without notice.
