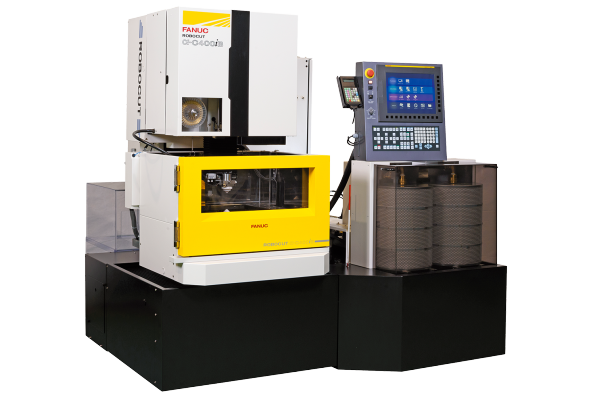

Compare RoboCut C400iB with other machines in its class Electrical Discharge Machine, Fanuc - Electrical Discharge Machine
Specifications:
| ROBOT | ||
| Maximum Workpiece Size | in (mm) | 28.7×24.8×9.8 (730x630x250) in (mm) W/O Auto Door |
| Maximum Workpiece Weight | Lbs (kg) | 1100 (500) lbs (kg) |
| U/V Travels | in (mm) | ±2.362 (60) in (mm) |
| Z-Axis Travel | in (mm) | 10.0 (255) in (mm) |
| Maximum Cutting Speed (Brass) | – | 31 (788) |

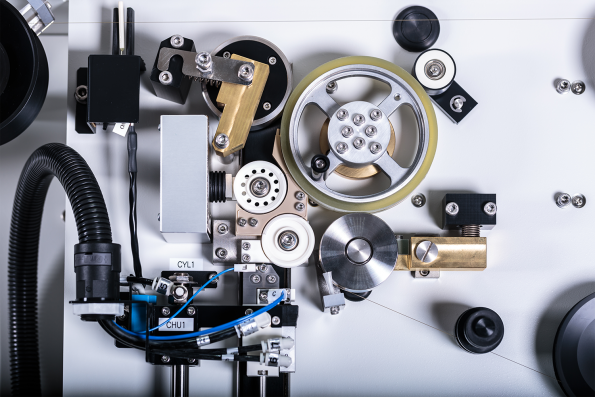

| uto Wire Feed (AWF 2) | Standard | |
| Wire Diameter | in (mm) | ø 0.004 – 0.012 (0.21-0.31) in (mm) |
| Maximum Wire Spool Weight | – | 35 (16) lbs (kg) |
| Positioning Accuracy | – | ±.0001 in |
| – | ||
| DIELECTRIC TANK | ||
| Tank Capacity | 145 (550) gal (L) | |
| Paper Filter (Cartridge Type) | – | 2 quantity |
| Inverter Chiller) | – | Standard |
| POWER SUPPLY | ||
| Digital Power Supply | – | Standard |
| WEIGHT | ||
| Machine Weight | – | 4000 (1815) lbs (kg) |
