Kiwa KH-4500

Compare Kiwa KH-4500 with other machines in its class , ,

In stock

Specifications

Type of tool shankBT 40 (OP. CAT 40)
Spindle speed (min-1)10,000 Direct drive
(OP. 12,000 Direct drive)
(OP. 15,000 Direct drive)
(OP. 20,000 Built-in)
Number of pallets2 (OP. Single / 6 / 8)
Pallet size (mm [inch])400 x 400 [15.7 x 15.7]
(OP. 500 x 500[19.7 x 19.7])
Max. work piece size (mm [inch])φ750 x 1,000 [φ29.5 x 39.4]
6APC: φ750 x 900 [φ29.5 x 35.4]
8APC: φ650 x 900 [φ25.6 x 35.4]
X, Y, Z axes (mm [inch])640 x 610 x 680 [25.2 x 24.0 x 26.8]
(OP. 700 x 740 x 680 [27.6 x 29.1 x 26.8])
Rapid feed (X/Y/Z) (mm/min. [ipm])80,000 [3,150]
Number of tools40 (OP. 60 / 80 / 120 / 240)
NCFANUC 32i [OP. 31i / 0i-M]
Floor space
(Excluding chip conveyor) (mm [inch])
2APC+40/60ATC: 2,398 x 4,539 [94.4 x 178.7]
2APC+80/120ATC: 2,541 x 4,539 [100.0 x 178.7]

*Inch expression is approximate.
[OP.] … Option

Kiwa Japan Machine tools

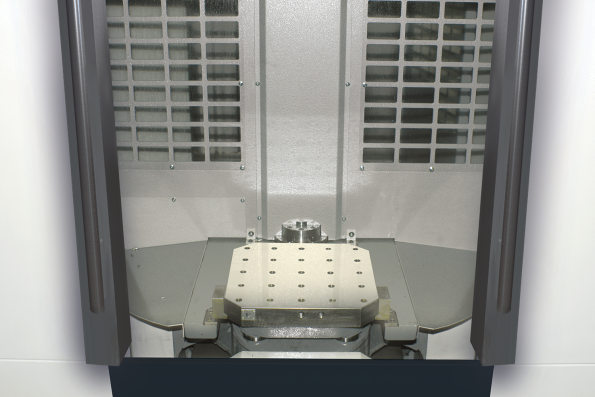

Making full use of KIWA’s experience, KIWA has eliminated all possible wasted space on the KH-4500. As a result the KH-4500 incorporates one of the largest work envelopes in its class.

KIWA has also maintained its speed and agility with over 1G acceleration/deceleration on all axes. The rigidity has been greatly enhanced with the “stepped” base and column casting design. Keeping the traditions of KIWA design, the KH-4500 is fully expandable both for the APC and ATC portions of the machine. These features are field installable.

FEATURES & BENEFITS
  • (4) Simultaneously Controlled Axes
  • Provision for Coolant through Spindle
  • Spindle Oil Cooler
  • Ballscrew Cooling
  • Y-axis Cooling System
  • Box Type Bed
  • Stepped Layout of X-axis Guide Ways
  • Roller Type Guide Way
  • Pallet and Chip Wash
  • Chip Conveyor – LNS-Turbo MH500
  • Spiral Augers
  • Tool life Management
  • AICC1
  • 1280 meter / 512 kB Memory
  • Helical Interpolation
  • Macro Programming
OPTIONS
  • 19.7” x 19.7” (500mm) Pallets
  • 6 or 8 Pallet APC or Single Pallet
  • 20,000 rpm Spindle w/ Chiller
  • High Pressure Coolant Through Spindle ( 150Bar)
  • X, Y, and Z Scales Automatic Tool Length Measurement and Breakage Detection
  • 200 Bar Overhead Hydraulic Arm Including an Eight (8) Port Rotary Joint at the Center and 2 Four (4) Port Rotary Joints for Each Pallet (without hydraulic unit)
