Yasda YBM 640V

cnc machine qoute

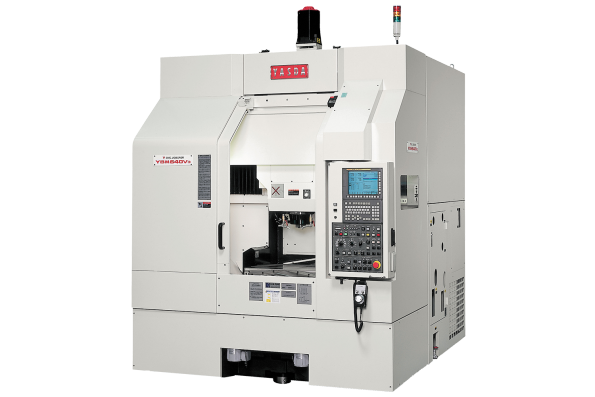

Yasda YBM640V

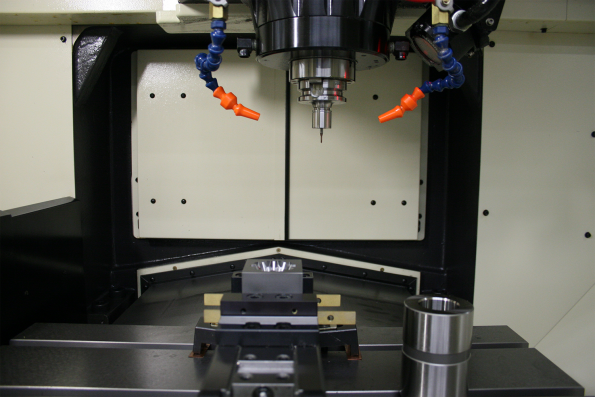

Yasda YBM640V Internal

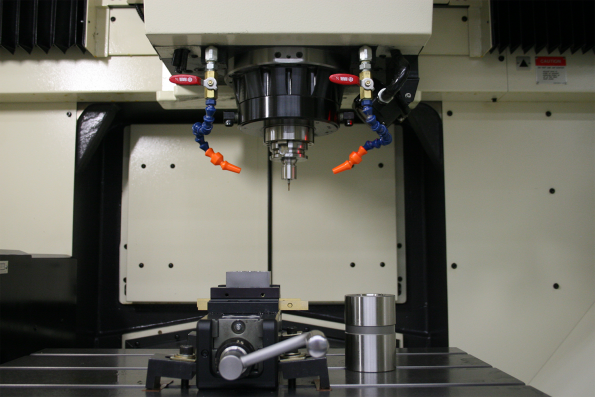

Yasda YBM640V Internal

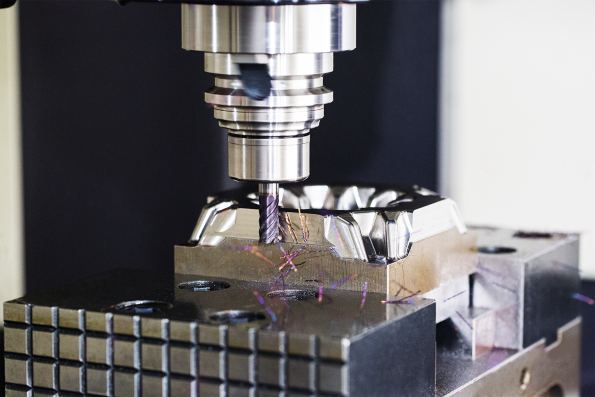

Yasda YBM640V Internal

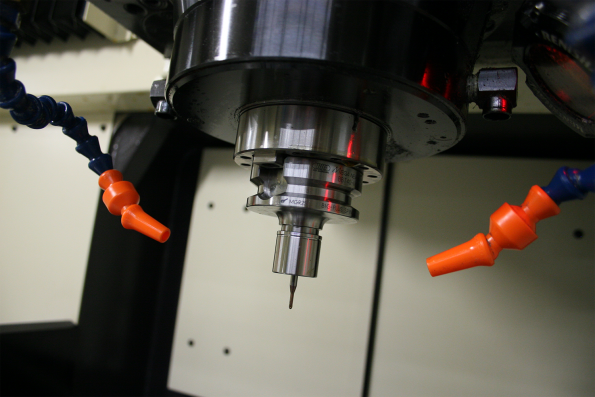

Yasda YBM640V Internal
Roll over image to zoom in
Click to open expanded view

Compare Yasda YBM 640V with other machines in its class , ,

In stock

Specifications

Travel X-axis travel (Longitudinal movement of spindle head) 600mm
Y-axis travel (Cross movement of table) 400mm
Z-axis travel (Vertical movement of spindle head) 350mm
Table Table working surface 700x450mm
Table loading capacity 300kg
Spindle The highest revolving speed 24000min-1[30000min-1]
Spindle taper hole 7/24 taper,No.40(BT40)
Automatic tool changer Tool storage capacity 30 tools[40 and 60]
APC/PLS The number of palettes [2nd page] / [5th page]
NC equipment FANUC 31i -MODEL B5
Categories: , ,

The YASDA CNC Jig Borer YBM-640 offers ultimate accuracy in boring and milling. With high speed, high accuracy machining capabilities, high precision mold and die making is now a simple task.

FEATURES & BENEFITS
  • Direct Drive Self-adjusting Spindle Preload
  • Through Hardened (HR60) Box Guide Ways
  • Optical Scale Feedback on X/Y/Z Axis
  • Symmetrical Bridge Structure
  • 3 Point Machine Base
  • Thermal Distortion Stabilization
  • Space Saving Footprint
  • Curvic Coupling for Pallet Clamping
  • Rigid Machine Structure for Machining Various Material Types
  • Optical Scale Feedback for Precise Positioning
  • Probing Systems
OPTIONS
  • Automatic Pallet Changer
  • Up to 5 Preload Stations
  • FANUC Functions
