OKK VM-X53R 250B

cnc machine qoute

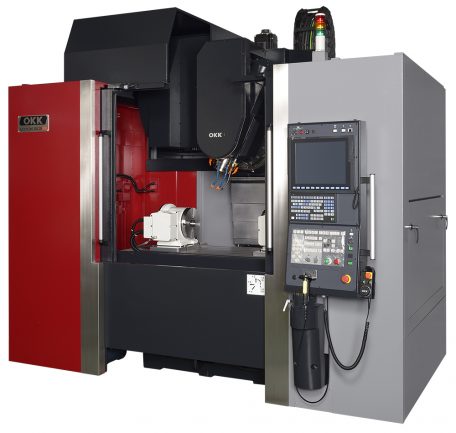

OKK VM-X53R

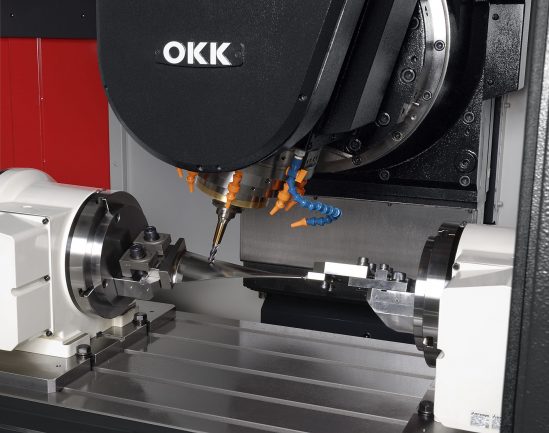

OKK VM-X53R internal
Roll over image to zoom in
Click to open expanded view

Compare OKK VM-X53R 250B with other machines in its class , ,

In stock

Main Specification
X Axis Travel 820mm (32.28″)
Y Axis Travel 320mm (12.60″)+130mm /set up stroke(5.12″)
Z Axis Travel 510mm (20.08″)
A Axis Travel 360 deg
B Axis Travel +60 ~ -60 deg
Rapid Tranverse Rate XY: 30m/min-1 (1181ipm) Z: 20m/min-1 (787 ipm)
Spindle Speeds 100 ~ 12000 min-1
Spindle Motor 30 / 22HP
Table Size 250 (9.84″)
Spindle Taper No.40
Controller Type FANUC 31-iB5
Cutting Feed Rate XYZ: 1 ~ 20,000 mm/min-1 (0.04 ~ 787 ipm) A: 100 min-1 B: 30 min-1
Categories: , ,


Ideal for Turbine Blades and More. Finish complicated undercut root work piece in one holding with the swivel B-axis. The VM-X53R/250B has no Backlash due to a B-axis swivel spindle head driven by a roller gear and A-axis direct drive rotary table.

The VM/R series increased rigidity of the main body and the spindle to provide even higher cutting performance. Its feed axes utilize highly rigid and acurate box-ways like conventional machines. This enables machining of not only general parts but also parts made of difficult-to-cut materials such as titanium. The main body design delivers heavy and accurate machining in an ergonomic friendly design.

FEATURES & BENEFITS
  • Expanded working area
  • Improved accessibility
  • Increased main body rigidity
  • Core chilled ball screws
  • Double anchored support system
  • Space saving design for economical use of floor space
  • Coil-type chip conveyor
