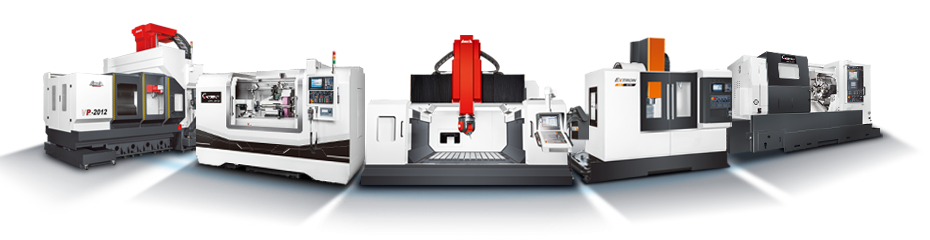

Machine Line-Up


Established in the year 2000, Yama Seiki USA belongs to The Goodway Machine Tool Group, which includes Goodway Machine Corp. and Awea Mechantronic Co. With over 55 years of combined experience in manufacturing high quality machine tools within their own field of expertise, Awea for milling since 1986 and Goodway for turning since 1975. Together, we produce over 2,500 CNC turning and machining centers of various sizes annually for the world market and is steadily growing at 20~30% per year. Yama Seiki USA unites the Goodway and Awea products together to form one of the most extensive machine tool lines the market has to offer, and is dedicated to serve the North American market.

YAMA SEIKI

  • Specifications

    Description Unit GTH2000
    CAPACITY Swing Over the Bed mm(in) Ø600 (23.6″)
    Max. Turning Dia. mm(in) Ø 300 mm ( Ø 11.8″ )
    Std. Turning Length mm(in) Ø 260 mm ( Ø 10.2″ )
    Max. Turning Lenght mm(in) Ø 205 mm ( 8.1″ )
    SPINDLE Chuck Size in 10″
    Spindle Bore mm(in) Ø 66 mm ( Ø 2.6″ )
    Spindle Speed (rpm) r/min 24 ~ 4,000 rpm
    Motor (Max/Cont.) kW(HP) 11 / 15 kW ( 15 / 20 HP )
    Torque (Max/Cont.) N.m 70/47.7(51.6/35.2) [69/57.3(50.8/42.2)]
    Spindle Type Direct Belt Drive
    Spindle Nose A2-6
    FEED Travel (X/Z) mm(in) 195 / 220 mm ( 7.7″ / 8.6″ )
    Rapid Travel (X/Z) m/min 24 m/min. ( 945 IPM )
    Feed rates 0~ 500 mm/min. ( 0 ~ 19.7 IPM )
    X / Z axes servo motor AC 1.6 kW ( 2 HP ) / AC 3 kW ( 4 HP )
    X / Z axes ball screw Ø / pitch Ø 32 x P8 mm ( Ø 1.2″ x P8 )
    X / Z axes thrust ( cont. ) 644 / 958 Kgf ( 1,420 / 2,112 lbf )
    Slide Type Box way
    TURRET No. of Tool EA 12
    Tool Size OD mm(in) Ø25 (1″)
    ID   mm(in) Ø40 (1.6″)
    Indexing drive FANUC AC Servo motor
    Indexing speed 0.2 sec. ( Adjacnt ) / 0.5 sec. ( 180˚ Single step )
    TANK CAPACITY Coolant Tank ℓ(gal) 160 L ( 42.3 gal )
    Lubricating Tank ℓ(gal) 30 L ( 7.9 gal )
    POWER SUPPLY Electric Power Supply kVA 65 kVA
    Thickness of Power Cable
    Voltage V/Hz 220/60 (200/50)
    MACHINE Floor Space (L×W) mm 4,840 x 2,155
    in 190.6″ x 84.9″
    Height mm(in) 3,450 (135.9″)
    Weight kg(lb) 6,800 Kg ( 14,992 lb )
    NC Controller FANUC Oi -TF ( Opt. 31i )
  • Specification

    CNC controller Oi-TD w/ 8.4″ Color LCD
    Swing 38.58″
    Maximum Cutting Diameter 34.64″
    Maximum Turning Length 32.67″
    Travel X axis 19.68″
    Travel Z axis 38.58″
    Guide Ways Boxed on X Linear For Z Boxed
    Spindle Nose A2 – 11
    Max Bar Work Diameter 4.56″
    Spindle Speed 2,000 RPM
    Rapid Traverse X axis 788 ipm
    Rapid Traverse Z axis 945 ipm
    Turret 12 Staion W/ Live Tooling
    Live Tool Max. Speed 3,000 RPM
    Live Tool Power 10 HP (cont.)
    Tool Size (Square Shank) 1.25″x1.25″
    Tool Size (Round shank) 2.25″
    Index Time (1 station/1 full rev) .3 sec
    Chuck 18″ 3-Jaw Hyd.
    Tail Stock Quill Diameter 4.33″
    Tail Stock Quill Travel (Programmable) 5.9″
    Tail Stock Body Travel 31.49″
    Tail Stock Quill Internal Taper MT #6
    Gear Box 2 Speed
    Horsepower(30min./Peak) 50/60 HP
    Torque 2,048 Ft/lbs (30 min.)
    Weight 26,450 lbs
    Bed 45 deg



    $99,000.00
  • AF-1460

    Specifications

    Models AF-1460
    X-axis travel mm (inch) 1,400 ( 55.1 )
    Y-axis travel mm (inch) 620 ( 24.4 )
    Z-axis travel mm (inch) 620 ( 24.4 )
    Distance from spindle nose
    to table center
    mm (inch) 790 ( 31.1 )
    Distance between columns mm (inch) 100 ~ 720
    ( 3.93 ~ 28.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,500 ( 59.1 )
    Table size ( Y direction ) mm (inch) 620 ( 24.4 )
    Table load capacity kg (lb) 1,000 ( 2,200 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 48 ( 1,890 )
    Z-axis rapids feed rate m/min. (IPM) 36 ( 1,418 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 300 ( 11.8 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty
    mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 35
    Coolant tank capacity liter (gal) 480 ( 126.7 )
    Machine weight kg (lbs) 8,200 ( 18,040 )

    Specifications are subject to change without notice.

  • af1000

    Specifications

    Models AF-1000
    X-axis travel mm (inch) 1,020 ( 40.1 )
    Y-axis travel mm (inch) 550 ( 21.6 )
    Z-axis travel mm (inch) 550 ( 21.6 )
    Distance from spindle nose
    to table center
    mm (inch) 610 ( 23.9 )
    Distance between columns mm (inch) 100 ~ 735
    ( 3.93 ~ 28.9 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,200( 47.2 )
    Table size ( Y direction ) mm (inch) 550 ( 21.6 )
    Table load capacity kg (lb) 700 ( 1,540 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 36 ( 1,418 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 250 ( 9.84 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty
    mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 30
    Coolant tank capacity liter (gal) 350 ( 92.4 )
    Machine weight kg (lbs) 7,000 ( 15,400 )

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • AF-1060

    Specifications

    Models AF-1060
    X-axis travel mm (inch) 1,060 ( 41.7 )
    Y-axis travel mm (inch) 600 ( 23.6 )
    Z-axis travel mm (inch) 600 ( 23.6 )
    Distance from spindle nose
    to table center
    mm (inch) 800 ( 31.4 )
    Distance between columns mm (inch) 100 ~ 700
    ( 3.93 ~ 27.5 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,200 ( 47.2 )
    Table size ( Y direction ) mm (inch) 600 ( 23.6 )
    Table load capacity kg (lb) 700 ( 1,540 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 36 ( 1,418 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 250 ( 9.84 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty
    mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 30
    Coolant tank capacity liter (gal) 400 ( 105.6 )
    Machine weight kg (lbs) 7,000 ( 15,400 )

    Specifications are subject to change without notice.

  • af1250

    Specifications

    Models AF-1250
    X-axis travel mm (inch) 1,250 ( 49.2 )
    Y-axis travel mm (inch) 620 ( 24.4 )
    Z-axis travel mm (inch) 620 ( 24.4 )
    Distance from spindle nose
    to table center
    mm (inch) 790 ( 31.1 )
    Distance between columns mm (inch) 100 ~ 720
    ( 3.93 ~ 28.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,350 ( 53.1 )
    Table size ( Y direction ) mm (inch) 620 ( 24.4 )
    Table load capacity kg (lb) 1,000 ( 2,200 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 48 ( 1,890 )
    Z-axis rapids feed rate m/min. (IPM) 36 ( 1,418 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 300 ( 11.8 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty
    mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 35
    Coolant tank capacity liter (gal) 460 ( 121.4 )
    Machine weight kg (lbs) 8,000 ( 17,600 )

    Specifications are subject to change without notice.

  • AF-1400

    Specifications

    Models AF-1400
    X-axis travel mm (inch) 1,400 ( 55.1 )
    Y-axis travel mm (inch) 800 ( 31.4 )
    Z-axis travel mm (inch) 800 ( 31.4 )
    Distance from spindle nose
    to table center
    mm (inch) 963 ( 37.9 )
    Distance between columns mm (inch) 200 ~ 1,000 ( 7.87 ~ 39.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,500 ( 59.1 )
    Table size ( Y direction ) mm (inch) 800 ( 31.4 )
    Table load capacity kg (lb) 1,200 ( 2,640 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 11 ( 15 HP ) / 15 ( 20 HP )
    Spindle speed rpm Direct-driven 8,000
    Spindle taper BT50
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 30 (1,180 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 350 ( 13.7 )
    Max. tool weight kg (lb) 15 ( 33 )
    Max. tool diameter /
    adj. pocket empty
    mm (inch) Ø 127 ( 5.00 ) / Ø 200 ( 7.87 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.012 ( 0.00047 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008 ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 40
    Coolant tank capacity liter (gal) 505 ( 133.3 )
    Machine weight kg (lbs) 14,000 ( 30,800 )

    Specifications are subject to change without notice.

  • AF-1600

    Specifications

    Models AF-1600
    X-axis travel mm (inch) 1,600 ( 62.9 )
    Y-axis travel mm (inch) 800 ( 31.4 )
    Z-axis travel mm (inch) 800 ( 31.4 )
    Distance from spindle nose
    to table center
    mm (inch) 963 ( 37.9 )
    Distance between columns mm (inch) 200 ~ 1,000 ( 7.87 ~ 39.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,700 ( 66.9 )
    Table size ( Y direction ) mm (inch) 800 ( 31.4 )
    Table load capacity kg (lb) 1,500 ( 3,300 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 11 ( 15 HP ) / 15 ( 20 HP )
    Spindle speed rpm Direct-driven 8,000
    Spindle taper BT50
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 30 (1,180 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 350 ( 13.7 )
    Max. tool weight kg (lb) 15 ( 33 )
    Max. tool diameter /
    adj. pocket empty
    mm (inch) Ø 127 ( 5.00 ) / Ø 200 ( 7.87 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.012 ( 0.00047 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008 ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 40
    Coolant tank capacity liter (gal) 518 ( 136.7 )
    Machine weight kg (lbs) 16,000 ( 35,200 )

    Specifications are subject to change without notice.

  • AF-1800

    Specifications

    Models AF-1800
    X-axis travel mm (inch) 1,800 ( 70.8 )
    Y-axis travel mm (inch) 800 ( 31.4 )
    Z-axis travel mm (inch) 800 ( 31.4 )
    Distance from spindle nose
    to table center
    mm (inch) 963 ( 37.9 )
    Distance between columns mm (inch) 200 ~ 1,000 ( 7.87 ~ 39.3 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 1,900 ( 74.8 )
    Table size ( Y direction ) mm (inch) 800 ( 31.4 )
    Table load capacity kg (lb) 1,800 ( 3,960 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 11 ( 15 HP ) / 15 ( 20 HP )
    Spindle speed rpm Direct-driven 8,000
    Spindle taper BT50
    FEED RATE
    X / Y axes rapid feed rate m/min. (IPM) 30 (1,180 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 350 ( 13.7 )
    Max. tool weight kg (lb) 15 ( 33 )
    Max. tool diameter /
    adj. pocket empty
    mm (inch) Ø 127 ( 5.00 ) / Ø 200 ( 7.87 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.012 ( 0.00047 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.008 ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 40
    Coolant tank capacity liter (gal) 600 ( 158.4 )
    Machine weight kg (lbs) 18,000 ( 39,600 )

    Specifications are subject to change without notice.

  • Specifications

    AF-510 series Description CAT30 CAT40
    X/Y/Z Axes



    X-axis travel 510 mm ( 20.07″ )
    Y-axis travel 400 mm ( 15.74″ )
    Z-axis travel 330 mm ( 12.99″ )
    Distance from spindle nose to column 473 mm ( 18.62″ )
    Distance from spindle nose to table center 100 ~ 430 mm ( 3.93″ ~ 16.92″ )
    X / Y / Z axes rapid feed rate 50 m/min. ( 60 m/min. Opt. )
    ( 1,950 IPM ( 2,350 IPM Opt. )
    Cutting feed rate 20 m/min. ( 787 IPM )
    Table Table size ( X x Y ) 610 x 400 mm ( 24.01″ x 15.74″ )
    Table load capacity 250 kg ( 550 lb )
    Spindle Spindle taper CAT30 CAT40
    Spindle motor ( cont. / 30 min. ) 3.7 / 5.5 kW ( 5 / 7.4 HP ) 5.5 / 7.5 kW ( 7.4 / 10 HP )
    Spindle speed 12,000 rpm 10,000 rpm
    Tool


    Tool magazine capacity 20 T
    Max. tool length ( from gauge line ) 200 mm ( 7.87″ )
    Max. tool weight 4 kg ( 8.8 lb )
    Max. tool diameter / adj. pocket empty Ø 69 mm / Ø 135 mm
    ( Ø 2.71″ / Ø 5.31″ )
    Accuracy


    Positioning accuracy ( JIS B 6338 ) ± 0.003 mm / 300 mm
    ( ± 0.00012″ / 11.81″ )
    Positioning accuracy ( JIS 6336-2 ) P ≤ 0.01 mm ( P ≤ 0.00039″ )
    Repeatability ( JIS 6336-2 ) ± 0.002 mm ( ± 0.000078″ )
    Repeatability ( VDI 3441 ) Ps ≤ 0.008 mm ( Ps ≤ 0.00031″ )
    General



    Power requirement 15 kVA
    Pneumatic pressure requirement 6 kg/cm2 ( 85.34 PSI )
    Coolant tank capacity ( pump ) 160 liter ( 42.27 gal ) ( 1 HP )
    Machine weight 2,000 kg ( 4,400 lb )
    Machine dimensions ( L x W x H ) 1,600 x 2,310 x 2,330 mm
    ( 62.99″ x 90.94″ x 91.73″ )
    NC Controller FANUC Oi -MD / MITSUBISHI M-70

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Awea-AF-610

    Specifications

    Models AF-610
    X-axis travel mm (inch) 610 ( 23.9 )
    Y-axis travel mm (inch) 450 ( 17.7 )
    Z-axis travel mm (inch) 450 ( 17.7 )
    Distance from spindle nose
    to table center
    mm (inch) 558 ( 21.9 )
    Distance between columns mm (inch) 150 ~ 600
    ( 5.91 ~ 23.6 )
    WORKING TABLE
    Table size ( X direction ) mm (inch) 700 ( 27.5 )
    Table size ( Y direction ) mm (inch) 450 ( 71.7 )
    Table load capacity kg (lb) 450 ( 990 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW (HP) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. ( IPM ) 32 ( 1,260 )
    Z-axis rapids feed rate m/min. (IPM) 24 ( 945 )
    Cutting feed rate m/min. (IPM) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm (inch) 250 ( 9.84 )
    Max. tool weight kg (lb) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty
    mm (inch) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm (inch) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm (inch) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm (inch) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm (inch) Ps = 0.005
    ( Ps = 0.00019 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 (PSI) 6 ( 85 )
    Power requirement kVA 20
    Coolant tank capacity liter (gal) 150 ( 39.6 )
    Machine weight kg (lbs) 3,500 ( 7,700 )

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • af650

    Specifications

    Models AF-650
    X-axis travel mm ( inch ) 650 ( 25.5 )
    Y-axis travel mm ( inch ) 510 ( 20.1 )
    Z-axis travel mm ( inch ) 510 ( 20.1 )
    Distance from spindle nose
    to table center
    mm ( inch ) 600 ( 23.6 )
    Distance between columns mm ( inch ) 100 ~ 610
    ( 3.93 ~ 23.9 )
    WORKING TABLE
    Table size ( X direction ) mm ( inch ) 750 ( 29.5 )
    Table size ( Y direction ) mm ( inch ) 510 ( 20.1 )
    Table load capacity kg ( lb ) 500 ( 1,100 )
    SPINDLE
    Spindle motor ( cont. / 30 min. ) kW ( HP ) 5.5 ( 7.4 HP ) / 7.5 ( 10 HP ) [ 10,000 / 12,000 rpm ]
    7.5 ( 10 HP ) / 11 ( 15 HP ) [ 15,000 rpm ]
    Spindle speed rpm Direct-driven 10,000 / 12,000 / 15,000
    Spindle taper BT40
    FEED RATE
    X / Y axes rapid feed rate m/min. ( IPM ) 32 ( 1,260 )
    Z-axis rapids feed rate m/min. ( IPM ) 24 ( 945 )
    Cutting feed rate m/min. ( IPM ) 1-10 ( 1 ~ 394 )
    TOOL MAGAZINE
    Tool magazine capacity T 24
    Max. tool length mm ( inch ) 250 ( 9.84 )
    Max. tool weight kg ( lb ) 7 ( 15.4 )
    Max. tool diameter /
    adj. pocket empty
    mm ( inch ) Ø 80 ( 3.14 ) / Ø 150 ( 5.91 )
    ACCURACY
    Positioning accuracy ( JIS B 6338 ) mm ( inch ) ± 0.01 ( ± 0.00039 )
    Positioning accuracy ( VDI 3441 ) mm ( inch ) P = 0.01 ( 0.00039 )
    Repeatability ( JIS B 6338 ) mm ( inch ) ± 0.003 ( ± 0.000118 )
    Repeatability ( VDI 3441 ) mm ( inch ) Ps = 0.008
    ( Ps = 0.00031 )
    GENERAL
    Control system FANUC Oi – MF
    Pneumatic pressure requirement kg/cm2 ( PSI ) 6 ( 85 )
    Power requirement kVA 25
    Coolant tank capacity liter ( gal ) 320 ( 84.4 )
    Machine weight kg ( lbs ) 4,200 ( 9,240 )

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.



SHOP BY MACHINE TYPE
