Specifications
| Model | VP-5012HS |
| CAPACITY | |

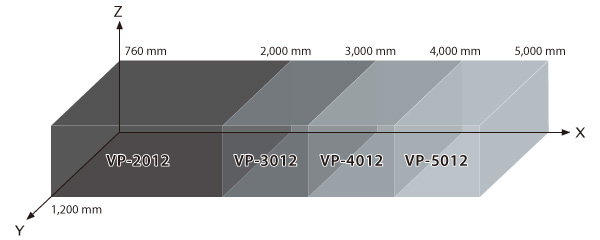

| X-axis travel | 5,000 mm ( 196.8″ ) |
| Y-axis travel | 1,200 mm ( 47.2″ ) |
| Z-axis travel | 760 mm |
| Dist. form spindle nose to table top | 200 ~ 960 mm ( 7.87″ ~ 37.7″ ) |
| Dist. between columns | 1,300 mm ( 51.1″ ) |
| WORKING TABLE | |
| Table size ( X direction ) | 5,000 mm ( 196.8″ ) |
| Table size ( Y direction ) | 1,100 mm ( 43.3″ ) |
| Table load capacity | 8,000 kg ( 17,635 lb ) |
| SPINDLE | |
| Spindle taper | CAT50 |
| Spindle power ( cont. / 30 min. ) | 6 kW (35 HP ) |
| Spindle speed | 10,000 rpm |
| FEED RATE | |
| X-axis rapid feed rate | 8,000 mm/min. ( 315 IPM ) |
| Y-axis rapid feed rate | 20,000 mm/min. ( 787 IPM ) |
| Z-axis rapid feed rate | 20,000 mm/min. ( 787 IPM ) |
| Cutting feed rate | 8,000 mm/min. ( 315 IPM ) |
| TOOL MAGAZINE | |
| Tool magazine capacity | 30 T ( Opt. 40 T ) |
| Max. tool diameter / adj. pocket empty | Ø 125 / 215 mm ( Ø 0.47″ / 8.46″ ) |
| Max. tool length ( from gauge line ) | 350 mm ( 13.7″ ) |
| Max. tool weight | 15 kg ( 33 lb ) |
| ACCURACY | |
| Positioning accuracy ( JIS B 6338 ) | ± 0.010 mm ( ± 0.00039″ ) |
| Positioning accuracy ( VDI 3441 ) | P ≤ 0.04 mm( P ≤ 0.00157″ ) / Full Travel |
| Repeatability ( JIS B 6338 ) | ± 0.003 mm ( 0.0011″ ) |
| Repeatability ( VDI 3441 ) | Ps ≤ 0.03 mm ( P ≤ 0.00118″ ) |
| GENERAL | |
| Power requirement | AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA |
| Pneumatic pressure requirement ( min. ) | 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI ) |
| Lubrication oil tank capacity | 6 liter ( 1.58 gal ) |
| Hydraulic unit tank capacity ( pump ) | 120 liter ( 31.7 gal ), [ 10 HP ] |
| Machine weight | 28,000 kg ( 61,730 lb ) |
Specifications are subject to change without notice.
