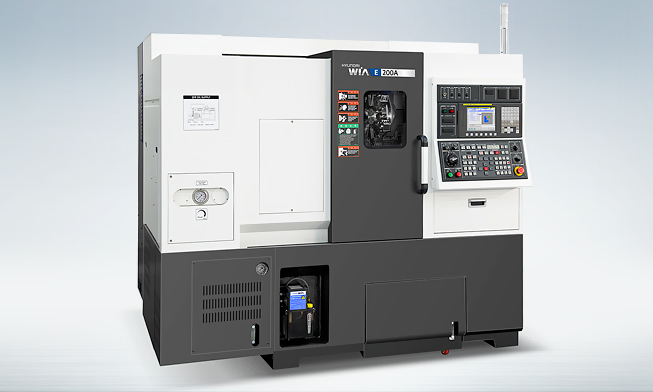

Hyundai Wia E200MA

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

Compare Hyundai Wia E200MA with other machines in its class , , ,

In stock

Description Unit E200MA
Max Turning Dia inch 11.4″
Max Turning Length inch 10″
Chuck Size inch 6″
Driving Method – Belt
Spindle RPM r/min 6,000
Spindle Output hp 14.75/20
Spindle Torque ft.lb 38.7/68.2
Travel(X/Z) inch 8.3″ / 13″
Rapid Travel(X/Z) in/min 1,417/1,417
Slide Type – LM
No. of Tools EA 12
Tool Size (OD/ID) inch 0.75″/ 1.25″
Milling Tool Speed r/min 4,500

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , , ,

Features

  • 45° slanted one-piece rigid bed structure
  • Minimal thermal distortion
  • Machine structure designed to maximize productivity
  • Best in class rapid traverse rate : 36m/min (E200A/MA/C/MC)
  • The most reliable high speed servo turret : 0.1sec/step
  • Box Guideways to handle heavy cutting (E200PA/PC)
  • Compact design, able to install within a limited space.
  • Ergonomic design allows convenient access to chuck and tool

Specifications (metric)

Description Unit E200A E200MA E200PA
Max Turning Dia mm 350 290 350
Max Turning Length mm 300 255 280
Chuck Size inch 6″ 6″ 6″
Driving Method – Belt Belt Belt
Spindle RPM r/min 6,000 6,000 6,000
Spindle Output kW 11/15 11/15 11/15
Spindle Torque N.m 52.5/92.5 52.5/92.5 52.5/92.5
Travel(X/Z) mm 210/330 210/286 210/330
Rapid Travel(X/Z) m/min 36/36 36/36 24/24
Slide Type – LM LM BOX
No. of Tools EA 12 12 12
Tool Size mm 25/32 20/32 25/32
Milling Tool Speed r/min – 4,500 –

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Description Unit E200A E200MA E200PA
Max Turning Dia inch 13.8″ 11.4″ 13.8″
Max Turning Length inch 11.8″ 10″ 11″
Chuck Size inch 6″
Driving Method – Belt
Spindle RPM r/min 6,000
Spindle Output hp 14.75/20
Spindle Torque ft.lb 38.7/68.2
Travel(X/Z) inch 8.3″ / 13″ 8.3″ / 12.2″
Rapid Travel(X/Z) in/min 1,417/1,417 945/945
Slide Type – LM BOX
No. of Tools EA 12
Tool Size (OD/ID) inch 1″ / 1.25″ 0.75″/ 1.25″ 1″ / 1.25″
Milling Tool Speed r/min – 4,500 –

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
