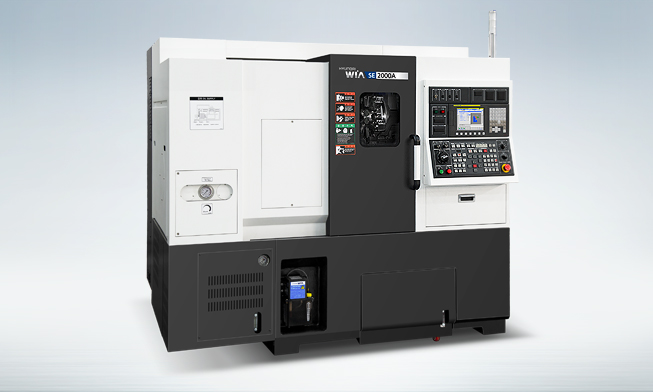

Compare Hyundai Wia SE2000MA with other machines in its class 6 inch, Horizontal Turning Centers, Hyundai Wai, Live Tooling Turret
Specification
| Description | Unit | SE2000MA |
|---|---|---|
| Max Turning Dia | in | 11.4″ |
| Max Turning Length | in | 10″ |
| Chuck Size | in | 6″ |
| Driving Method | – | Belt |
| Spindle RPM | r/min | 6,000 |
| Spindle Output (max/cont.) | hp | 20/15 |
| Spindle Torque (max/cont.) | ft.lbs | 68/38.7 |
| Travel(X/Z) | in | 5.8″/11.26″ |
| Rapid Travel(X/Z) | in/min | 1417/1417 |
| Slide Type | – | LM |
| No. of Tools | EA | 12 |
| Tool Size | in | 1″/1.25″ |
| Milling Tool Speed | r/min | 4,500 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
