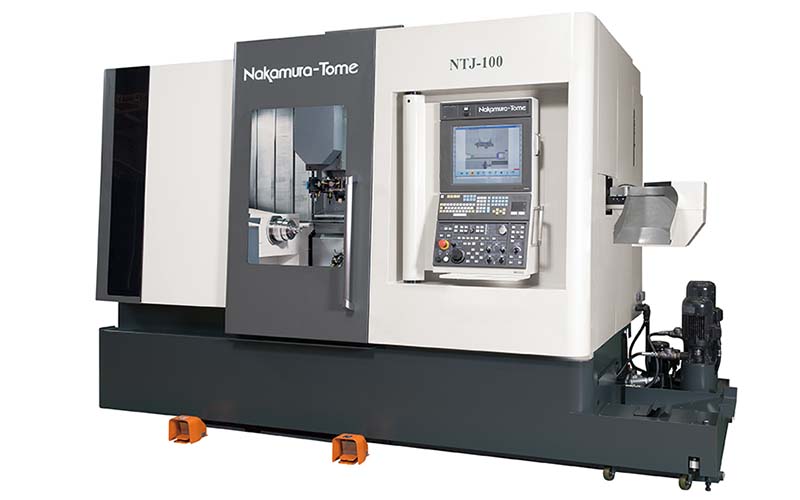

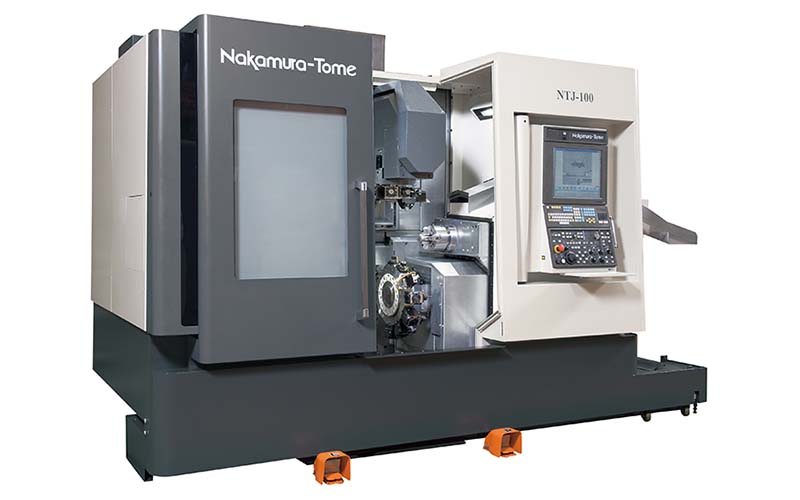

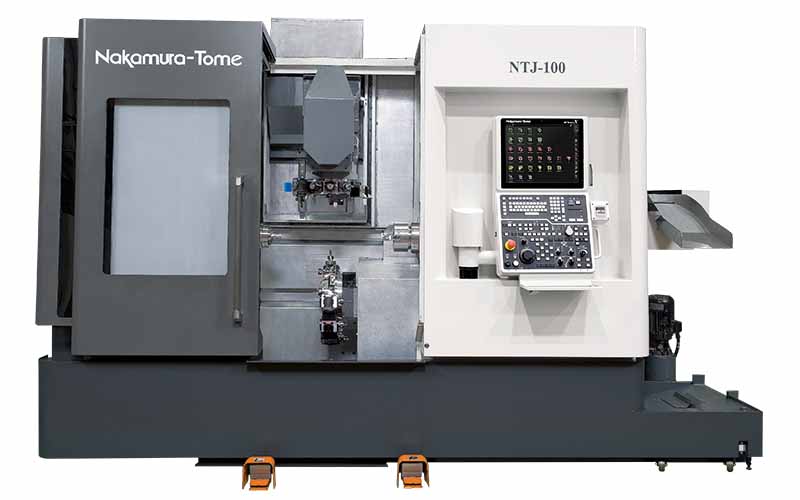

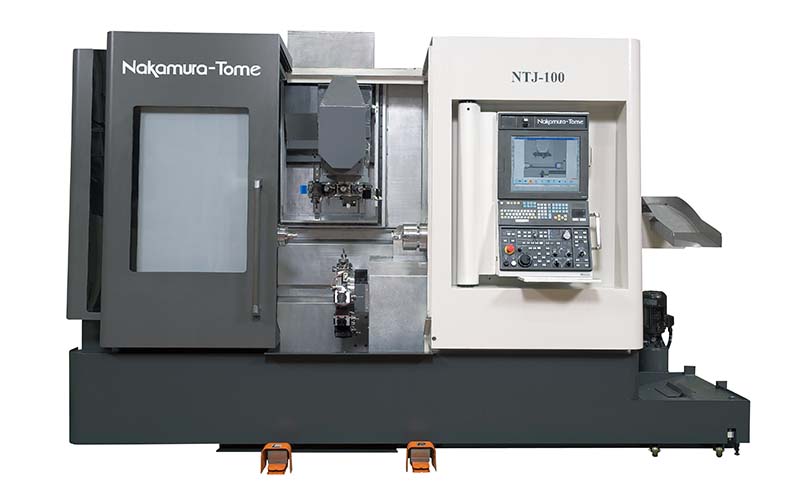

Compare Nakamura NTJ 100 with other machines in its class 6" chuck, Horizontal Turning Centers, Live Tooling & Sub-Spindle, Live Tooling Turret, Nakamura Tome
Specifications:
| φ 2″ | φ2.55″(op.) | |||
|---|---|---|---|---|
| Capacity | ||||
| Max. turning diameter/Max. turning length | 6.9″ / 26.7″ | |||
| Distance between spindle nose | max. 36″ / min. 7.87″ | |||
| Bar capacity | 2″ | 2.55″ | ||
| Chuck size | 6″ (165mm) | |||
| Axis travel | ||||
| Slide travel X1/X2 | 13″ / 5″ | 13″ / 5″ | ||
| Slide travel Z1/Z2/B2 | 40.9″ / 26.7″ / 27.9″ | |||
| Slide travel Y1 / Y2 | 3″ (±1.5″) / 2.55″ (±1.28″) | |||
| Left spindle Right spindle | ||||
| Spindle speed | 5,000min-1 | 4,500min-1(L) | ||
| Left spindle motor (max/cont.) | 15hp/10hp (11/7.5kW) | |||
| Right spindle motor (max/cont.) | 15hp/10hp (11/7.5kW) | |||

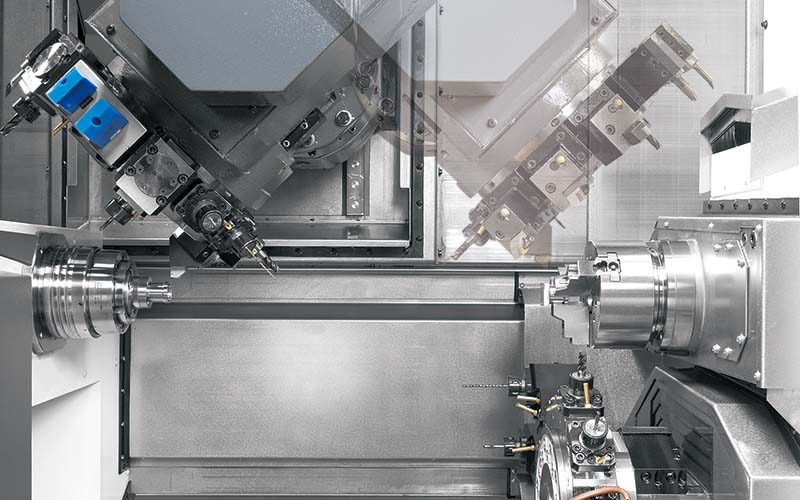

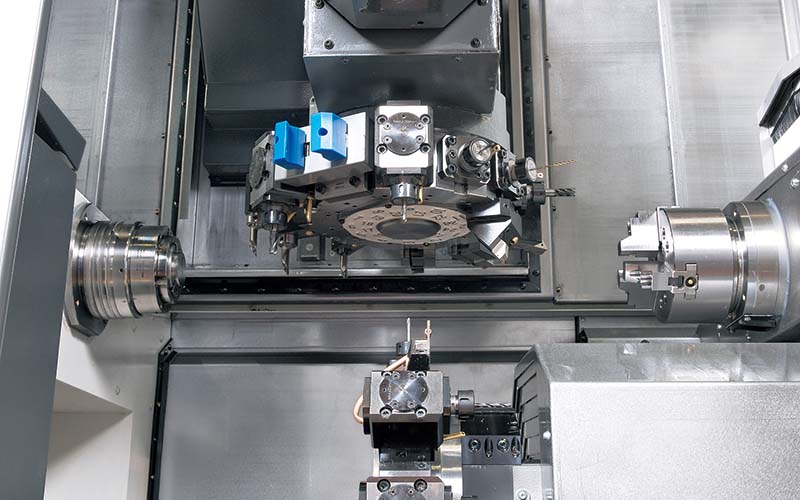

| Upper turret | ||||
| Number of turrets | 1 | |||
| Spindle speed | 6,000min-1 | |||
| Type of turret head/Number of index positions | Dodecagonal/24 | |||
| Driven motor power and torque (max/cont.) | 10hp/3hp (7.1/2.2kW) | |||
| Rotary system/Number of driven-tool stations | Individual rotation/12 | |||
| Least index angle increment | 5° | |||
| B-axis positioning range | 182°（±91°） | |||
| Lower turret | ||||
| Number of turrets | 1 | |||
| Spindle speed | 6,000min-1 | |||
| Type of turret head/Number of index positions | Dodecagonal/24 | |||
| Driven motor power and torque | 7.1/2.2kW | |||
| Rotary system/Number of driven-tool stations | Individual rotation/12 | |||
| General | ||||
| Floor space （L×W） | 150″ × 83″ | |||
| Machine height | 101″ | |||
| Machine weight | 10,000kg | |||
