Specifications
| Description | Unit | KIT250 | |
| CAPACITY | Swing Over the Bed | in | 12.6″ |
| Max. Turning Dia. | in | 6.3″ | |
| Max. Turning Length | in | 5.9″ | |
| Bar Capacity | in | 1.3″ | |
| SPINDLE | Chuck Size | in | 5.3″ |
| Spindle Bore | in | 1.65″ | |
| Spindle Speed (rpm) | r/min | 50~7,000 | |
| Motor (Max/Cont.) | kW(HP) | 5.5/3.7 (7.4/5) | |
| Torque (Max/Cont.) | ft.lb | 35.4/23.9 | |
| Spindle Type | – | BELT | |
| Spindle Nose | – | FLAT ø110 | |
| FEED | Travel (X/Z) | in | 9.8″/7.9″ |
| Rapid Travel (X/Z) | in/min | 945/1181 | |

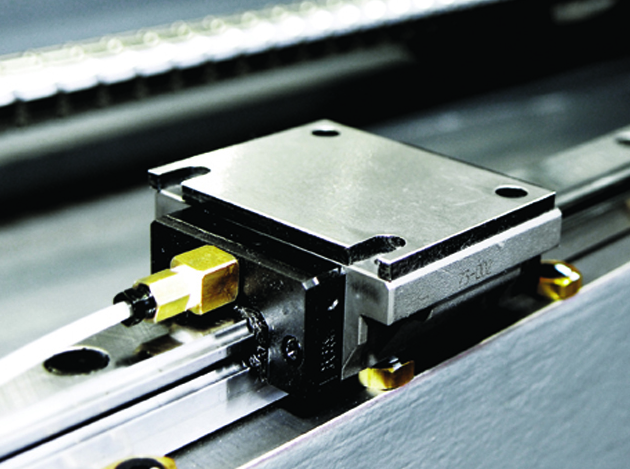

| Slide Type | – | LM GUIDE | |

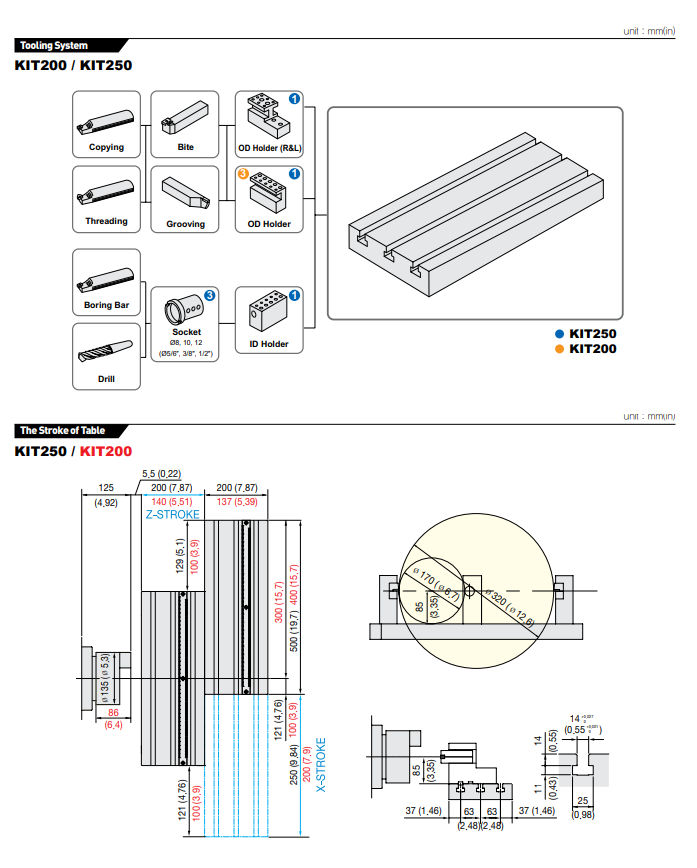

| BLOCK TOOL | No. of Tool | EA | 4 |
| Tool Size | OD in | 1″ | |
| ID in | 1″ | ||
| TANK CAPACITY | Coolant Tank | ℓ(gel) | 95 (25.1) |
| Lubricating Tank | ℓ(gel) | 1.8 (0.48) | |
| POWER SUPPLY | Electric Power Supply | kVA | 20 |
| Thickness of Power Cable | Sq | OVER 16 | |
| Voltage | V/Hz | 220/60 (200/50) | |

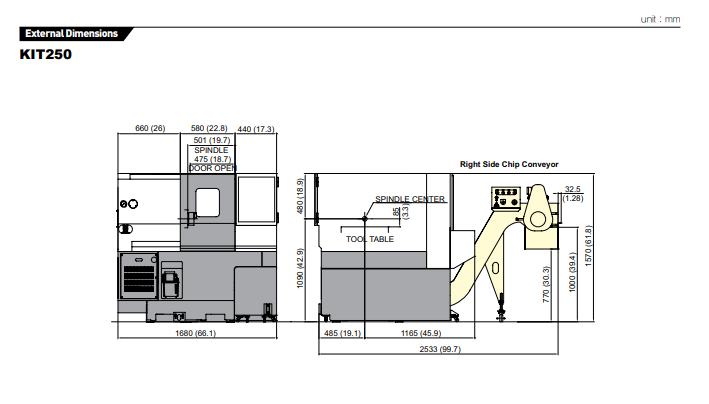

| MACHINE | Floor Space (L×W) | in | 66″×66″ |
| in | 66.1″×66.8″ | ||
| Height | in | 61.8″ | |
| Weight | kg(lb) | 1,900 (4,189) | |
| NC | Controller | HYUNDAI WIA FANUC i Series |
