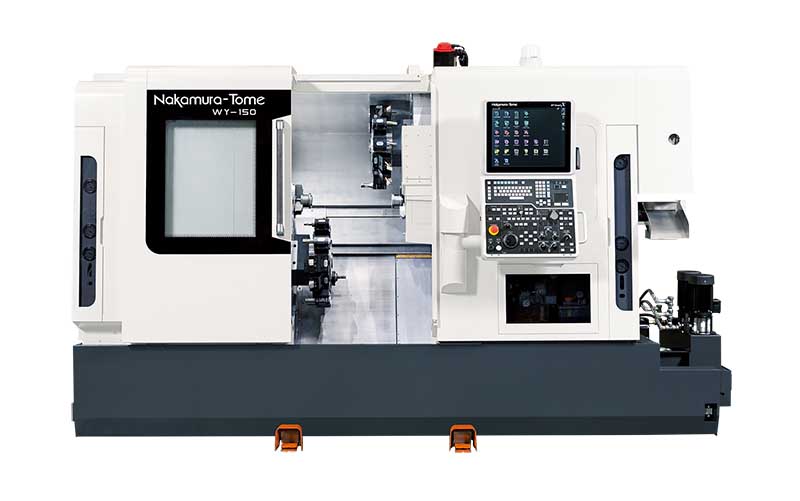

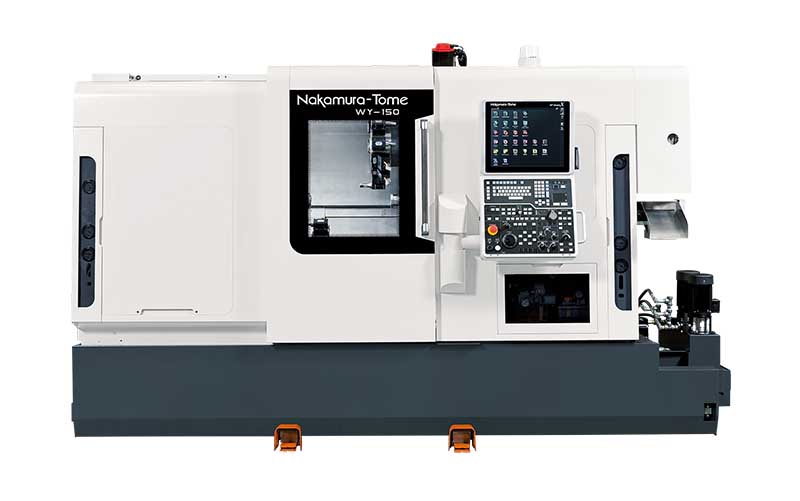

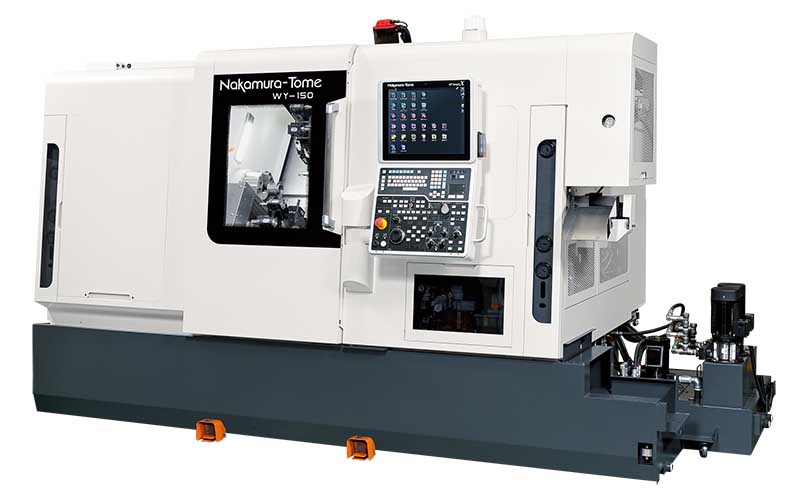

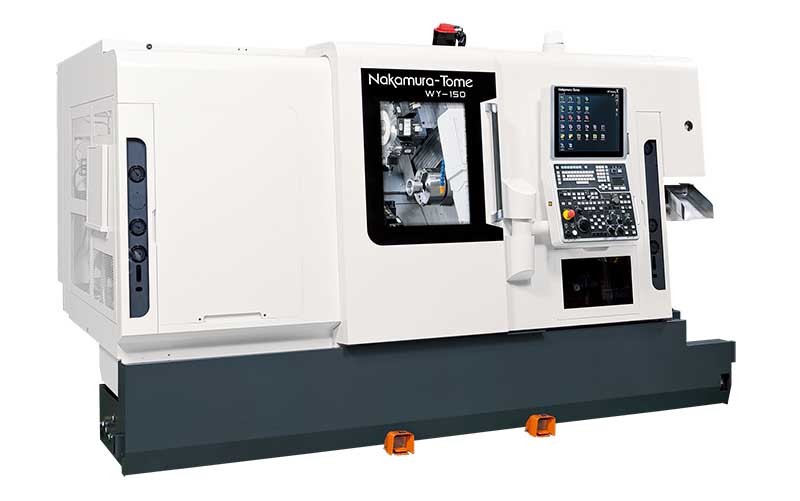

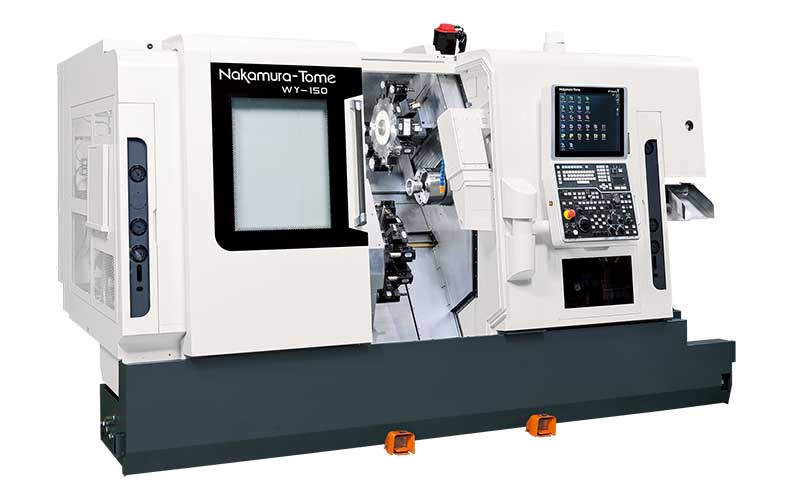

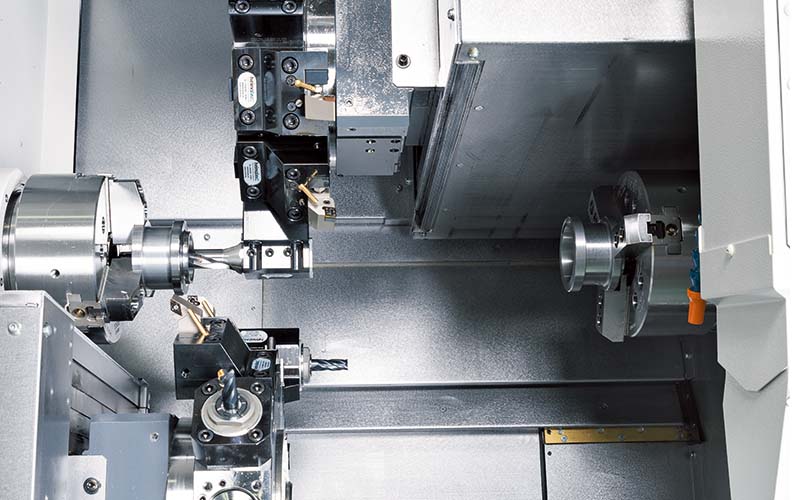

Compare Nakamura Tome WY150 with other machines in its class 6" chuck, Horizontal Turning Centers, Live Tooling & Sub-Spindle, Live Tooling Turret, Nakamura Tome
Specifications:
| φ 2″ | φ2.56 | |||
|---|---|---|---|---|
| Capacity | ||||
| Max. turning diameter | 8.88″ | |||
| Max. turning length | 22.25″ | |||
| Distance between spindle nose | max. 33.44″ – min. 7.88″ | |||
| Bar capacity | 2″ | 2.56″ | ||
| Chuck size | 6″ (165mm) | |||
| Axis travel | ||||
| Slide travel X1/X2 | 6.31″ | 6.31″ | |||
| Slide travel Z1/Z2/B | 22.25″ | 22.25″ | 25.63″ | |||
| Slide travel Y1/Y2 | ± 1.78″ | ± 1.38″ | |||
| Left spindle Right spindle | ||||
| Spindle speed | 5,000min-1 | 4,500min-1(L) | ||
| Left spindle motor | 20/15hp | |||
| Right spindle motor | 15/10hp | |||
| Turret | ||||
| Number of turrets | 2 | |||
| Spindle speed | 6,000min-1 | |||
| Type of turret head/Number of index positions | Dodecagonal/24 | |||
| Driven motor power and torque | 7.5/5hp | |||
| Rotary system/Number of driven-tool stations | Individual rotation/12 | |||
| General | ||||
| Floor space （L×W×H） | 150″ × 87″ × 87″ | |||
| Machine weight | 10,000kg | |||
