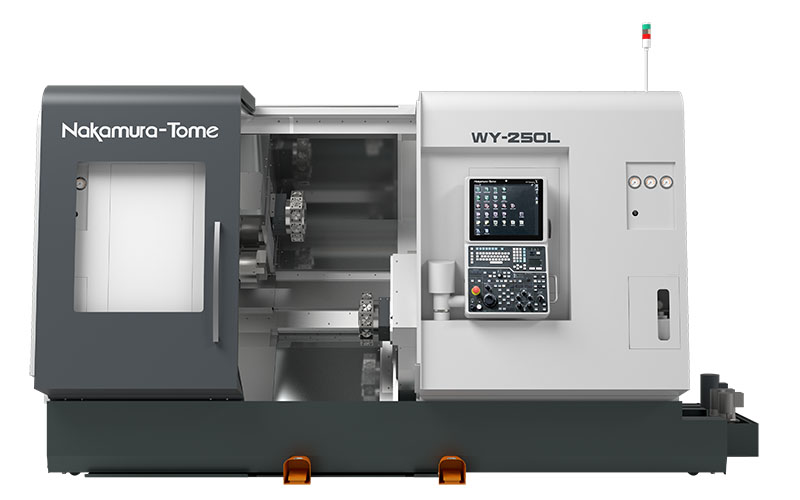

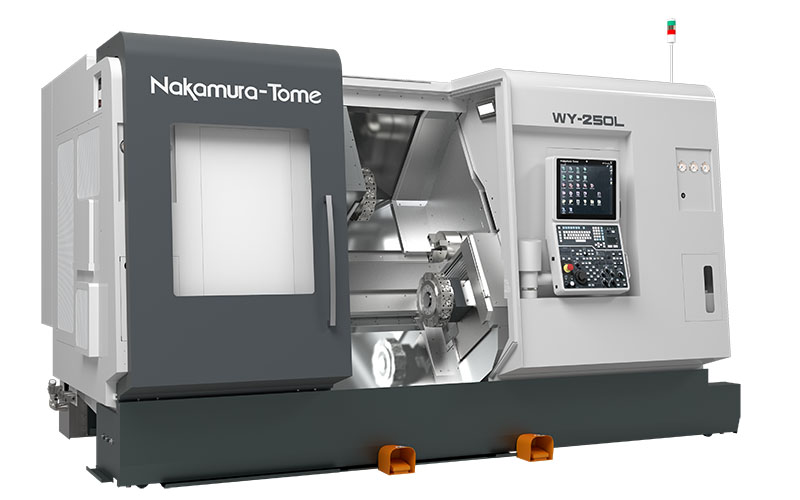

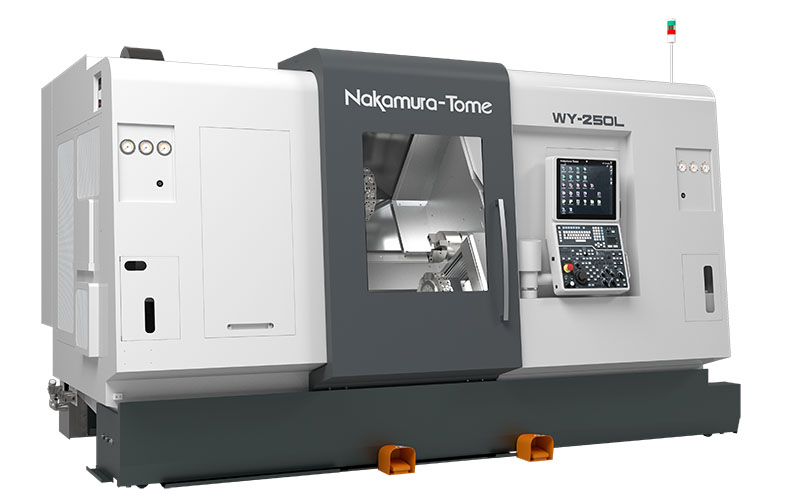

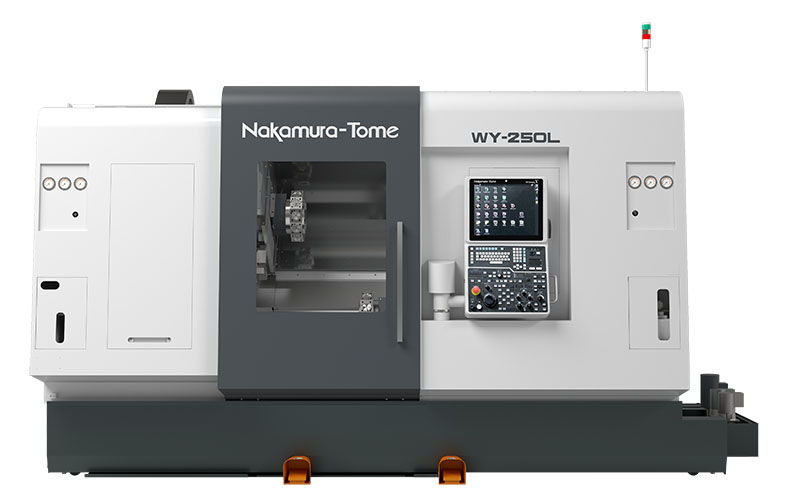

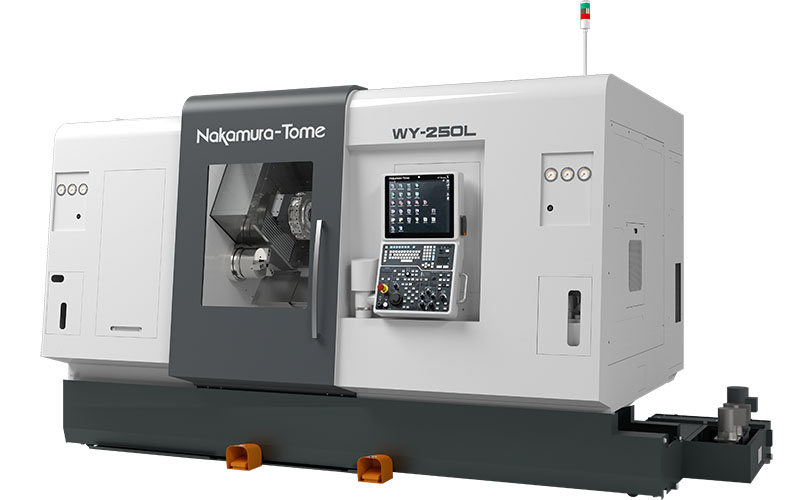

Compare Nakamura Tome WY250L with other machines in its class 6" chuck, Horizontal Turning Centers, Live Tooling & Sub-Spindle, Live Tooling Turret, Nakamura Tome
Specifications:
| φ 2″ | φ 2.56″ | |||
|---|---|---|---|---|
| Capacity | ||||
| Max. turning diameter/Max. turning length | 8.88″ | 35.84″ | |||
| Distance between spindle nose | max: 47.25″ | min. 10″ | |||
| Bar capacity | 2″ | 2.56″ | ||
| Chuck size | 6″ | 8″ | ||
| Axis travel | ||||
| Slide travel X1/X2 | 6″ / 6″ | |||
| Slide travel Z1/Z2/B2 | 35.84″ | 35.84″ | 37.22″ | |||
| Slide travel Y1 / Y2 | ± 2″ | ±0.78″ | |||
| Left spindle Right spindle | ||||
| Spindle speed | 5,000min-1 | 4,500min-1(L) | ||
| Left spindle motor (max/cont.) | 25/15hp | |||
| Right spindle motor (max/cont.) | 20/15hp | |||
| Upper turret | ||||
| Number of turrets | 1 | |||
| Spindle speed | 6,000min-1 | |||
| Type of turret head/Number of index positions | Dodecagonal/24 | |||
| Driven motor power (max/cont.) | 7.5hp / 5hp | |||
| Rotary system/Number of driven-tool stations | Individual rotation/12 | |||
| Lower turret | ||||
| Number of turrets | 1 | |||
| Spindle speed | 6,000min-1 | |||
| Type of turret head/Number of index positions | Dodecagonal/24 | |||
| Driven motor power (max/cont.) | 7.5hp / 5hp | |||
| Rotary system/Number of driven-tool stations | Individual rotation/12 | |||
| General | ||||
| Floor space （L×W） | 193″ × 102″ | |||
| Machine height | 95″ | |||
| Machine weight | 13,000kg | |||
