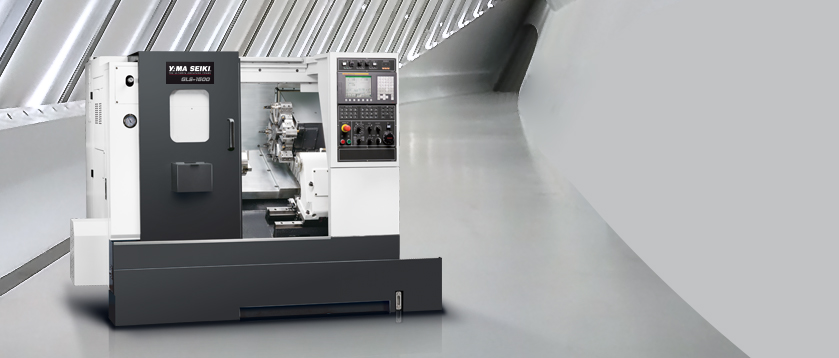

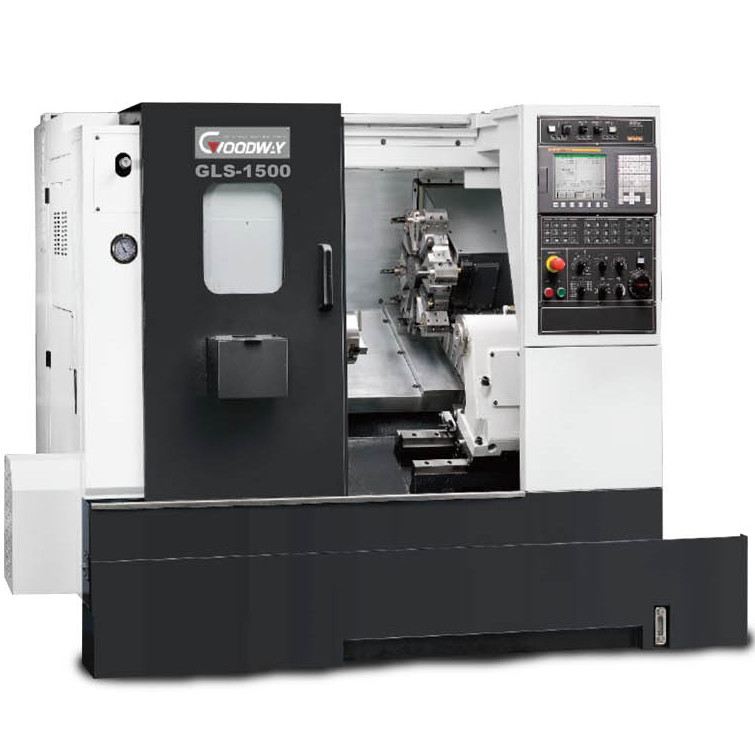

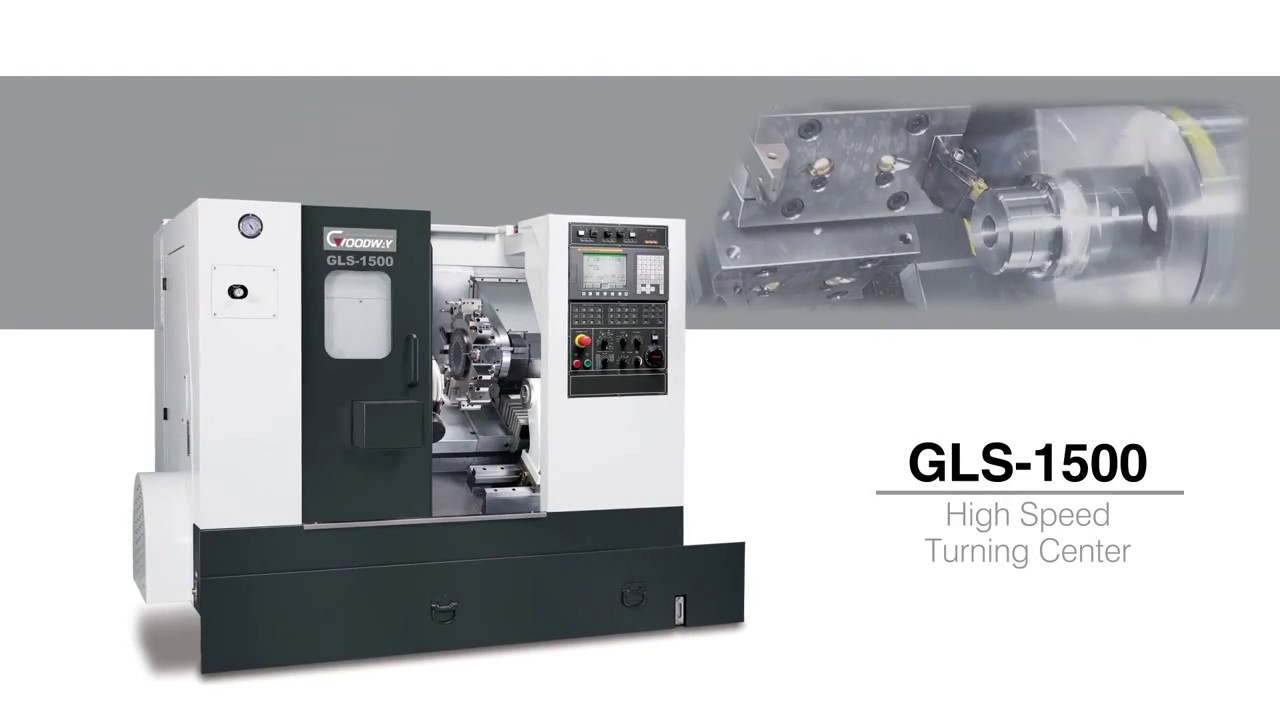

Compare Yama Seiki GLS-1500(L) with other machines in its class 6 inch-12, Horizontal Turning Centers, Standard Turret-121, Yama Seiki-1
Specifications
| Description | Unit | GLS-1500 L | |
| CAPACITY | Max. / Swing over saddle | mm(in) | 230 mm (9″) |
| Max. Turning Diameter | mm(in) | 390 mm (15.35″) | |
| Max. Turning Length | mm(in) | 330 mm (13″) | |
| Bar Capacity | mm(in) | 51 mm (2″) | |
| SPINDLE | Chuck Size | (in) | (6″) |
| Hole through spindle | mm(in) | 61mm (2.4″) | |
| Spindle Speed (rpm) | rpm | 6,000 | |
| Motor output ( cont. / 30 min.) | Hp / kW | 15 (11kW) | |
| Motor (Max/Cont.) | kW(HP) | ||
| Torque (Max/Cont.) | N.m | ||
| Spindle Type | – | Direct Belt Drive | |
| Spindle Nose | – | A2-5 | |
| FEED | Travel (X/Z) | mm(in) | (230mm (90″) (330mm (13″) |
| Rapid Travel (X/Z) | m/min | 30 m/min | |

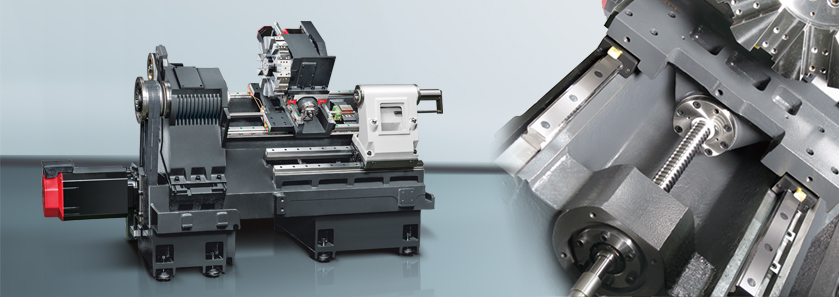

| Slide Type | – | Linear Guide Way | |
| X-axis servo motor | HP (KW) | 3.6 HP ( 2.7 kW) | |
| Z-axis servo motor | HP (KW) | 3.6 HP ( 2.7 kW) | |

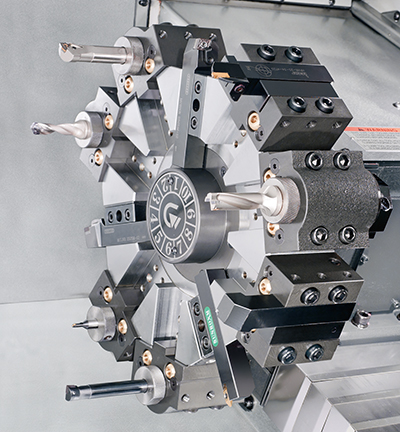

| BLOCK TOOL | No. of Tool / Stations | T | 12 |
| Tool Size | OD mm(in) | 25mm (1″) | |
| ID mm(in) | 40mm (1″) | ||
| TANK CAPACITY | Coolant Tank | Gallon / litre | 26 gal (100L) |
| Lubricating Tank | ℓ(gel) | ||
| POWER SUPPLY | Electric Power Supply | kVA | 200 |
| Thickness of Power Cable | Sq | ||
| Voltage | V/Hz | ||
| MACHINE | Dimensions (L×WxH) |
mm(in) | 86″ x 62″ x 67″ ( 2,174 x 1,550 x 1,680 mm ) |
| Weight | kg(lb) | 3,000 kg (6,600lb) | |
| NC | Controller | FANUC Oi-TF |
