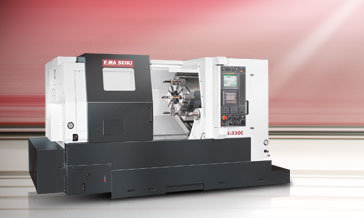

Compare Yama Seiki GS-3300M(L) with other machines in its class 12 inch-12, Horizontal Turning Centers, Live Tooling Turret-124, Yama Seiki-1
Specifications
| Description | Unit | GS-3300ML | |
| CAPACITY | Max. / Swing over saddle | mm(in) | 800 mm (31.49″) |
| Max. Turning Diameter | mm(in) | 570 mm (22.44″) | |
| Max. Turning Length | mm(in) | 780 mm (30.69″) | |
| Bar Capacity | mm(in) | 90 mm (3.54’) | |
| SPINDLE | Chuck Size | (in) | (12″) |
| Hole through spindle | mm(in) | 101mm (3.97”) | |
| Spindle Speed (rpm) | rpm | 3,000 rpm | |
| Motor output ( cont. / 30 min.) | Hp / kW | 18.5 / 22 kW ( 25 / 30 HP ) | |
| Motor (Max/Cont.) | kW(HP) | ||
| Torque (Max/Cont.) | N.m | ||
| Spindle Type | – | Belt-Drive | |
| Spindle Nose | – | A2-8 | |
| FEED | Travel (X/Z) | mm(in) | 300 mm(11.81”) / 780mm (30.69”) |
| Rapid Travel (X/Z) | m/min | 30m/min | |
| Slide Type | – | Hardened & Ground Box Ways | |
| X-axis servo motor | HP (KW) | 3.6 HP(2.7 kW) | |
| Z-axis servo motor | HP (KW) | 6 HP (4.5 kW) | |
| BLOCK TOOL | No. of Tool / Stations | T | 12 |
| Tool Size | OD mm(in) | 25mm(1”) | |
| ID mm(in) | 40mm(1”) | ||
| TANK CAPACITY | Coolant Tank | Gallon / litre | 80 gal. (300L) |
| Lubricating Tank | ℓ(gel) | ||
| POWER SUPPLY | Electric Power Supply | kVA | 40 kVA |
| Thickness of Power Cable | Sq | ||
| Voltage | V/Hz | ||
| MACHINE | Dimensions (L×WxH) |
mm(in) | 3,550 × 2,120 × 1,800 ( 139.76″ x 83.46″ x 70.86″) |
| Weight | kg(lb) | 6,500 kg ( 14,330 lb ) | |
| NC | Controller | FANUC Oi-TD |
