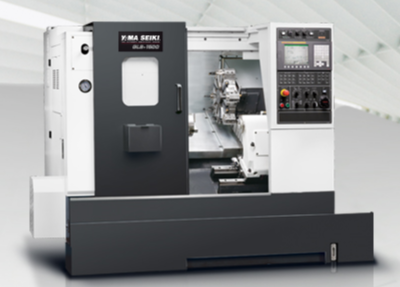

Compare Yama Seiki GLS-1500LM with other machines in its class 6 inch-12, Horizontal Turning Centers, Live Tooling & Sub-Spindle-121, Live Tooling Turret-121, Yama Seiki-1
Specifications
| Description | Unit | GS-1500LM | |
| CAPACITY | Max. / Swing over saddle | mm(in) | 559 mm (22″) |
| Max. Turning Diameter | mm(in) | 429mm (16.9″) | |
| Max. Turning Length | mm(in) | 610 mm (24″) | |
| Bar Capacity | mm(in) | 45 mm (1.77’) | |
| SPINDLE | Chuck Size | (in) | (6″) |
| Hole through spindle | mm(in) | 61 mm (2.4″) | |
| Spindle Speed (rpm) | rpm | 6,000 rpm | |
| Motor output ( cont. / 30 min.) | Hp / kW | 15 / 20 HP ( 11 / 15 kW ) | |
| Motor (Max/Cont.) | kW(HP) | ||
| Torque (Max/Cont.) | N.m | ||
| Spindle Type | – | Direct Belt Drive | |
| Spindle Nose | – | A2-5 | |
| FEED | Travel (X/Z) | mm(in) | 230mm (90’) / 330mm (13’) |
| Rapid Travel (X/Z) | m/min | 30 m/min | |
| Slide Type | – | Linear Guide Way | |
| X-axis servo motor | HP (KW) | 3.6 HP (2.7 kW) | |
| Z-axis servo motor | HP (KW) | 3.6 HP (2.7 kW) | |
| BLOCK TOOL | No. of Tool / Stations | T | 12 |
| Tool Size | OD mm(in) | 25 mm (1”) | |
| ID mm(in) | 40mm (1”) | ||

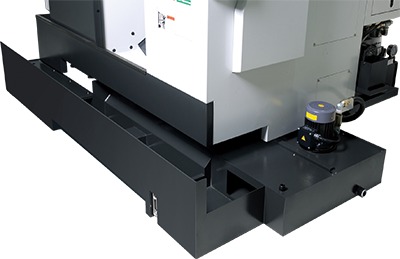

| TANK CAPACITY | Coolant Tank | Gallon / litre | 26 gal (100L) |
| Lubricating Tank | ℓ(gel) | ||
| POWER SUPPLY | Electric Power Supply | kVA | 20 kVA |
| Thickness of Power Cable | Sq | ||
| Voltage | V/Hz | ||
| MACHINE | Dimensions (L×WxH) |
mm(in) | 86″ x 62″ x 67″ ( 2,174 x 1,550 x 1,680 mm ) |
| Weight | kg(lb) | 6,600 lb ( 3,000 kg ) | |
| NC | Controller | FANUC Oi-TF |
