Nakamura Tome Super NTX(W)

cnc machine qoute
Nakamura Tome SuperNTX
Nakamura Tome SuperNTX
Nakamura Tome SuperNTX
Nakamura Tome SuperNTX
Nakamura Tome SuperNTX
Nakamura Tome SuperNTX
Nakamura Tome SuperNTX
Nakamura Tome SuperNTX
Nakamura Tome SuperNTX
Roll over image to zoom in
Click to open expanded view

Compare Nakamura Tome Super NTX(W) with other machines in its class , ,

In stock

Specifications:

Capacity
Swing Over Slide Cover ø 17.4 (440) in (mm)
Max Turning Diameter 15.4 (390) (lower turret) in (mm)
Max Turning Length 43.3 (1100) in (mm)
Bar Capacity L-Spindle 3.6 in ( 90) in (mm)
Bar Capacity R-Spindle 2.5 (65 ) in (mm)
Chuck size 8.0″ (203mm) / 10″ (254mm)
Axis travel
Slide travel (Y) 6.3 (160) (±3.2 (80)) in (mm)
Rapid feed (Y) 630 (16) in/min (m/min)
Slide Travel (B2-axis) 45.3 (1150) in (mm)
Rapid Feed (B2 Axis) 1063 (27) in/min (m/min)
LEFT SPINDLE
Spindle Speed 2500 rpm
Spindle Speed Range Stepless
Spindle Nose A2-8
Hole Through Draw Tube 3.5 in in (mm)
RIGHT SPINDLE
Spindle speed 4500 rpm
Spindle Speed Range Stepless
Spindle Nose A2-6
Hole Through Draw Tube 2.5 in
C-AXIS
Least Input Increment 1E-3 degree
TURRET
Number of Tool Stations 12 x 2
Number of Indexing Positions 12x 2
TOOL SPINDLE
Spindle Speed 8000 12000 (op.) rpm
Tool Shank Type CaptoC6
Number of Tool Stock 24 (op. 40, 80, 120)
Max Tool Diameter/without Adjacent Tool 3.6 (90) / 4.7 (120) in (mm)
Max Tool Weight 11.8 (300) / 17.7 (8) in (mm)/ lbs (kg)
ATC Time (tool to tool) 1.5 sec
TOOL SPINDLE B1-AXIS
Swiveling Range
Clamp Function Curvic coupling (5 degree) Brake (0.001 degree)
DRIVE MOTOR POWER
Main Spindle 30 HP
Right Spindle 30
Driven Tool Spindle 7.5 HP
ROTATING TOOL
Rotary System Individual rotation
Spindle Speed 3600 rpm
Number of Rotation Tool Station 12
General
Machine weight 46,298 (21,000) lbs (kg)
Categories: , ,

nakamura tome logo

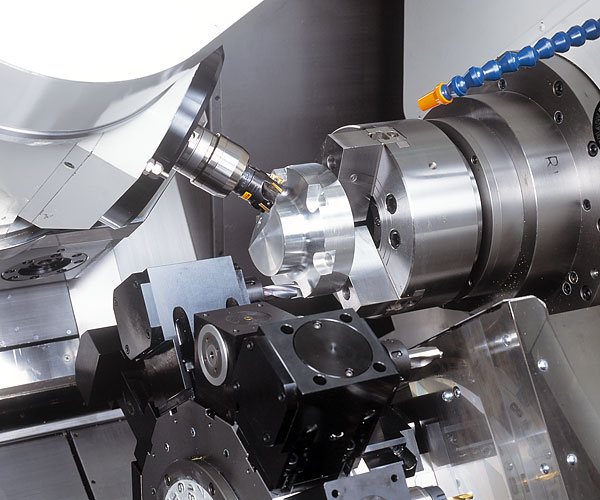

The Super NTX with its tool spindle on the upper side, and two turrets on the lower side, is a machine featuring the ultimate in multi-tasking technology. By featuring two opposite chucks on the left and right hand sides, coupled with high precision part transfer from the left to right hand chuck, all-face simultaneous complete machining in one single chucking becomes a reality.

In addition to the high-rigidity turrets featuring the latest servo technology and having a tool-to-tool time of 1.5 seconds, the ATC unit is exhibiting a superior tool changing speed. By using the two lower turrets during the ATC tool change, idle time is reduced even further. The Super NTX provides the latest in high-speed and multi-tasking for production.

FEATURES & BENEFITS
  • Tool Magazines on the Left and Right Hand Sides
  • Distance Between Centers Max. 38.5 in
  • 8.0 in Y-axis Stroke (Tool Spindle)
  • 12,000min-1 Milling Speed (Tool Spindle)
  • 10 / 5 HP Built-in Tool Spindle Motor
  • 9.5 / 3 HP Lower Turrets Driven-tool Motor
  • 230 degree B-axis Positioning Range (±115 degree)
OPTIONS
  • 40/80/120 ATC
  • 6.2 in Y-axis Stroke (Tool spindle)
  • 12,000 min-1 Milling Speed (Tool spindle)
  • 25 HP Built-in tool Spindle Motor
  • 30/20 HP Built-in Spindle Motor (L,R)
  • 7.5/5 HP Lower Turrets Driven-tool Motor
  • 230 degree B-axis Positioning Range (±115 degree)
