2015 HYUNDAI WIA L300LC TURNING CENTER ( Installed 2017 )

Compare 2015 HYUNDAI WIA L300LC TURNING CENTER ( Installed 2017 ) with other machines in its class ,

In stock

JUST ARRIVED-  HYUNDAI WIA L300LC TURNING CENTER

Built 2015  installed 2016 Hyundai WIA L300LC Manual Guide I

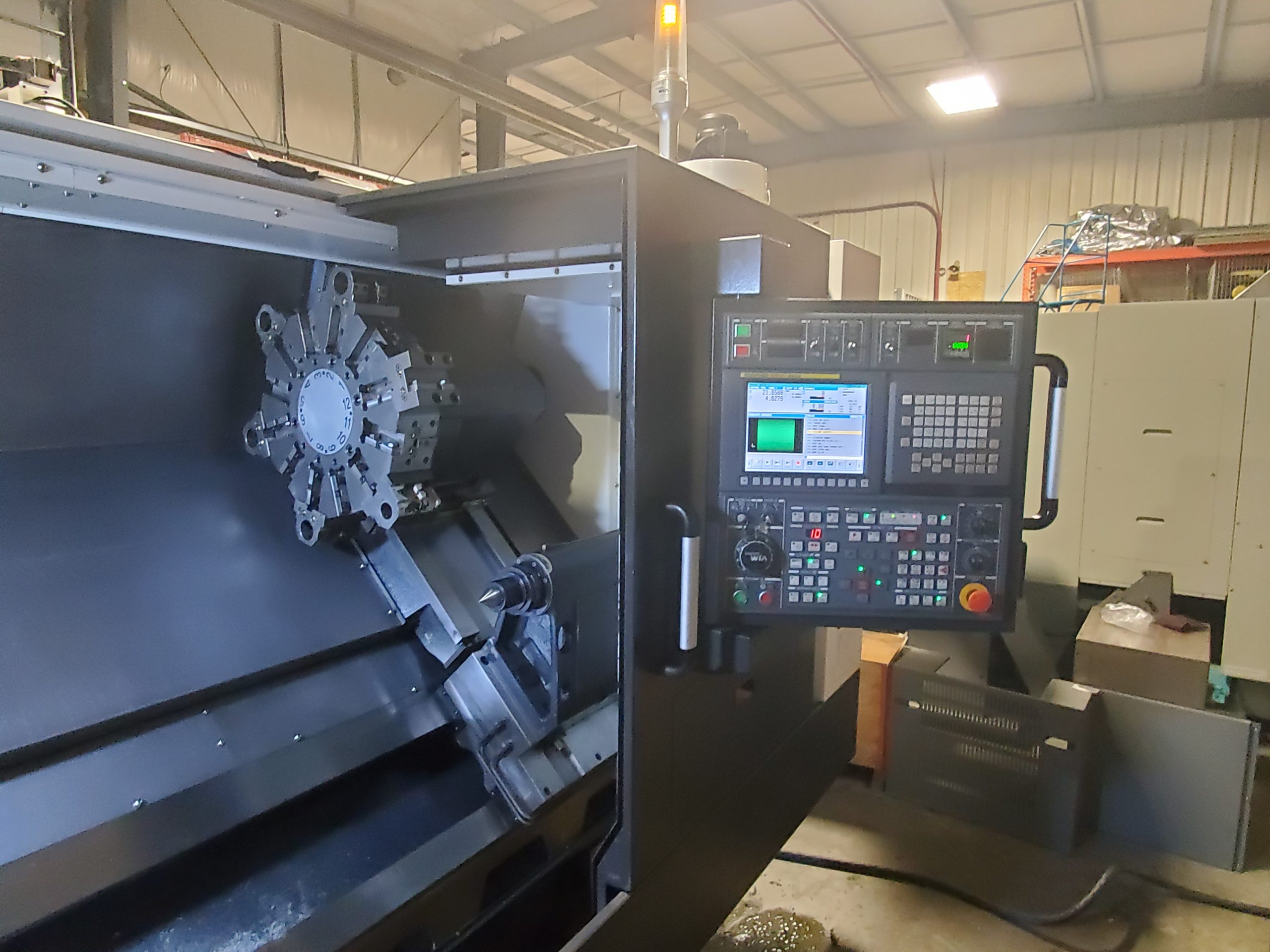

Controller Fanuc 0i-TD 10.4″
Swing 29.5″
Maximum Cutting Diameter 22″
Maximum Workpiece Length 52″
Travel X Axis 14″
Travel Z Axis 53.1″
Ways Boxed
Spindle A2 – 8
Max Bar Work Diameter 3.54″
Spindle Bore 4.02″
Max RPM 3,000 rpm
Rapid Traverse X Axis 787 ipm
Rapid Traverse Z Axis 945 ipm

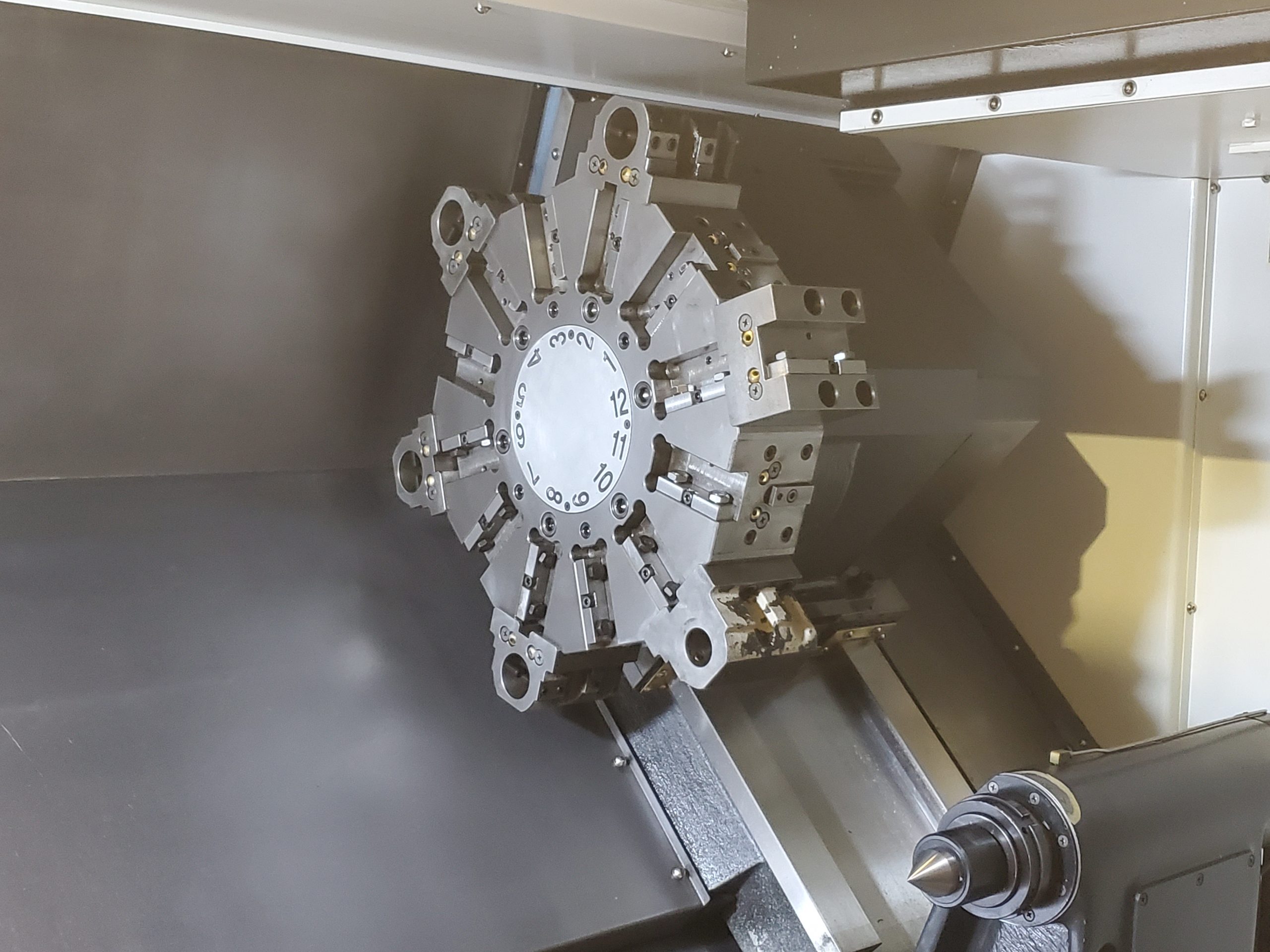

Turret 12 Tools
Tool Size  (Square Shank) 1″ sq
Tool Size  (Round Shank) 2″
Index Time – Tool to Next Tool .3 sec

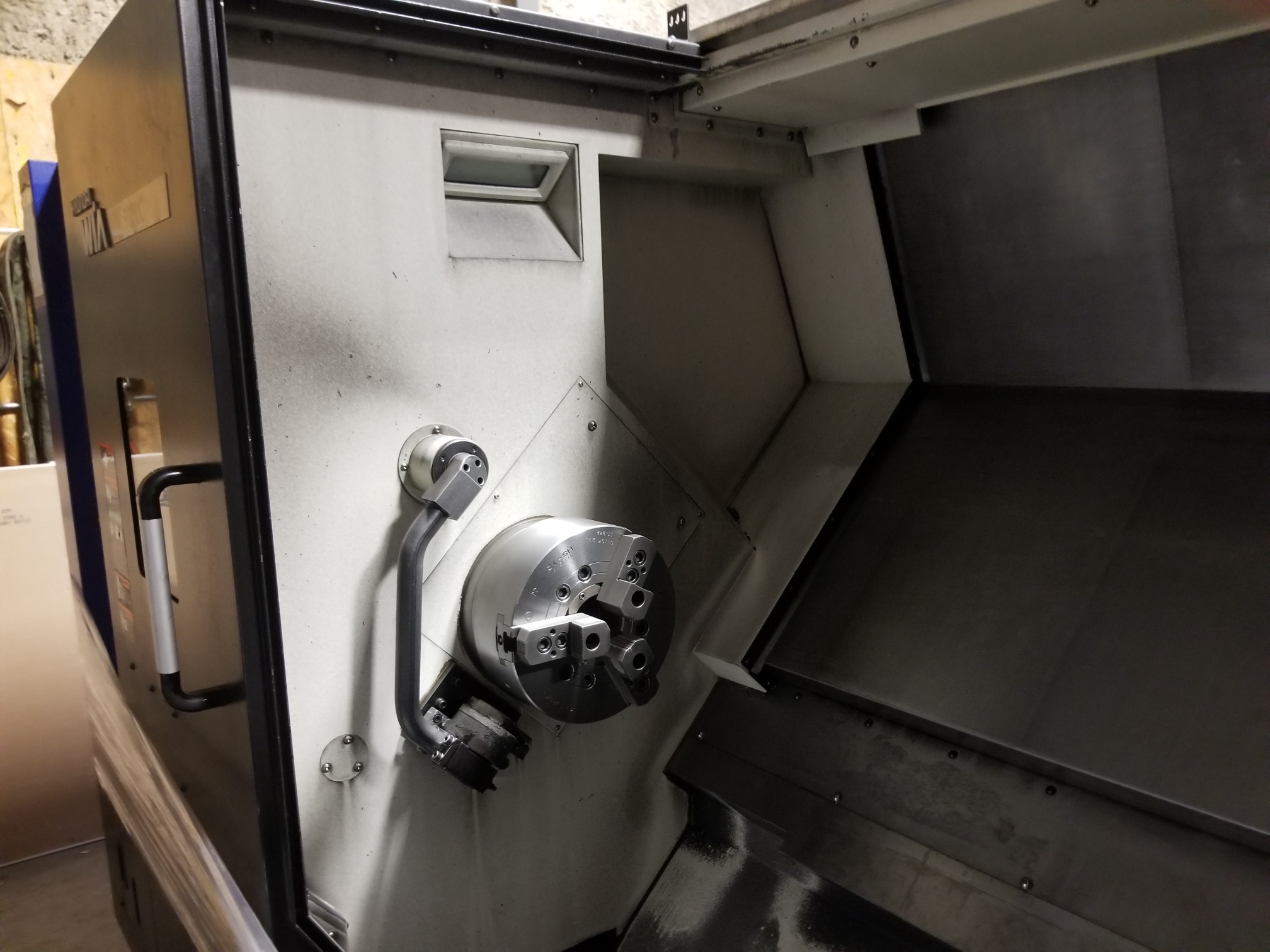

Chuck ( Samwoo Kitagawa ) 12″
Horsepower 35 HP
Geared Head 2 Step Geared
Torque 810 Ft-lbs
Work Light Yes
Weight 16,755 lbs
Bed 45 deg
Coolant System 43 psi
Tool Setter Yes
Tailstock Quill Diameter 3.9″
Tailstock Quill Travel  (Programmable) 4.7″
Tailstock Body Travel using Turret manual clap 53.1″
Tailstock Quill Internal Taper MT #5
Optional Equipment
Chip Conveyor C/C(Right-Side Hinged)
